Description:

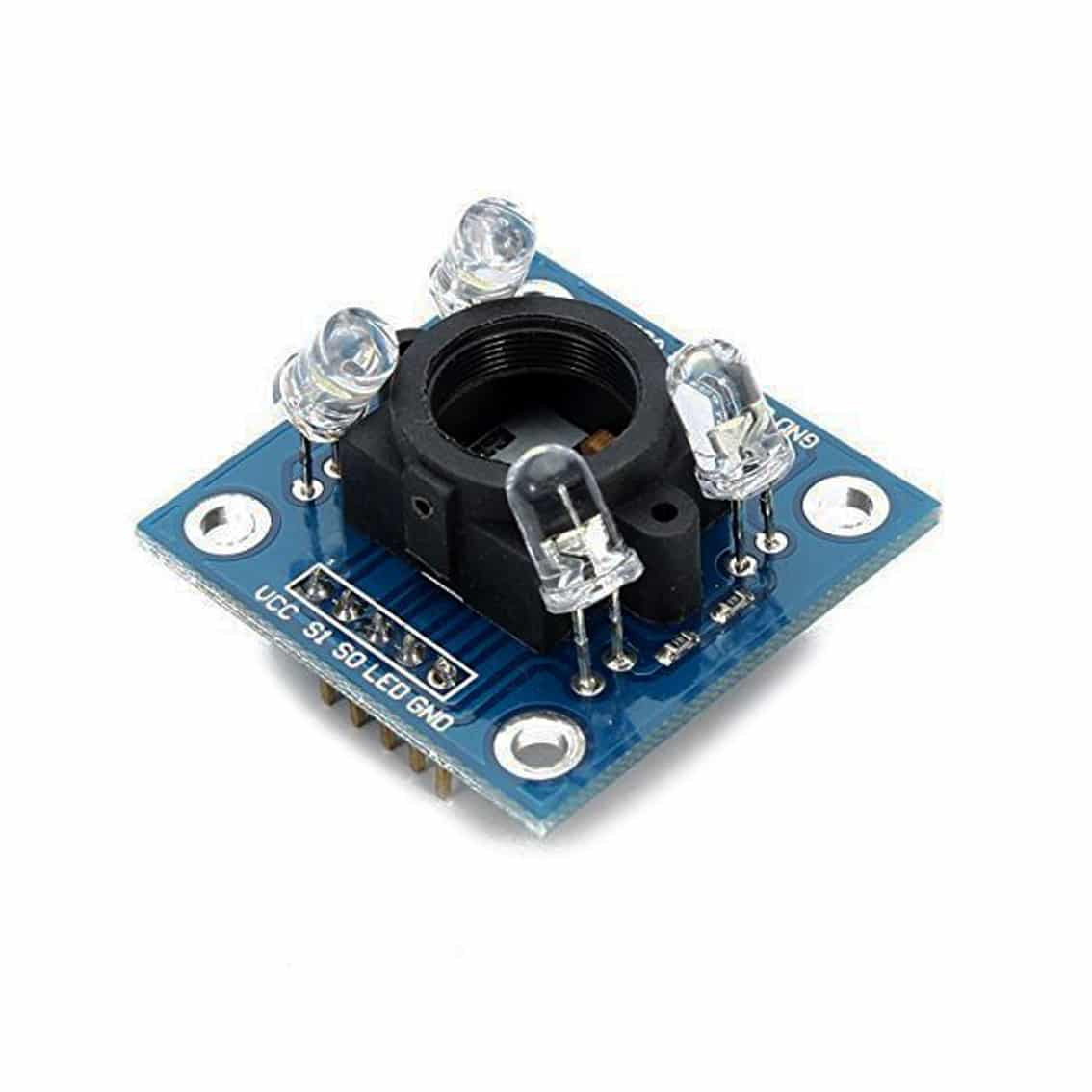

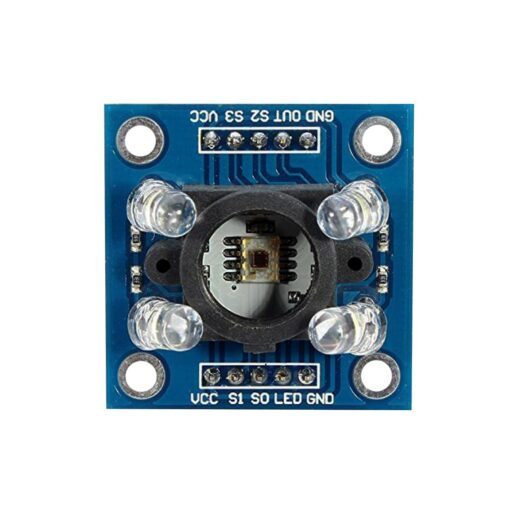

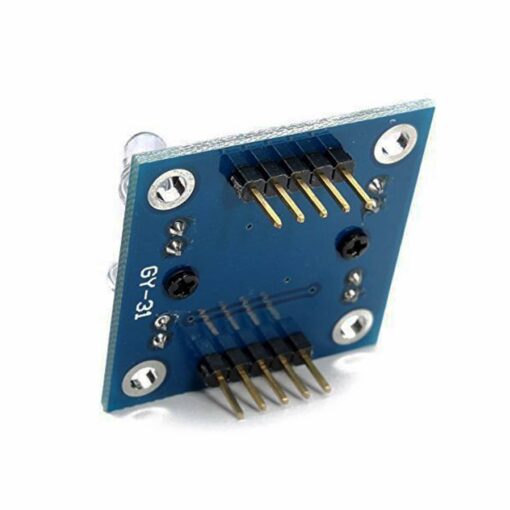

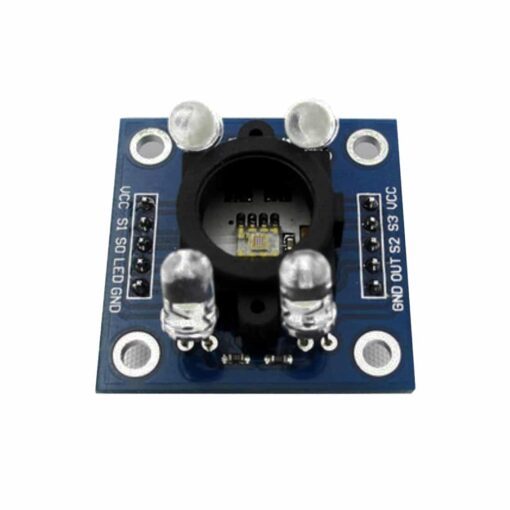

The TCS3200 RGB Colour Sensor Module GY-31 is a versatile and precise colour detection solution, ideal for applications such as colour sorting, ambient light sensing, and calibration tasks. At its core is the TCS3200 sensor, which converts light intensity into frequency, enabling accurate colour recognition. The module features an 8×8 array of photodiodes, with filters for red, green, blue, and clear, ensuring comprehensive colour detection across the visible spectrum. Integrated white LEDs provide consistent illumination, enhancing measurement reliability in various lighting conditions.
Designed for seamless integration with microcontrollers, the GY-31 module operates on a single-supply voltage ranging from 2.7V to 5.5V. It offers programmable colour and full-scale output frequency, facilitating direct communication with digital systems without the need for additional components. The module’s compact design and straightforward interface make it suitable for a wide range of projects, from educational purposes to complex industrial applications.
Specifications:
- Operating Voltage: 2.7V to 5.5V
- Supply Current (LED ON): 25mA at 5V
- Output Type: Frequency
- Photodiode Array: 8×8 (64 photodiodes)
- Filters: 16 Red, 16 Green, 16 Blue, 16 Clear
- Output Frequency Scaling: 100%, 20%, 2%
- Temperature Coefficient: 200 ppm/°C
- Nonlinearity Error: Typically 0.2% at 50 kHz
- Dimensions: 28.4mm x 28.4mm
Features:
- High-resolution conversion of light intensity to frequency
- Programmable colour and full-scale output frequency
- Direct communication with microcontrollers
- Single-supply operation with low power consumption
- Integrated white LEDs for consistent illumination
Contents:
- 1 x TCS3200 RGB Colour Sensor Module GY-31
