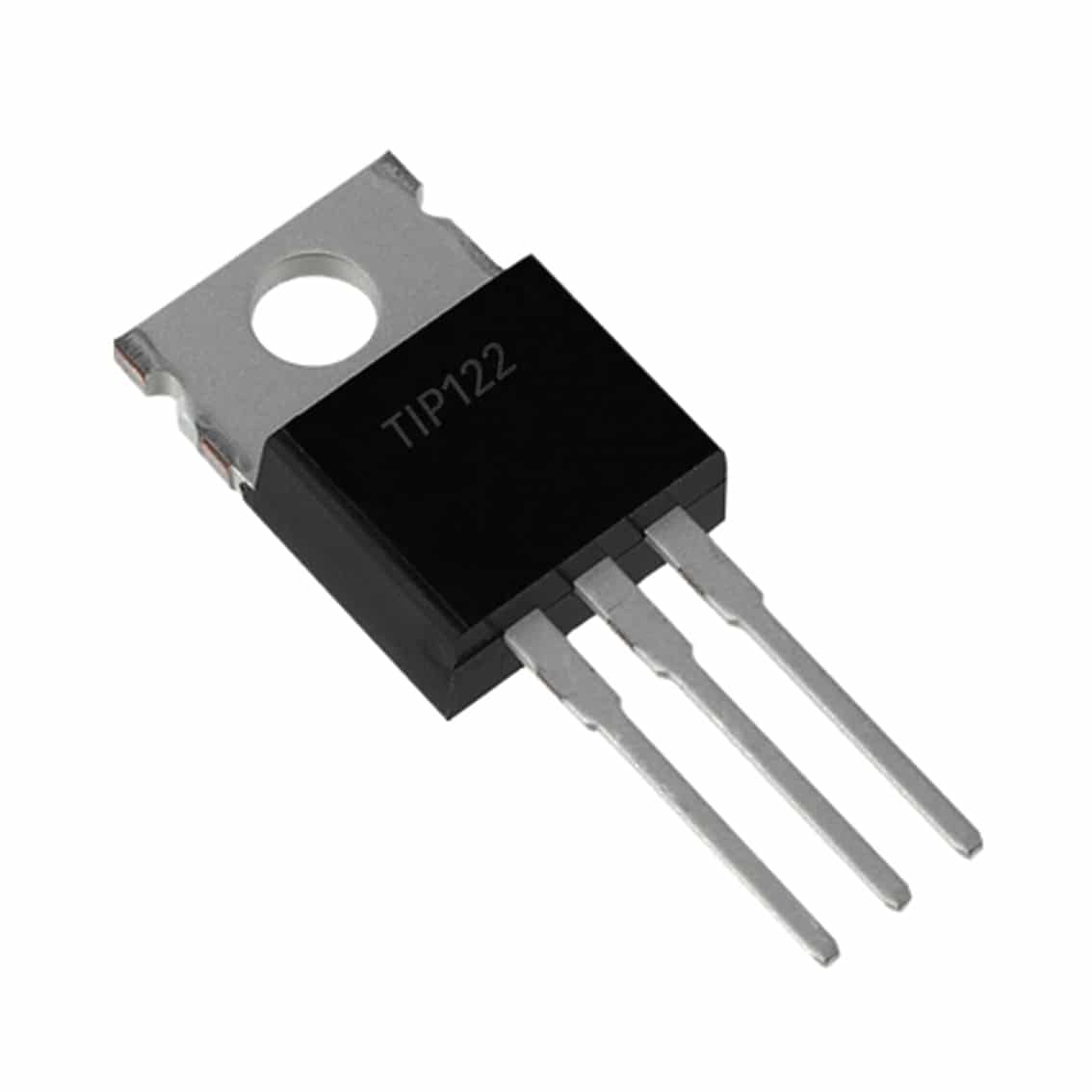

The TIP122 is a bipolar 100V 5A NPN transistor in a Darlington configuration.
When power is applied to an NPN transistor control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching devices to ground.
- Collector emitter voltage: 100V
- Collector base voltage: 100V
- Emitter base voltage: 5V
- Collector current: 5A
- Collector dissipation: 65W
- Package: TO-220
- Operating Temperature: -65 to +150C
- 10 x TIP122 100V 5A Bipolar NPN Transistors
