TIP132 100V 8A NPN Darlington Transistor – Pack of 10

  • PHI1052782 – TIP132 100V 8A NPN Darlington Transistor – Pack of 10 02
  • PHI1052782 – TIP132 100V 8A NPN Darlington Transistor – Pack of 10 02


The TIP132 is a Darlington 100V 8A NPN Transistor in a TO-220 case. read more

or 4 fortnightly payments of $2.74 with Afterpay More info


Transistor Polarity:


Mounting Type:

view all details




- +



0 reviews

30 in stock

- +

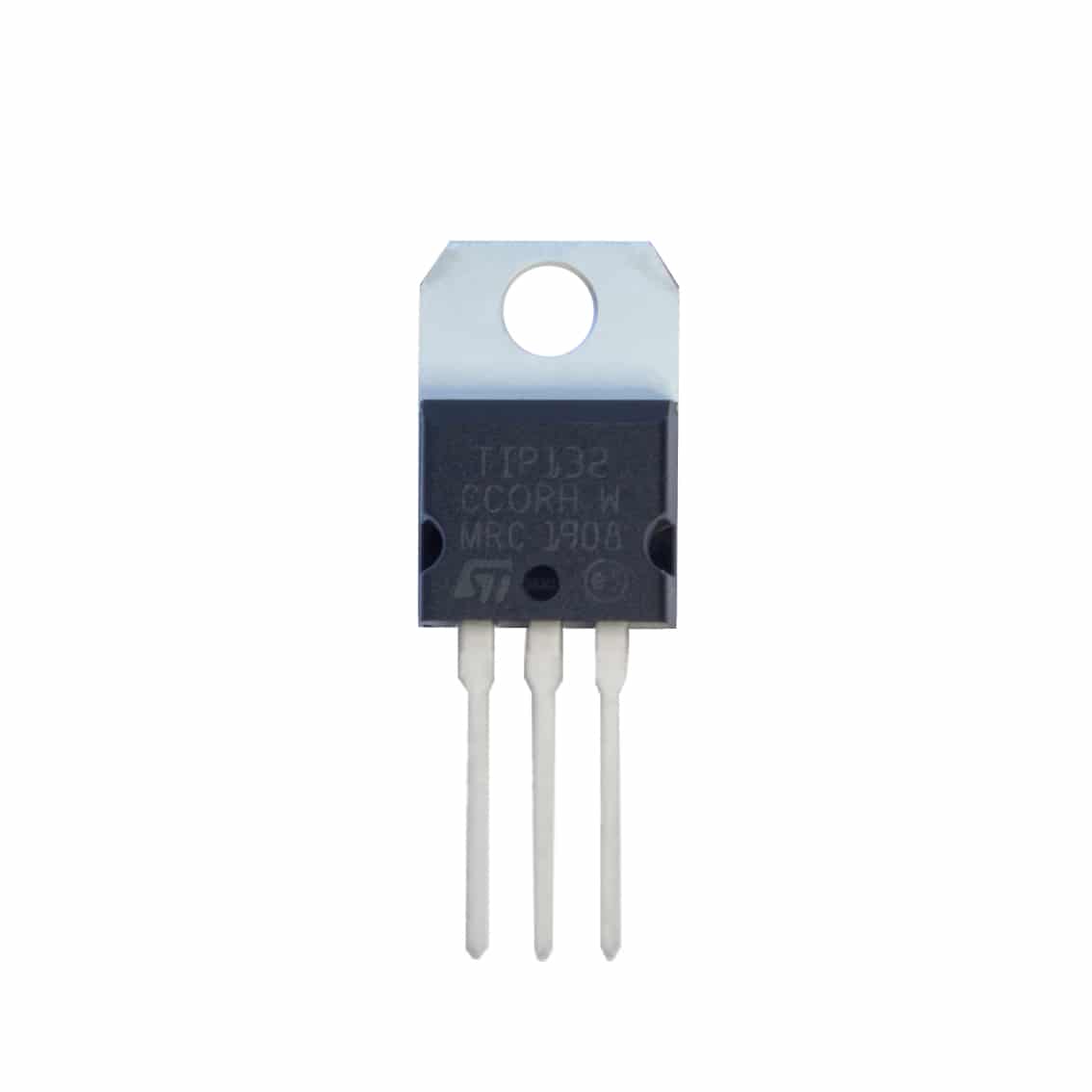

The TIP132 is a Darlington 100V 8A NPN Transistor in a TO-220 case.

A Darlington transistor is a circuit consisting of two bipolar transistors with the emitter of one transistor connected to the base of the other.

When power is applied to an NPN transistors control pin, the power will travel from the collector to the emitter. NPN transistors are used for switching to ground on devices.



  • Collector Emitter Voltage: 100 V
  • Collector Base Voltage: 100 V
  • Emitter Base Voltage: 5 V
  • Collector Current: 8 A
  • Collector Dissipation: 70 W
  • Mounting Style: Through Hole
  • Package / Case: TO-220
  • Transistor Polarity: NPN
  • Operating Temperature: -65 ⁰C – 150 ⁰C
  • Dimensions: 16mm x 10mm x 4.5mm x 13.1mm



  • 10 x TIP132 100V 8A NPN Darlington Transistor
