Description:

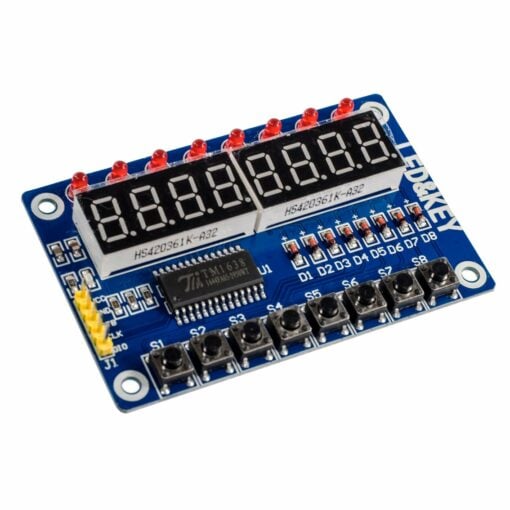

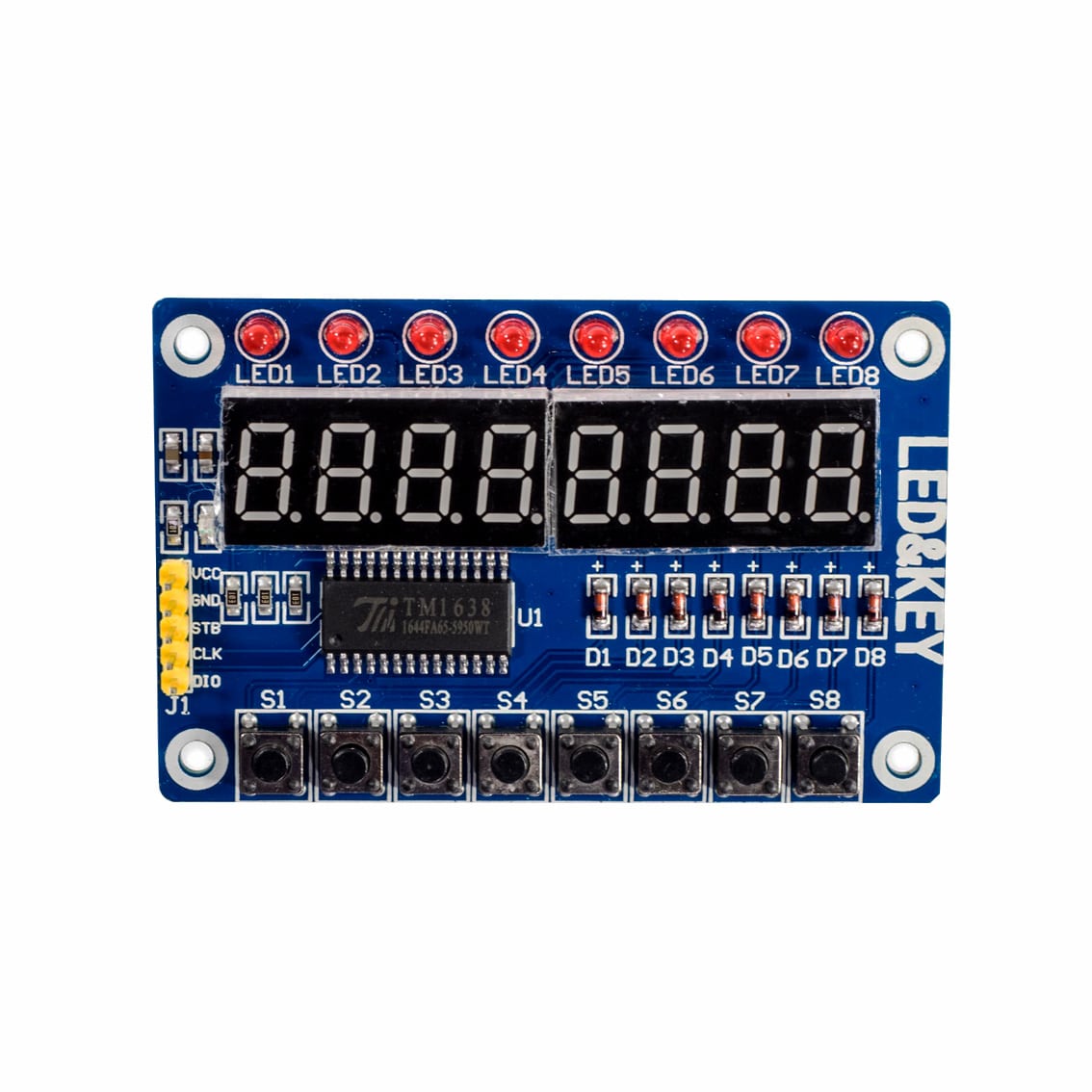

The TM1638 8-Digit LED Display Module with 8 Buttons is a versatile component designed for seamless integration with Arduino projects. Utilising the TM1638 controller, it efficiently manages an 8-digit seven-segment display, 8 individual LEDs, and 8 push buttons, all through a minimal three-wire serial interface. This compact module is ideal for applications requiring user interaction and real-time data display, such as DIY electronics, prototyping, and educational projects.
The module operates at a standard 5V DC supply voltage, making it compatible with most microcontroller platforms. Its efficient design allows for straightforward control of both display and input functions, reducing the need for multiple I/O pins. The TM1638’s ability to handle multiple inputs and outputs simultaneously enhances the interactivity and functionality of Arduino-based systems.
Specifications:
- Controller: TM1638
- Supply Voltage: 5V DC
- Display: 8-digit seven-segment LED
- LEDs: 8 individual LEDs
- Buttons: 8 push buttons
- Interface: 3-wire serial (STB, CLK, DIO)
- Dimensions: 76mm (L) x 50mm (W) x 10mm (H)
- Operating Temperature: -10°C to 70°C
Features:
- Efficient control of display and input using only three digital pins
- Compact design suitable for various applications
- Easy integration with Arduino and other microcontroller platforms
- Provides both visual output and user input capabilities
- Ideal for prototyping and educational purposes
Contents:
- 1 x TM1638 8-Digit LED Display Module with 8 Buttons
