Description:

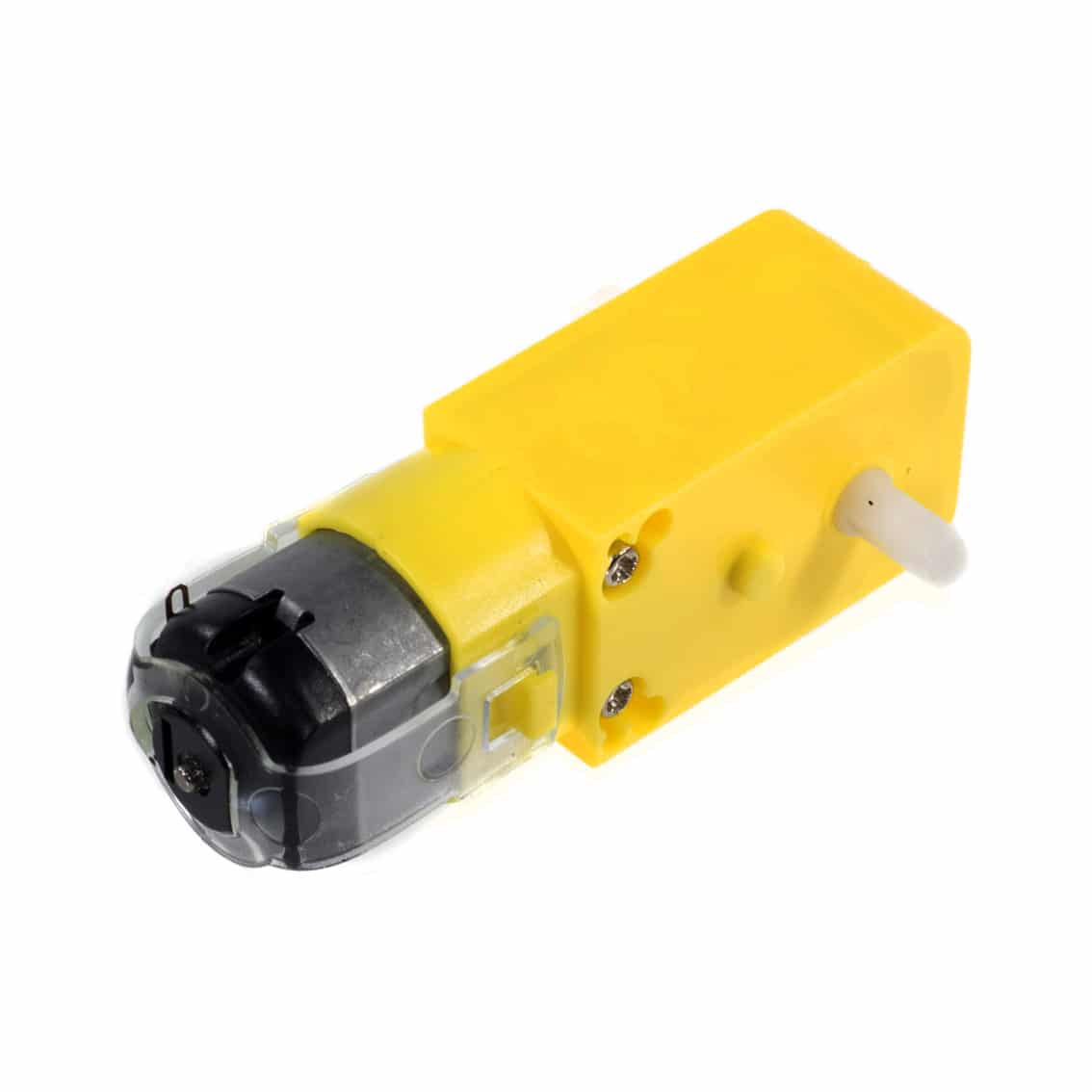

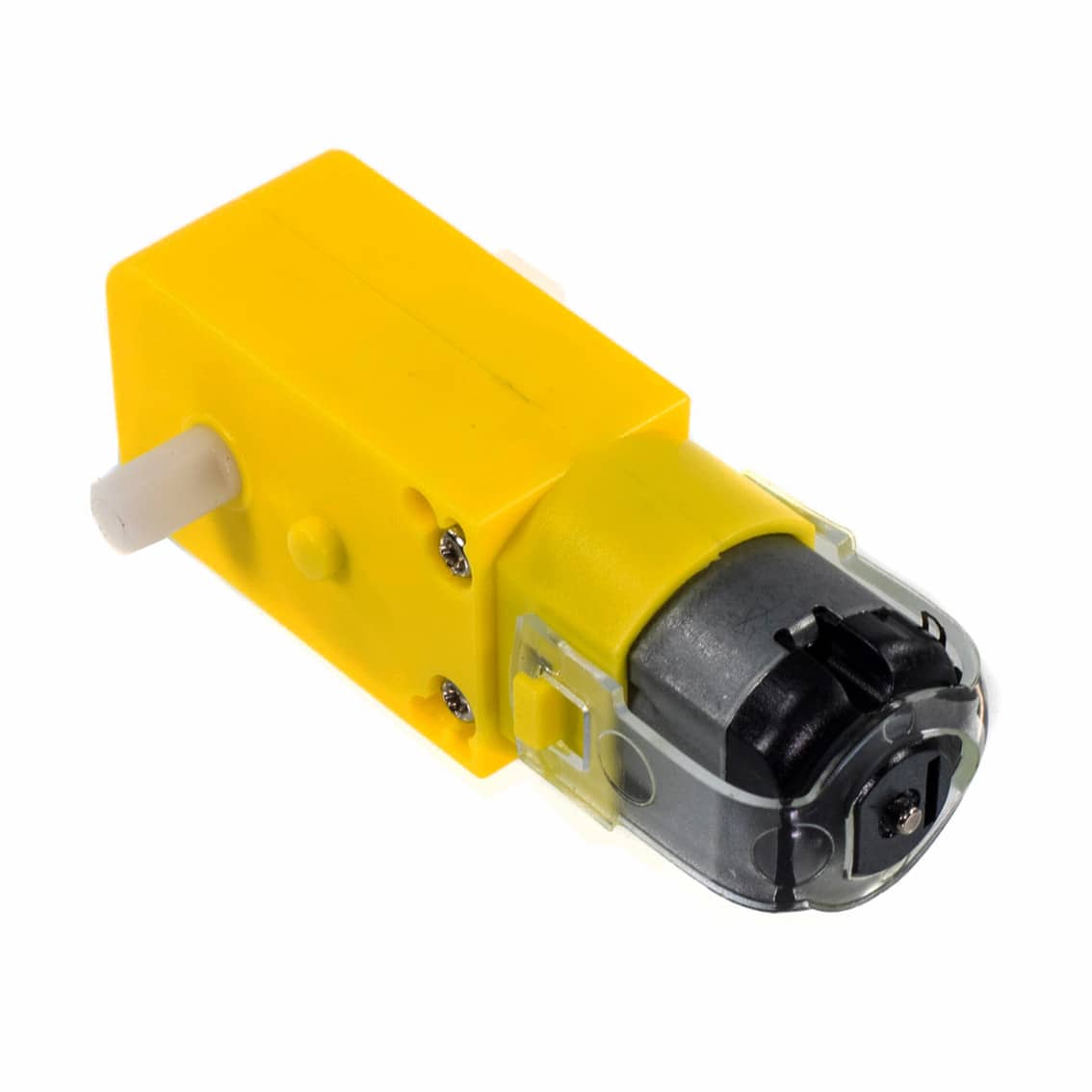

The Single-Axis Geared TT DC Motor is a versatile, cost-effective solution for driving small robotic and DIY projects. With a gear ratio of 1:48, this motor delivers a balanced combination of speed and torque, making it ideal for applications such as mobile robots, model vehicles, and other mechanical assemblies. Operating efficiently within a voltage range of 3V to 6V DC, it provides flexibility for various power supply configurations.
The motor is equipped with a durable plastic gearbox and a single output shaft, ensuring reliable performance and ease of integration. The attached 200mm wires with breadboard-friendly 0.1″ male connectors facilitate straightforward connections, streamlining the prototyping process. Its compact design allows for seamless incorporation into projects with limited space while maintaining sufficient power to drive lightweight mechanisms.
Specifications:
- Operating Voltage: 3V to 6V DC
- No-Load Speed: 120 RPM at 3V; 250 RPM at 6V
- No-Load Current: 150mA ±10%
- Stall Current: Up to 1.5A at 6V
- Stall Torque: 0.8 kg·cm at 6V
- Gear Ratio: 1:48
- Body Dimensions: 70mm × 22mm × 18mm
- Shaft Dimensions: 5.3mm diameter, 10mm length
- Wire Length: 200mm (28 AWG)
- Weight: 30.6g
Features:
- Balanced speed and torque suitable for small robotic applications
- Wide operating voltage range for flexible power options
- Durable plastic gearbox ensures longevity
- Single output shaft design for straightforward integration
- Pre-attached wires with breadboard-friendly connectors for easy prototyping
Contents:

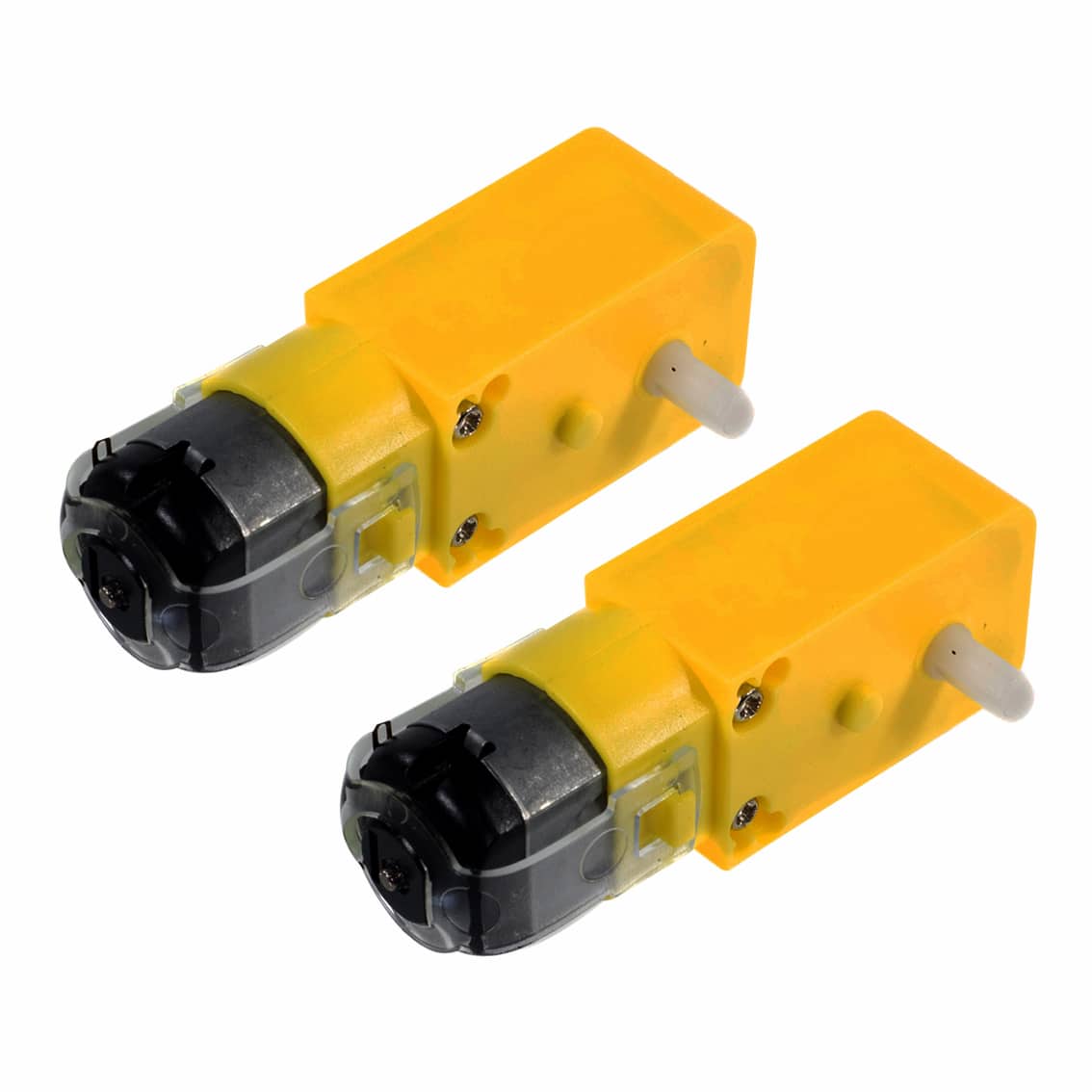

- 2 × Single Axis Geared TT DC Motors
