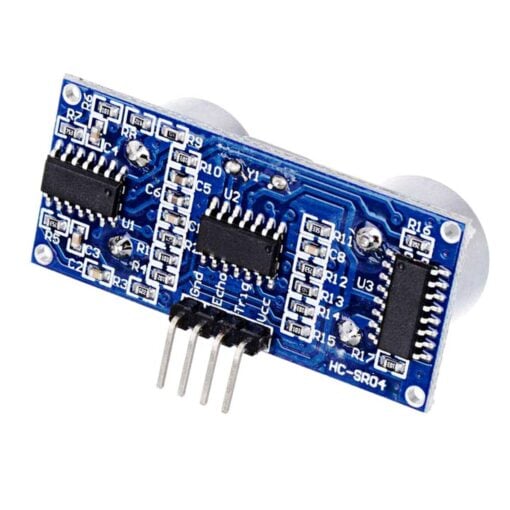

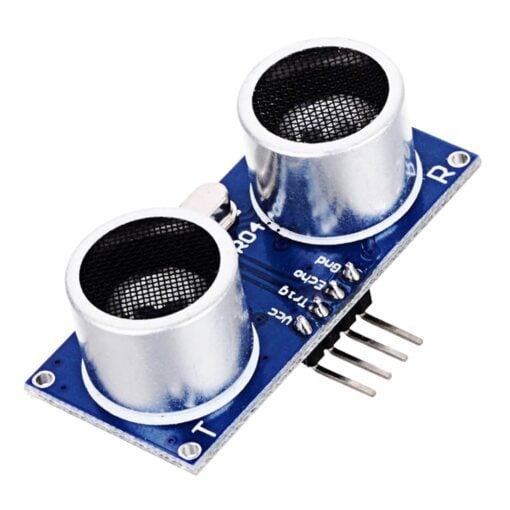

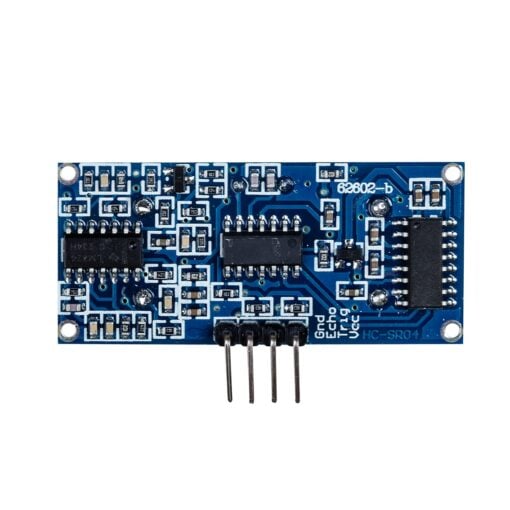

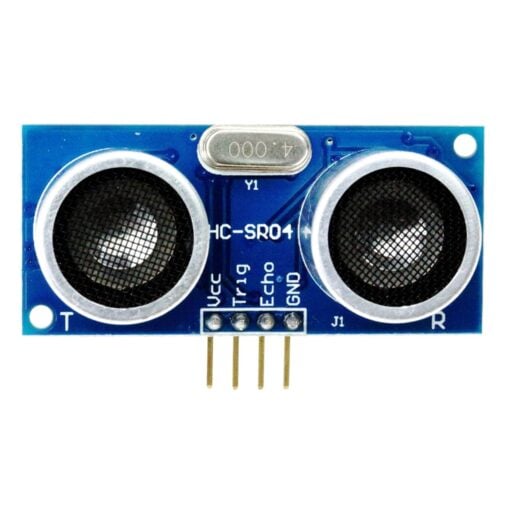

Ultrasonic Distance Sensor Module – HC-SR04

  • PHI1071834 – Ultrasonic Distance Sensor Module – HC-SR04 02
  • PHI1071834 – Ultrasonic Distance Sensor Module – HC-SR04 03
  • PHI1071834 – Ultrasonic Distance Sensor Module – HC-SR04 04
  • PHI1071834 – Ultrasonic Distance Sensor Module – HC-SR04 02
  • PHI1071834 – Ultrasonic Distance Sensor Module – HC-SR04 03
  • PHI1071834 – Ultrasonic Distance Sensor Module – HC-SR04 04

Description

The HC-SR04 is an ultrasonic distance measuring module, commonly used for object avoidance, navigation and altitude hold purposes. read more
SKU:
PHI1071834
Category:
Tags:
, , ,
Dimensions:
45 × 20 × 15 mm
Brand:

Price

$8.95

Quantity

- +

Total

$8.95

0 reviews

95 in stock

- +

Description

The HC-SR04 is an ultrasonic distance measuring module, commonly used for object avoidance, navigation and altitude hold purposes.

The sensor module can provide accuracy as low as 3mm.

Specifications

  • Input voltage: 5VDC
  • Static current: < 2mA
  • Working current: 15mA
  • Output signal:  Electric frequency signal, high-level 5V, low-level 0V
  • Operational angle: 15 degree
  • Maximum range: 450cm
  • Minimum range: 2cm
  • Accuracy: 0.3cm
  • Input trigger signal: 10us TTL pulse
  • Output echo signal: TTL PWL signal
  • Dimensions: 45mm x 20mm x 15mm

Contents

  • 1 x HC-SR04 Ultrasonic Distance Sensor Module

Description

Description:

The HC-SR04 is an ultrasonic distance measuring module, commonly used for object avoidance, navigation and altitude hold purposes.

The sensor module can provide accuracy as low as 3mm.



Specifications:

  • Input voltage: 5VDC
  • Static current: < 2mA
  • Working current: 15mA
  • Output signal:  Electric frequency signal, high-level 5V, low-level 0V
  • Operational angle: 15 degree
  • Maximum range: 450cm
  • Minimum range: 2cm
  • Accuracy: 0.3cm
  • Input trigger signal: 10us TTL pulse
  • Output echo signal: TTL PWL signal
  • Dimensions: 45mm x 20mm x 15mm



Contents:

  • 1 x HC-SR04 Ultrasonic Distance Sensor Module
