USB 5V Lithium Battery Charge Discharge Board – 134N3P – Pack of 2

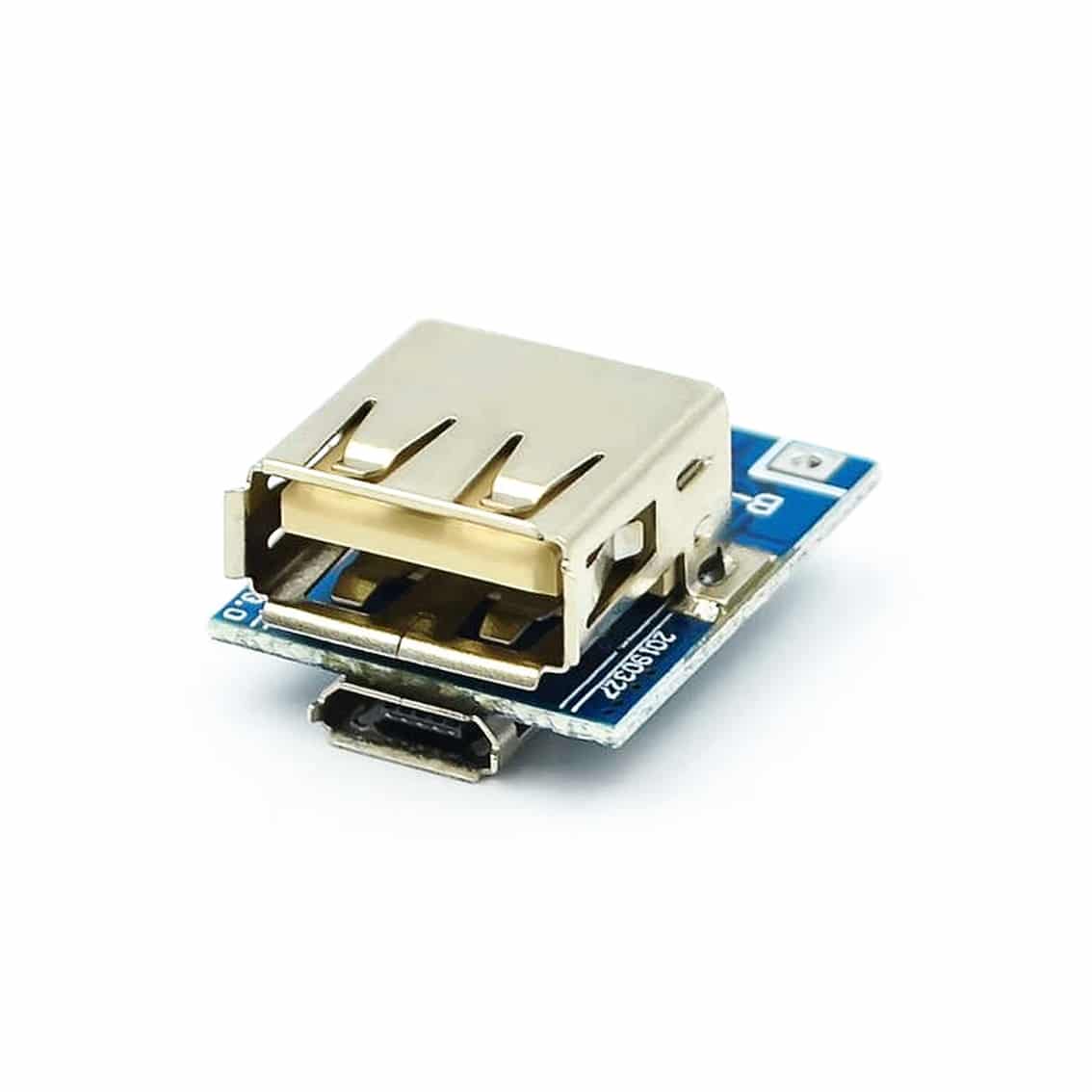

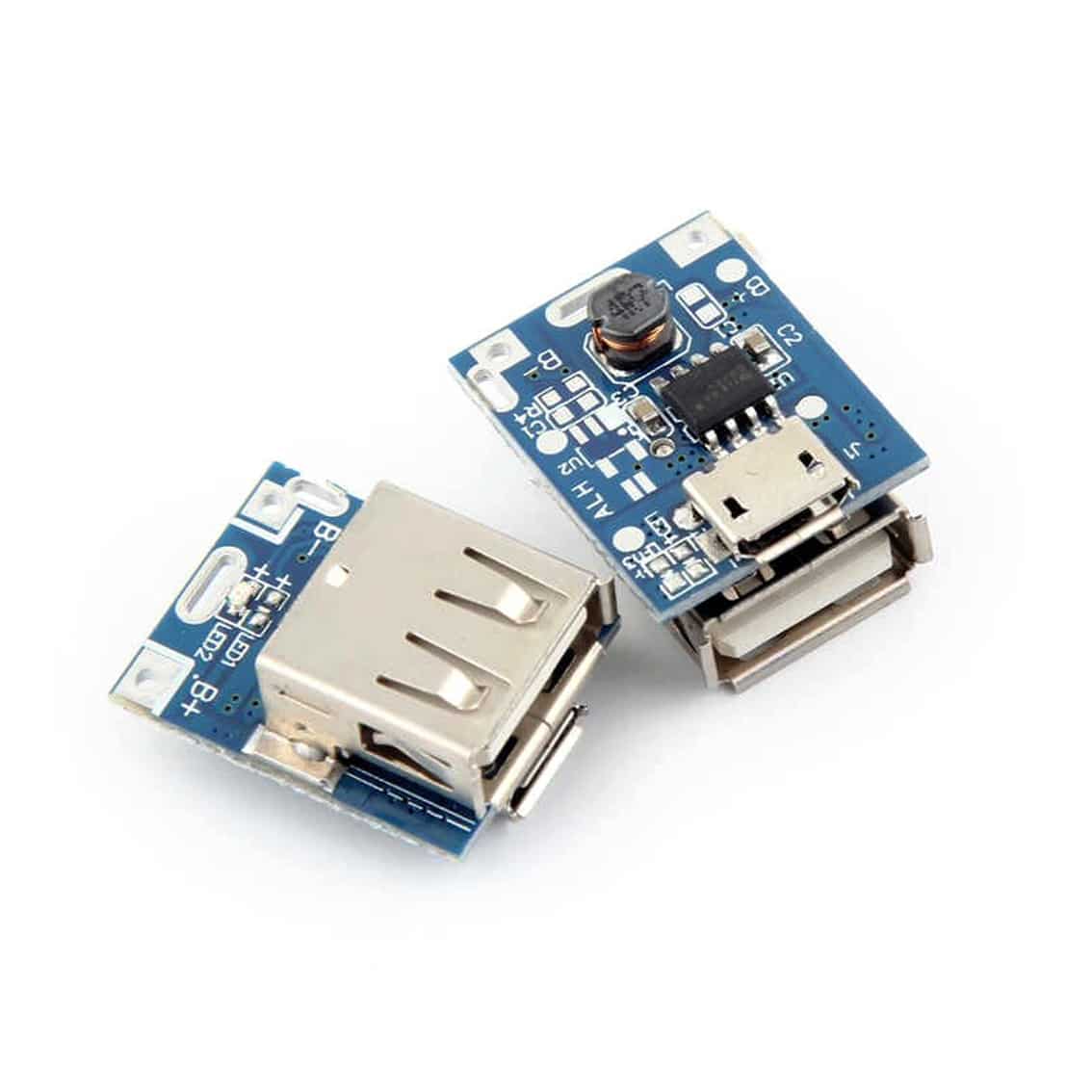

  • PHI1072202 – USB 5V Lithium Battery Charge Discharge Board – 134N3P – Pack of 2 03jpg

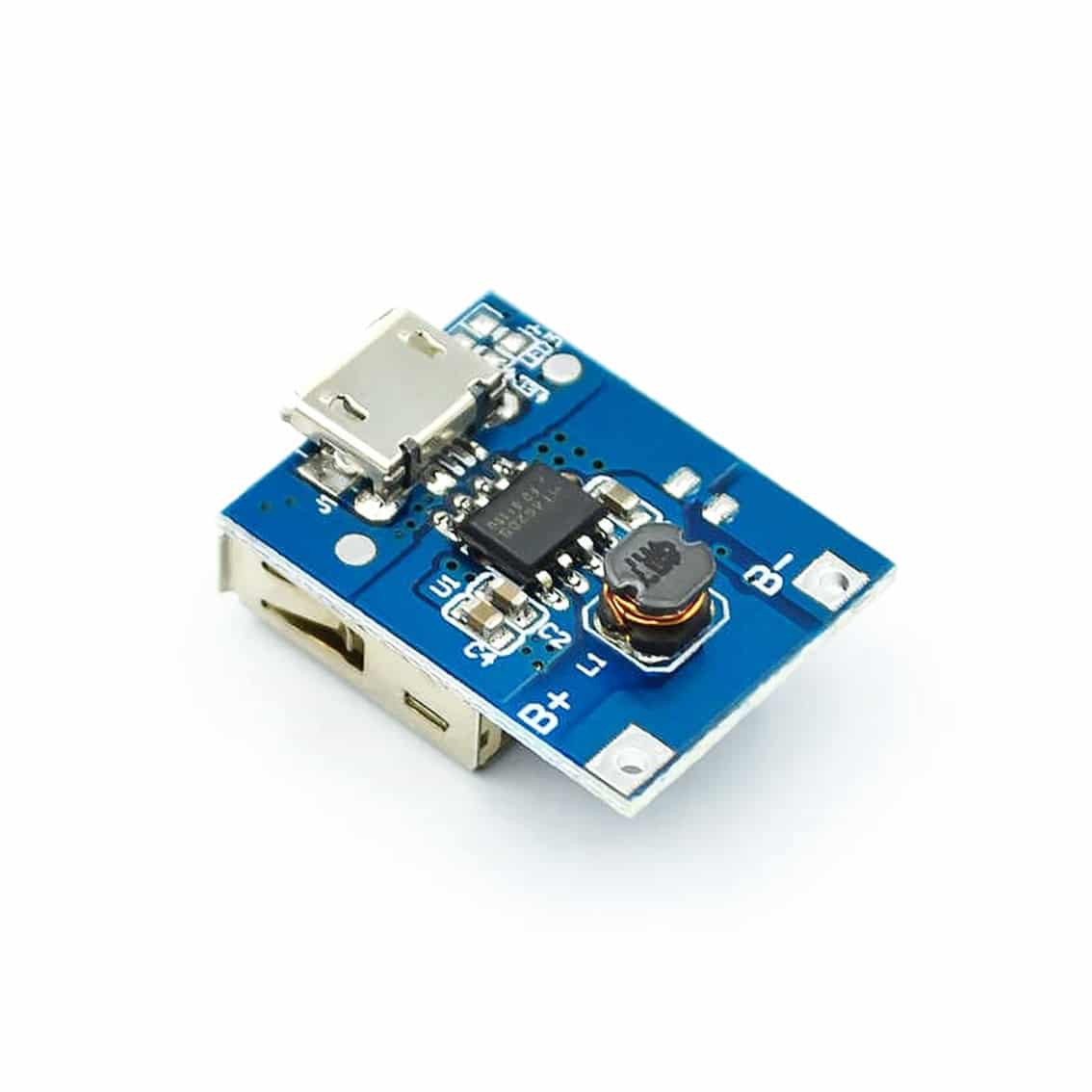

  • PHI1072202 – USB 5V Lithium Battery Charge Discharge Board – 134N3P – Pack of 2 02

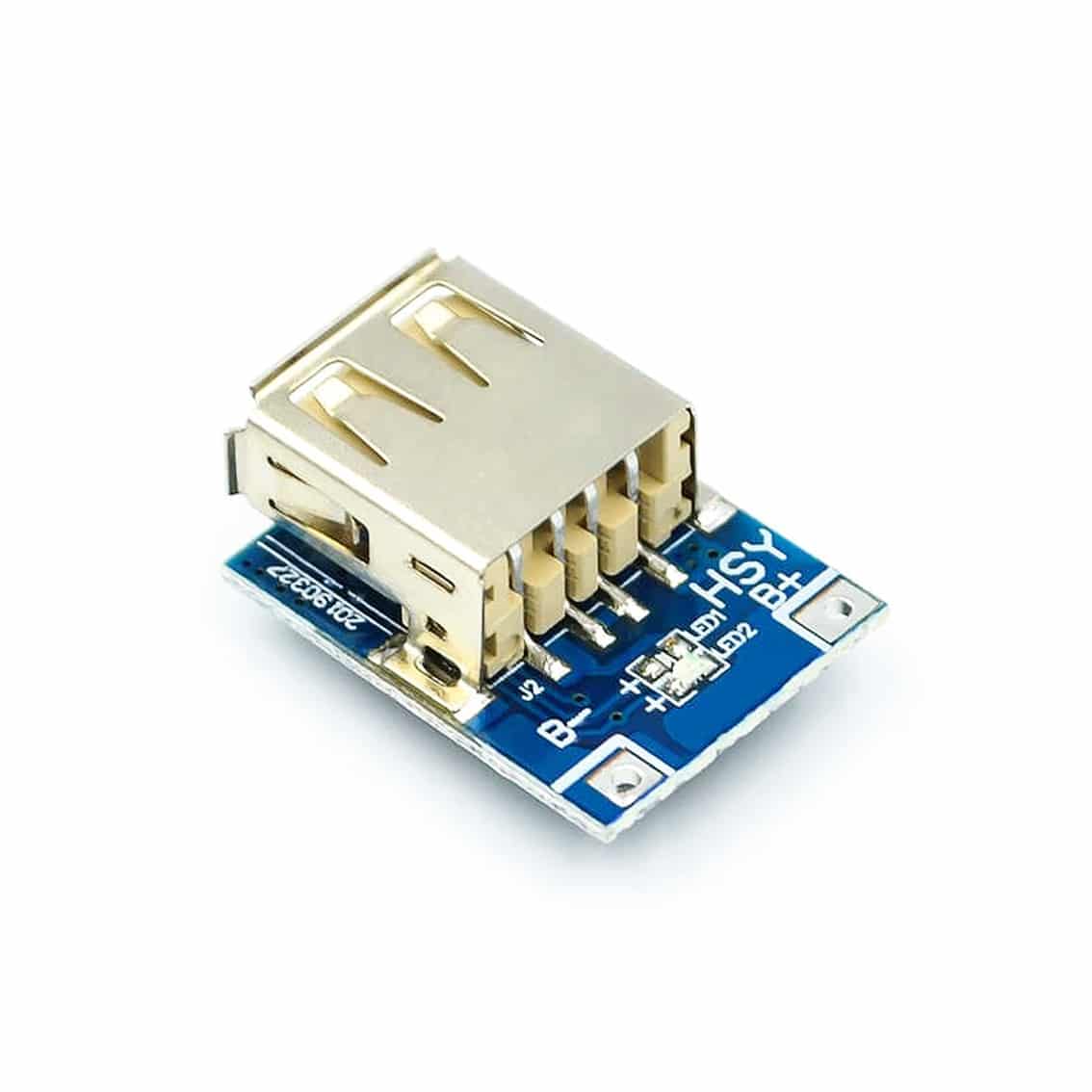

  • PHI1072202 – USB 5V Lithium Battery Charge Discharge Board – 134N3P – Pack of 2 04
  • PHI1072202 – USB 5V Lithium Battery Charge Discharge Board – 134N3P – Pack of 2 03jpg
  • PHI1072202 – USB 5V Lithium Battery Charge Discharge Board – 134N3P – Pack of 2 02
  • PHI1072202 – USB 5V Lithium Battery Charge Discharge Board – 134N3P – Pack of 2 04

Description

The USB 5V Lithium Battery Charge  Discharge Board  has an internal charging and discharging power MOS, preset 4.2V charging voltage, integrated charging management and discharging management, output over-voltage protection,short circuit protection,overload protection, overcharging and over-discharging protection, intelligent temperature control and over-temperature protection, and supports trickle mode and zero-voltage charging. read more
SKU:
PHI1072202
Category:
Tag:
Brand:

Price

$9.95

Quantity

- +

Total

$9.95

0 reviews

99 in stock

- +

Description

The USB 5V Lithium Battery Charge Discharge Board has an internal charging and discharging power MOS, preset 4.2V charging voltage, integrated charging management and discharging management, output over-voltage protection, short circuit protection, overload protection, overcharging and over-discharging protection, intelligent temperature control and over-temperature protection, and supports trickle mode and zero-voltage charging.

Specifications

  • Input Voltage: 3.7V~5.5V
  • Charging Current: 1A(max)
  • Output Current: 1A(max)
  • Output voltage: 5V
  • BAT Discharging Stop Voltage: 2.9V
  • Discharging Efficiency: 85% (input 3.7V output 5V/1A)

Contents

  • 2 x USB 5V Lithium Battery Charge Discharge Board – 134N3P
