USB 8 Channel 24MHz Logic Analyser

26 people have recently viewed this product!

USB 8 Channel 24MHz Logic Analyser

The USB 8 Channel 24MHz Logic Analyser is designed to work with the Sigrok open source signal analysis software suite which gives this device and in depth feature rich offering traditionally seen on much more expensive logic analysers.

$32.95

Order Within –

Availability: 37 in stock

All stock is located in Australia.

FREE SHIPPING available in Australia.

EXPRESS SHIPPING Available.

SKU: PHI1001325

Description:

The USB 8 Channel 24MHz Logic Analyser is designed to work with the Sigrok open-source signal analysis software suite which gives this device and in-depth feature-rich offering traditionally seen on much more expensive logic analysers.

When the USB 8 Channel 24MHz Logic Analyser is used with the Sigrok PulseView software you can capture and decode up to 8 digital channels at a maximum sample rate of 24MHz. With the software including built-in decoders for types of protocols such as CAN, I2C, JTAG, SPI, UART and more.

Specifications:

  • Works with 5V, 3.3V, 2.5V, 2.0V systems
  • 8 Channel input
  • 24MHz sampling rate
  • LED power indicator
  • LED logic level indicator for channel 0
  • USB power
  • Sampling depth: 1T
  • Sampling rates: 24MHz, 16MHz, 12MHz, 8MHz, 6MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz, 20KHz (Sampling rates at 4MHz and above will be dependent on system
  • performance, including speed of your computer and the USB interface)
  • Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz)
  • Dimensions: 55mm x 28mm x 14mm



Contents:

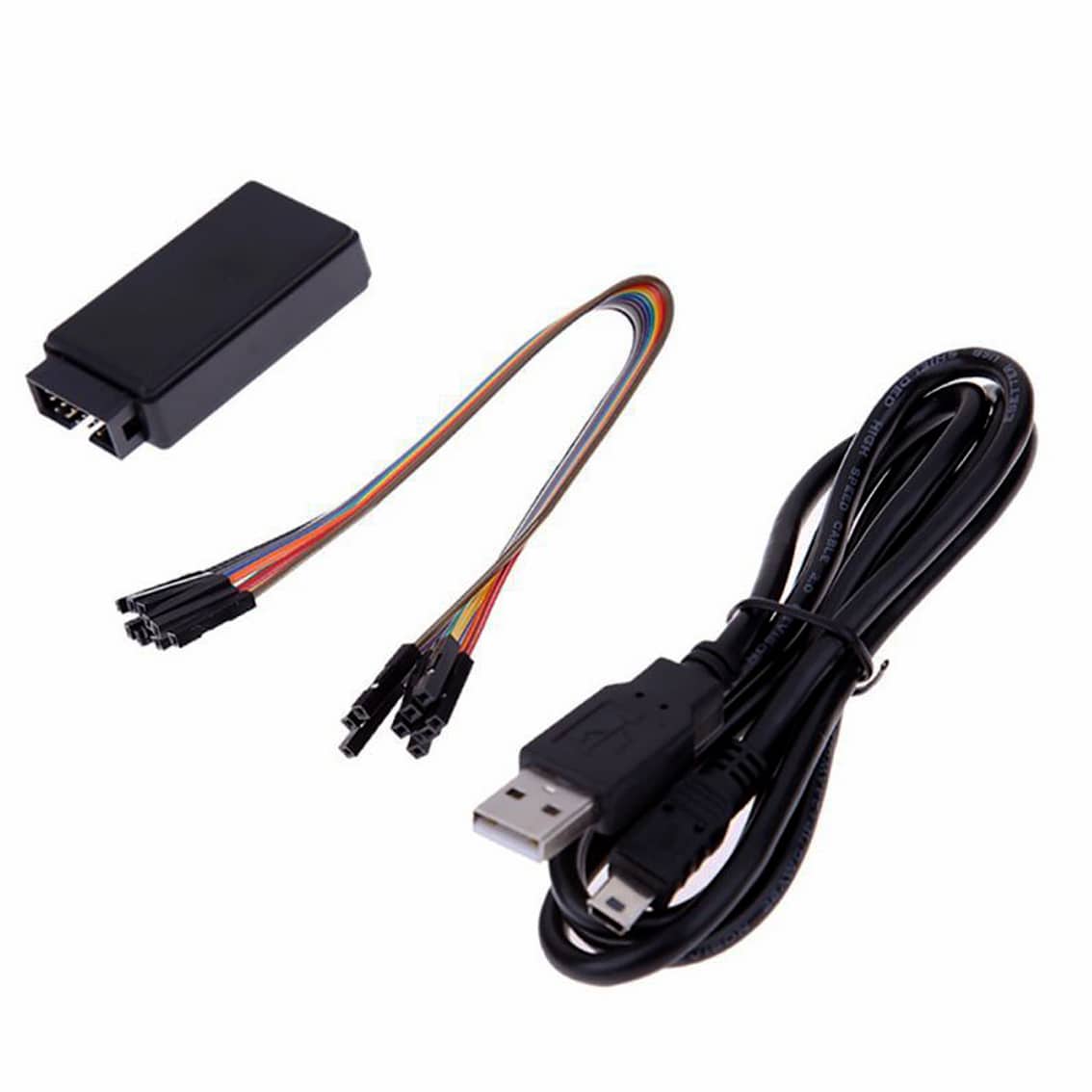

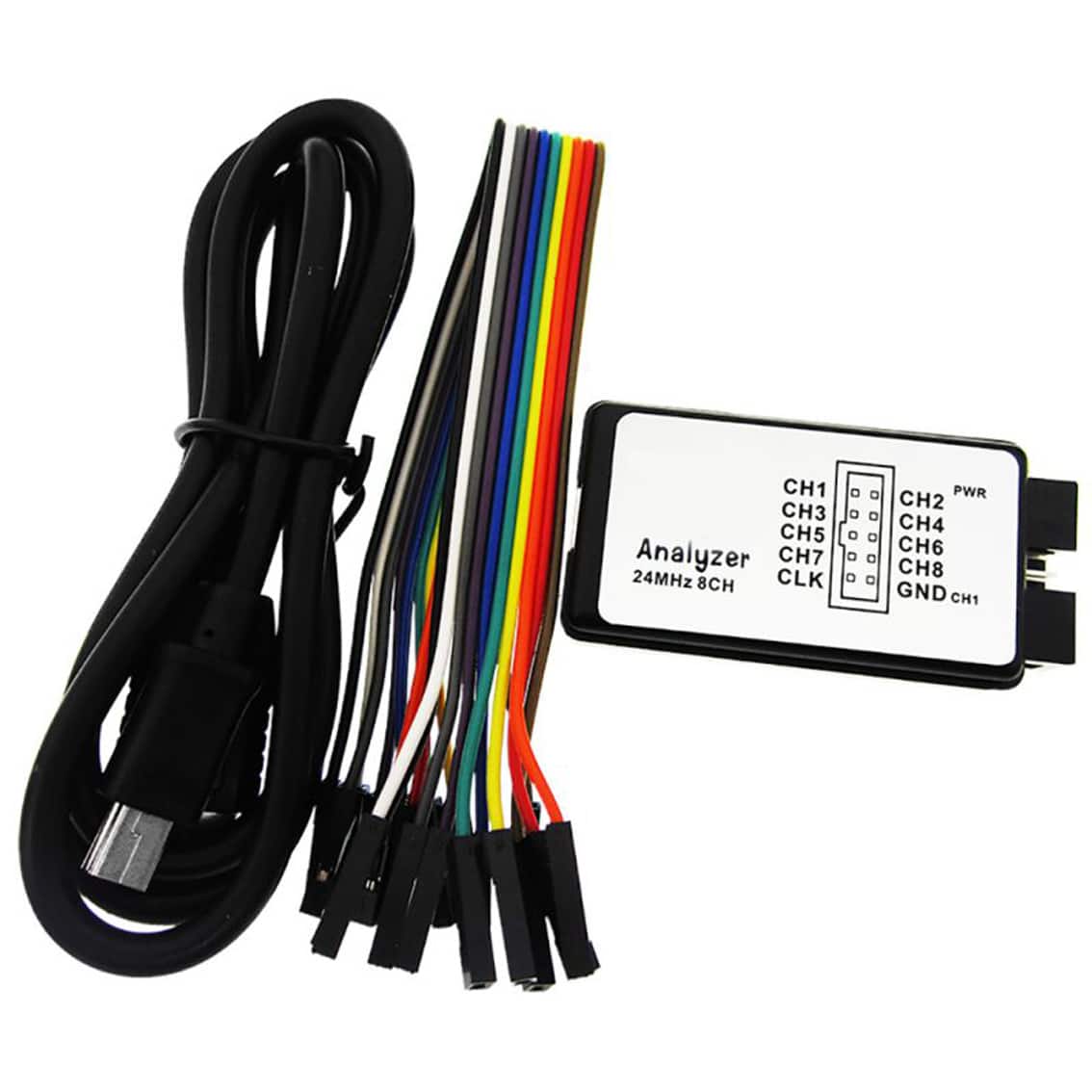

  • 1 x USB 8 Channel 24MHz Logic Analyser
  • 1 x USB Cable
  • 10 x Female to Female DuPont Cables
Weight 0.042 kg
Dimensions 180 × 10 × 90 mm
