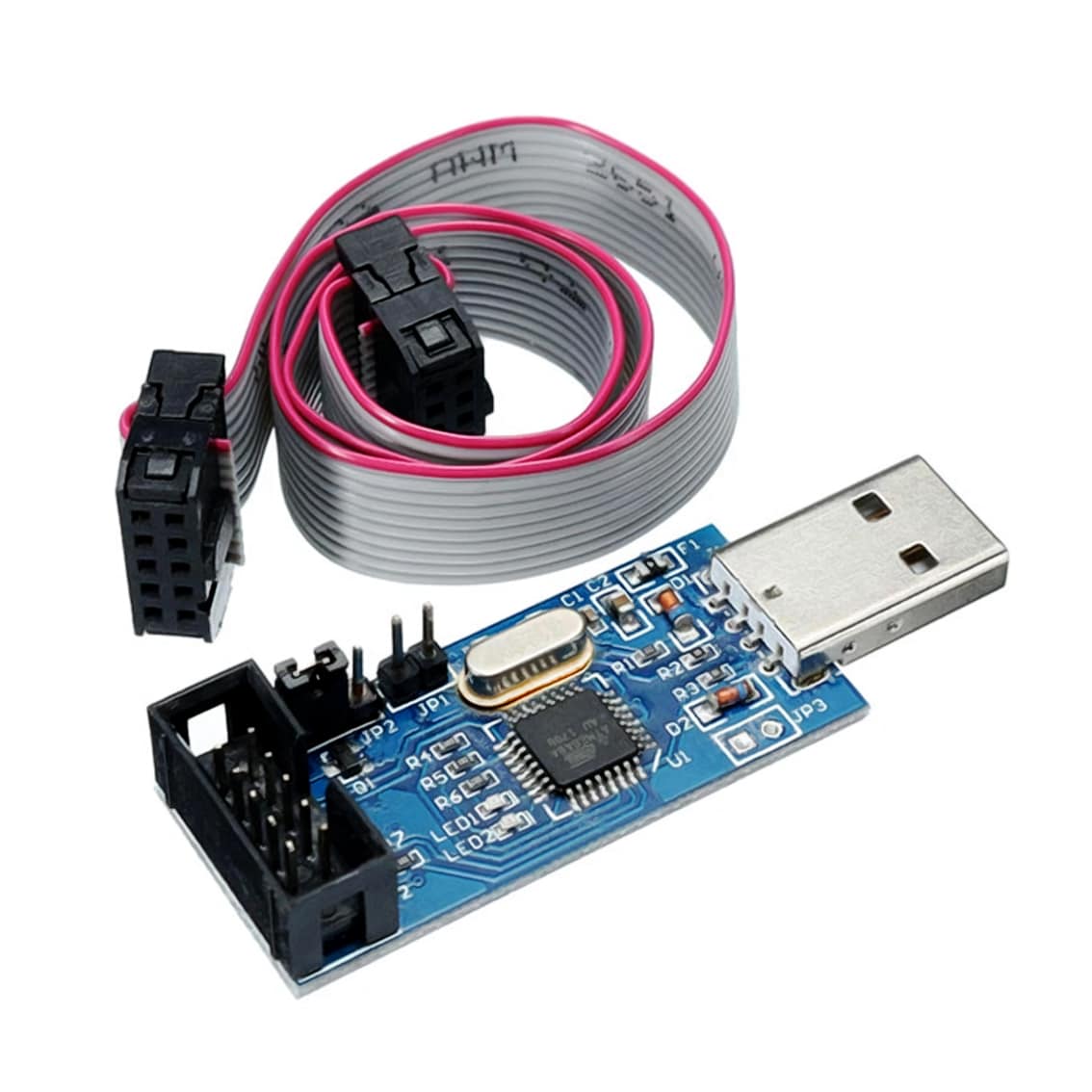

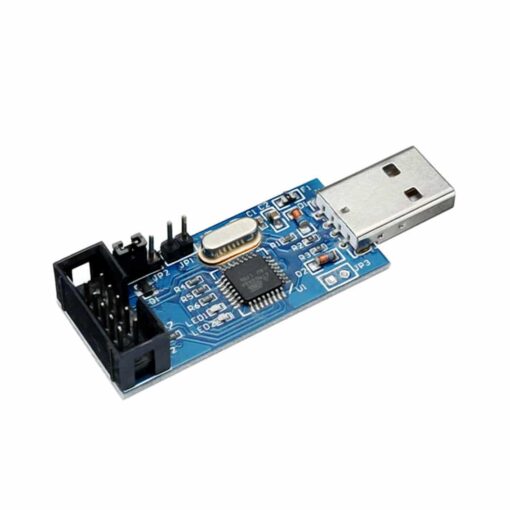

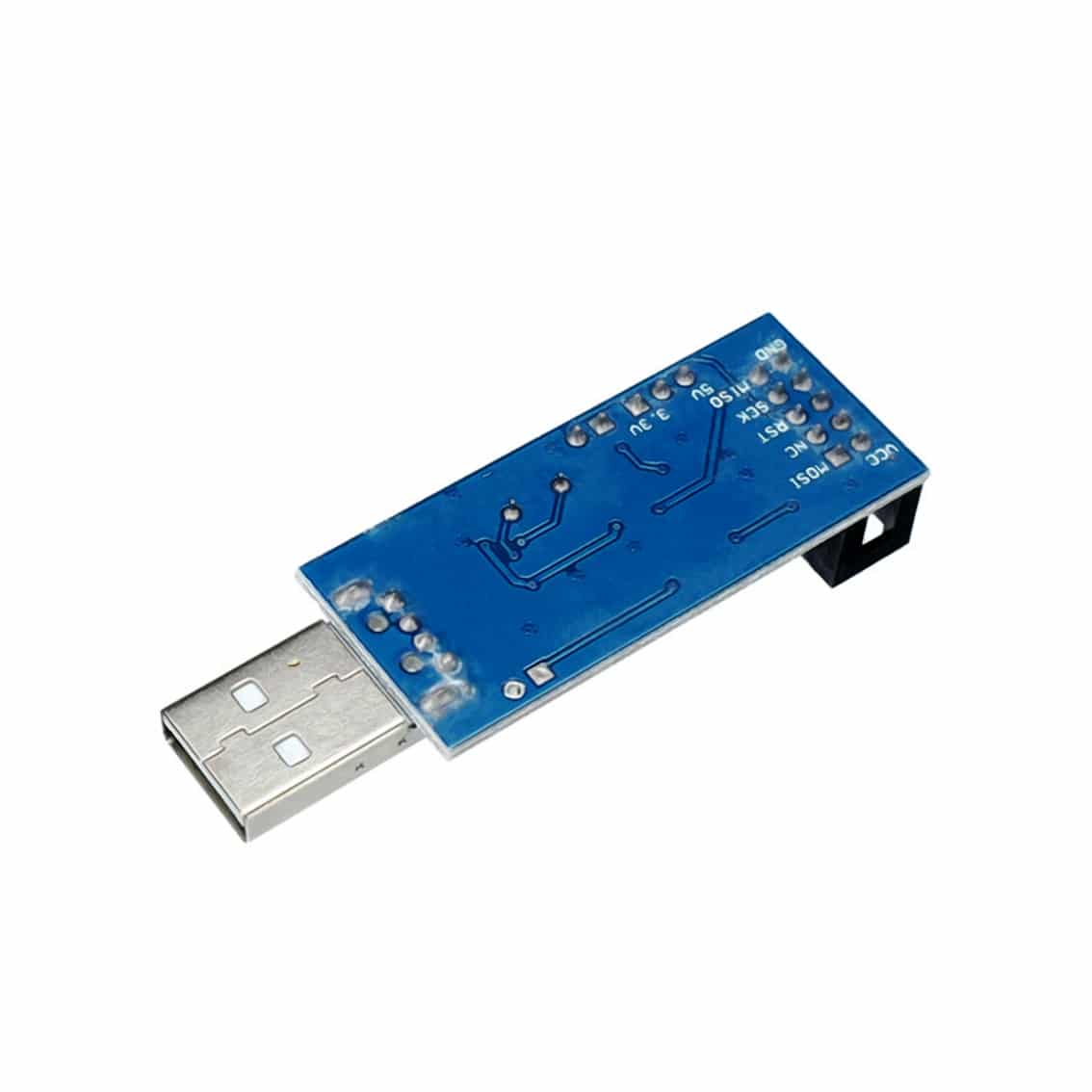

USBASP USBISP AVR Programmer – 3.3V 5V

Description:

This module is capable of programming AVR chipsets and 51-series chipsets.

Featuring onboard LED indication light and onboard current protection.

Specifications:

• Power and programming LED indicator light
• Onboard overcurrent protection
• Supports 5V and 3.3V power supply
  • Supported chip list:
    • 51 series:
      • AT89S51, AT89S52, AT89S53, AT89S8252
    • AVR series:
      • ATTiny12(L), ATTiny13(V), ATTiny15(L), ATTiny24(V), ATTiny25(V), ATTiny26(L), ATTiny2313(V), ATTiny44(V), ATTiny45(V), ATTiny84(V), ATTiny85(V), AT90S2313(L), AT90S2323(L), AT90S2343(L), AT90S1200(L), AT90S8515(L), AT90S8535(L), ATMEGA48(V), ATMEGA8(L), ATMEGA88(V), ATMEGA8515(L), ATMEGA8535(L), ATMEGA16(L), ATMEGA162(V), ATMEGA163(L), ATMEGA164(V), ATMEGA165(V), ATMEGA168(V), ATMEGA169(V), ATMEGA169P(V), ATMEGA32(L), ATMEGA324(V), ATMEGA325(V), ATMEGA3250(V), ATMEGA329(V), ATMEGA3290(V), ATMEGA64(L), ATMEGA640(V), ATMEGA644(V), ATMEGA645(V), ATMEGA6450(V), ATMEGA649(V), ATMEGA6490(V), ATMEGA128(L), ATMEGA1280(V), ATMEGA1281(V), ATMEGA2560(V), ATMEGA2561(V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2(B), AT90PWM3(B).

Contents:

• 1 x USBASP USBISP AVR Programmer

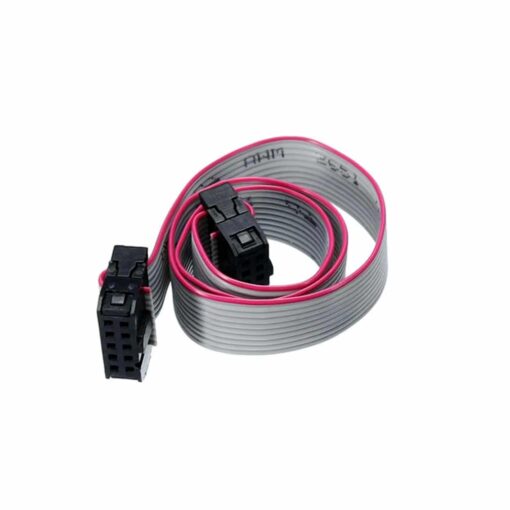

• 1 x Data Cable
