Description:

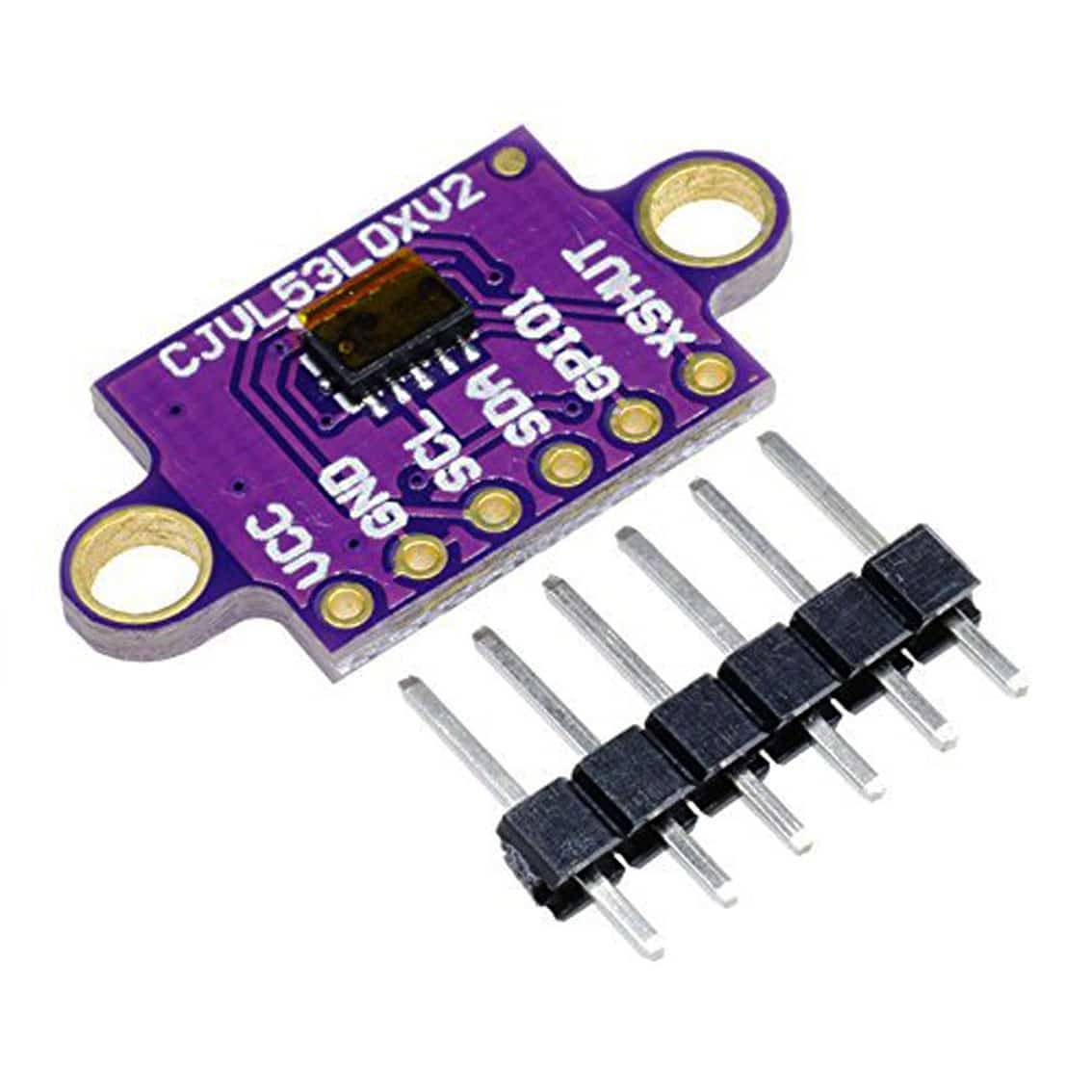

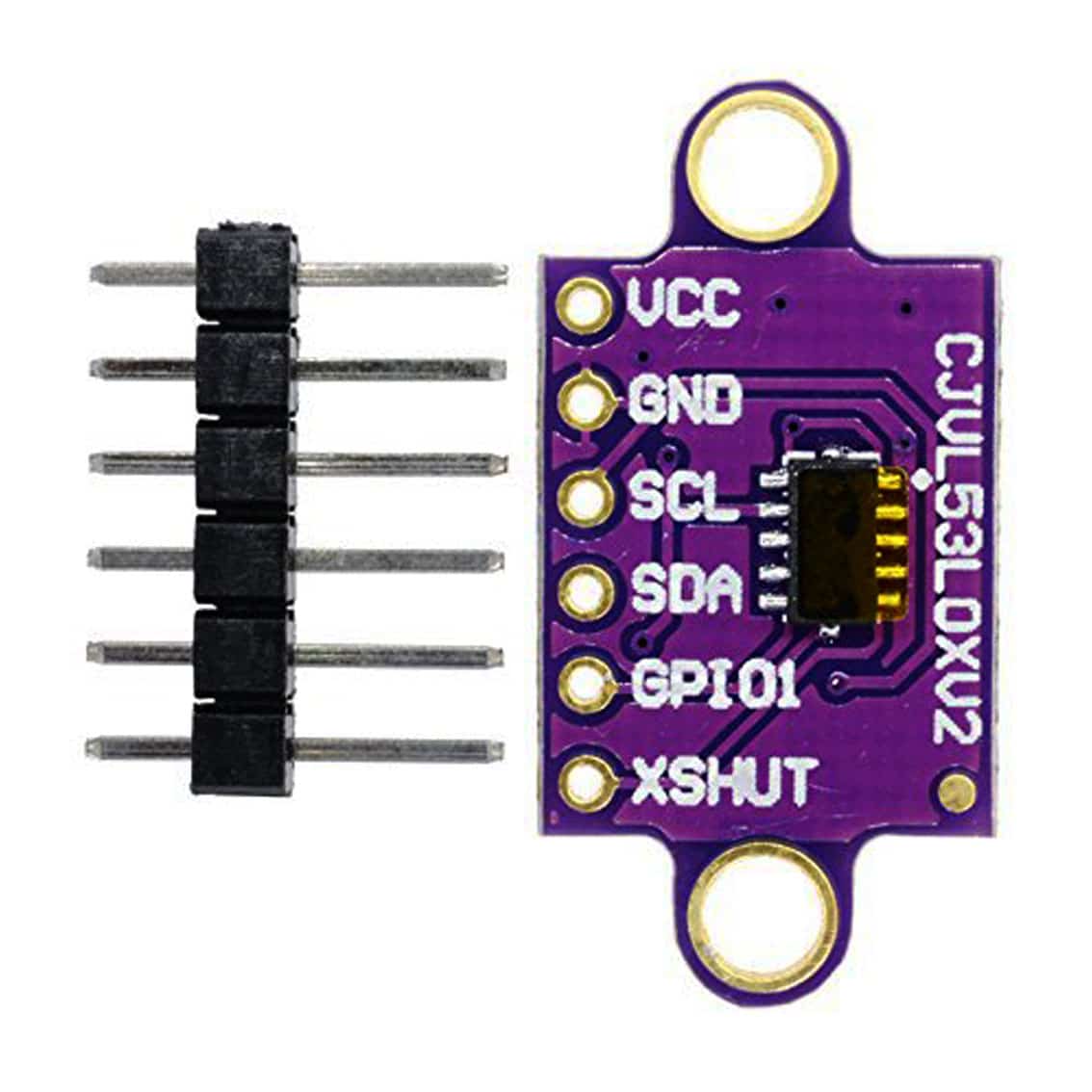

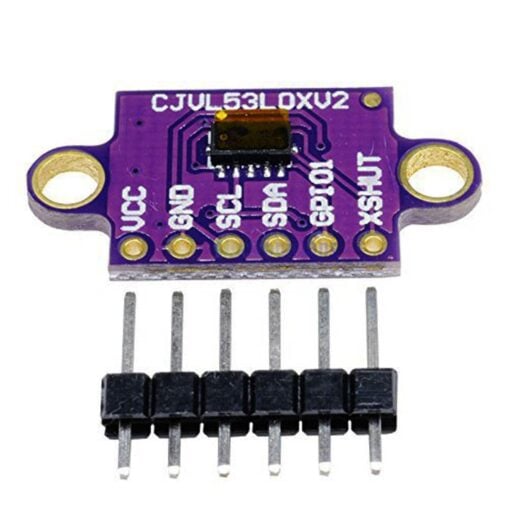

The VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Module is a compact and precise distance measurement solution. Utilizing STMicroelectronics’ FlightSense™ technology, it measures absolute distances up to 2 meters, independent of target reflectance. The module integrates a 940 nm vertical-cavity surface-emitting laser (VCSEL) and a single photon avalanche diode (SPAD) array, ensuring accurate and fast-ranging performance. Its immunity to ambient light and advanced optical crosstalk compensation make it suitable for various applications, including robotics, gesture recognition, and proximity sensing. :contentReference[oaicite:0]{index=0}
Designed for easy integration, the VL53L0X features an I²C interface for device control and data transfer, along with Xshutdown (reset) and interrupt GPIO pins. Its compact size of 4.4 x 2.4 x 1.0 mm allows for seamless incorporation into space-constrained projects. The module operates on a single power supply and is compliant with Class 1 laser safety standards, ensuring safe operation in consumer applications. :contentReference[oaicite:1]{index=1}
Specifications:
- Operating Voltage: 2.6V to 3.5V DC
- Average Current: 19mA
- Operating Temperature: -20°C to 70°C
- Wavelength: 940 nm
- Measurement Range: Up to 2 meters
- Interface: I²C (up to 400 kHz)
- Dimensions: 4.4 x 2.4 x 1.0 mm
Features:
- Fully integrated miniature module with embedded microcontroller
- Fast and accurate distance ranging independent of target reflectance
- Advanced optical crosstalk compensation for cover glass selection
- Class 1 laser device compliant with IEC 60825-1:2014 standards
- Easy integration with I²C interface and programmable address
Contents:
- 1 x VL53L0X Time-of-Flight Laser Ranging Sensor Module
