W1209 Temperature Control Thermostat Relay Switch – 12V DC

Description

The W1209 Temperature Control Thermostat Relay Switch is a low cost yet highly functional thermostat controller. read more

SKU:: PHI1071503
Category:: Sensors
Tag:: Temperature Sensor
Brand:: Unbranded/Generic
MPN:: W1209
Type:: Temperature Controller

Price

$10.95

Quantity

Total

$10.95

0 reviews

Description

Description:

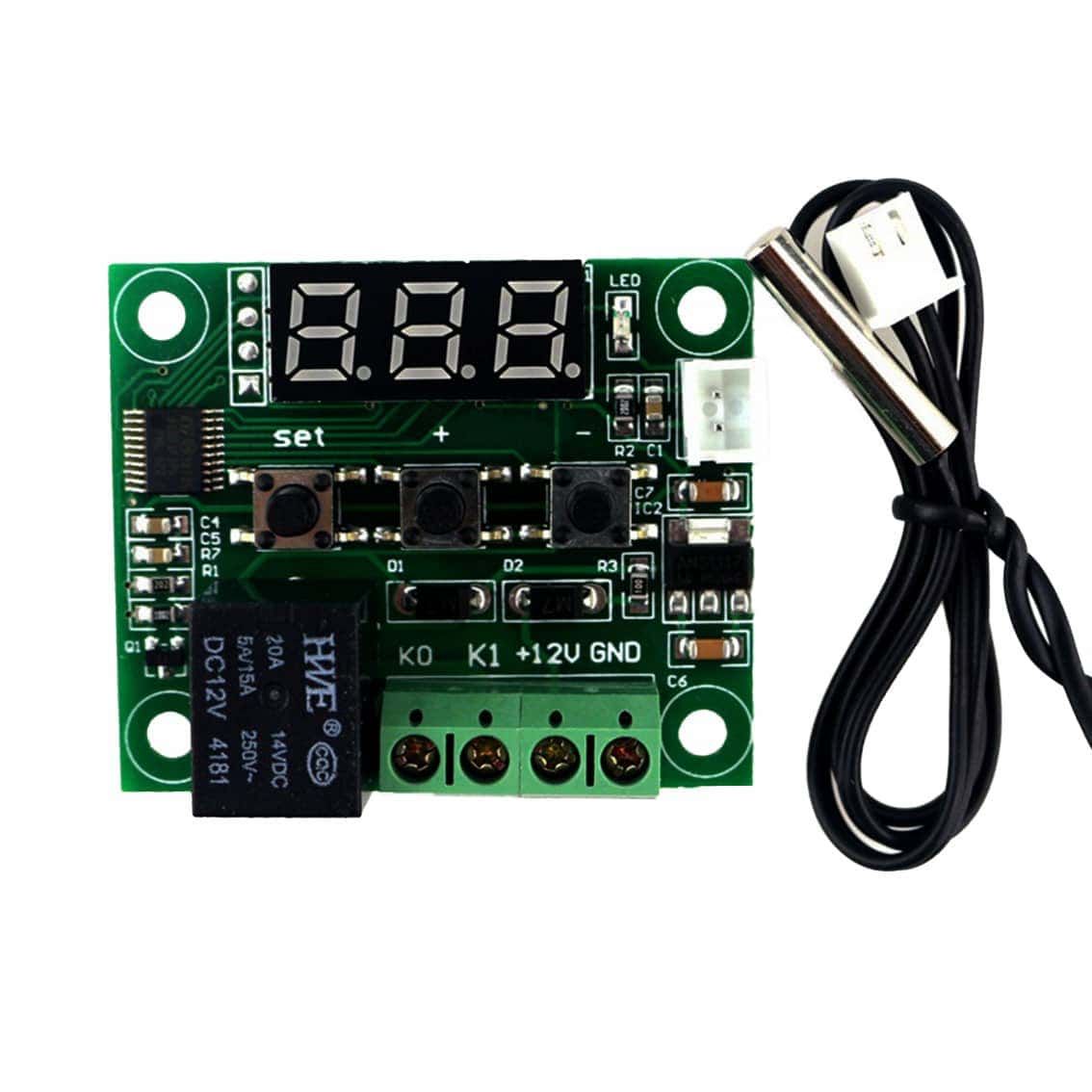

The W1209 Temperature Control Thermostat Relay Switch is a low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical devices based on the temperature recognised by the included NTC temperature sensor.

This device requires no programming knowledge, 3 labelled switches allow for configuring various parameters including on & off trigger temperatures. The unit can switch up to a maximum of 240V AC at 5A or 14V DC at 10A. The live temperature is displayed in degrees on the 3 digit display and the current relay state by an onboard LED.

Specifications:

Temperature Control Range: -50 ~ 110 C
Resolution at -9.9 to 99.9: 0.1 C
Resolution at all other temperatures: 1 C
Measurement Accuracy: 0.1 C
Control Accuracy: 0.1 C
Refresh Rate: 0.5 Seconds
Input Power (DC): 12 V
Measuring Inputs: NTC (10K 0.5%)

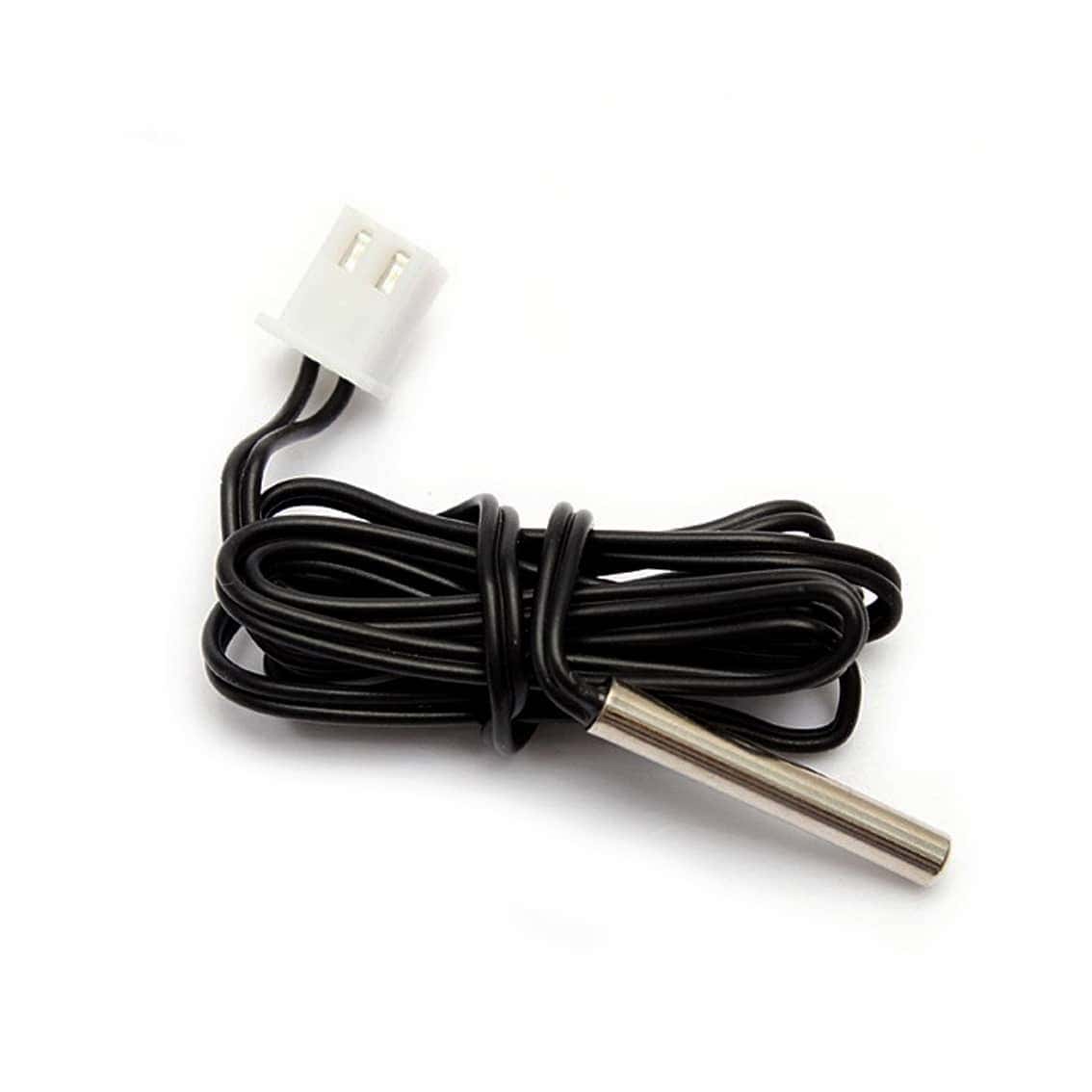

Waterproof Sensor: 0.5M
Output: 1 Channel Relay Output, Capacity: 10A

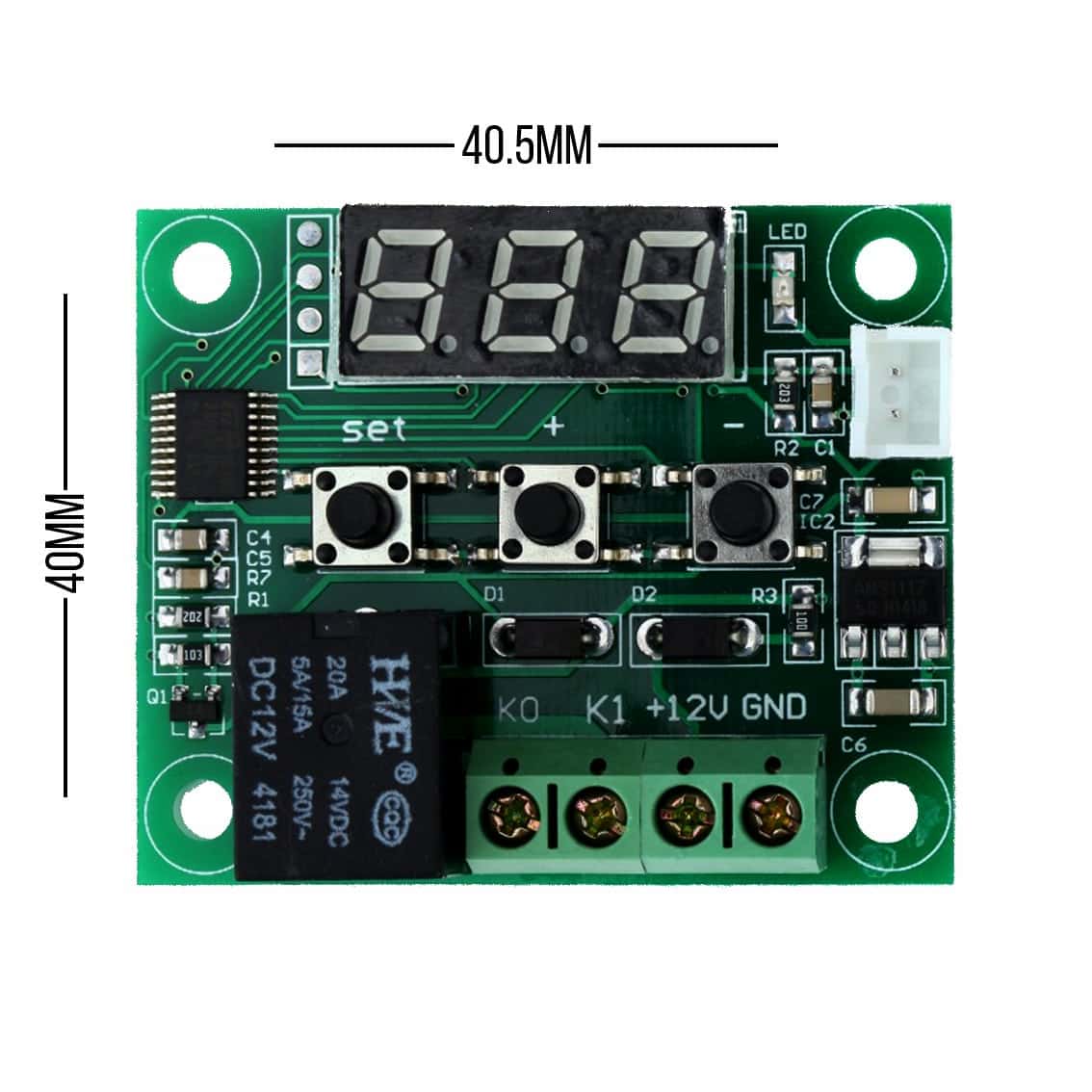

Size: 48mm x 40mm x 14mm
Static Current: <= 35mA
Current: <= 66mA
