Description:

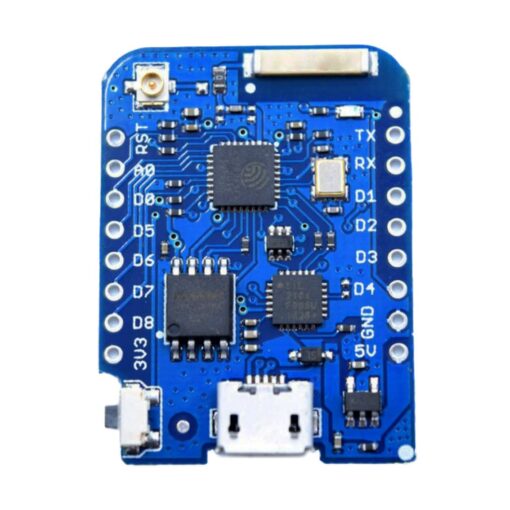

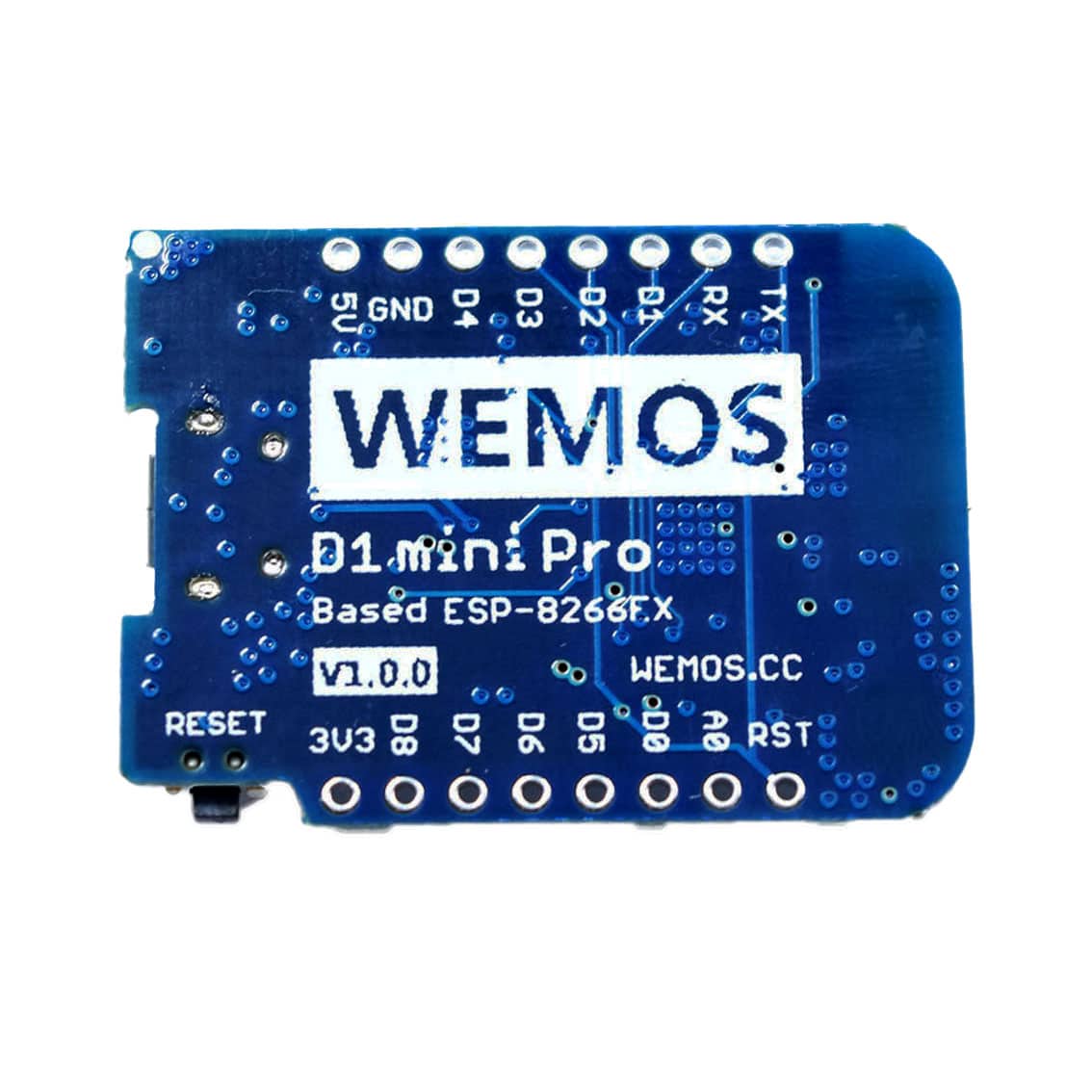

The Wemos D1 Mini Pro is a compact and versatile development board based on the ESP8266EX microcontroller. It offers integrated Wi-Fi capabilities and enhanced features for IoT applications. The board includes 16MB of flash memory, providing ample space for complex programs and data storage. It supports both built-in PCB and external antennas, allowing for flexible wireless connectivity options. Its compatibility with Arduino, MicroPython, and NodeMCU platforms makes it accessible to developers with varying expertise.
Measuring just 48mm by 25.4mm, the D1 Mini Pro is designed for space-constrained projects. It features 11 digital input/output pins, all supporting interrupt, PWM, I²C, and one-wire protocols, along with a single analog input pin. The board operates at 3.3V and includes a micro USB connection for power and programming. Its built-in lithium battery interface supports a maximum charging current of 500mA, facilitating portable applications.
Specifications:
- Microcontroller: ESP8266EX
- Operating Voltage: 3.3V
- Digital I/O Pins: 11
- Analog Input Pins: 1 (max input 3.2V)
- Clock Speed: 80/160MHz
- Flash Memory: 16MB
- Dimensions: 48mm x 25.4mm
- Weight: 4.5g
Features:
- Integrated Wi-Fi connectivity
- Supports both built-in PCB and external antennas
- Compatible with Arduino, MicroPython, and NodeMCU
- Micro USB connection for power and programming
- Built-in lithium battery interface with 500mA max charging current

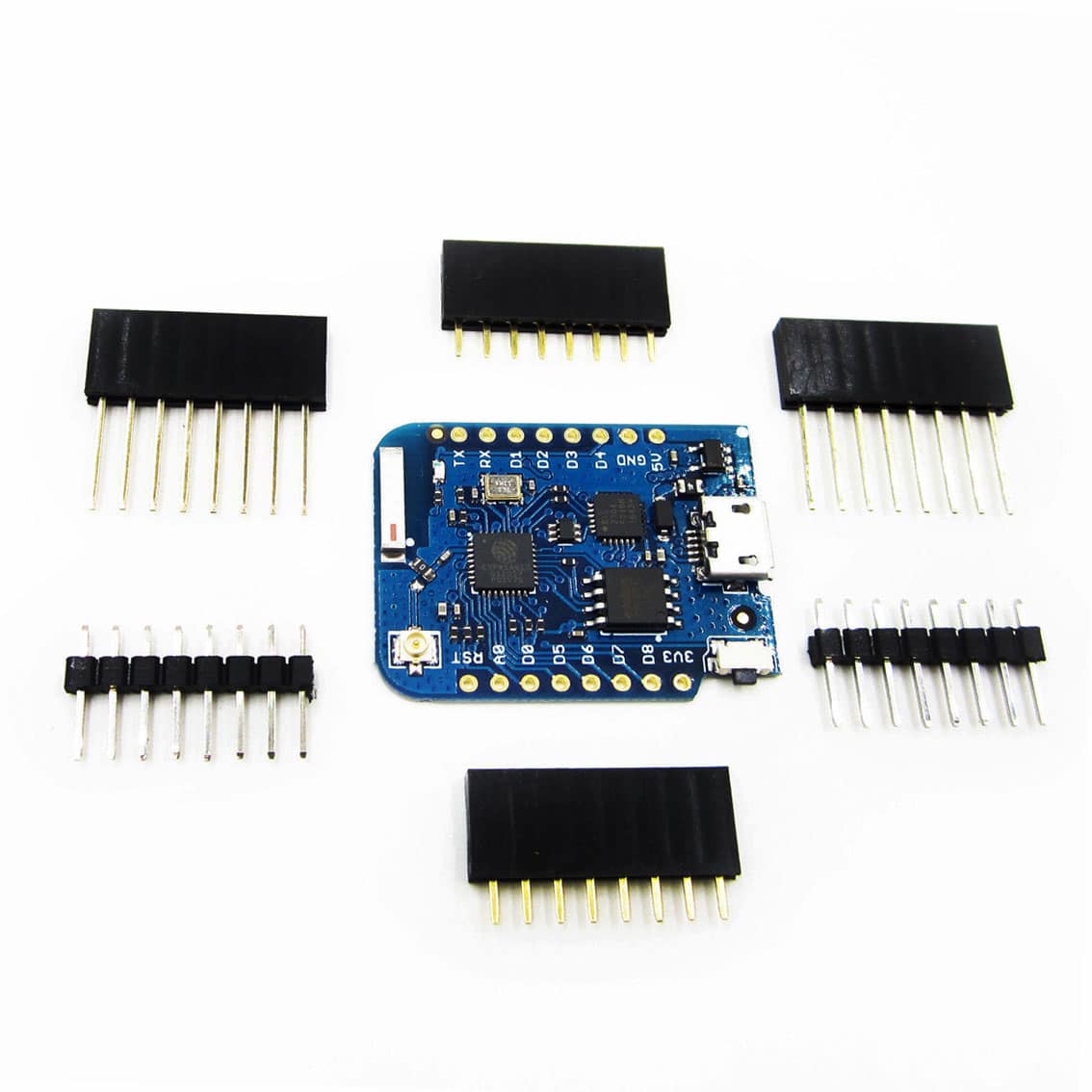

Contents:
- 1 x Wemos D1 Mini Pro ESP8266 Development Board
- 1 x Header Pin Set
