Wemos – Lolin D32 ESP32 Development Board

42 people have recently viewed this product!

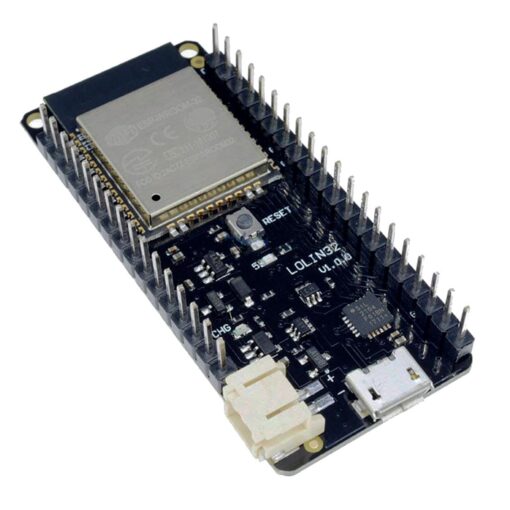

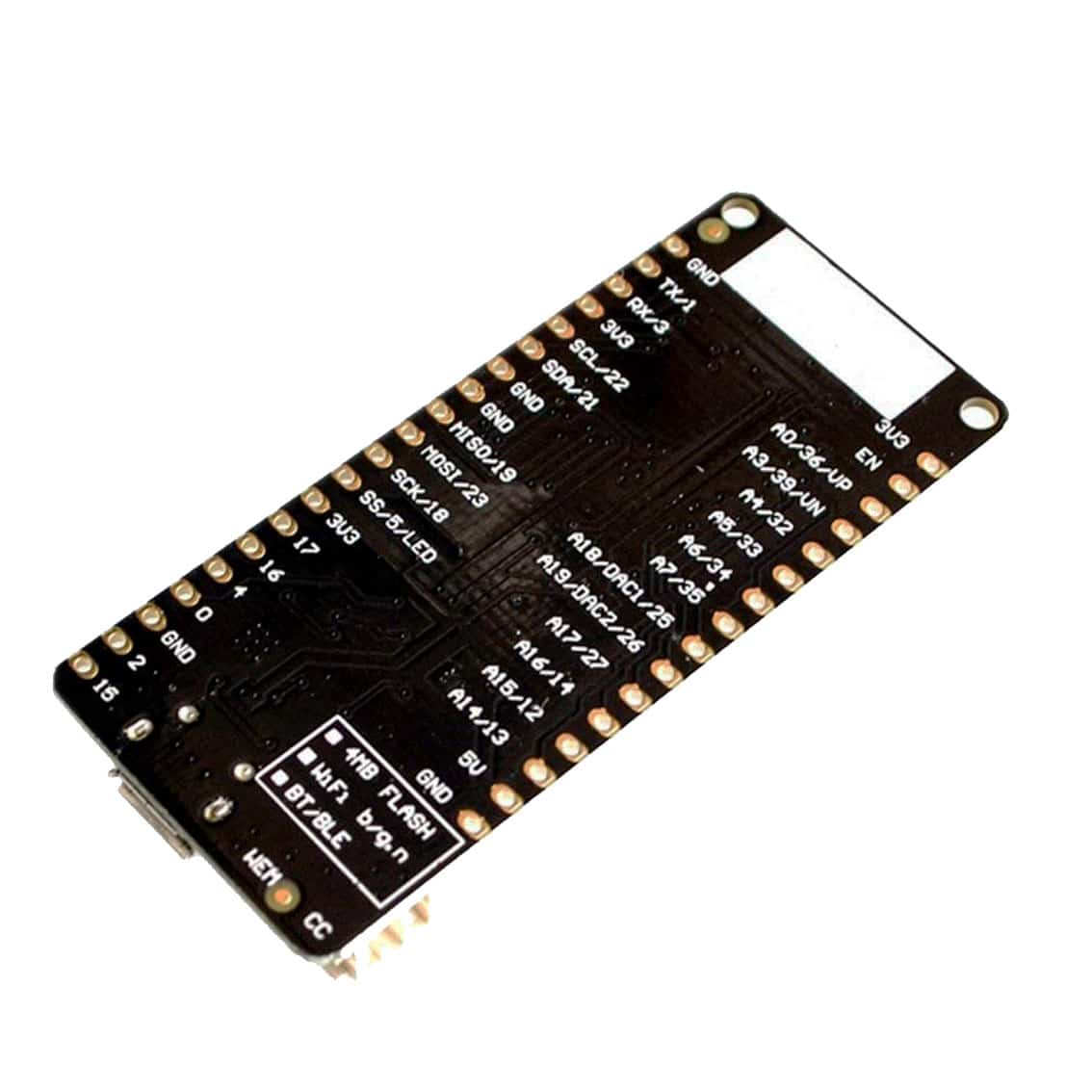

Wemos – Lolin D32 ESP32 Development Board

The Wemos Lolin D32 ESP32 Development Board features a dual-core microprocessor, integrated Wi-Fi and Bluetooth, and a lithium battery interface, making it ideal for versatile IoT and embedded applications.

$32.95

Order Within –

Availability: 21 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001242

Description:

The Wemos Lolin D32 ESP32 Development Board is a powerful and versatile platform designed for a wide range of IoT and embedded applications. At its core is the Espressif ESP32-WROOM-32 module, featuring a dual-core 32-bit LX6 microprocessor operating at up to 240MHz, delivering robust performance for complex tasks. The board comes preloaded with the latest MicroPython firmware, offering a user-friendly environment for rapid development and prototyping. Its compact design and comprehensive feature set make it an ideal choice for developers seeking a reliable and efficient solution for their projects.

Equipped with integrated Wi-Fi and Bluetooth capabilities, the Lolin D32 enables seamless wireless communication, essential for modern connected devices. The board includes 4MB of flash memory, providing ample storage for code and data. Additionally, it features a lithium battery interface with a maximum charging current of 500mA, facilitating portable and energy-efficient designs. The Lolin D32 is compatible with both Arduino and MicroPython environments, offering flexibility in development approaches. Its breadboard-friendly layout and included header pins (requiring soldering) ensure easy integration into various hardware setups.

Specifications:

  • Microcontroller: Espressif ESP32-WROOM-32
  • Operating Voltage: 3.3V
  • Digital I/O Pins: 22
  • Analog Input Pins: 6 (VP, VN, 32, 33, 34, 35)
  • Analog Output Pins: 2 (25, 26)
  • Clock Speed: Up to 240MHz
  • Flash Memory: 4MB
  • Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth v4.2 BR/EDR and BLE
  • Battery Interface: Lithium battery interface, 500mA max charging current
  • Dimensions: 57mm x 25.4mm
  • Weight: 6.1g

Features:

  • Dual-core 32-bit LX6 microprocessor for high-performance applications
  • Integrated Wi-Fi and Bluetooth for versatile wireless communication
  • Preloaded with the latest MicroPython firmware for rapid development
  • Compatible with Arduino and MicroPython environments
  • Lithium battery interface with charging capability for portable designs
  • Breadboard-friendly layout with included header pins (requires soldering)

Contents:

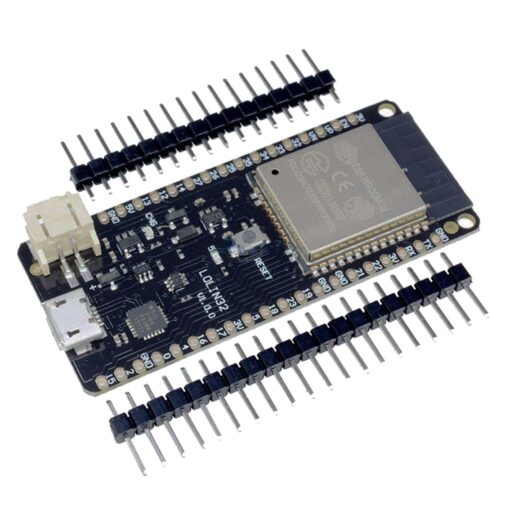

  • 1 x Wemos Lolin D32 ESP32 Development Board
  • 2 x Header Pins (requires soldering)
Weight 0.008 kg
Dimensions 100 × 3 × 60 mm
Brand

Development Board Make

Development Board Type

Development Board Attributes

, , , , ,

Features

, , , , , , , , , , , , ,

Power Source

Input Voltage

,

Operating Voltage

Programming Interface

Micro-USB

Connection Type

Pins

36
