XL4015 5A DC-DC Step Down Adjustable Power Supply Module with Heatsink

18 people have recently viewed this product!

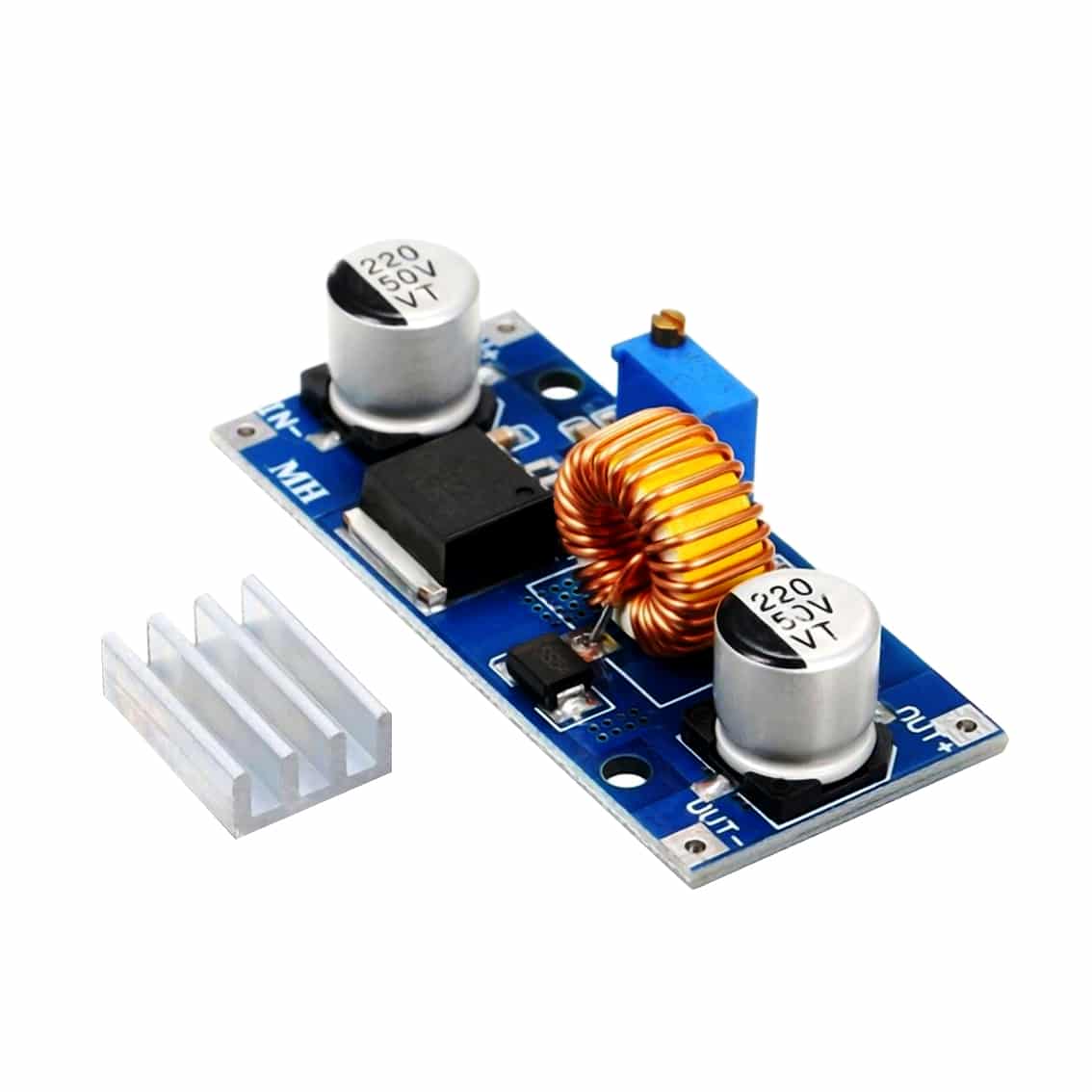

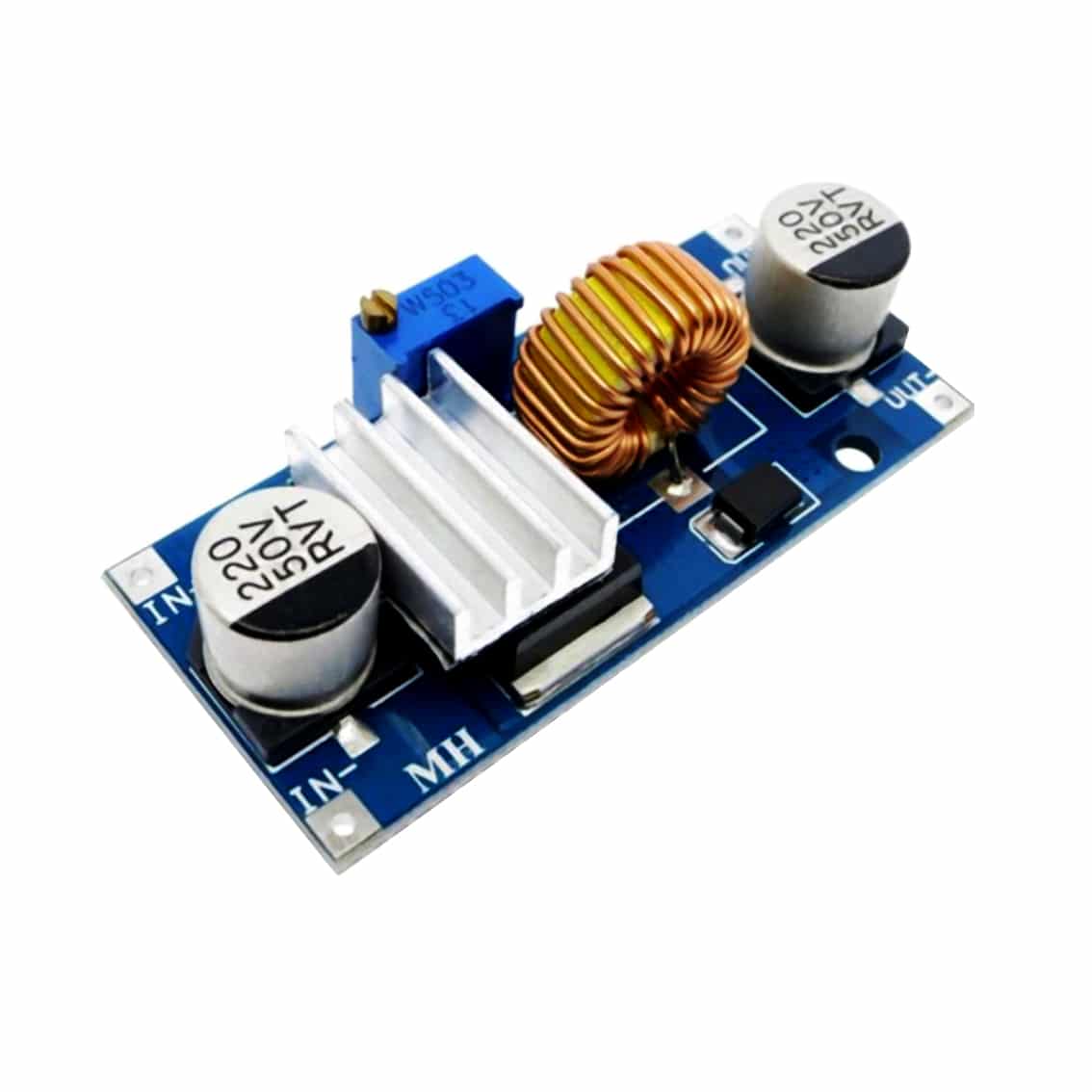

XL4015 5A DC-DC Step Down Adjustable Power Supply Module with Heatsink

The XL4015 5A DC-DC Step Down Adjustable Power Supply Module is a 180 KHz fixed frequency DC-DC PWM step down buck module.

$15.95

Order Within –

Availability: 33 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002877

Description:

The XL4015 5A DC-DC Step Down Adjustable Power Supply Module is a 180 kHz fixed frequency DC-DC PWM step-down buck module.

The module is capable of driving an adjustable 0-5A (Max) load with high efficiency, low ripple, and great line and load regulation.

The module comes with a heatsink.



Features:

  • High-Temperature Thermal Shutdown
  • Current Limit Function
  • Output Short Protection



Specifications:

  • Input Voltage: 4V – 38V DC
  • Output Voltage: 1.25V – 36V DC
  • Output Current: 0A – 5A
  • Output Power: 75W
  • Working Frequency: 180KHz
  • Weight: 16g
  • Dimensions: 54mm x 24mm x 12mm



Contents:

  • 1 x XL4015 5A DC-DC Step Down Adjustable Power Supply Module with Heatsink
Weight 0.016 kg
Dimensions 80 × 15 × 60 mm
