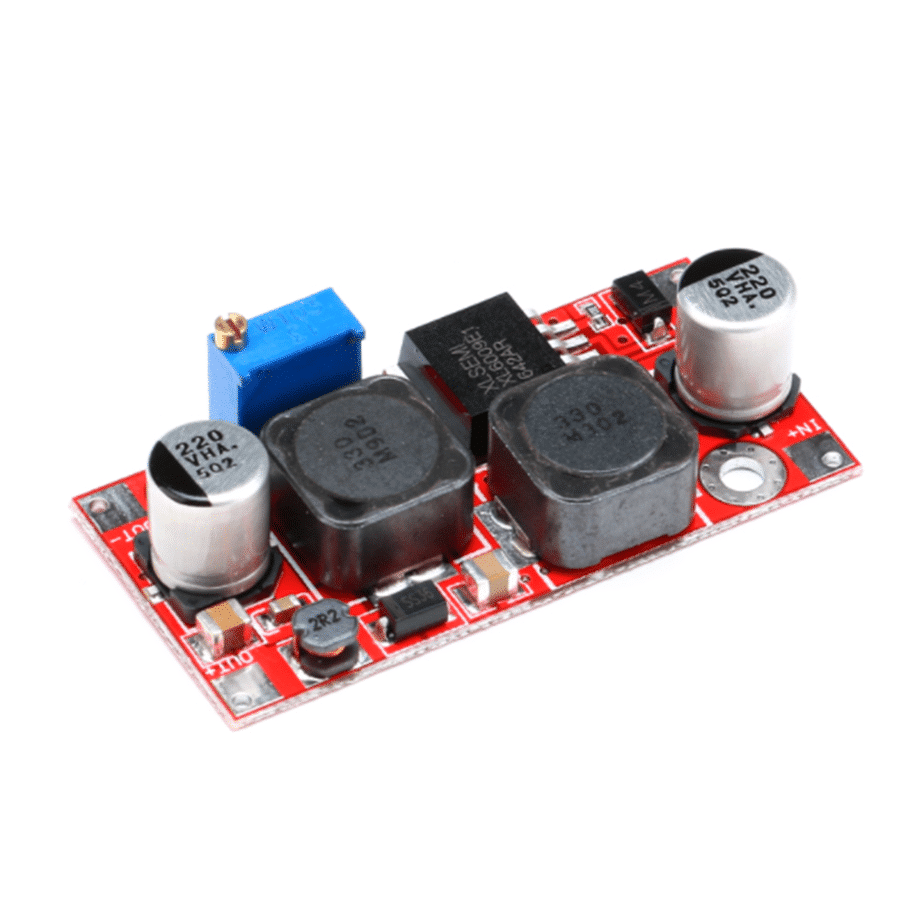

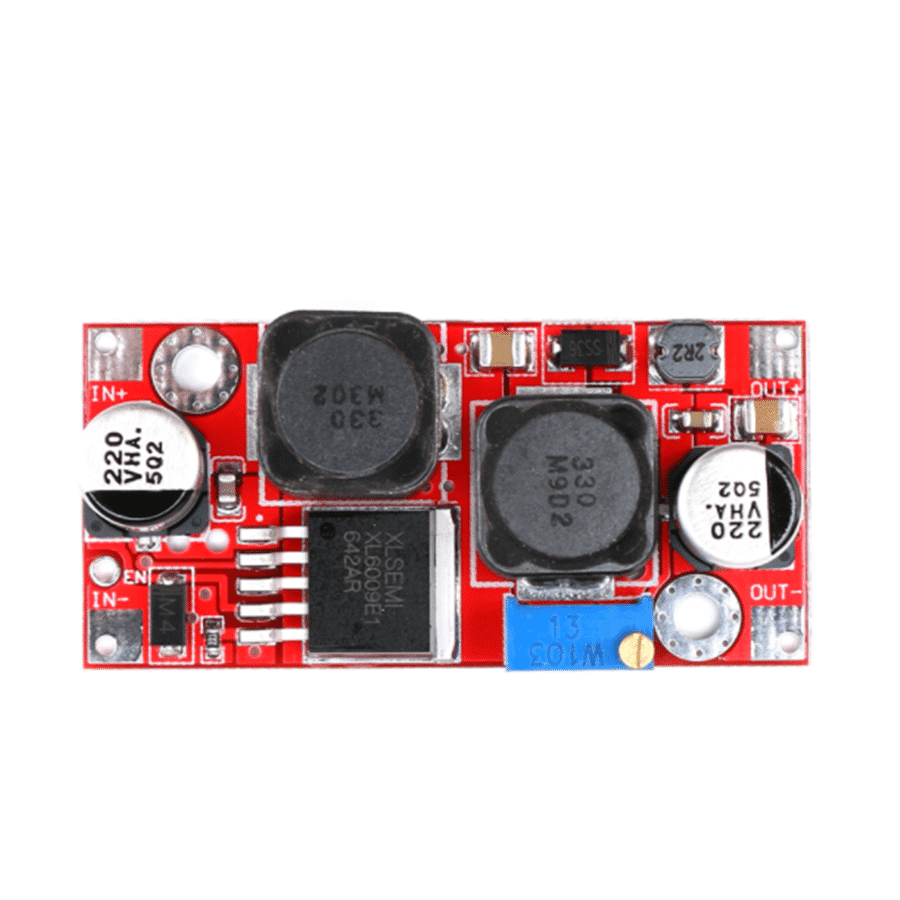

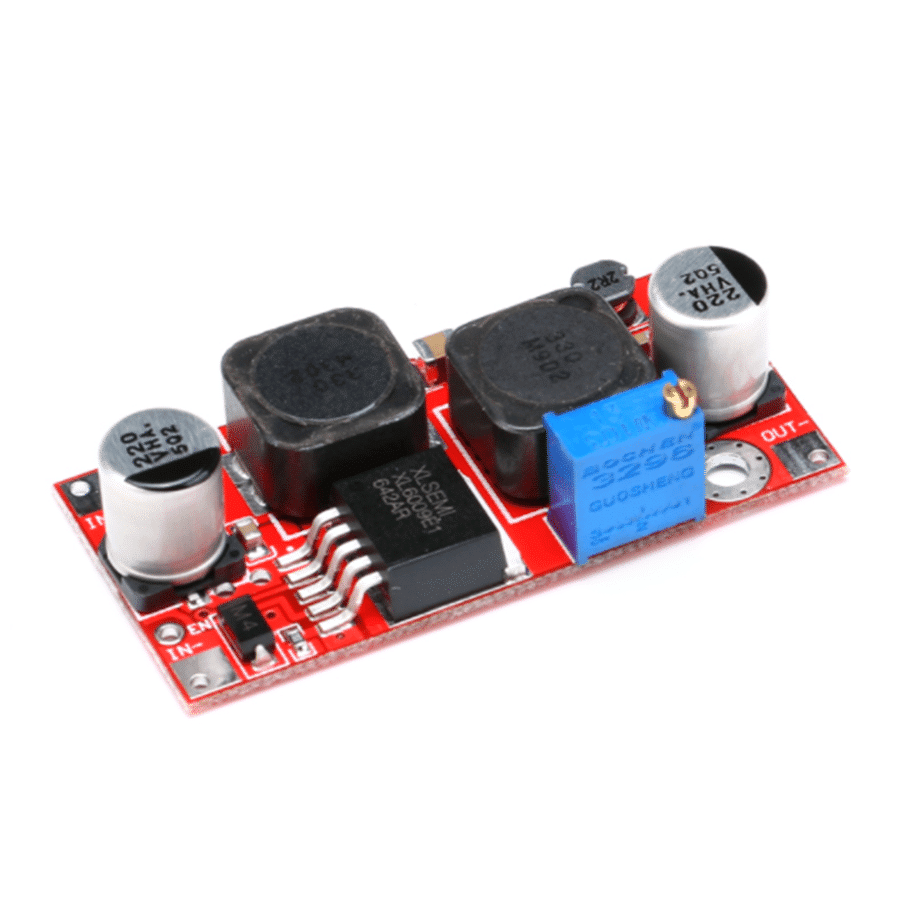

XL6009 DC-DC Adjustable Step-Up Power Supply Module

44 people have recently viewed this product!

XL6009 DC-DC Adjustable Step-Up Power Supply Module

The XL6009 is an adjustable step-up/step-down power supply converter module which is manually adjusted via the in-build trim pot.

$14.95

Order Within –

Availability: 102 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001815

You May Also Like...

Description:

The XL6009 is an adjustable step-up and step-down power supply converter module which is manually adjusted via the built-in trim pot.

The XL6009 buck-boost converter can handle a DC voltage range of 3.2V – 32V input, an adjustable output of 1.2V – 35V and a maximum input current of 4A.



Specifications:

  • Input voltage: 3.2V – 32V DC
  • Output voltage: 1.2V – 35V
  • Input current: 4A Maximum
  • Output Current 1.5A Maximum
  • Type: Step-Up / Step-Down
  • Output Power: 20W (25w MAx)
  • Dimensions: 45mm x 24mm



Contents:

  • 1 x XL6009 DC-DC Adjustable Step-Up Power Supply Module
Weight 0.016 kg
Dimensions 95 × 10 × 60 mm
Brand

Power Module Type

Power Module Attributes

,

Input Voltage

Output Voltage

Maximum Input Current

Maximum Output Current (Continuous)

Maximum Output Current (Peak)

Operating Frequency

Connection Type

1 review for XL6009 DC-DC Adjustable Step-Up Power Supply Module

  1. Graeme Oddy (verified owner)

    This tiny unit works as a step up and step down converter. Maintains constant output voltage. It has two chokes and measures 48 x 24 mm. This is different to the website. Picture and description. Overall very happy with the dc converter and delivery times.
