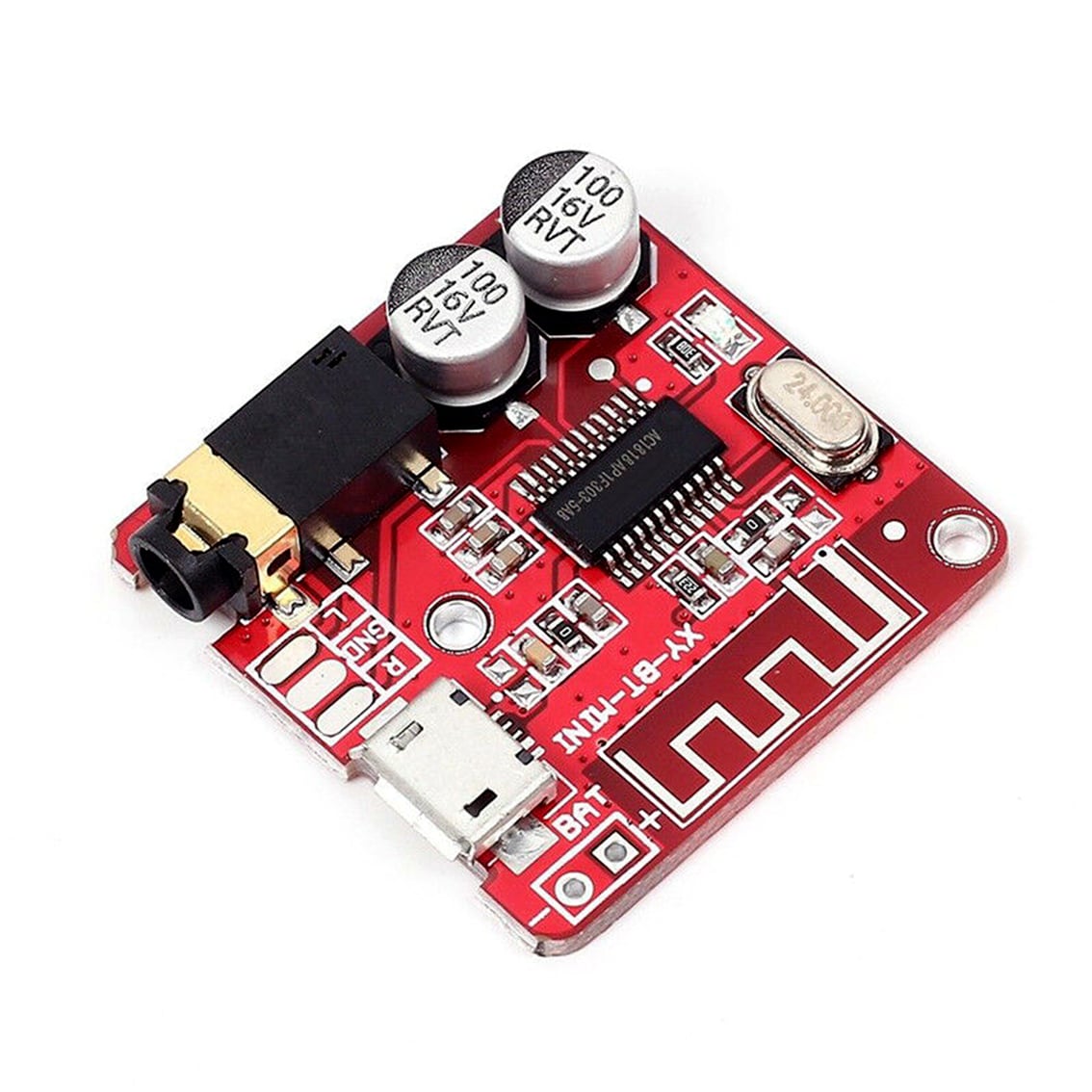

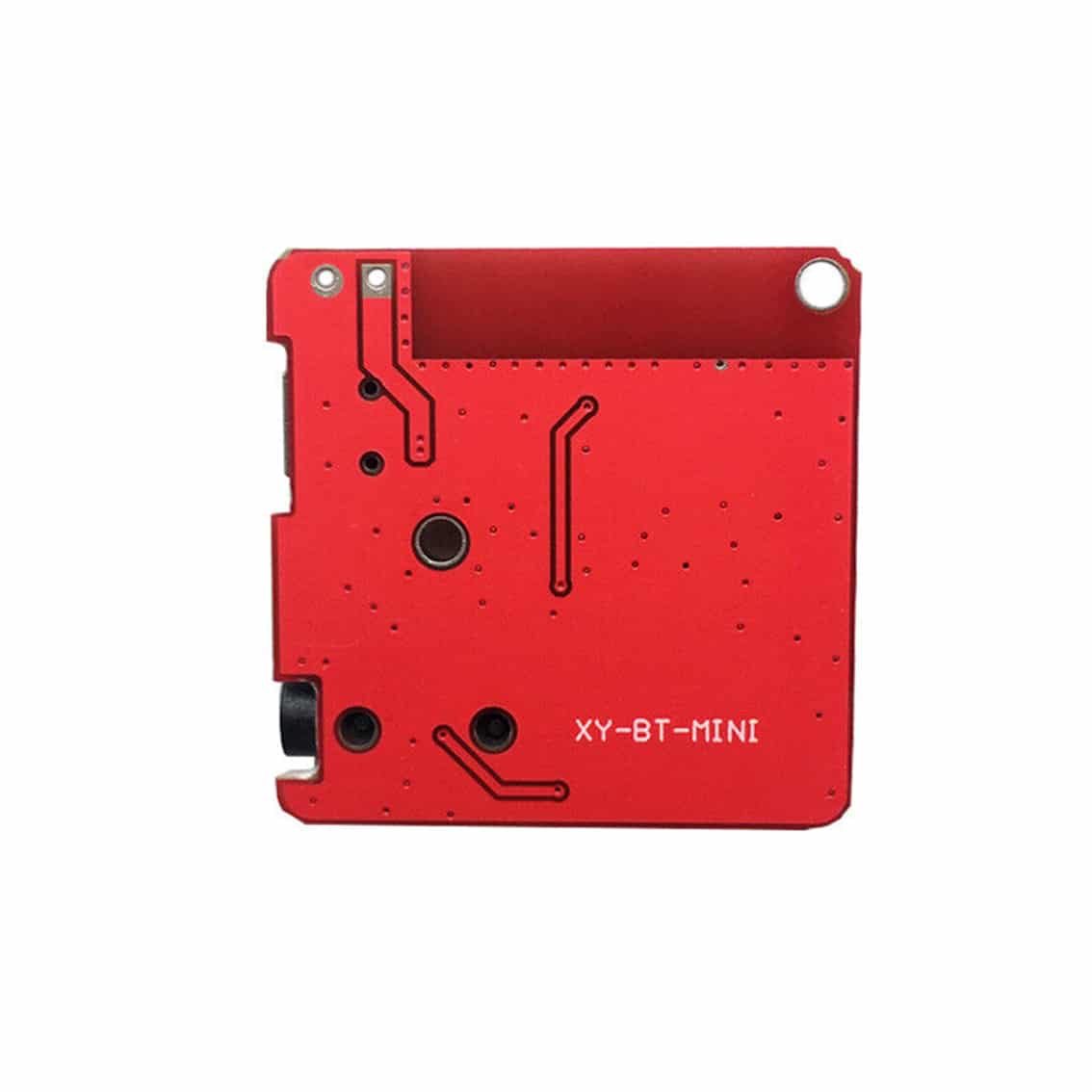

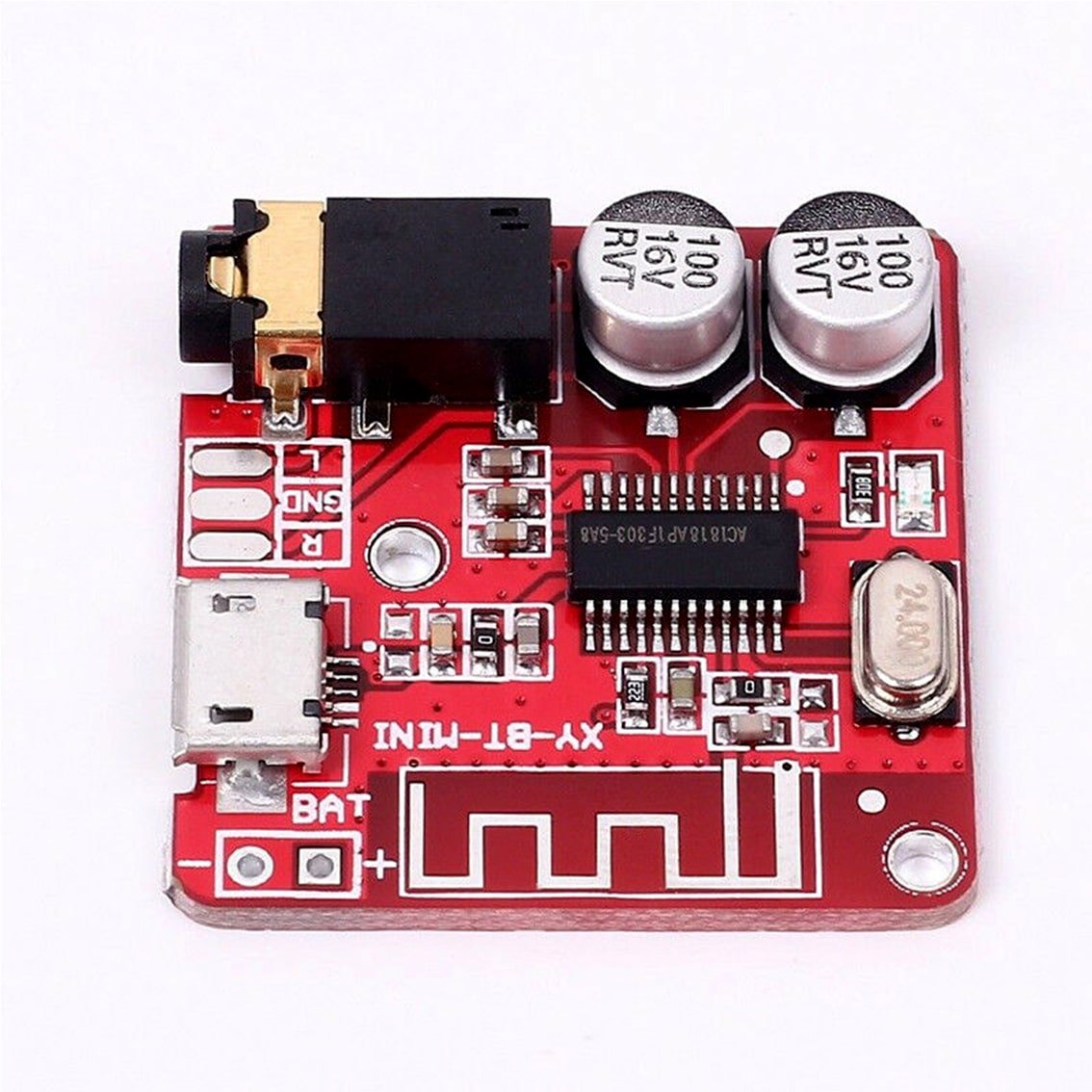

The XY-BT-Mini is Bluetooth audio module with a 3.5mm stereo jack output.
When the board is powered up the board enters Bluetooth mode and blue light is on, a voice will announce “The Bluetooth device is ready to pair” advising the board is in a ready to pair state. Search the board on your device you wish to connect with, the board’s name is “XY-BT”, connect to the device. Once the device is successfully connected another voice will announce “The Bluetooth device is connected successfully”. You will now be able to stream audio to the board.
- Operating voltage: 3.7 – 5V DC
- Power input: Micro USB
- Output power: 3W * 2
- Audio output: 3.5mm stereo jack
- SNR: 90dB
- THD+N: -70dB
- Crosstalk: -86dB
- DNR: 91dB
- Profiles: A2DP / AVCTP / AVDTP / AVRCP / HFP
- LOS: >15m
- Bluetooth version: 4.1
- Dimensions: 68mm x 48mm x 10mm
- 1 x XY-BT-Mini 4.1 Bluetooth Module
