Digital Stereo Power Amplifier Module – 2 x 30W – XH-A232 User’s Guide
User Guide: Digital Stereo Power Amplifier Module – 2 x 30W – XH-A232
Overview
The XH-A232 is a compact digital stereo power amplifier module capable of delivering 2 × 30W output. It is designed for DIY audio projects, speaker systems, and educational electronics applications.
Features
- Output Power: 2 × 30W (stereo)
- Input Voltage: 8–24V DC
- Audio Input: Standard 3.5mm jack or pin header
- Speaker Output: Left and Right channel terminals
- Compact PCB design for easy integration
- High efficiency digital amplification
Package Contents
- 1 × XH-A232 Digital Stereo Power Amplifier Module
- Pin headers and connectors (varies by supplier)

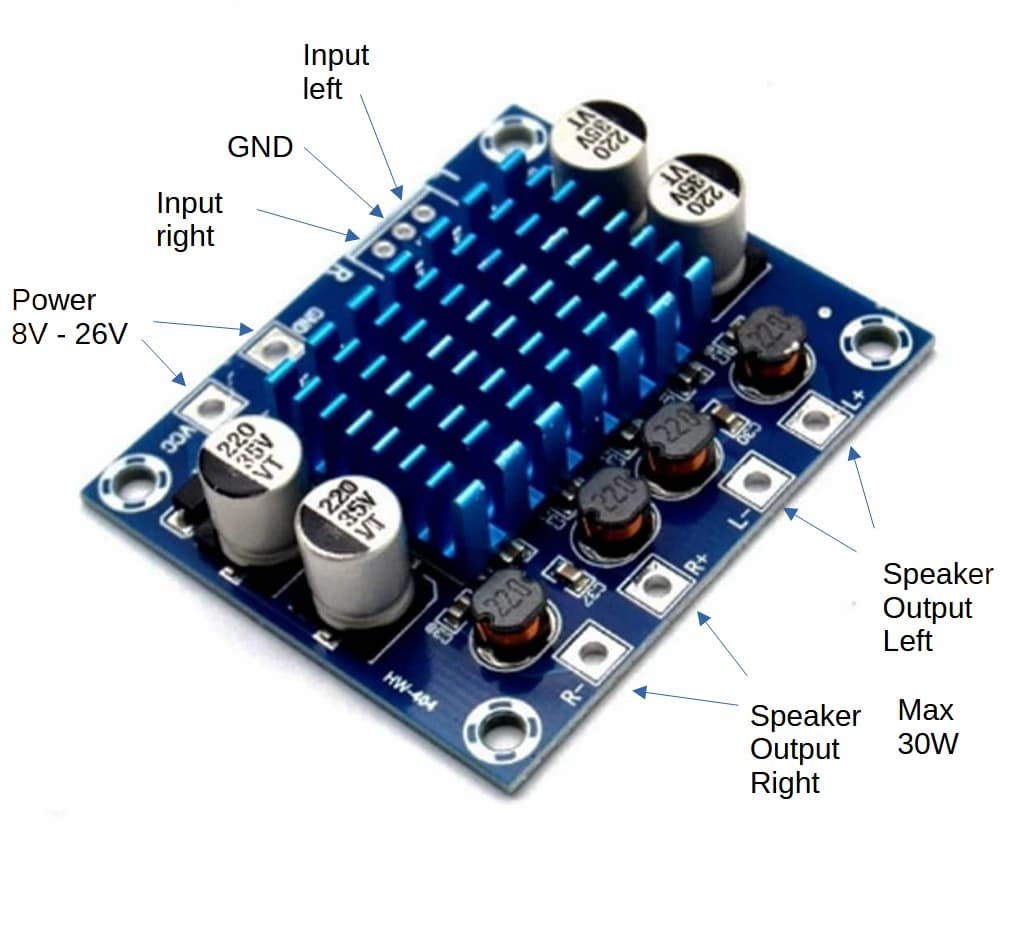

Product Image
Technical Specifications
| Parameter | Value |
|---|---|
| Output Power | 30W × 2 (stereo) |
| Supply Voltage | 8–24V DC |
| Input Interface | 3.5mm audio jack / pins |
| Output Interface | Speaker terminals |
| Dimensions | ~52 × 32 × 15 mm |
Installation and Setup
- Power Supply: Connect a regulated DC power source (8–24V). Ensure polarity is correct.
- Audio Input: Plug in a 3.5mm audio cable or connect signal wires to the input pins.
- Speaker Connection: Attach left and right speakers to the output terminals.
- Mounting: Secure the module on a non-conductive surface to avoid short circuits.
Usage Instructions
- Adjust input volume from the source device (phone, computer, MP3 player).
- Ensure speakers are rated for at least 30W output.
- Avoid operating at maximum volume for extended periods to prevent overheating.
Safety Precautions
- Do not reverse power polarity.
- Use a regulated power supply to avoid damage.
- Keep module away from moisture and conductive surfaces.
- Ensure proper ventilation during operation.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| No sound output | Loose connections | Check input/output wiring |
| Distorted audio | Overdriven input | Lower source volume |
| Module overheating | Insufficient airflow | Improve cooling/ventilation |
Applications
- DIY speaker systems
- Portable audio projects
- Educational electronics kits
- Home audio enhancements
Conclusion
The XH-A232 Digital Stereo Power Amplifier Module offers a reliable and efficient solution for small to medium audio projects. With proper setup and care, it delivers clear stereo sound and long-lasting performance.
