1 Channel Programmable Time Delay Relay Module – XY-J04

22 people have recently viewed this product!

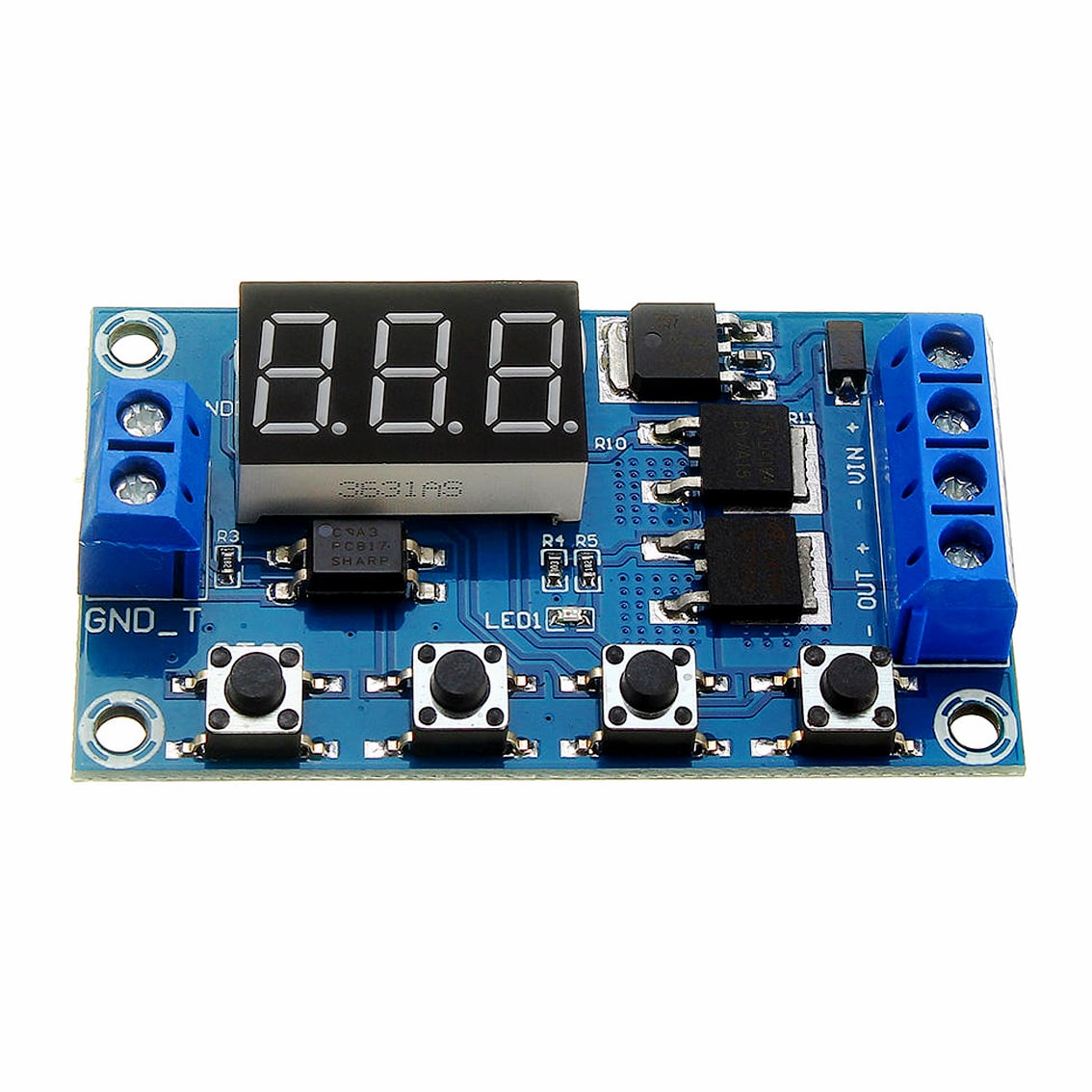

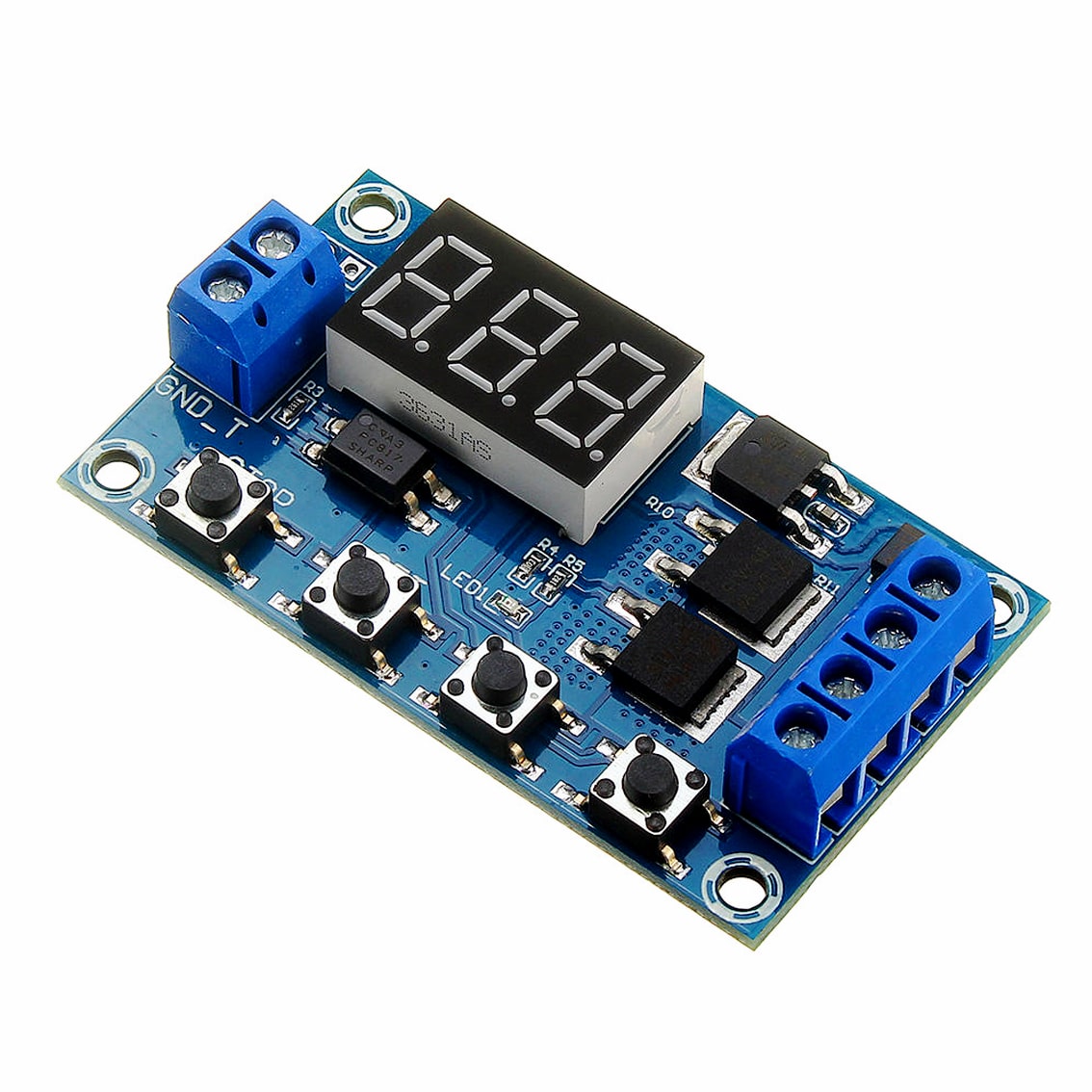

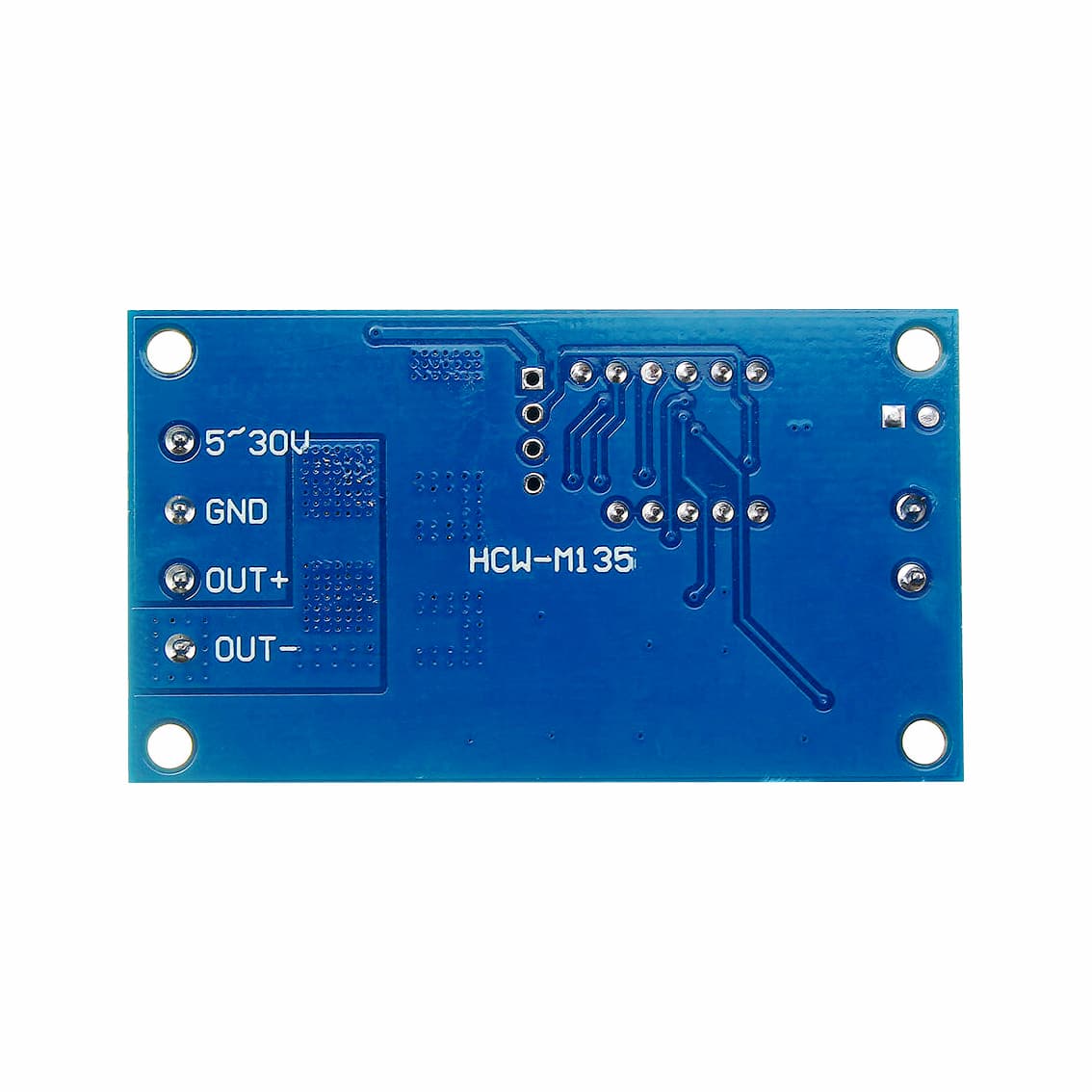

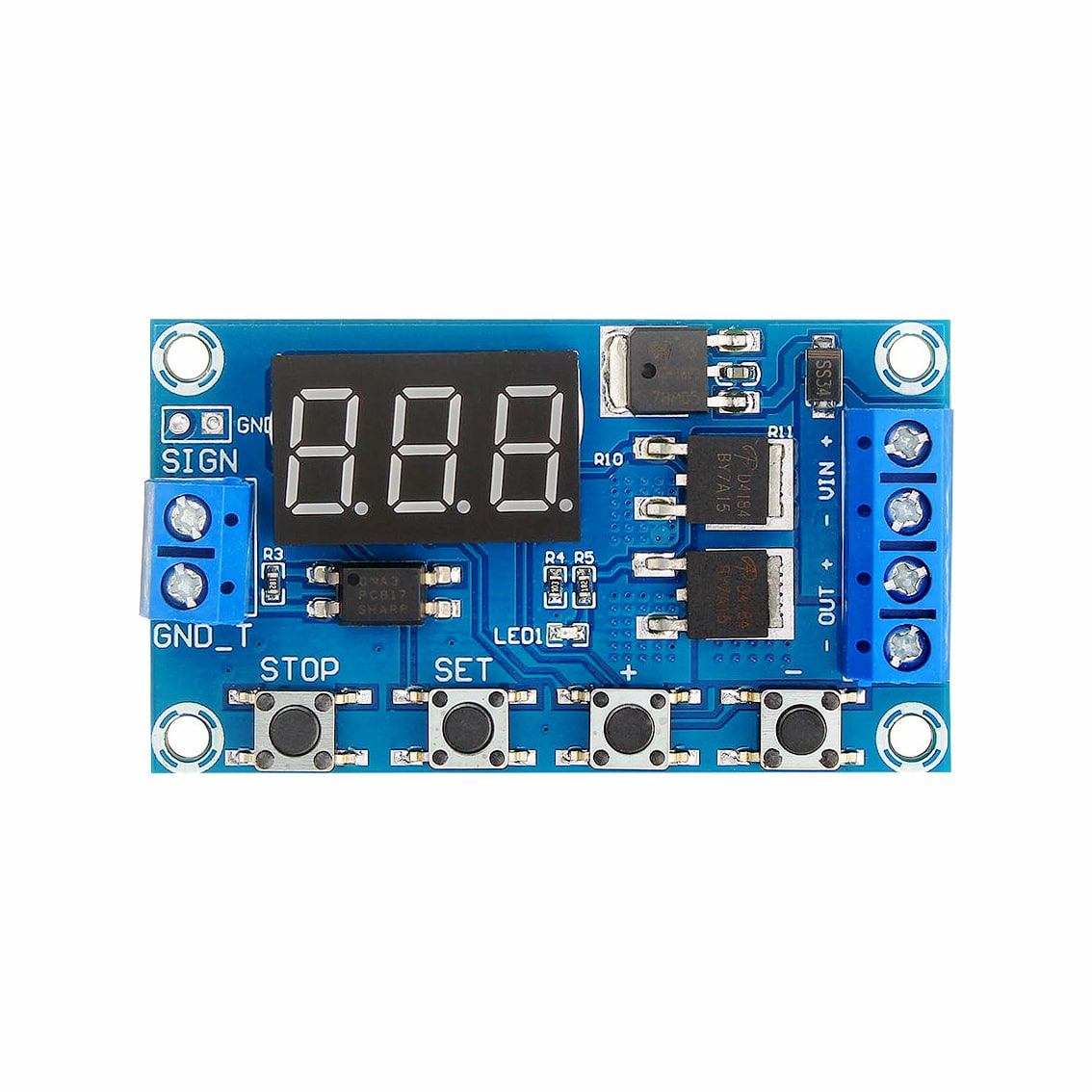

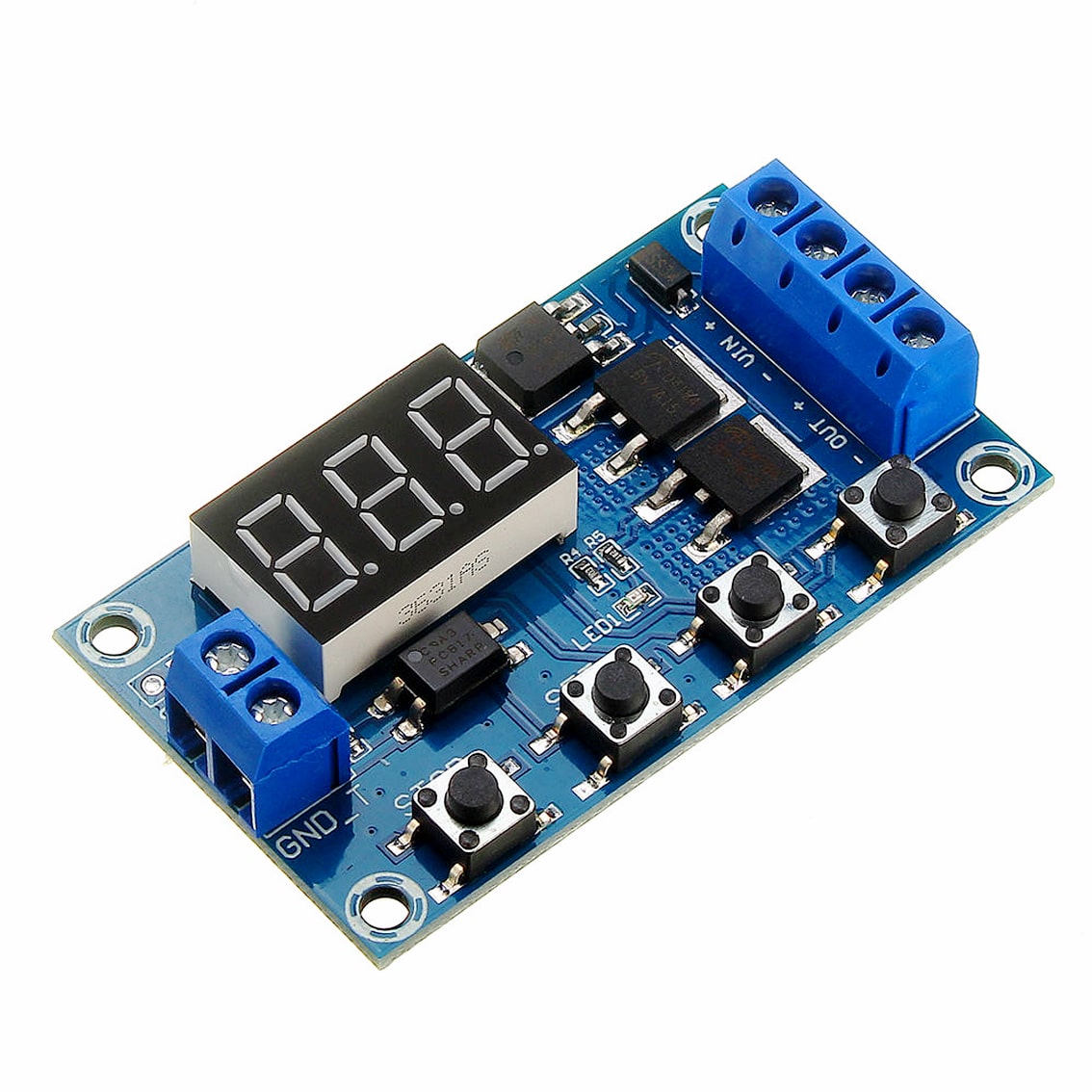

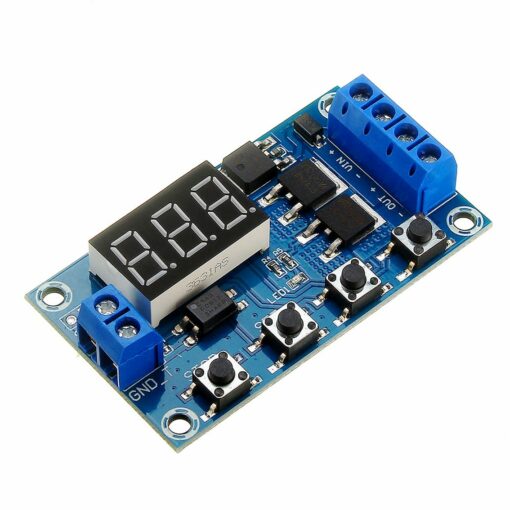

1 Channel Programmable Time Delay Relay Module – XY-J04

The 1-Channel Programmable Time Delay Relay Module (XY-J04) can be programmed as an ON-Time Delay, OFF-Time Delay, Cyclic.

Original price was: $18.95.Current price is: $15.95.

Order Within –

Availability: 22 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002206

You May Also Like...

Description:

The 1-Channel Programmable Time Delay Relay Module (XY-J04) can be programmed as an ON-Time Delay, OFF-Time Delay, Cyclic.

The timer can be set from 0.1 seconds to 999 minutes via the pushbuttons and has 4 7-segment displays.

Please view the Product Information Page regarding operation.



Specifications:

  • Operating voltage: 5VDC to 36VDC
  • Timer parameters: 0.1 seconds (min) to 999 minutes (max)
  • Operating current: 15A 400W (max)
  • Trigger voltage: 3VDC to 24VDC
  • Dimensions: 60mm x 34mm x 12mm
  • Quiescent current: 15mA



Contents:

  • 1 x 1-Channel Programmable Time Delay Relay Module – XY-J04
Weight 0.014 kg
Dimensions 100 × 10 × 80 mm

Reviews

  1. David Gray (verified owner)

    works great. little difficult to work out how to program but I just had to think a little
