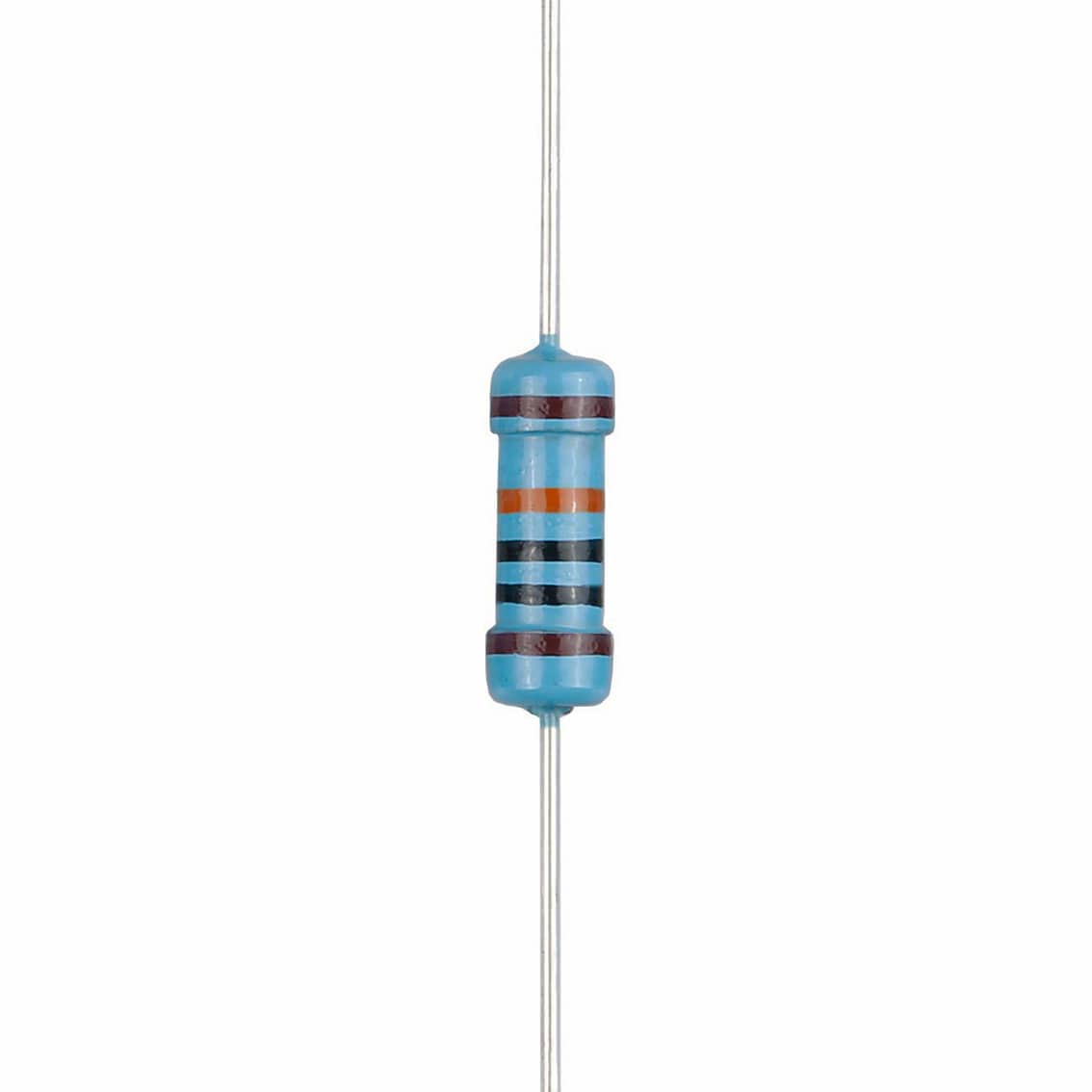

The 100K Ohm 2W 1% Metal Film Resistor is a general-purpose thin film resistor. The resistor is used in electronics where reliability and stability is required.
A resistor is an electrical component that is used to resist current flow in a circuit.
- Resistance: 100K Ohms
- Resistance Tolerance: 1%
- Rated Dissipation: 2W
- Operating Voltage: 500V AC/DC
- Operating Temperature: -55 °C to 155 °C
- Termination: Axial
- Component Dimensions: 14.75 x 4.15 mm
- 50 x 100K Ohm 2W 1% Metal Film Resistors
