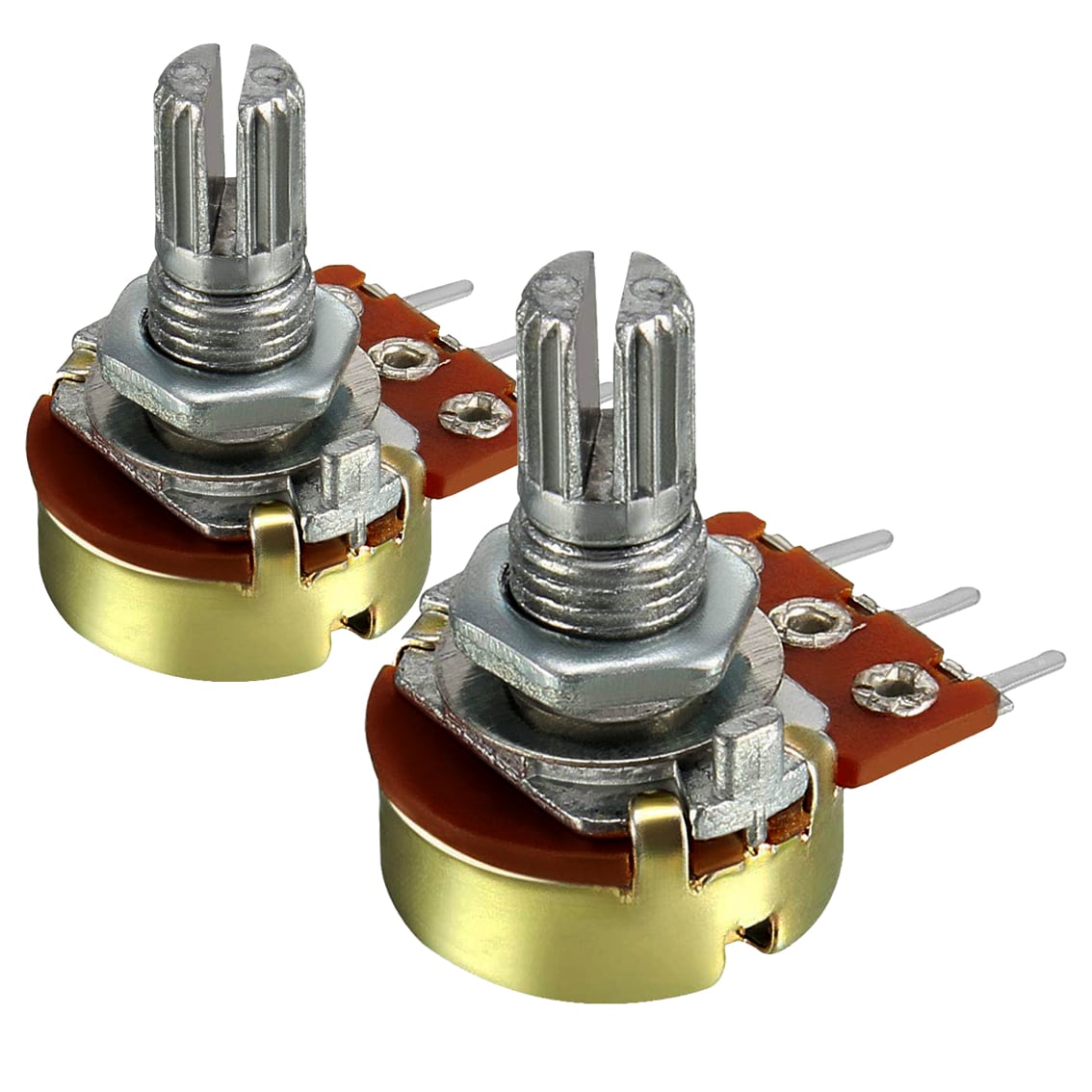

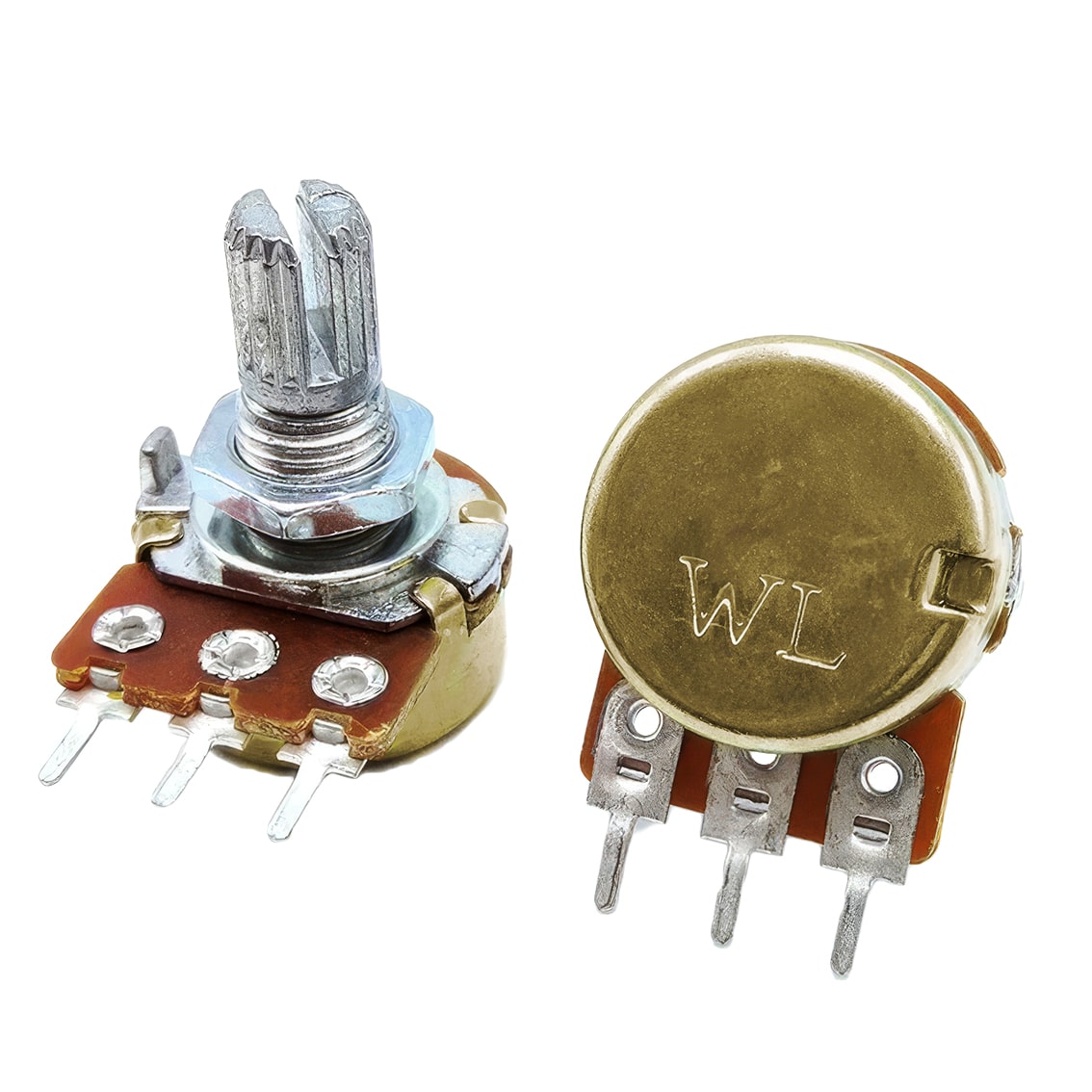

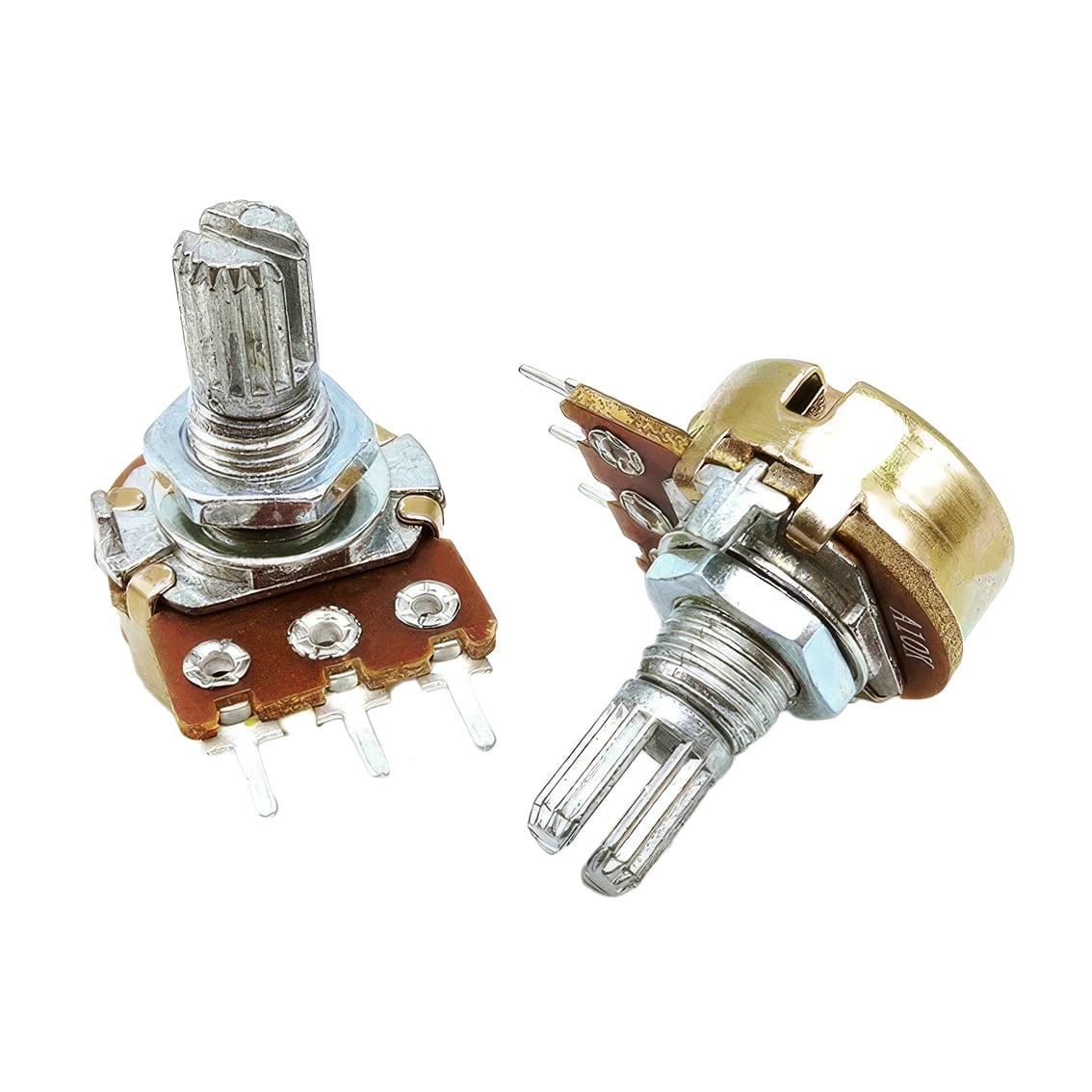

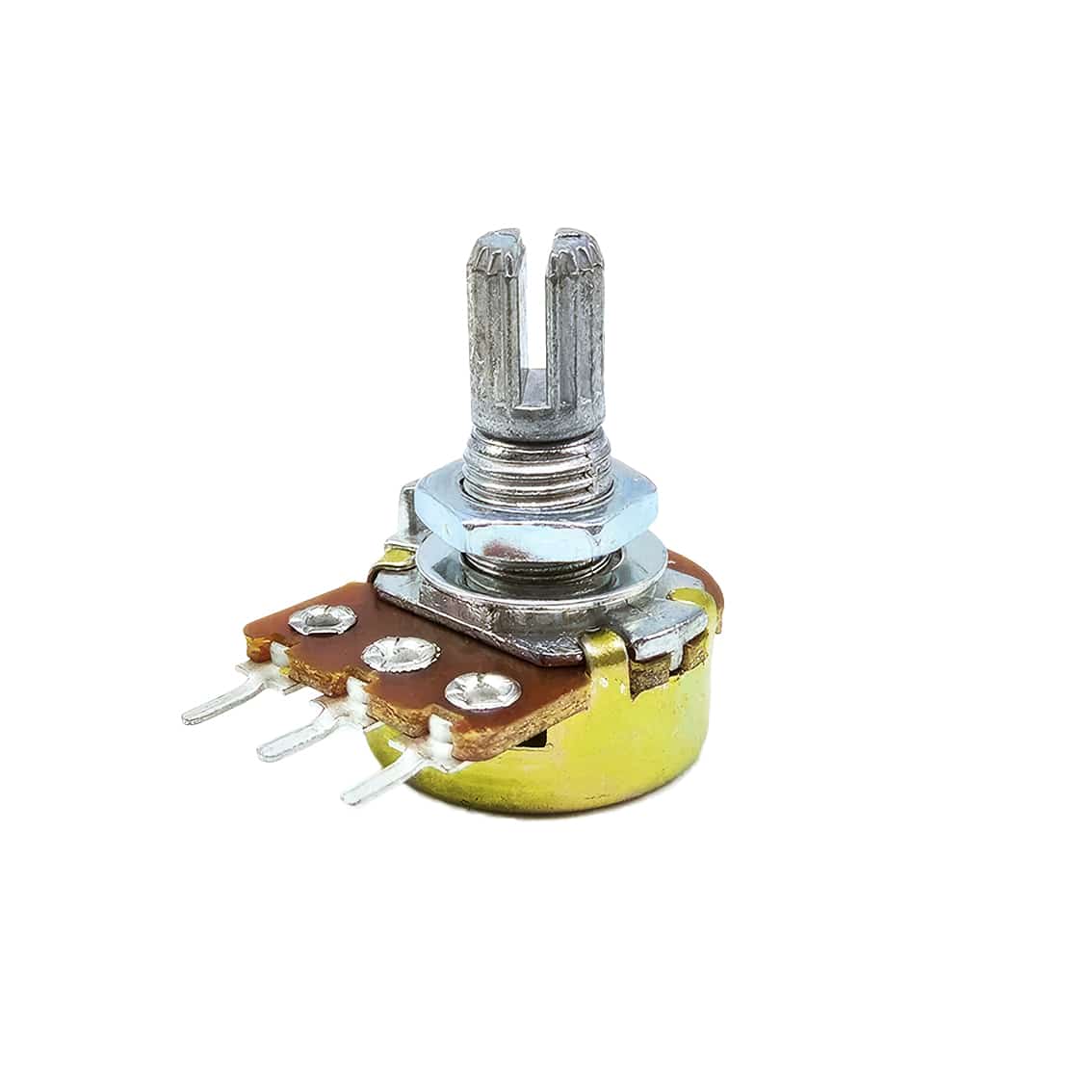

100K Ohm 3 Pin Linear Potentiometer WH148 B100K – Pack of 2

22 people have recently viewed this product!

100K Ohm 3 Pin Linear Potentiometer WH148 B100K – Pack of 2

The 100K Ohm 3 Pin Linear Potentiometer – WH148 B100K is a high-precision, single-turn potentiometer ideal for variable resistance adjustments in electronic circuits. It features a robust carbon film design, standard 3-pin configuration, and an easy-to-use rotary knob, suitable for audio equipment and industrial controls.

$12.95

Order Within –

Availability: 27 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003245

Description:

The 100K Ohm Potentiometer WH148 B100K is a pack of two linear taper rotary panel pots designed for a range of industrial and electrical applications. This model is part of the WH148 series, known for its reliable performance and versatility in various settings. These potentiometers are primarily used for controlling voltage and current in electronic circuits, offering smooth and precise adjustment capabilities.

Specifications:

  • Model: WH148
  • Type: Rotary Potentiometer
  • Resistance Value: 100K ohm (0-100000 ohms)
  • Tolerance: ±20%
  • Operating Temperature: -10℃ to +100℃
  • Power Rating: 0.3W
  • Maximum Input Voltage: 200Vdc
  • Rotational Life: 2000K cycles
  • Shaft Diameter: 6mm/0.2 inch
  • Shaft Length: 15mm/0.59 inch
  • Screw Thread Diameter: 6.7mm/0.26 inch

Features:

  • Adjustable Variable Resistor: Offers flexibility in controlling electrical parameters.
  • Top Knurled Shaft: Ensures easy grip and adjustment.
  • Solder Pins for Secure Connection: Provides a stable and reliable electrical connection.
  • Linear Taper: Facilitates smooth and precise voltage or current adjustment.
  • Wide Operating Temperature Range: Suitable for use in various environmental conditions.

Contents:

  • 2 x 100K Ohm WH148 B100K Potentiometers
Weight 0.014 kg
Dimensions 65 × 50 × 15 mm
Brand

Type

Resistance

100K

Adjustment Type

Rotation

Power Rating

Max Power Dissipation

300mW

Maximum Working Voltage

Model

Shaft Length

Shaft Diameter

Screw Thread Diameter

Mounting Type
