2.4GHz 3dB SMA Antenna with U.FL UFL Pigtail

The 2.4GHz 3dB SMA Antenna with U.FL Pigtail is an adjustable-angle antenna designed for 2.4GHz transceivers, featuring a 3dB gain and including an SMA to U.FL pigtail for versatile connectivity.

$15.95

Order Within –

Availability: 40 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001217

You May Also Like...

Description:

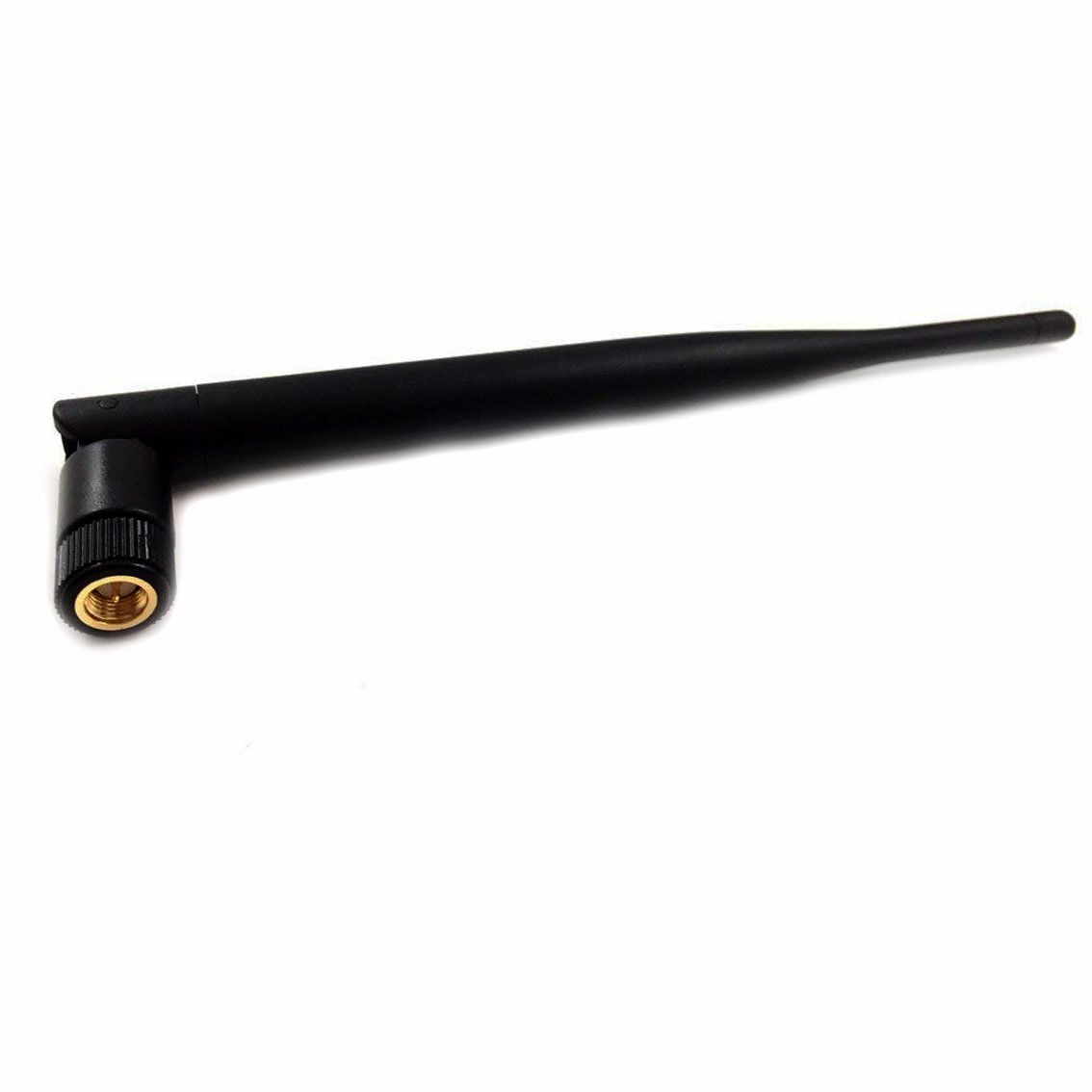

The 2.4GHz 3dB SMA Antenna with U.FL Pigtail is a high-quality, adjustable-angle antenna designed for low-power 2.4GHz transceivers, including IEEE 802.11 b/g/n WLAN systems, Bluetooth devices, and other wireless communication modules. Its integrated SMA connector and included U.FL pigtail facilitate seamless connectivity with various modules, enhancing signal strength and communication range. The antenna’s angle can be adjusted to a 90° right angle, providing flexibility in installation and orientation.

This antenna is particularly suitable for applications requiring reliable wireless communication, such as Wi-Fi, WiMAX, and MIMO systems. The gold-plated nut and washers allow for secure panel mounting, ensuring stability and optimal performance. With a gain of 3dB, it effectively boosts signal transmission and reception, making it an ideal choice for enhancing the performance of your wireless projects.

Specifications:

  • Frequency Range: 2.4 – 2.5 GHz
  • Antenna Gain: 3dB
  • Antenna Length: 110mm
  • Antenna Connector: SMA Male
  • Pigtail Length: 165mm (approx.)
  • Pigtail Connectors: SMA Female to U.FL Female
  • Impedance: 50 ohms
  • Adjustable Angle: Up to 90° right angle
  • Mounting Hardware: Gold-plated nut and washers for panel mounting

Features:

  • Adjustable-angle antenna with integrated SMA connector
  • Includes SMA to U.FL pigtail for versatile connectivity
  • Suitable for IEEE 802.11 b/g/n WLAN, Bluetooth, and other 2.4GHz systems
  • Gold-plated mounting hardware for secure panel installation
  • Enhances signal strength and communication range with 3dB gain

Contents:

  • 1 x 2.4GHz 3dB SMA Antenna
  • 1 x U.FL Pigtail
Weight 0.018 kg
Dimensions 105 × 10 × 5 mm
