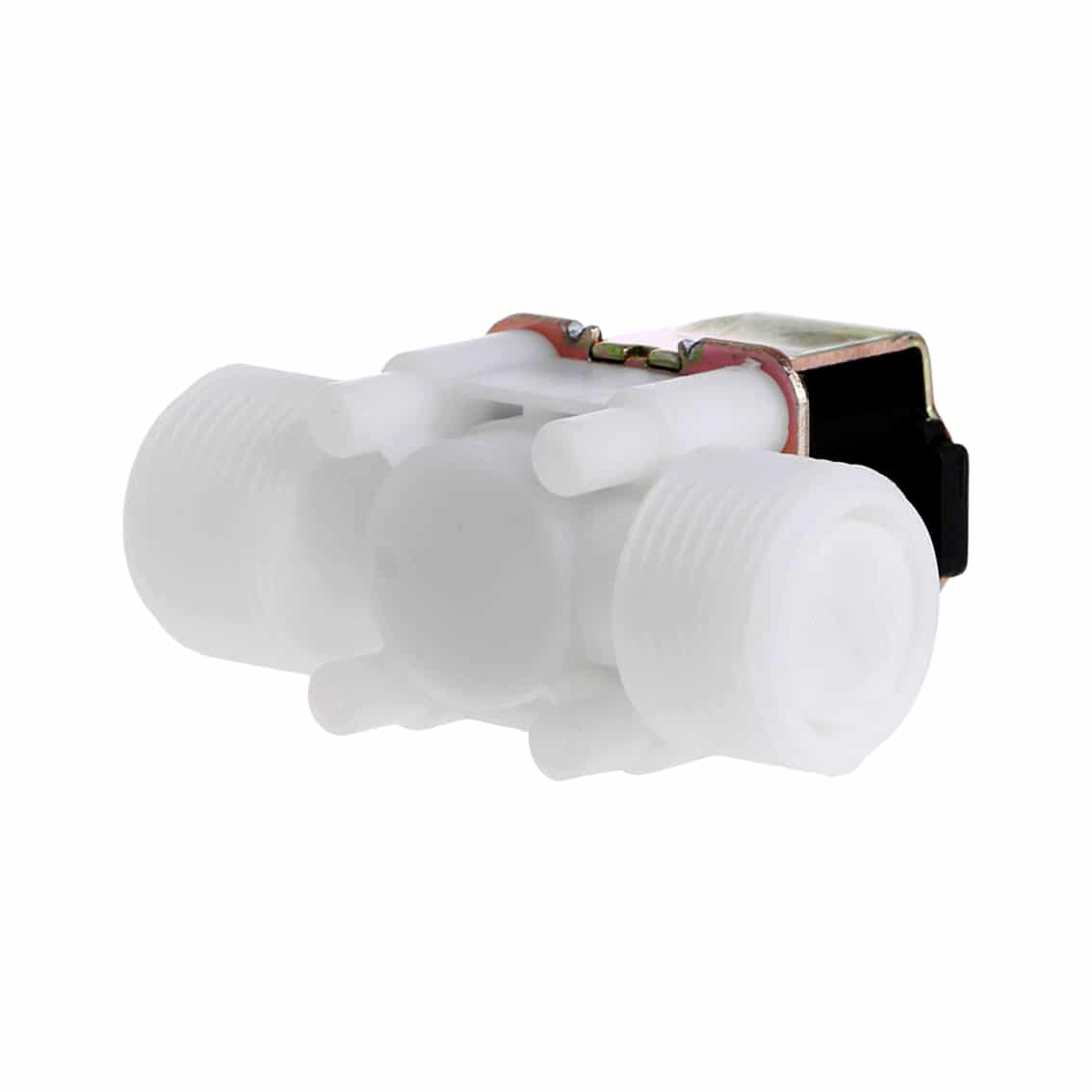

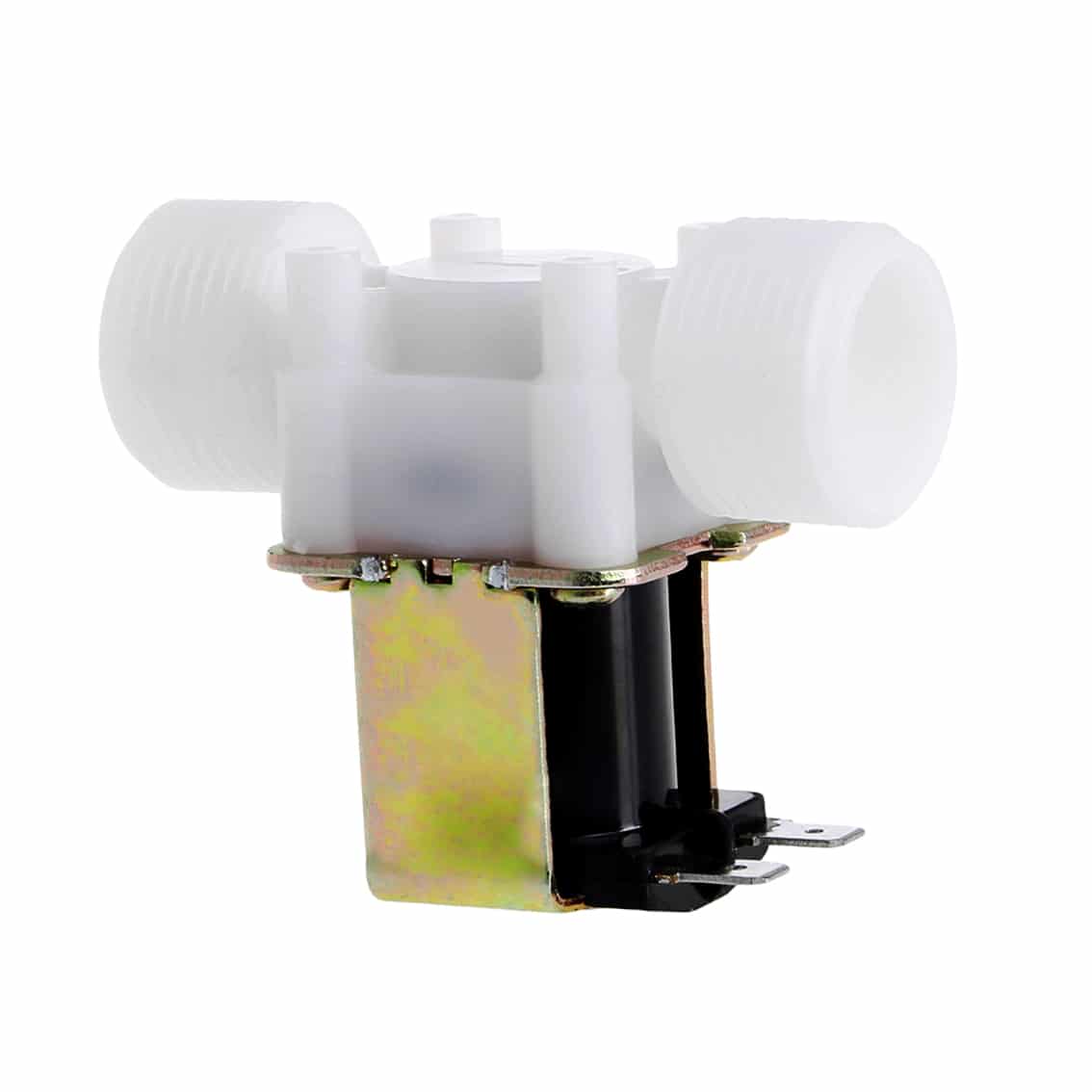

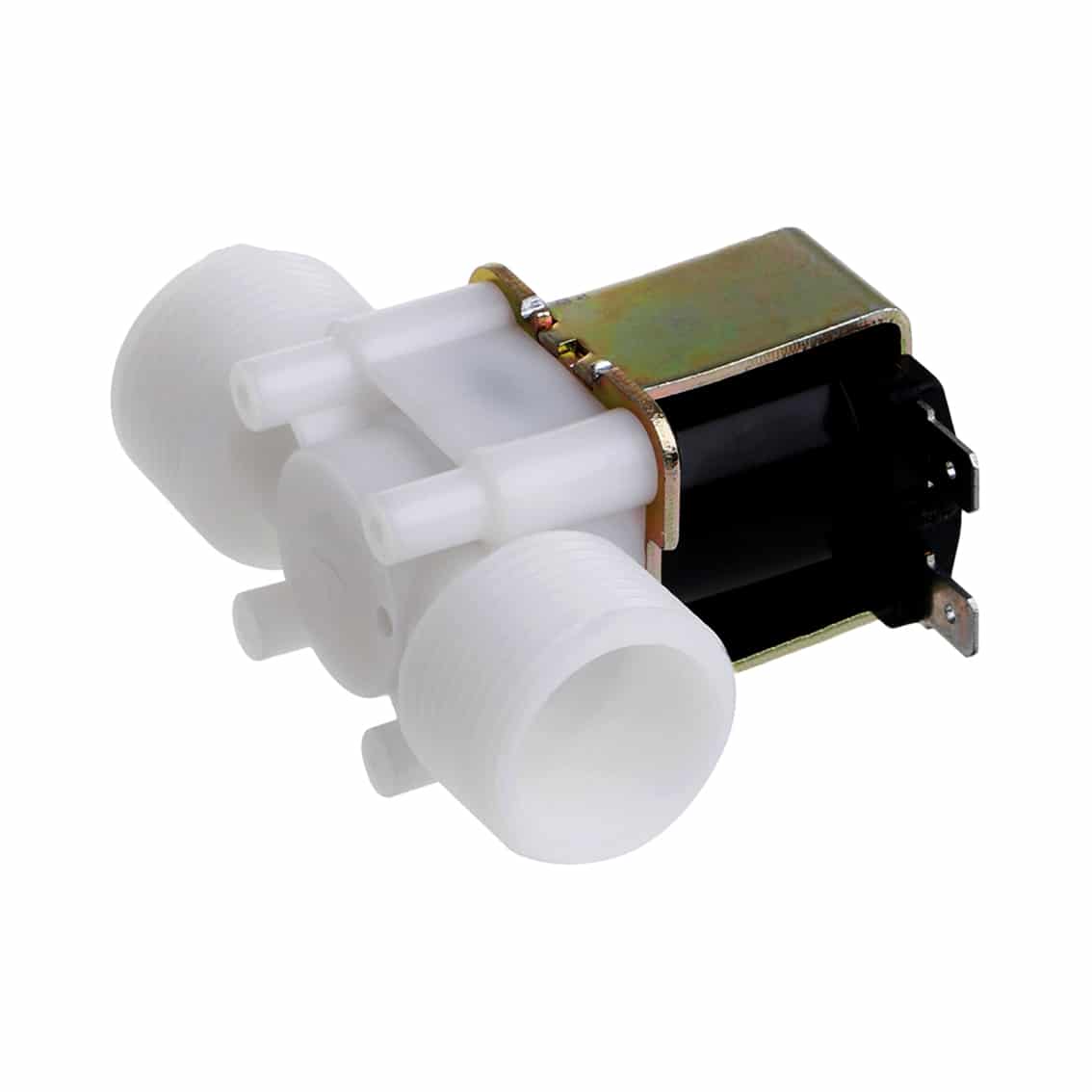

24V DC Plastic Solenoid Inlet Valve – Pressure Normally Open

33 people have recently viewed this product!

24V DC Plastic Solenoid Inlet Valve – Pressure Normally Open

The 24V DC Plastic Solenoid Inlet Valve – Pressure Normally Open is used to control the flow of water in one direction.

$37.95

Order Within –

Availability: 29 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002669

You May Also Like...

Description:

The 24V DC Plastic Solenoid Inlet Valve – Pressure Normally Open is used to control the flow of water in one direction.

The valve is normally open and water will only stop flowing when 24VDC is applied to the terminals. The 24V DC Plastic Solenoid Inlet Valve – Pressure Normally Open is an inlet valve and requires pressure for the water to push through.

Specifications:

  • Material: Plastic
  • Thread Size: 20mm BSP Thread
  • Thread Diameter: 25mm Outer Diameter
  • Working Pressure: 0.02MPa to 0.8MPa
  • Operating Voltage: 24V DC
  • Operating Temperature: 1 ℃ – 75 ℃
  • Weight: 122 g
  • Size: 76.2mm x 57.15mm x 50.8mm



Contents:

  • 1 x 24V DC Plastic Solenoid Inlet Valve – Pressure Normally Open
Weight 0.102 kg
Dimensions 150 × 30 × 100 mm
