Description:

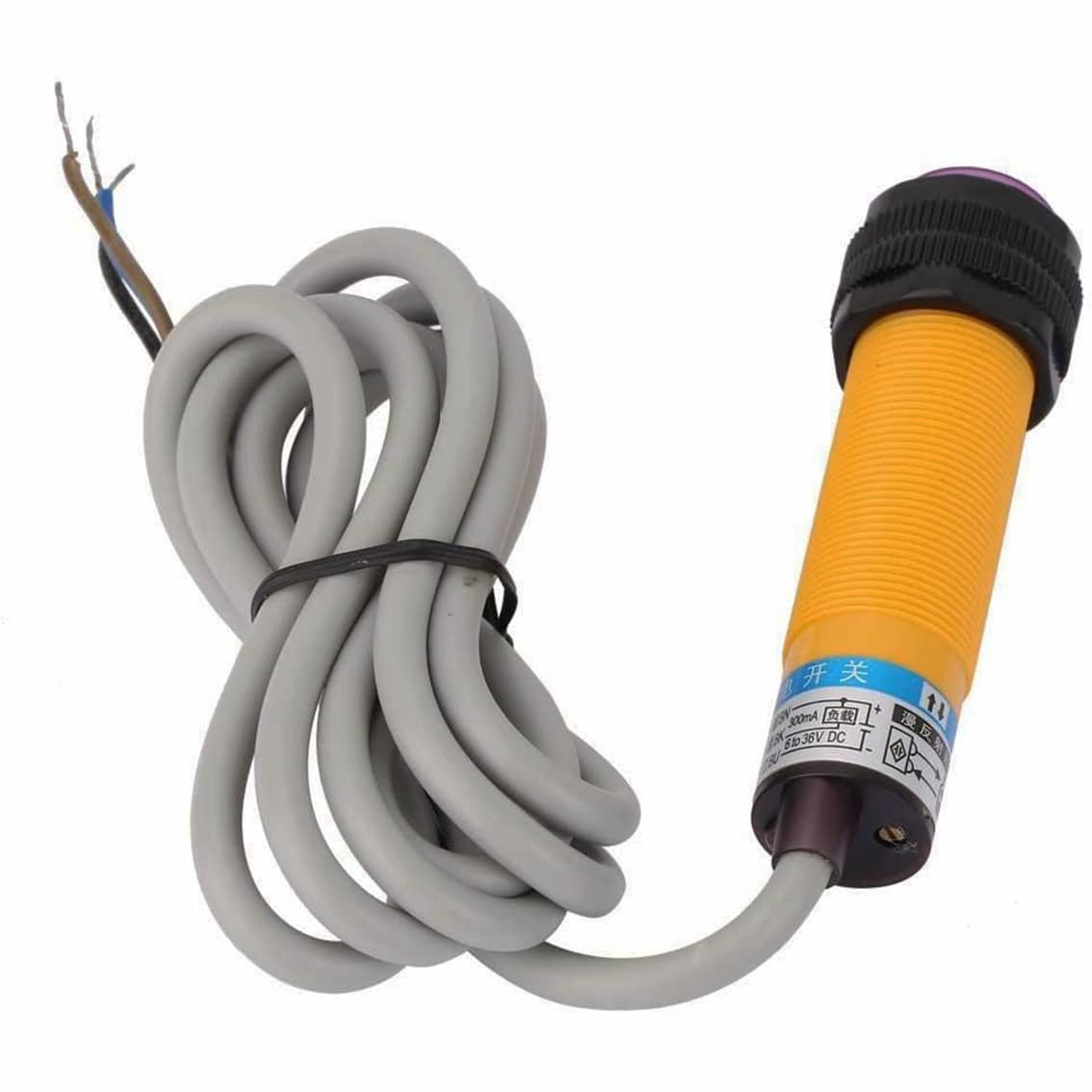

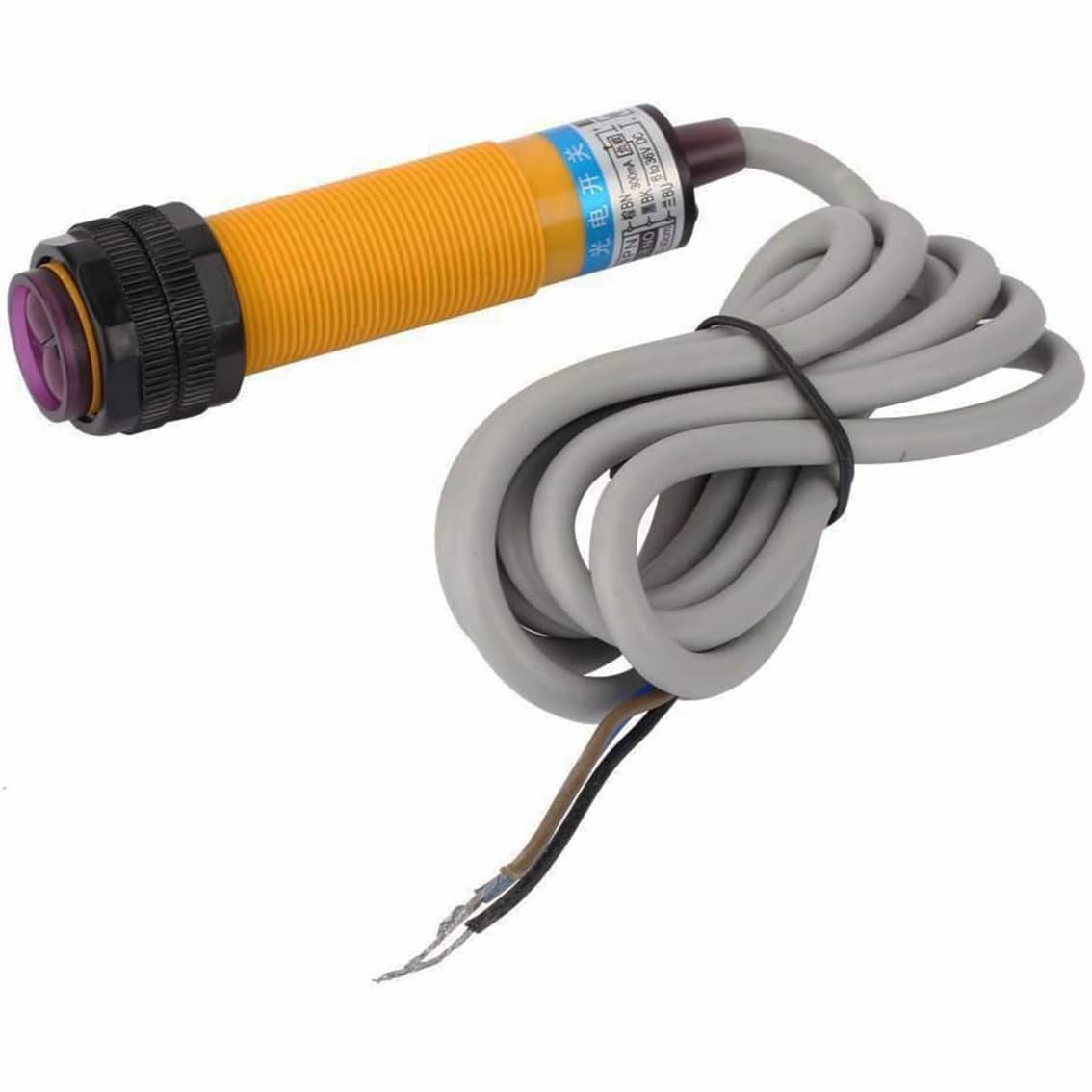

The E3F-DS10C4 is an NPN photoelectric proximity switch sensor engineered for precise object detection in automation systems. Utilizing a diffuse reflective sensing method, it can detect objects within a range of 100 mm ±10%, making it ideal for applications requiring accurate short-distance detection. The sensor features a normally open (NO) output configuration, providing a reliable signal when the target object is present.
Encased in a durable M18 cylindrical housing, the E3F-DS10C4 ensures robust performance in industrial environments. It operates within a supply voltage range of 10 to 30 V DC and supports an output current of up to 100 mA, accommodating various interfacing requirements. The sensor’s response frequency of 100 Hz allows for rapid detection, which is essential for high-speed automation processes. Additionally, its IP67 rating guarantees protection against dust and water immersion, ensuring longevity and reliability in challenging conditions.
Specifications:
- Supply Voltage: 10–30 V DC
- Detection Distance: 100 mm ±10%
- Output Configuration: NPN, Normally Open (NO)
- Output Current: ≤100 mA
- Response Frequency: 100 Hz
- Housing Diameter: M18
- Cable Length: Approximately 200 cm
- Sensing Method: Diffuse Reflective
- Light Source: Infrared LED
- Protection Rating: IP67
- Operating Temperature: -25°C to 55°C
Features:
- Compact M18 cylindrical design for easy installation
- Diffuse reflective sensing for accurate short-range detection
- Normally open NPN output is suitable for various control systems
- High response frequency is ideal for fast-moving applications
- IP67-rated for protection against dust and water
- Wide operating temperature range for diverse environments
Contents:
- 1 x E3F-DS10C4 NPN Photoelectric Proximity Switch Sensor
