5mW 650nm Red Dot Laser Module Focus Adjustable Laser Head 5V Industrial Grade

2 people have recently viewed this product!

5mW 650nm Red Dot Laser Module Focus Adjustable Laser Head 5V Industrial Grade

5 out of 5 based on 1 customer rating
(1 customer review)

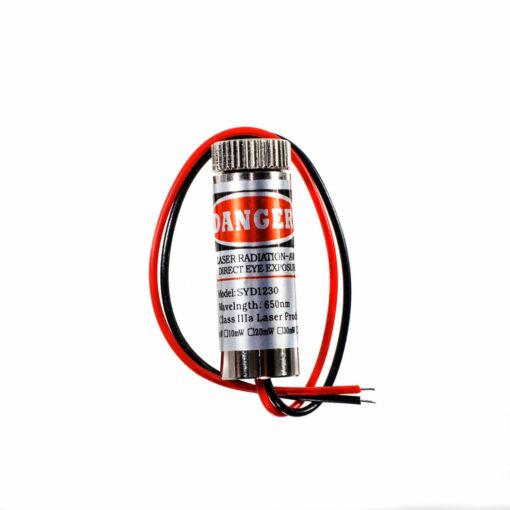

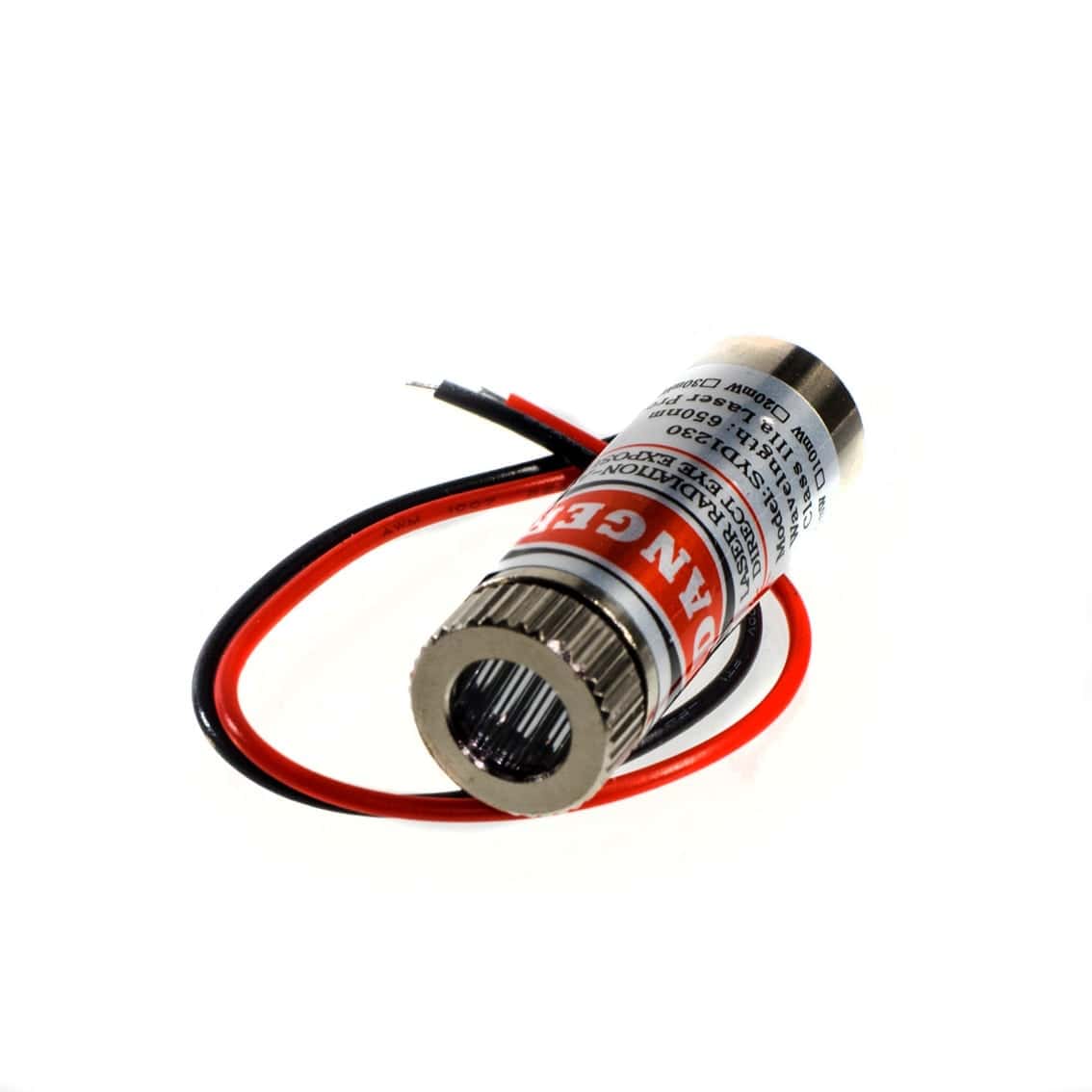

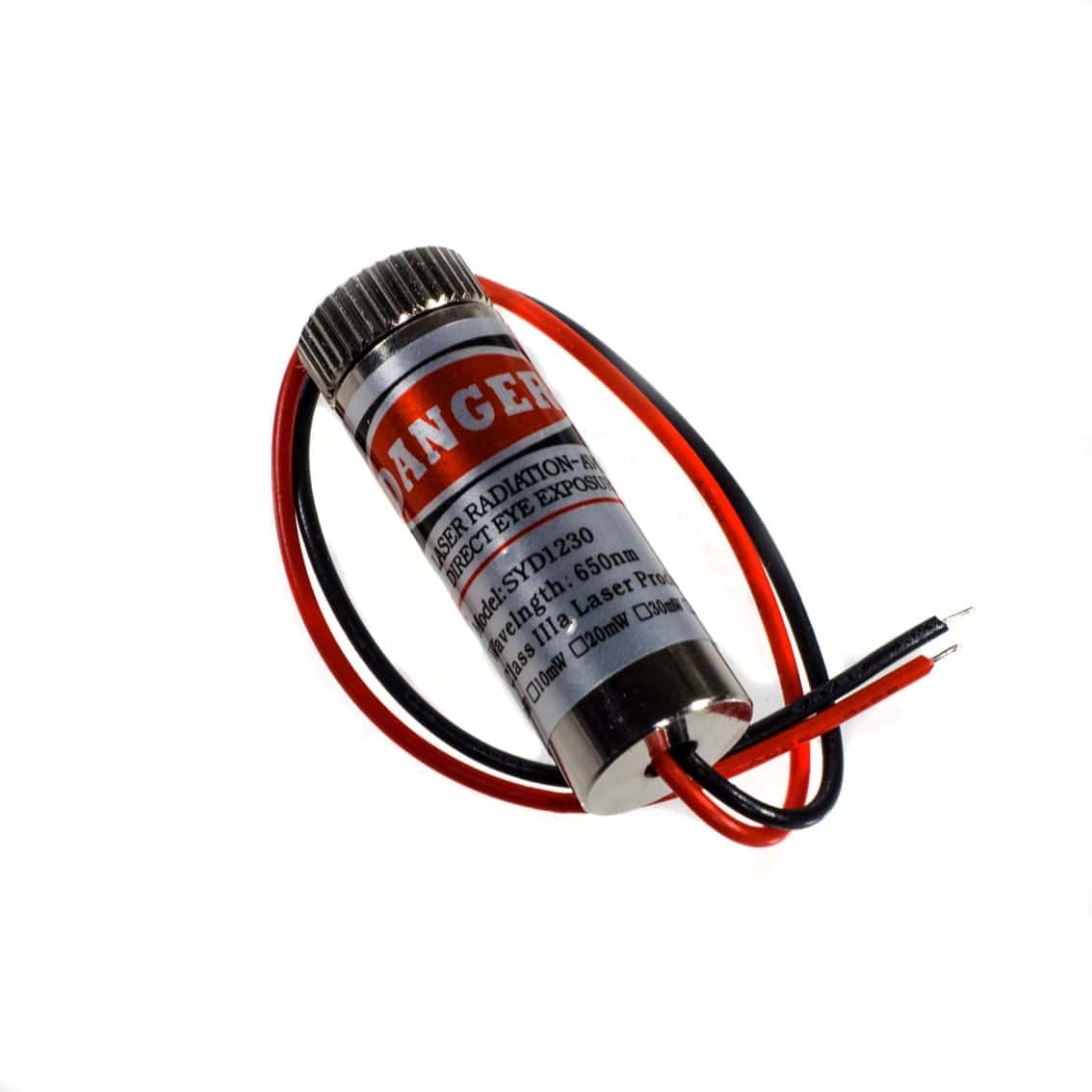

This focusable red laser module which is 12mm in diameter and is encapsulated into a solid brass casing for better heat dissipation.

$12.95

Order Within –

Availability: Out of stock

Notify me via email when this product is back in stock.

All stock is located in Australia.

Notify me via email when this product is back in stock.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001543

Description:

This focusable red laser module which is 12mm in diameter and is encapsulated into a solid brass casing for better heat dissipation. It produces a red, bright visible laser light suitable for various industrial alignment and positioning applications. Also great for an embedded electronic project because it draws little power, from 2.8V to 5.2V. Affordable and very functional, making this red laser module great value for money.



Specifications:

  • Optical Power: 5mW
  • Wavelength: 650nm (red laser)
  • Working Voltage: DC 3-5V
  • Current: <40mA
  • Beam Shape: Dot
  • Focusable: Yes
  • Emitting Angle: 120°
  • Power Cord Length: 135mm (5.31″)
  • Lens Material: Plastic
  • Dimensions: Φ12X35mmL



Caution: Laser Class III, avoid direct eye exposure to beams.



Contents:

  • 1 x 5mW 650nm Red Dot Laser Module
Weight 0.016 kg
Dimensions 35 × 10 × 10 mm
