Description:

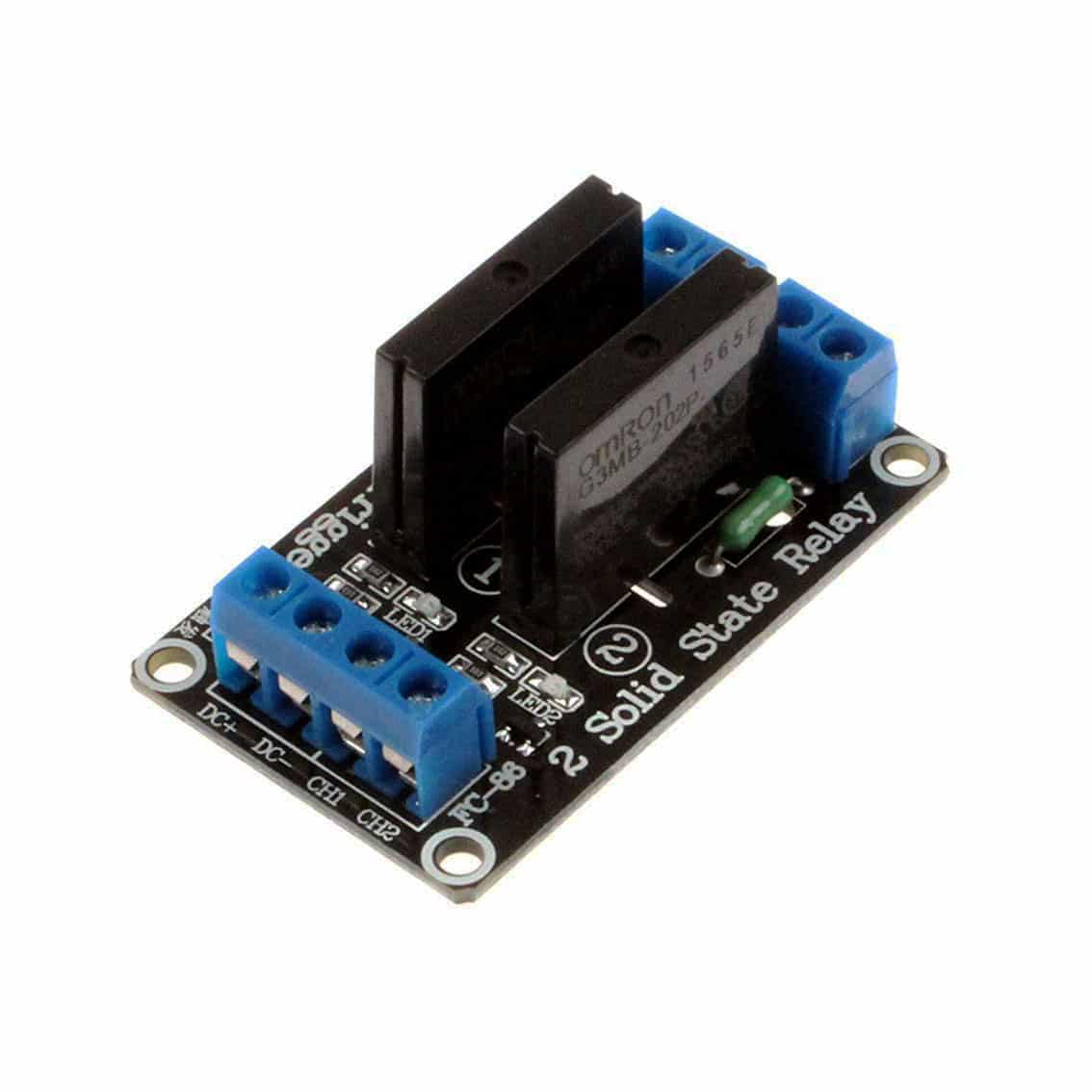

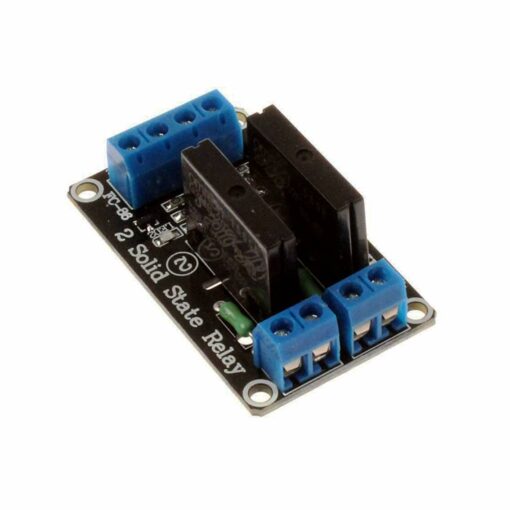

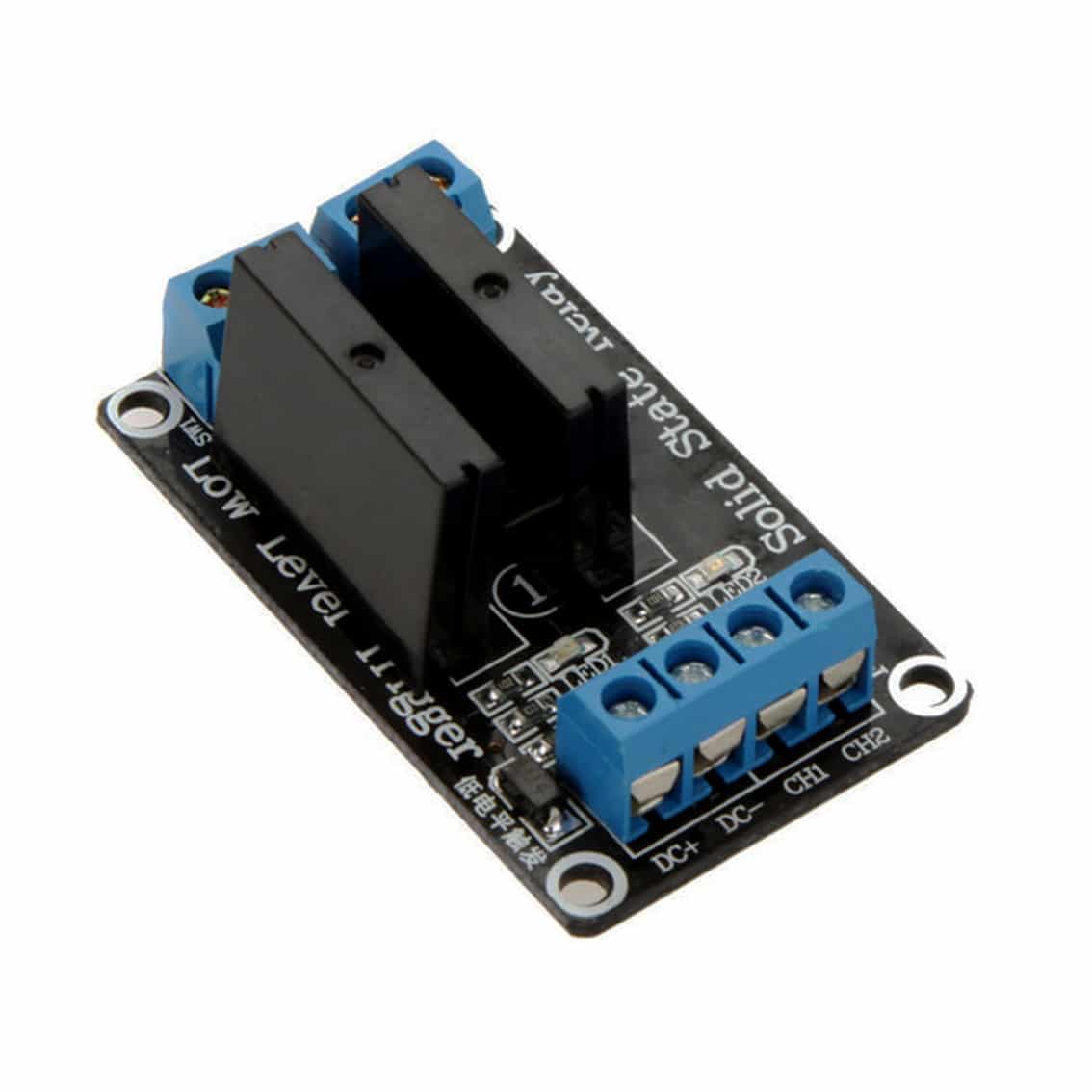

The 5V 2-Channel 240V AC Omron SSR Low-Level Solid State Relay Module is engineered to control high-voltage AC loads using low-level DC signals, making it ideal for applications requiring silent and rapid switching. Each channel is equipped with an Omron G3MB-202P solid-state relay, capable of handling up to 2A at 240V AC. The module’s low-level trigger design allows activation with input voltages ranging from 0 to 2.5V DC, ensuring compatibility with various microcontroller platforms, including Arduino and Raspberry Pi.
Designed for durability and efficiency, this module offers a significant advantage over traditional electromechanical relays by providing faster switching times and eliminating mechanical wear. It features optocoupler isolation to protect the control circuitry from high-voltage transients, enhancing safety and reliability in your projects. The compact form factor and straightforward interface facilitate easy integration into automation systems, home appliances, and other electronic applications requiring precise AC load control.
Specifications:
- Control Voltage: 5V DC
- Trigger Voltage: 0 to 2.5V DC (low-level trigger)
- Quiescent Current: 0mA
- Operating Current: Up to 26.8mA
- Load Voltage: 100V to 240V AC
- Load Current: Up to 2A per channel
- Switching Frequency: Up to 5kHz
- Isolation: Optocoupler
- Module Dimensions: 55mm x 34mm x 25mm
- Mounting Hole Size: 27.4mm x 28.4mm
Features:
- Equipped with Omron G3MB-202P solid-state relays for reliable performance
- Low-level trigger compatible with 3.3V and 5V logic devices
- Optocoupler isolation enhances safety and protects control circuits
- Supports high switching frequencies up to 5kHz
- Compact design with mounting holes for easy installation
- Ideal for controlling AC loads in automation systems and home appliances
Contents:
- 1 x 5V 2-Channel 240V AC Omron SSR Low-Level Solid State Relay Module
