Description:

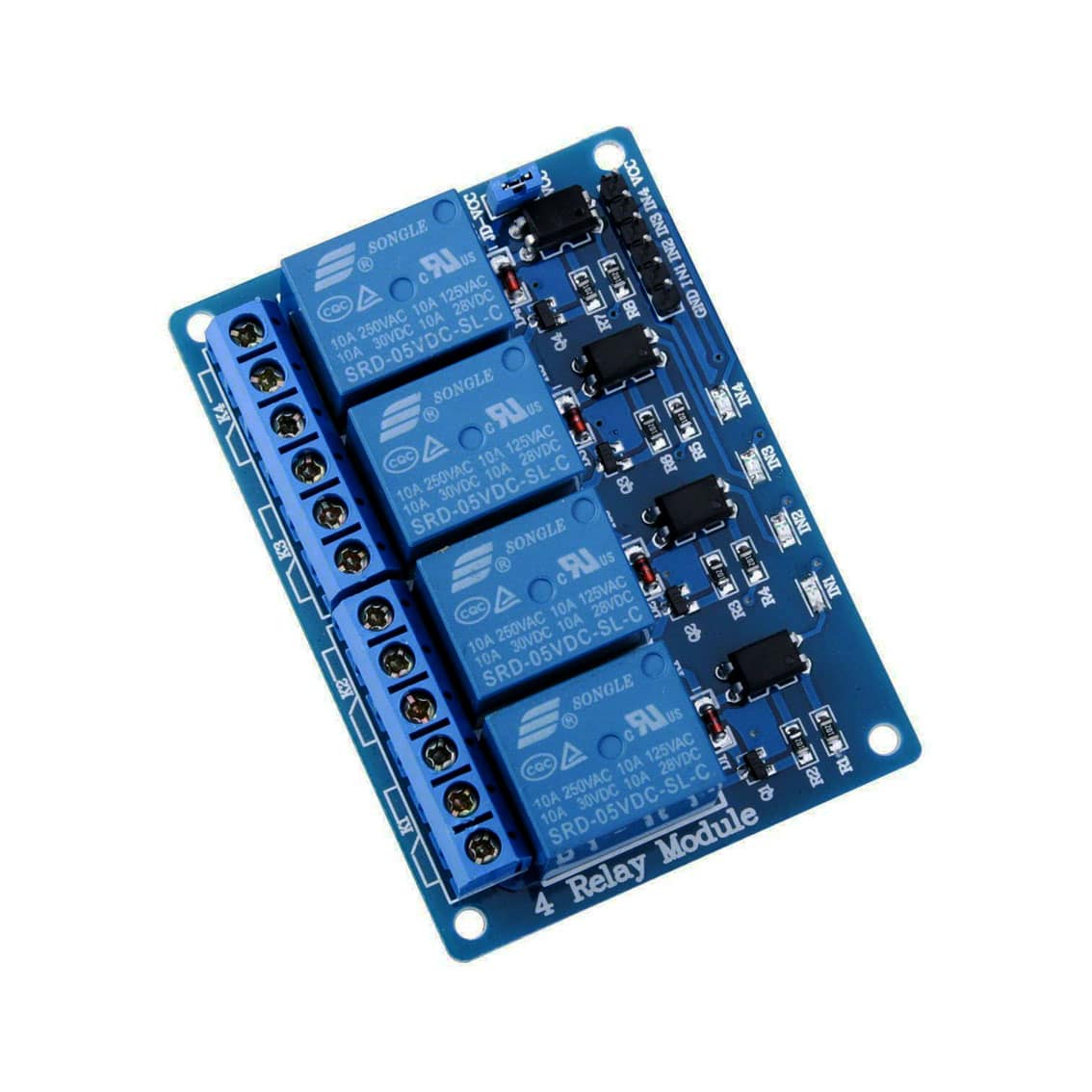

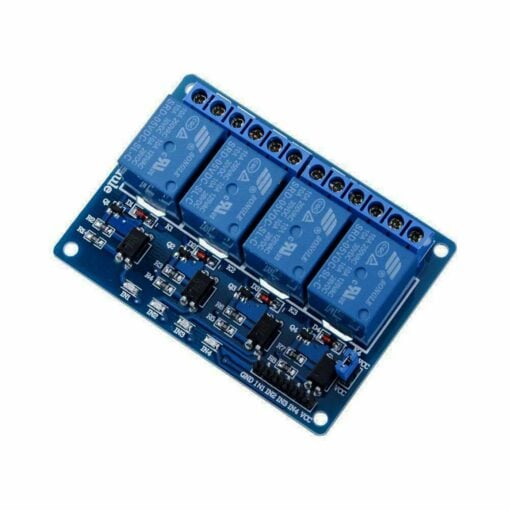

The 5V 4 Channel Relay Module with Optocoupler is a versatile interface board designed to control high-current loads using low-voltage signals from microcontrollers such as Arduino, AVR, PIC, ARM, and others. Each of the four channels is equipped with a high-current relay capable of handling up to 10A at 250VAC or 30VDC, making it suitable for managing various appliances and equipment. The inclusion of optocouplers ensures electrical isolation between the control and load circuits, enhancing safety and preventing interference.
This module features both normally open (NO) and normally closed (NC) contacts for each relay, providing flexibility in control configurations. Indicator LEDs for each relay channel offer visual confirmation of the relay’s status, facilitating easy monitoring during operation. The module’s standard interface allows for direct control by microcontrollers, simplifying integration into projects involving home automation, industrial control systems, and robotics.
Specifications:
- Operating Voltage: 5V DC
- Trigger Current: 5mA
- Relay Maximum Contact Voltage: 250VAC, 30VDC
- Relay Maximum Current: 10A
- Trigger Mode: Active Low
- Dimensions: 75mm x 55mm x 19mm
- Weight: 61 grams
- Indicator LEDs: Power supply indicator and relay status indicators
Features:
- Four independent relay channels for controlling multiple devices
- Optocoupler isolation for enhanced safety and interference prevention
- Compatible with various microcontrollers, including Arduino, AVR, PIC, and ARM
- Supports both normally open (NO) and normally closed (NC) relay contacts
- Indicator LEDs for power and relay status monitoring
- Standard interface for direct microcontroller control
- Mounting holes for easy installation
Contents:
- 1 x 5V 4 Channel Relay Module with Optocoupler
