Description:

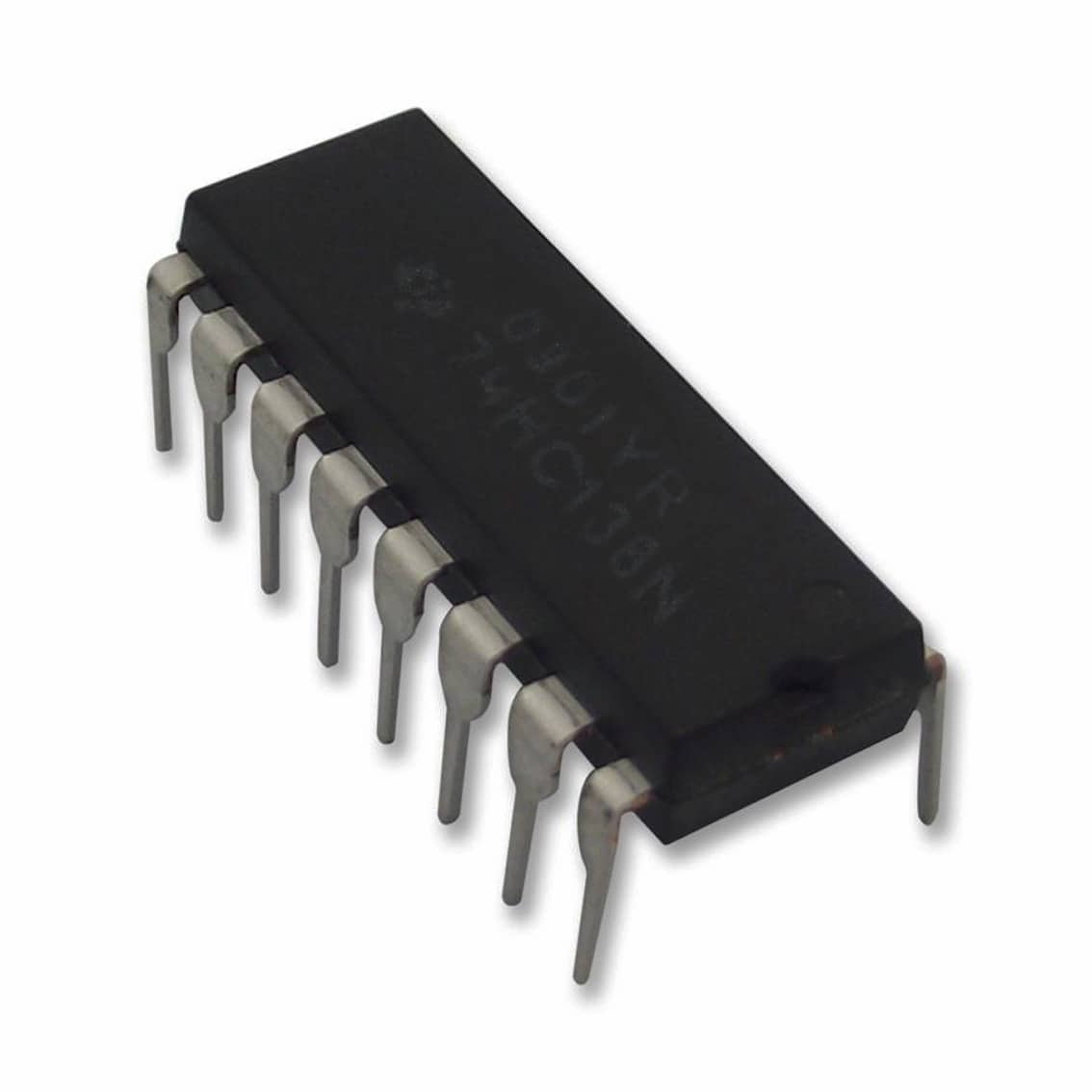

The 74HC138 3 To 8 Line Decoder DIP 16 IC – Pack of 5 is a high-speed CMOS logic device used to convert 3 binary input signals into 8 mutually exclusive outputs. Each output is active low, making this IC ideal for address decoding, data routing, and demultiplexing in digital systems. It features three enable inputs (two active-low and one active-high) to allow flexible cascading and expansion across multiple devices.
Operating from a supply voltage range of 2V to 6V and fully compatible with TTL logic levels, the 74HC138 offers fast switching performance with typical propagation delays under 20 ns. Housed in a DIP-16 through-hole package, this IC is suitable for breadboards and PCB prototyping. This 5-pack provides a reliable and versatile solution for applications involving memory addressing, I/O selection, or microcontroller expansion.
Specifications:
- IC Model: 74HC138
- Function: 3-to-8 Line Decoder / Demultiplexer
- Logic Family: HC (High-Speed CMOS)
- Inputs: 3 binary address inputs (A0, A1, A2)
- Outputs: 8 active-low outputs (Y0–Y7)
- Enable Inputs: 3 (G1 active-high, G2A and G2B active-low)
- Supply Voltage Range: 2V to 6V
- Input Compatibility: TTL and CMOS logic levels
- Propagation Delay: ~16 ns (at 5V)
- Package Type: DIP-16 (Dual In-Line Package)
- Operating Temperature: -40°C to +85°C
- Pack Size: 5 ICs
Features:
- Decodes 3 binary inputs into 8 unique active-low outputs
- TTL logic compatible with fast CMOS switching performance
- Enable inputs allow for easy cascading and expansion
- Ideal for address decoding, I/O selection, and control logic
- DIP-16 through-hole package ideal for prototyping and breadboarding
Contents:
- 5 x 74HC138 3-To-8 Line Decoder ICs (DIP-16)
