8 Channel Bi-Directional Logic Level Converter – TXS0108E

0 reviews

The TXS0108E 8-channel bi-directional logic level converter safely translates voltages between 1.2V to 5.5V devices, ideal for I2C, SPI, UART, and GPIO communication.

  • Bi-directional 8-channel logic level conversion with automatic direction sensing for seamless voltage interfacing between microcontrollers and peripherals.
  • Supports wide voltage ranges: 1.2V–3.6V on the low side and 1.65V–5.5V on the high side, perfect for 3.3V to 5V systems.
  • High-speed data rates up to 110Mbps for push-pull applications and 2Mbps for open-drain signals ensure reliable communication.
  • Ideal for interfacing I2C, SPI, UART, and GPIO signals in Arduino, ESP32, Raspberry Pi, and IoT projects requiring level shifting.
  • Compact TXS0108E breakout board design with integrated pull-up resistors and overvoltage protection for safe signal translation.

$14.95

Order Within –

FOR SAME DAY SHIPPING!

Availability: 16 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

8 Channel Bi-Directional Logic Level Converter – TXS0108E PHI1001402 Phipps Electronics 8
8 Channel Bi-Directional Logic Level Converter – TXS0108E PHI1001402 Phipps Electronics 9
8 Channel Bi-Directional Logic Level Converter – TXS0108E PHI1001402 Phipps Electronics 10
8 Channel Bi-Directional Logic Level Converter – TXS0108E PHI1001402 Phipps Electronics 11
8 Channel Bi-Directional Logic Level Converter – TXS0108E PHI1001402 Phipps Electronics 12
8 Channel Bi-Directional Logic Level Converter – TXS0108E PHI1001402 Phipps Electronics 13
SKU: PHI1001402

You May Also Like...

Description:

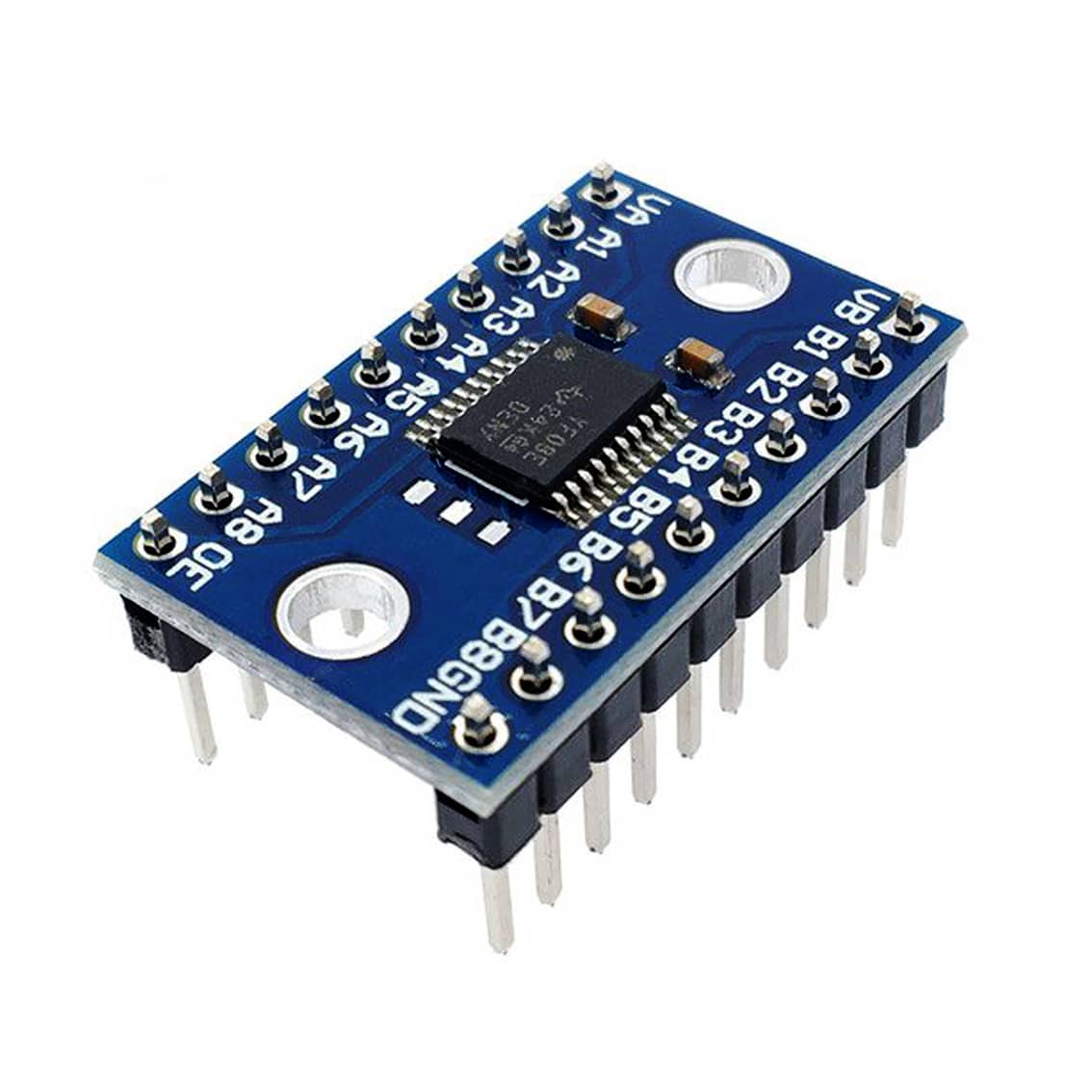

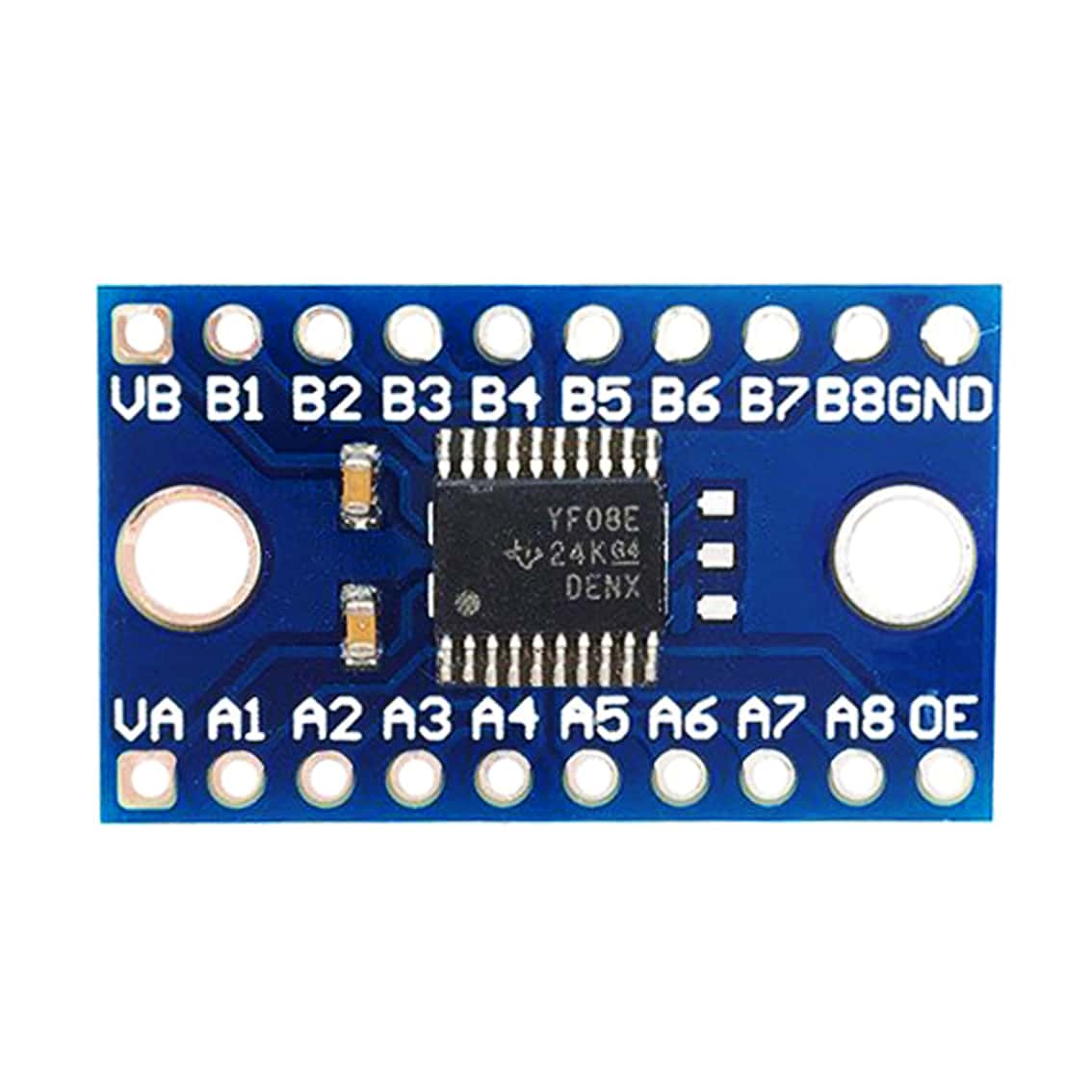

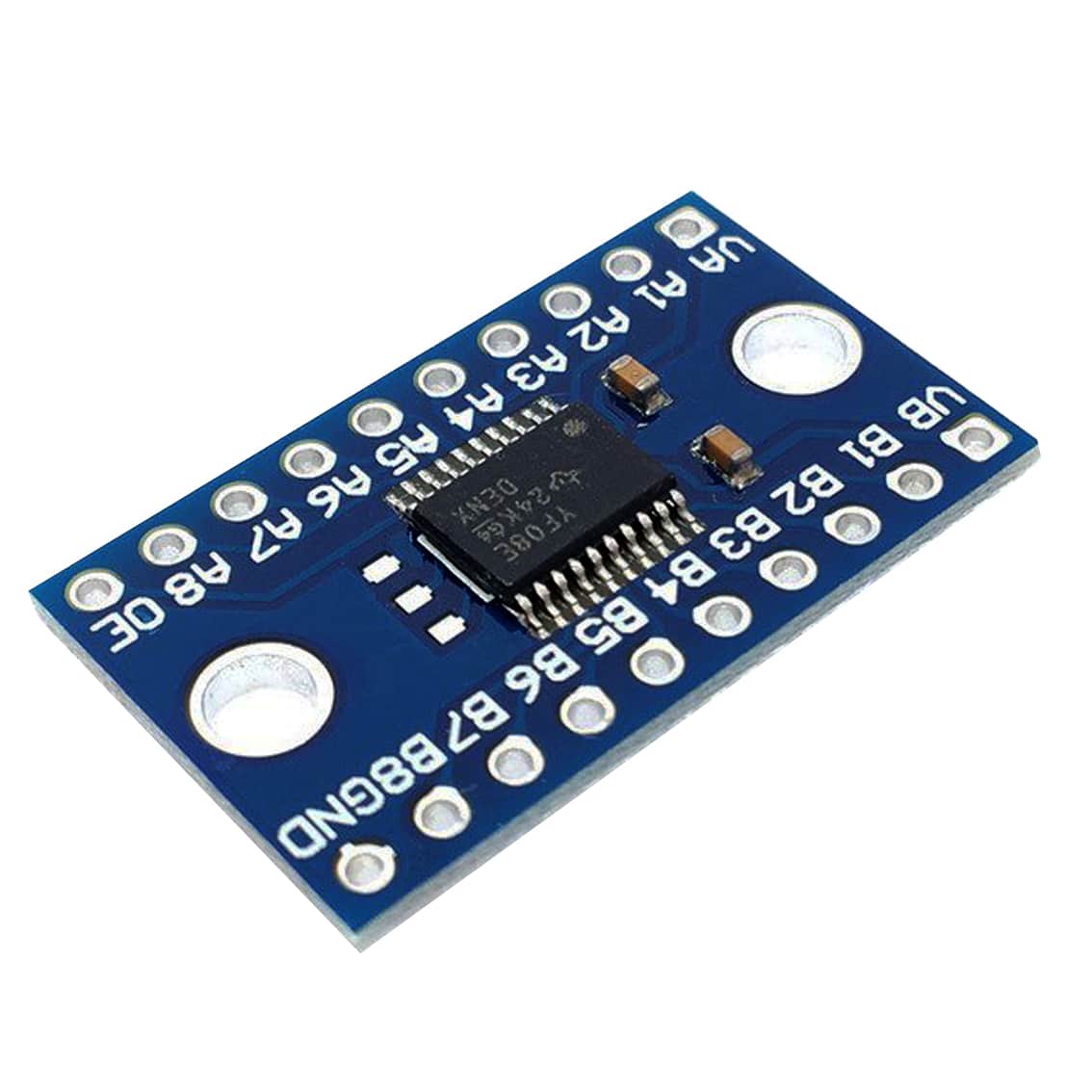

The TXS0108E 8-channel bi-directional logic level converter is a high-performance voltage level shifter designed to safely interface devices operating at different logic levels. Supporting voltage ranges from 1.2V to 3.6V on the lower side and up to 5.5V on the higher side, this module automatically detects signal direction, eliminating the need for directional control pins. Consequently, it is ideal for seamless communication between 3.3V microcontrollers and 5V peripherals.

Thanks to its high-speed operation and integrated pull-up resistors, the TXS0108E 8-channel bi-directional logic level converter ensures reliable data transmission for protocols like I2C, SPI, UART, and GPIO interfacing. Furthermore, it is an essential tool for Arduino enthusiasts and embedded system developers working with multi-voltage systems. Whether for hobbyist projects or professional applications, this compact breakout board guarantees safe and efficient voltage translation.

Specifications:

  • Chipset: TXS0108E by Texas Instruments
  • Channels: 8 bi-directional data lines
  • Low Voltage Range (VCCA): 1.2V to 3.6V
  • High Voltage Range (VCCB): 1.65V to 5.5V
  • Automatic Direction Sensing with No Direction Control Pin Required
  • Data Rates: Up to 110Mbps (Push-Pull) and 2Mbps (Open-Drain)
  • Integrated Pull-up Resistors on I/O lines for reliable signal integrity
  • Input/Output Tolerance: Overvoltage tolerant on all I/O pins
  • Operating Temperature Range: -40°C to +85°C

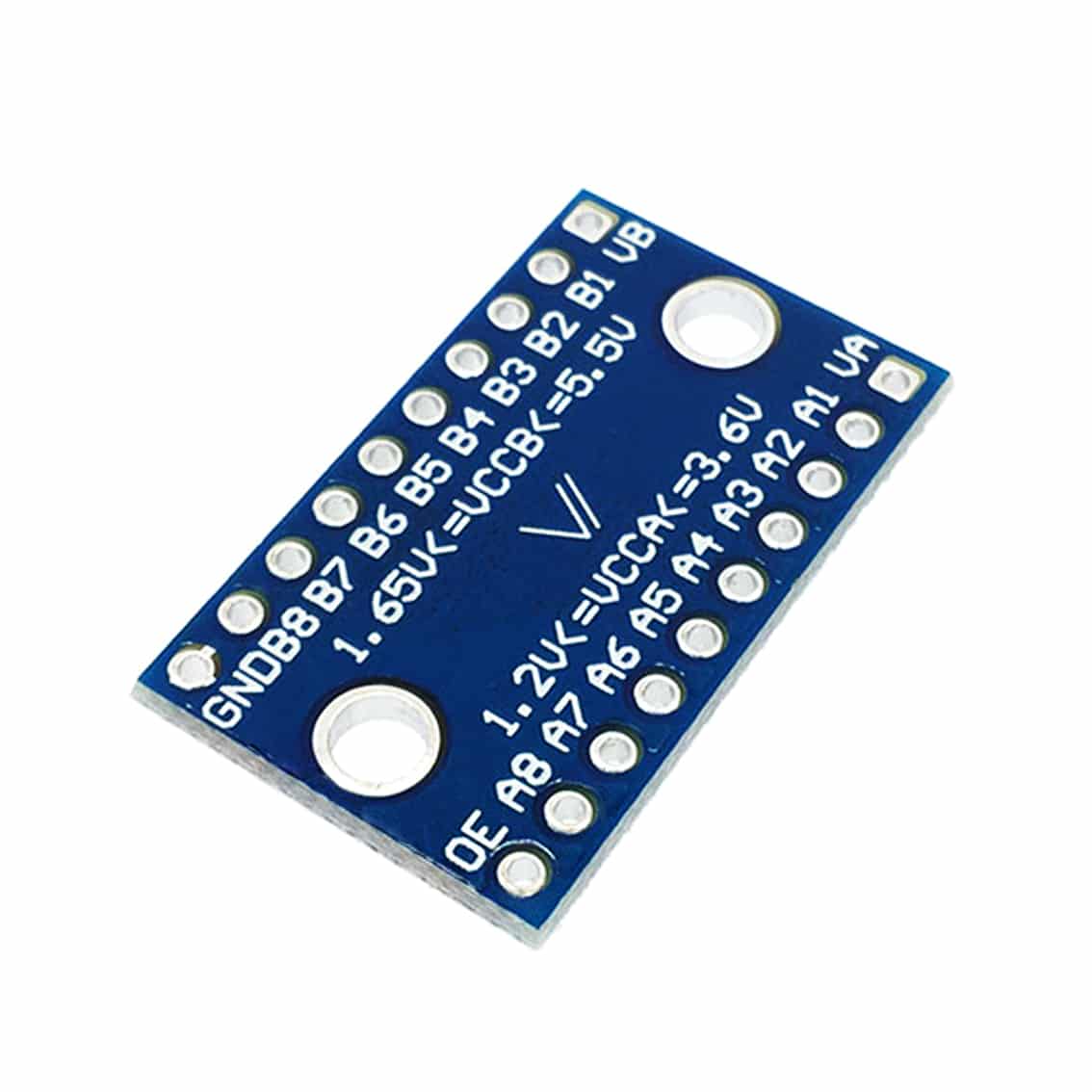

  • Compact breakout board form factor for easy prototyping

Features:

  • 8-channel bi-directional logic level conversion for seamless voltage interfacing
  • Supports a wide voltage range for both sides, from 1.2V to 5.5V
  • Automatic direction sensing simplifies circuit design
  • High-speed operation suitable for I2C, SPI, UART, and GPIO signals
  • Overvoltage protection ensures safe and reliable operation
  • Ideal for Arduino, ESP8266, ESP32, Raspberry Pi, and other microcontrollers
  • Compact and breadboard-friendly TXS0108E breakout board design
  • Integrated pull-up resistors improve signal stability in open-drain applications

Contents:

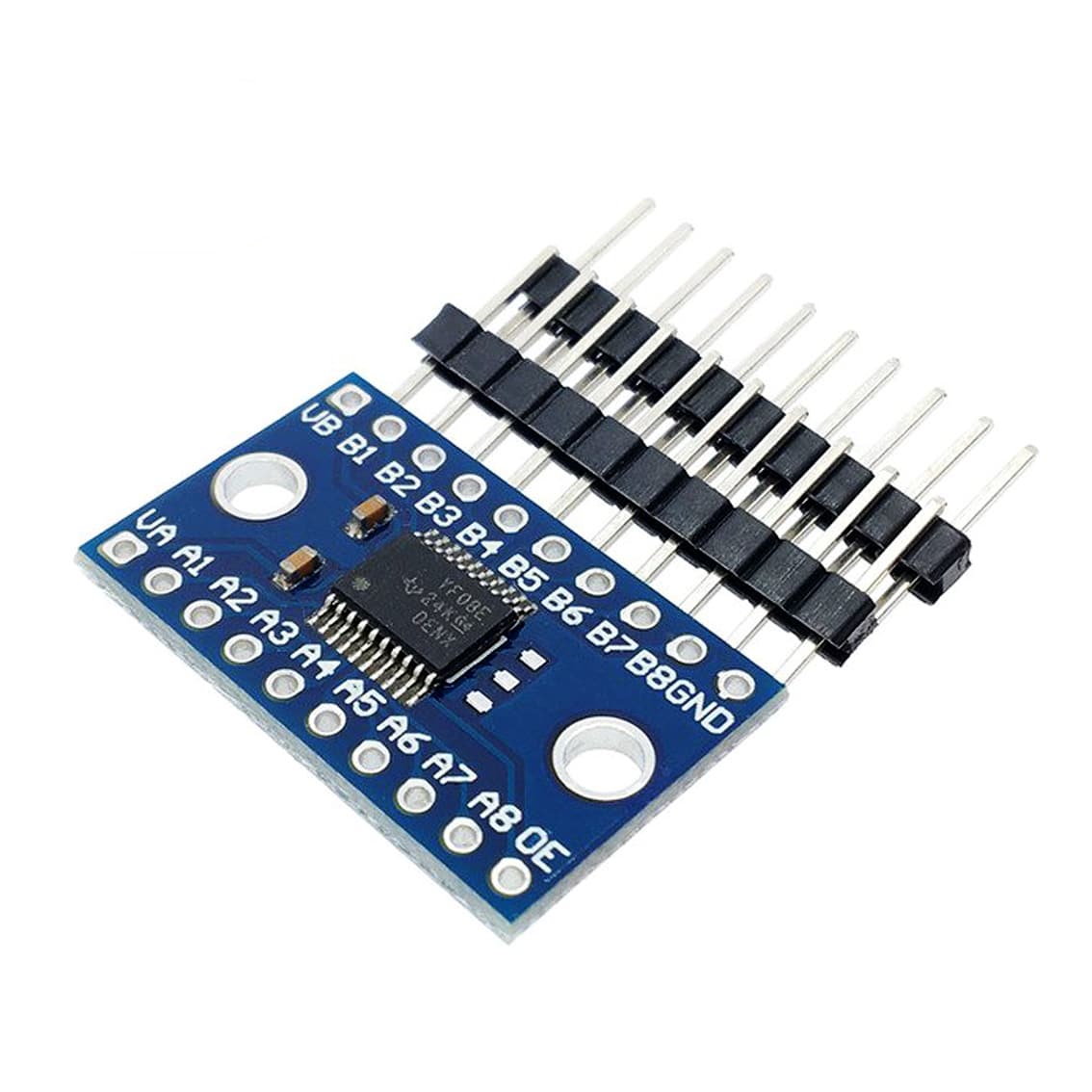

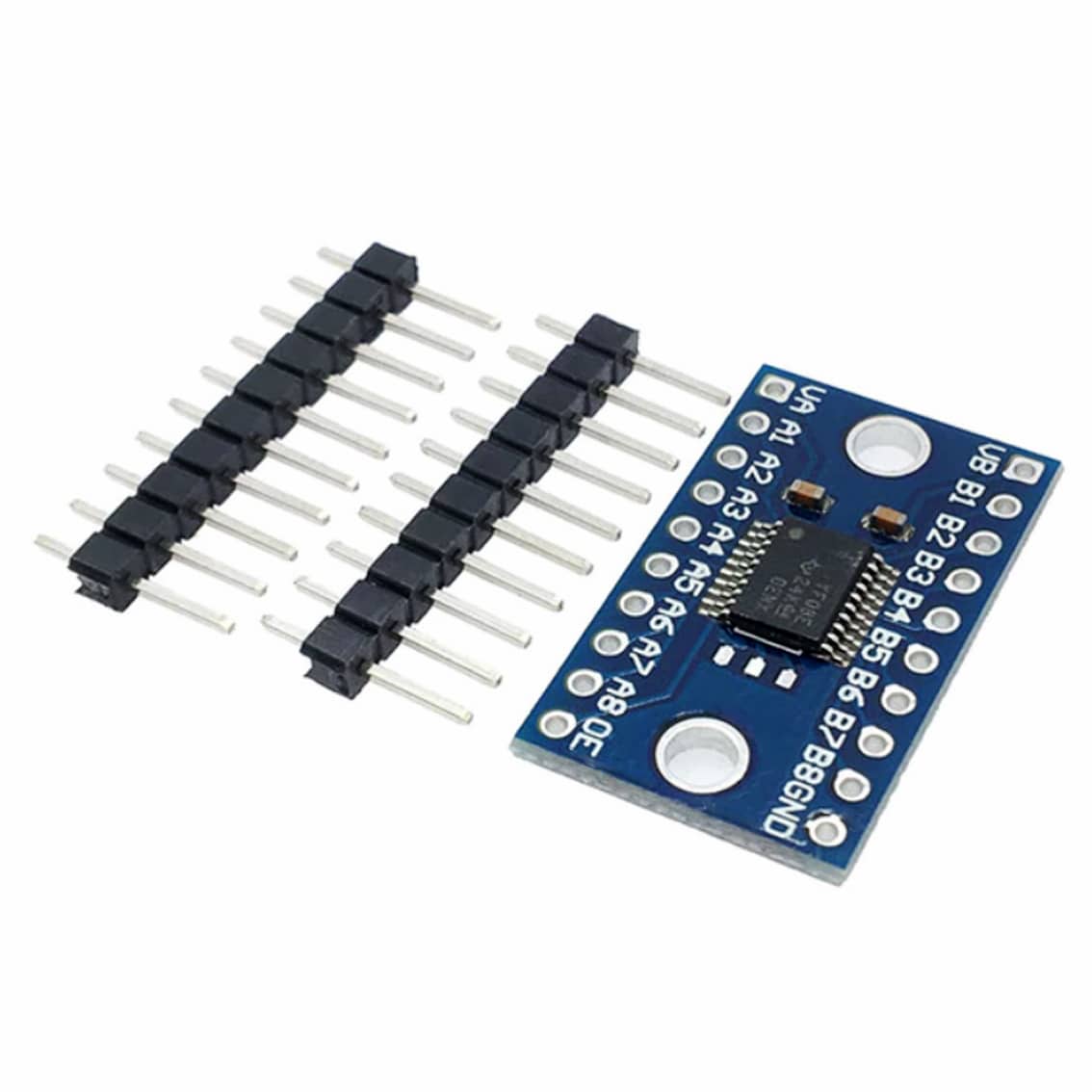

  • 1 x TXS0108E 8-Channel Bi-Directional Logic Level Converter Module
Weight 0.005 kg
Dimensions 80 × 1 × 60 mm
