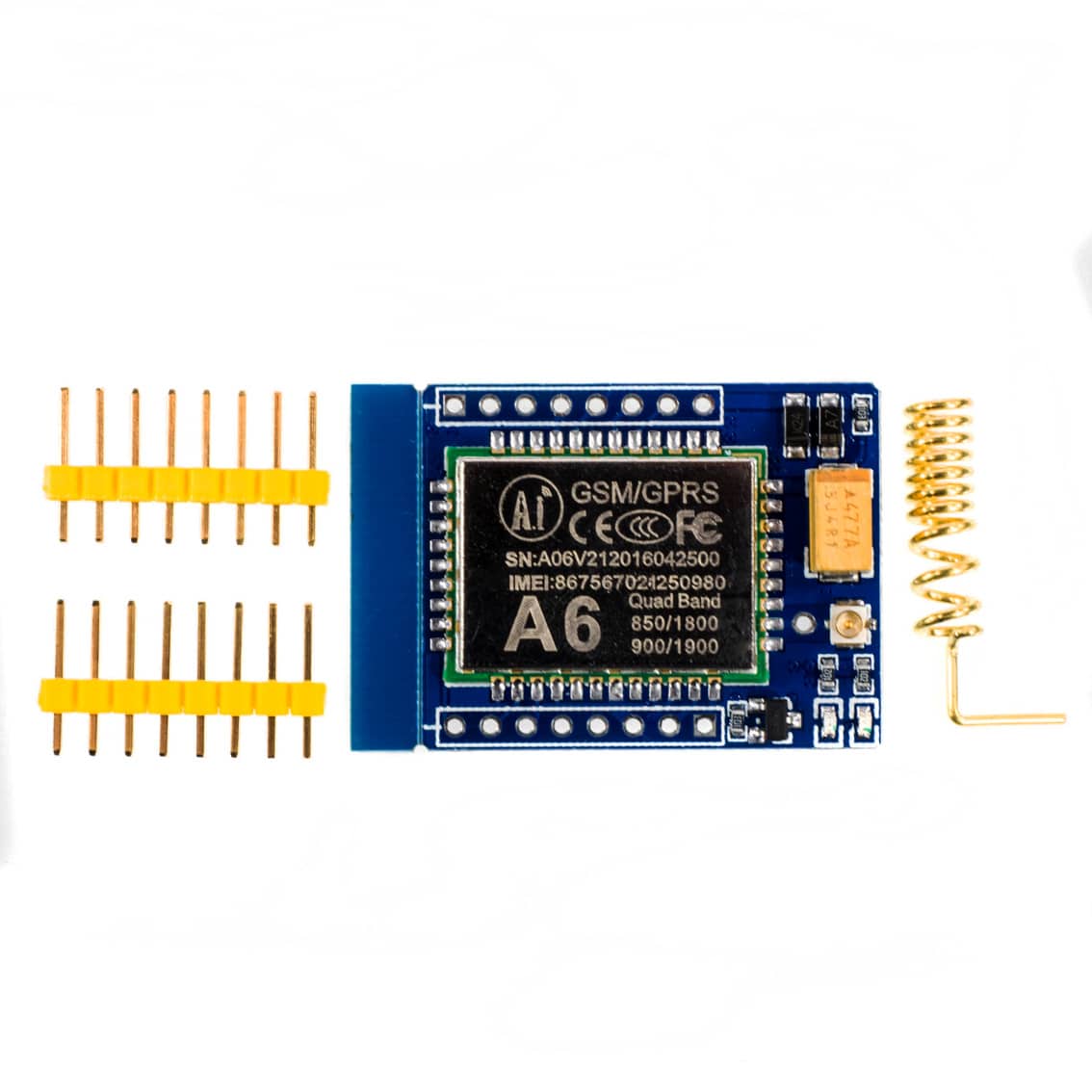

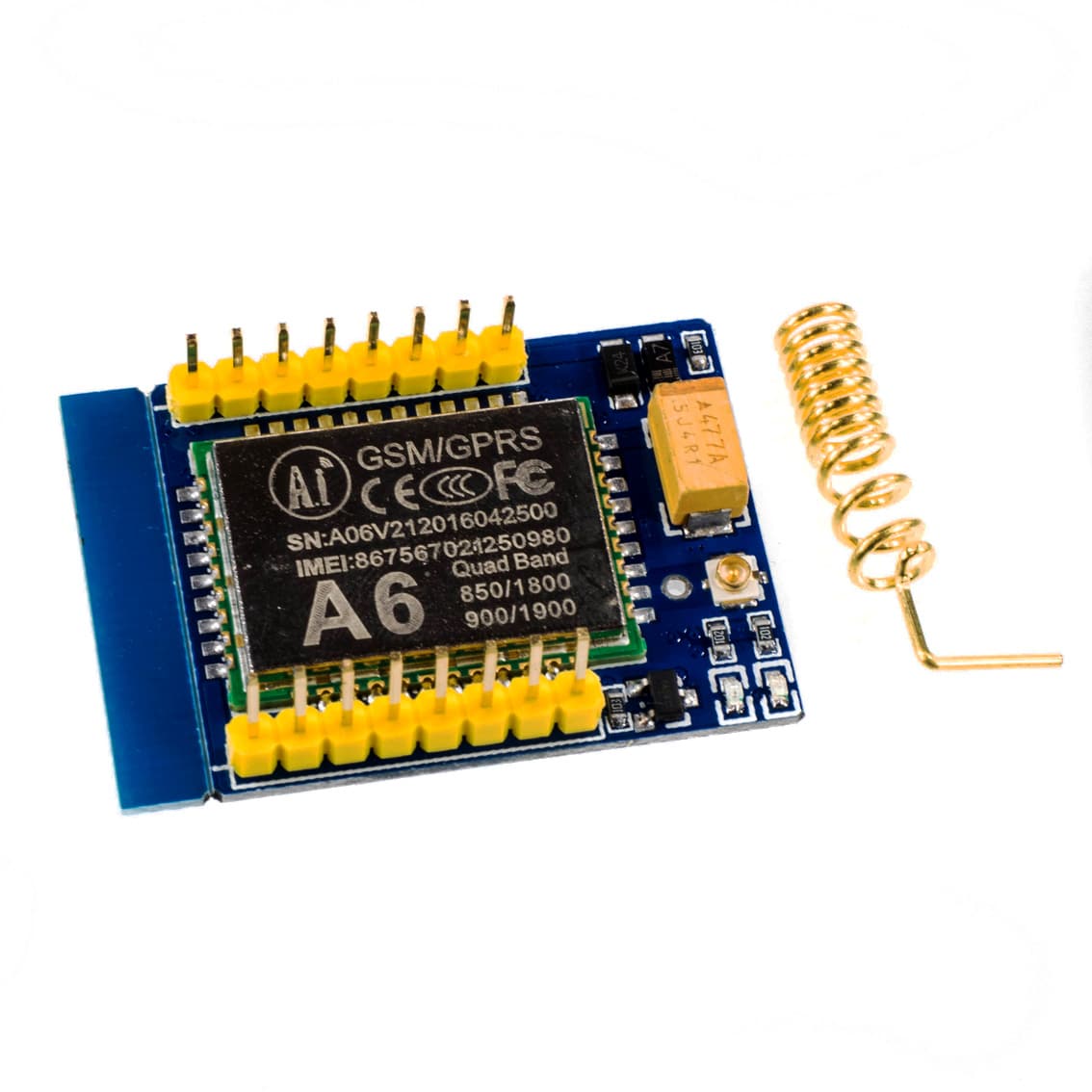

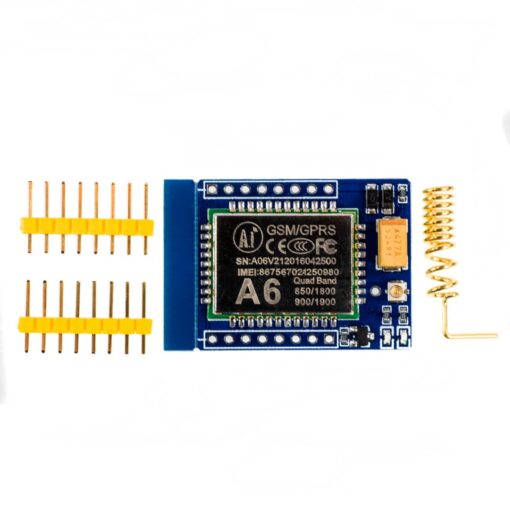

A6 Mini GPRS/GSM Module Board with Antenna and Sim Card Slot Quad Band 850 900 1800 1900 MHz

This breakout board is a mini version GSM / GPRS development board based on A6 Quad-band GPRS/GSM module chip.

$24.95

Availability: 12 in stock

Buy now, pay later available.

SKU PHI1071385 Categories , Tag

Description:

This breakout board is a mini version GSM / GPRS development board based on A6 Quad-band GPRS/GSM module chip. The A6 chip is a cutting-edge product that connects to the internet via GSM/GPRS and at the same time works as a traditional GSM module. It is a low-cost but efficient and compactly packaged chip featuring lower power consumption and extended temperature. The chip is ideal for M2M applications: industrial PDA, personal tracking, wireless POS, smart metering, and many other M2M applications.

This breakout board utilizes the advantages of A6 Quad-band GPRS/GSM module chip and added an antenna and a SIM card slot making it readily available to use for your projects. It has a low current consumption of as low as 3mA during sleep mode. The board supports a dual-band GSP/GPRS network, available for GRPS and SMS message data remote transmission.



Features:

  • Compact Size: 3.3 cm x 2.1 cm x 0.6 cm
  • Wide operating temperature range: -30°C to +80°C
  • Make and answer phone calls
  • Send and receive text messages
  • Send and receive GPRS data

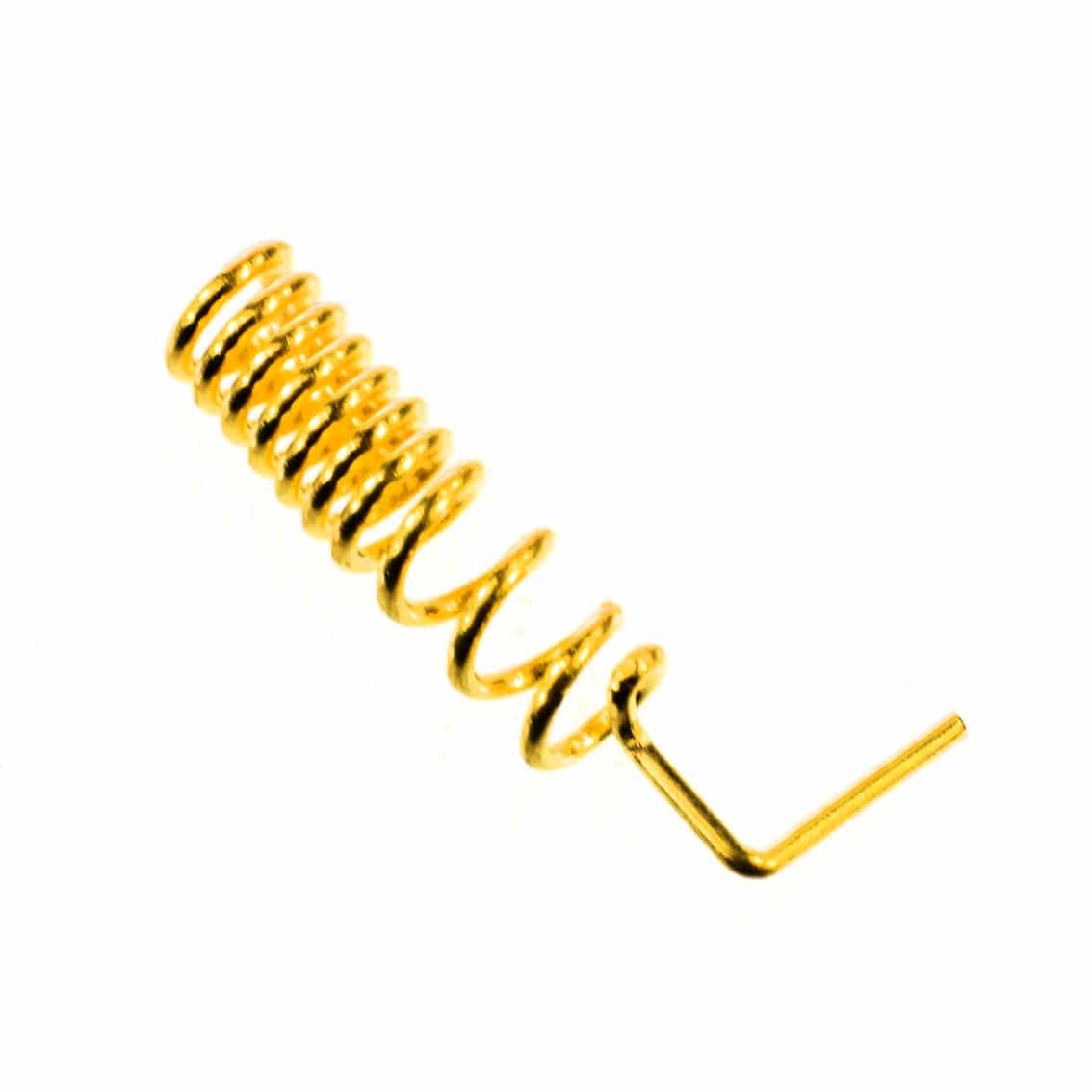

  • Onboard antenna interface: SMA and IPX

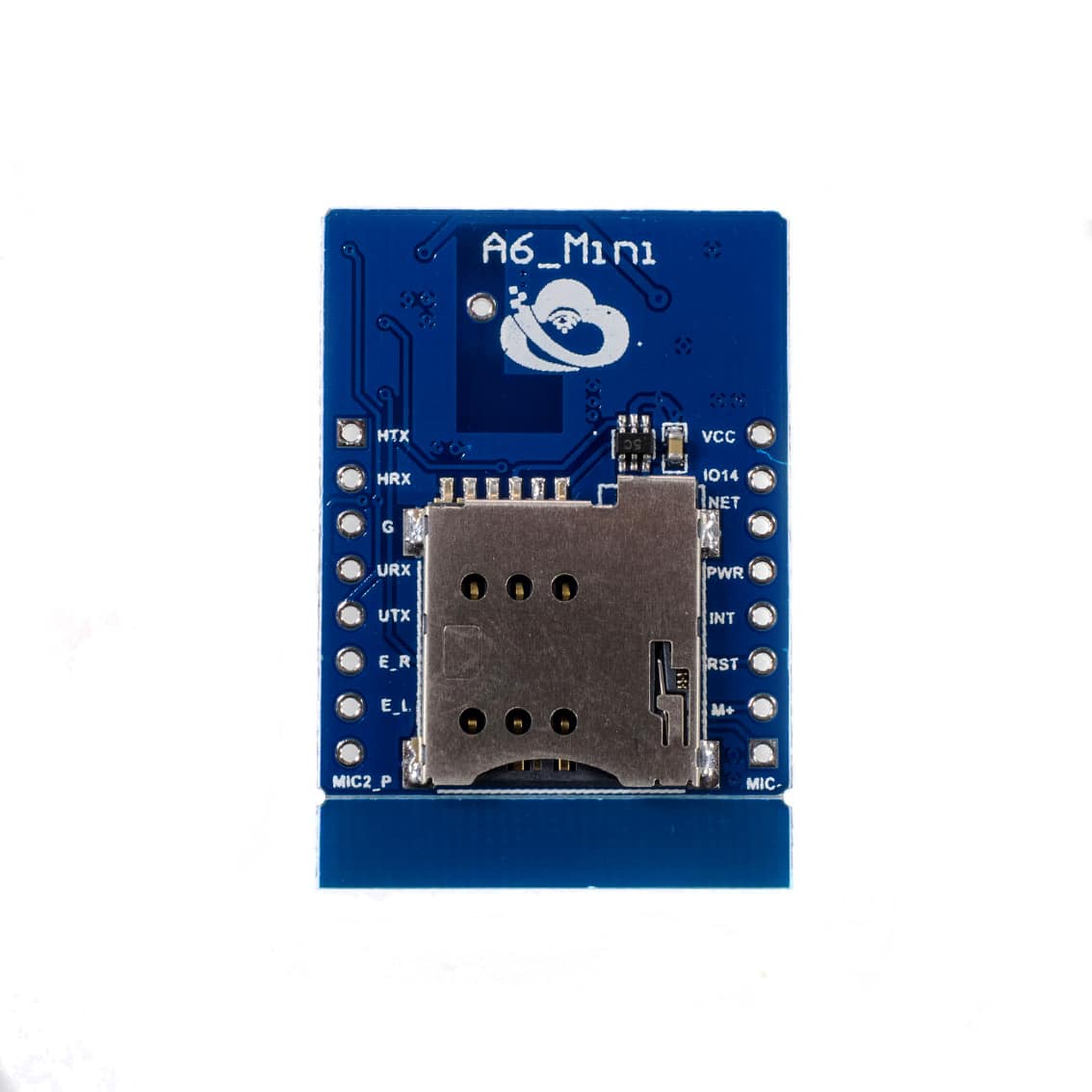

  • Onboard Micro SIM card holder
  • Onboard Micro USB interface for external power supply
  • Supports standard AT and TCP/IP command interface
  • Supports 2G mobile card (Will not work in Australia anymore, but will work in countries that still have a mobile network)
  • ROHS, FCC, CE, CTA certification



Specifications:

  • Dimensions: 3.3 cm x 2.1 cm x 0.6 cm
  • Working Temperature: -30°C to +80°C
  • Working Voltage: 4.5V – 5.2V
  • Power Voltage: 3.3V
  • Standby Average Current: 5 ma
  • Working frequency: Quad-band Network, 850 / 900 / 1800 / 1900MHz



Contents:

  • 1 x A6 mini GPRS/GSM Module Board with Antenna and Sim Card Slot
