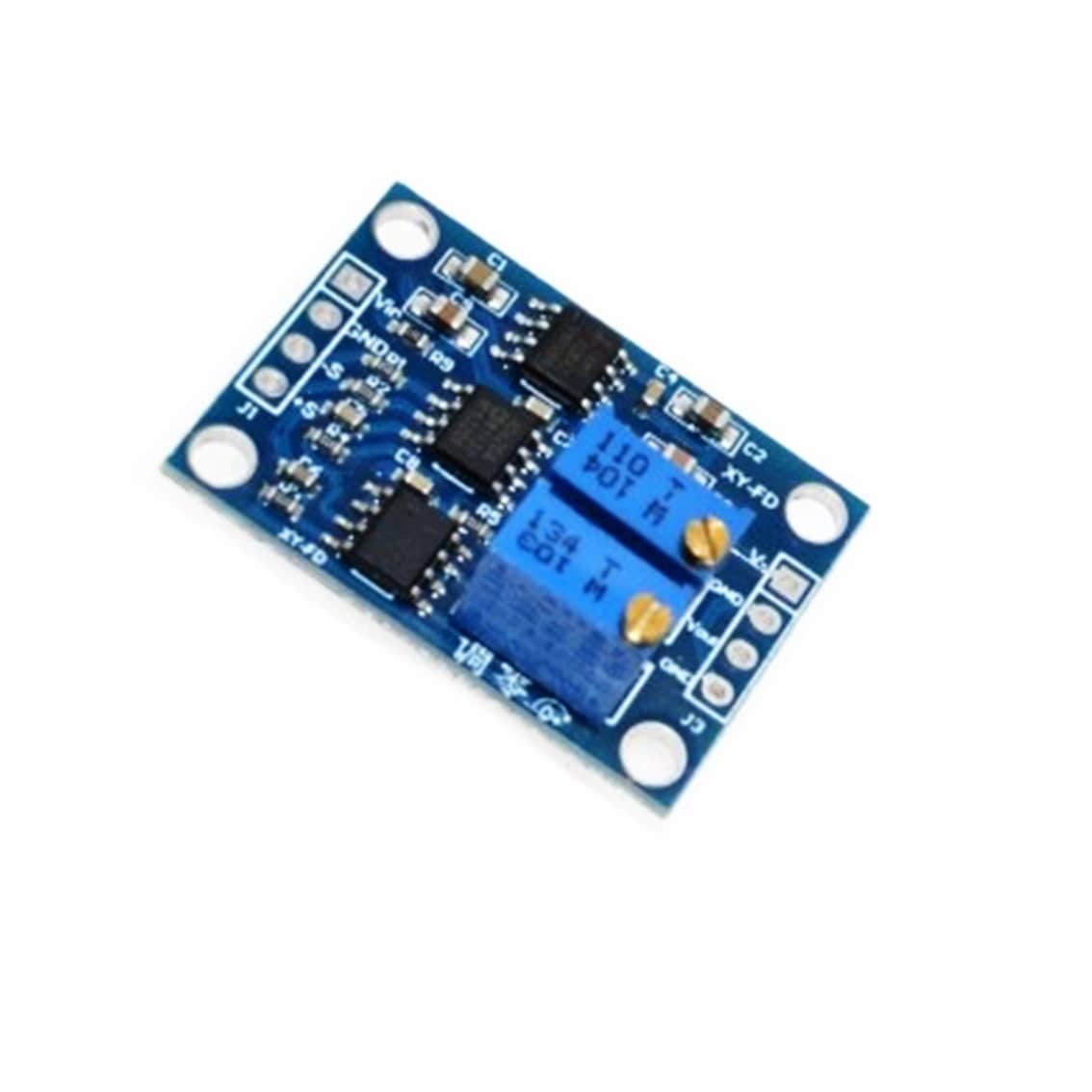

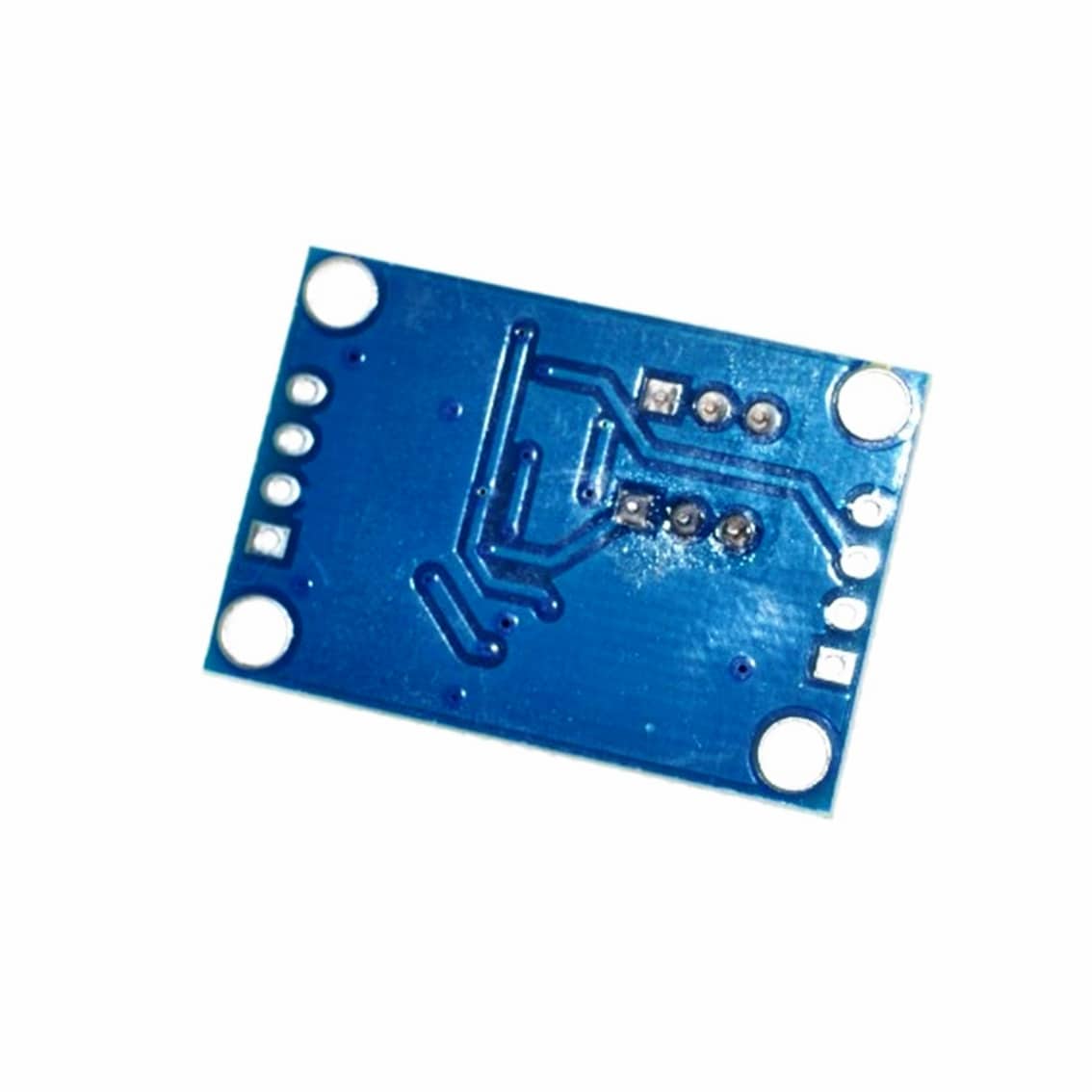

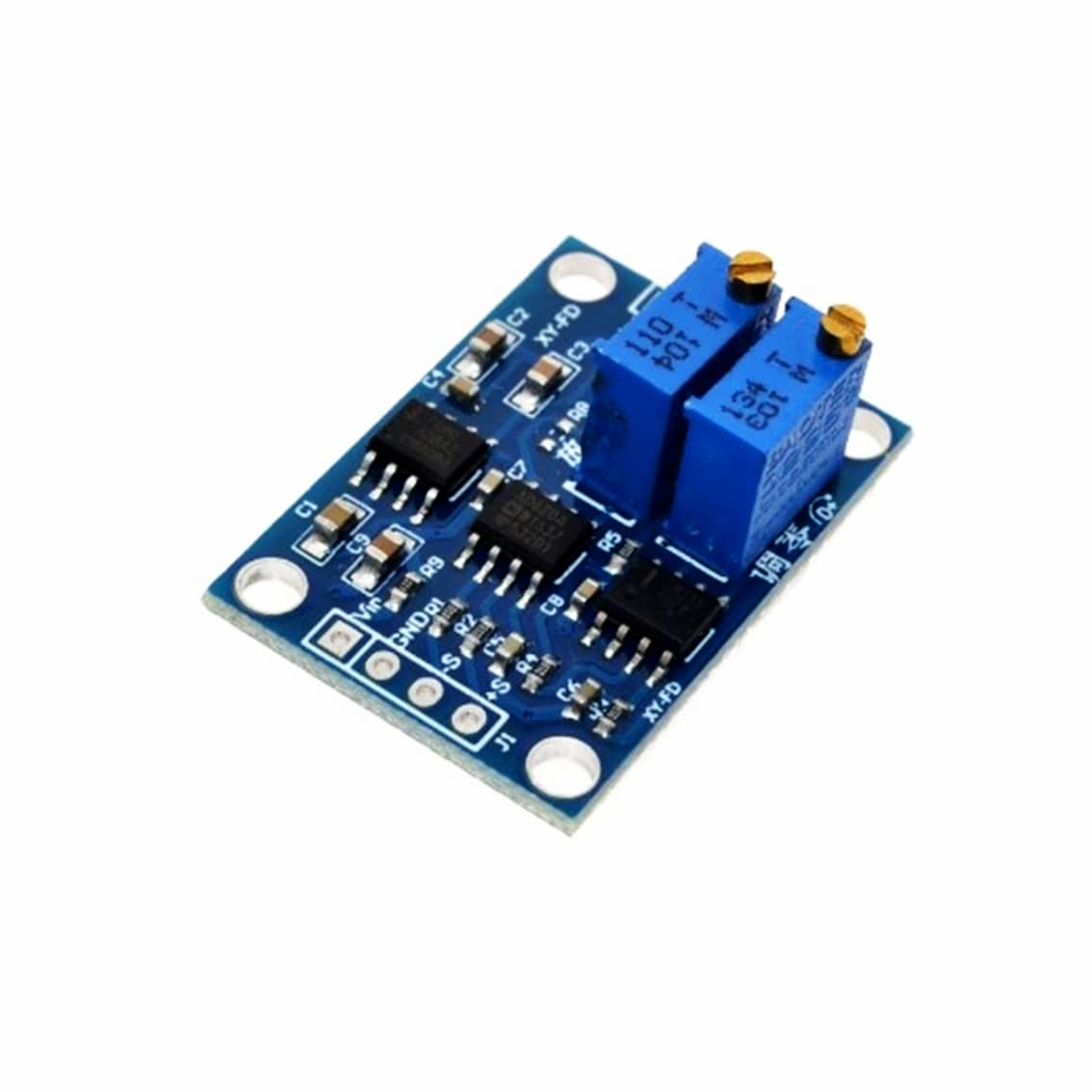

Adjustable Small Signal Amplifier Module – AD620

  • PHI1072468 – Adjustable Small Signal Amplifier Module – AD620 02
  • PHI1072468 – Adjustable Small Signal Amplifier Module – AD62 030
  • PHI1072468 – Adjustable Small Signal Amplifier Module – AD620 02
  • PHI1072468 – Adjustable Small Signal Amplifier Module – AD62 030

Description

The AD620 Adjustable Signal Amplifier is a small but precise module. read more

or 4 fortnightly payments of $5.24 with Afterpay More info

SKU:
PHI1072468
Category:
Tags:
,
Brand:

Type:

Price

$20.95

Quantity

- +

Total

$20.95

0 reviews

30 in stock

- +

Description

Description:

The AD620 Adjustable Signal Amplifier is a small but precise module.

It can amplify microvolt and millivolt from 1.5 up to 1000 times its input value just by turning the knobs of the potentiometer. The AD620 adjustable amplifier module can be used to boost either AC or DC voltage.



Specifications:

  • Input Voltage: 3V – 12V DC
  • Magnification: 1.5 – 1000
  • Signal Input Voltage: 100uV – 300mV
  • Chip: AD620
  • Signal Output Range: 2V ±
  • Offset Voltage: 50μV
  • Input Bias Current: 1.0nA (Max)
  • Common Mode Rejection Ratio: 100 dB
  • Offset Voltage Drift: 0.6μV / ℃ (Max)
  • Weight: 4 g
  • Dimensions: 32mm x 22mm



Contents:

  • 1 x Adjustable Small-Signal Amplifier Module – AD620
