Description:

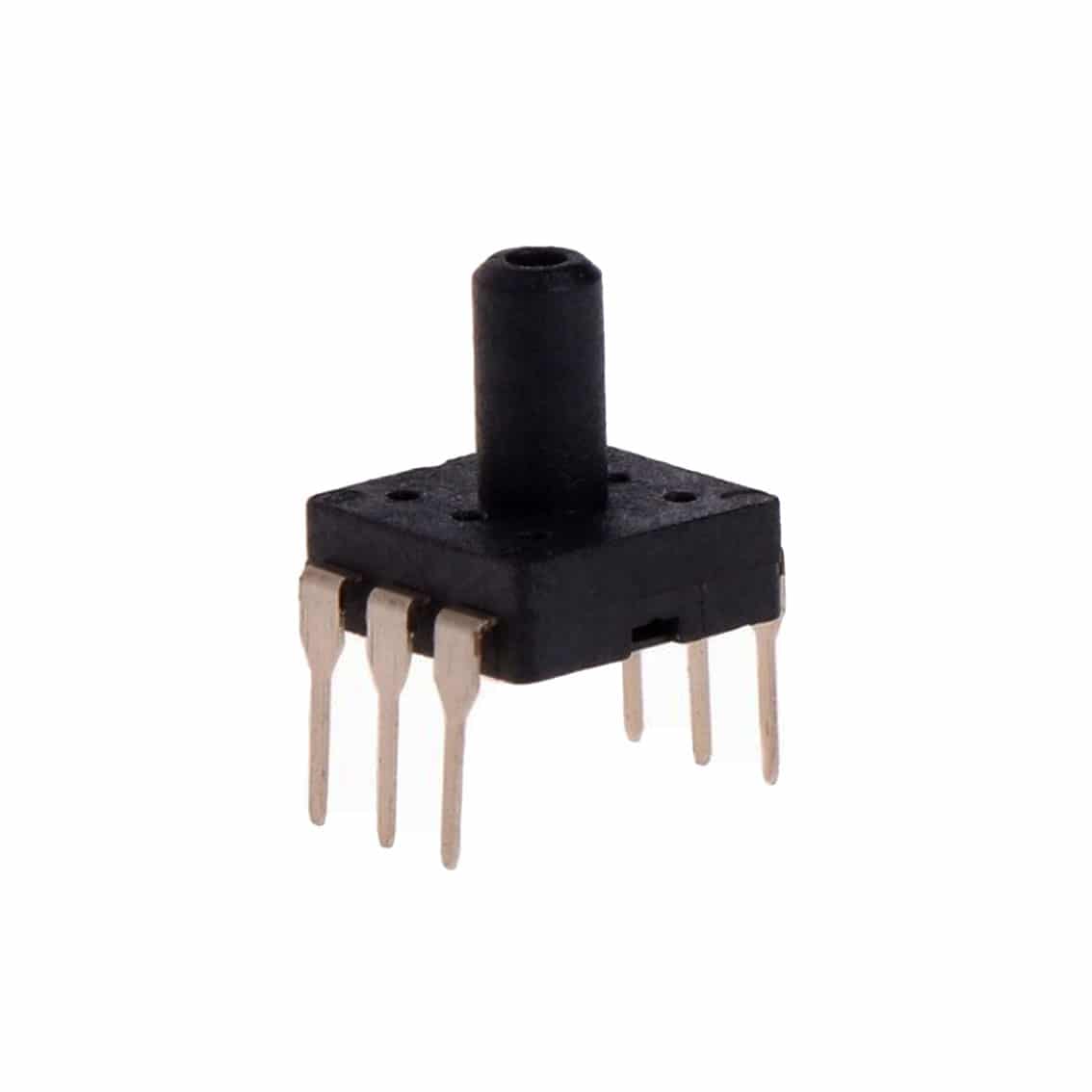

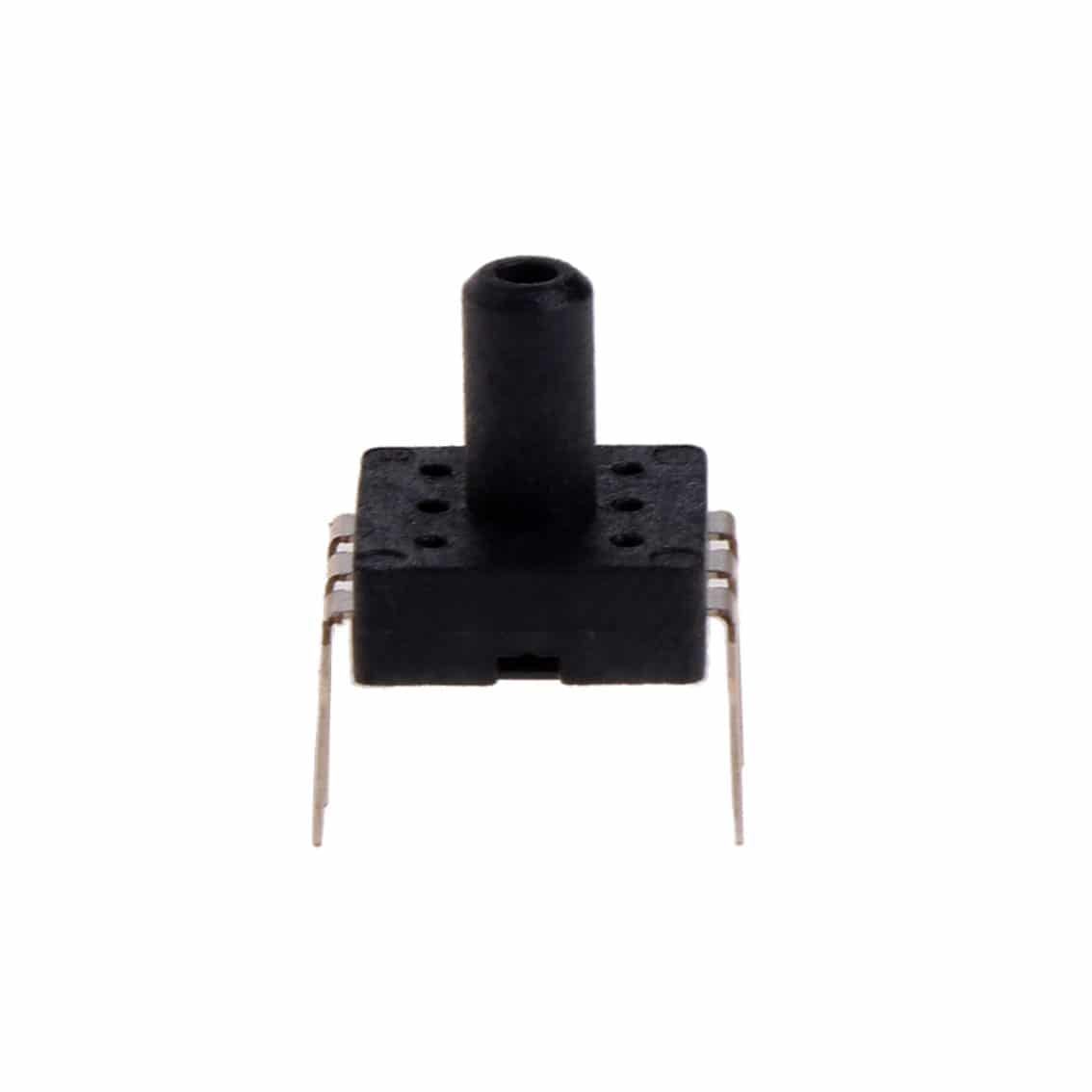

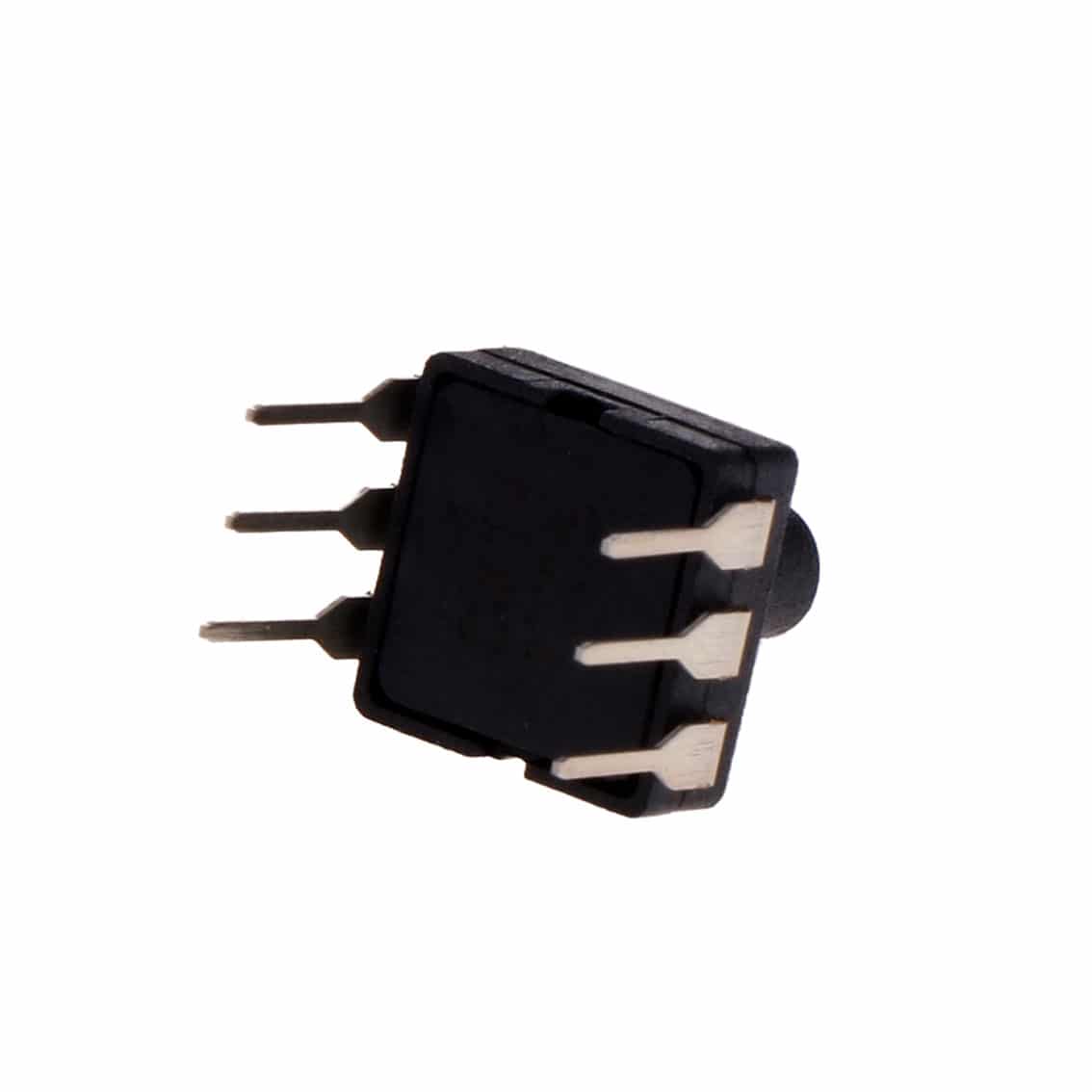

The Air Pressure Sensor Module featuring the MPS20N0040D-D sensor is designed to measure atmospheric pressure with high accuracy and reliability. Utilizing MEMS technology, this sensor offers a pressure range of 0 to 40 kPa, making it suitable for various applications, including automotive systems, medical instrumentation, and environmental monitoring. The module provides an analog mV output signal proportional to the applied pressure, facilitating easy integration with microcontrollers and data acquisition systems. Its compact design and low power consumption make it ideal for both portable and stationary devices.
This pack includes two MPS20N0040D-D sensor modules, allowing for redundancy in critical applications or the development of multiple projects simultaneously. The sensors are designed to operate within a temperature range of -40°C to +85°C, ensuring consistent performance in diverse environmental conditions. These sensors deliver precise and reliable pressure measurements with a linear accuracy of 0.25% full scale and a full-scale output voltage ranging from 50 to 100 mV.
Specifications:
- Pressure Range: 0 to 40 kPa
- Output: Analog mV signal
- Supply Voltage: 5V DC or constant current 1 mA
- Linear Accuracy: 0.25% Full Scale
- Full-Scale Output Voltage: 50 to 100 mV
- Input Impedance: 4 to 6 kΩ
- Output Impedance: 4 to 6 kΩ
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +125°C
- Media Compatibility: Clean, dry, non-corrosive gases
Features:
- High reliability with MEMS technology
- Low cost and easy to use
- Wide temperature range operation
- Suitable for various applications including automotive and medical
- Compact design for easy integration
Contents:
- 2 x MPS20N0040D-D Air Pressure Sensor Modules
