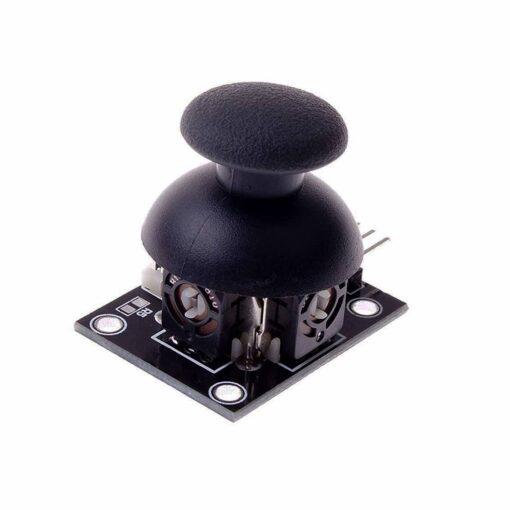

Analog Joystick Dual Axis XY Controller (KY-023)

Description:

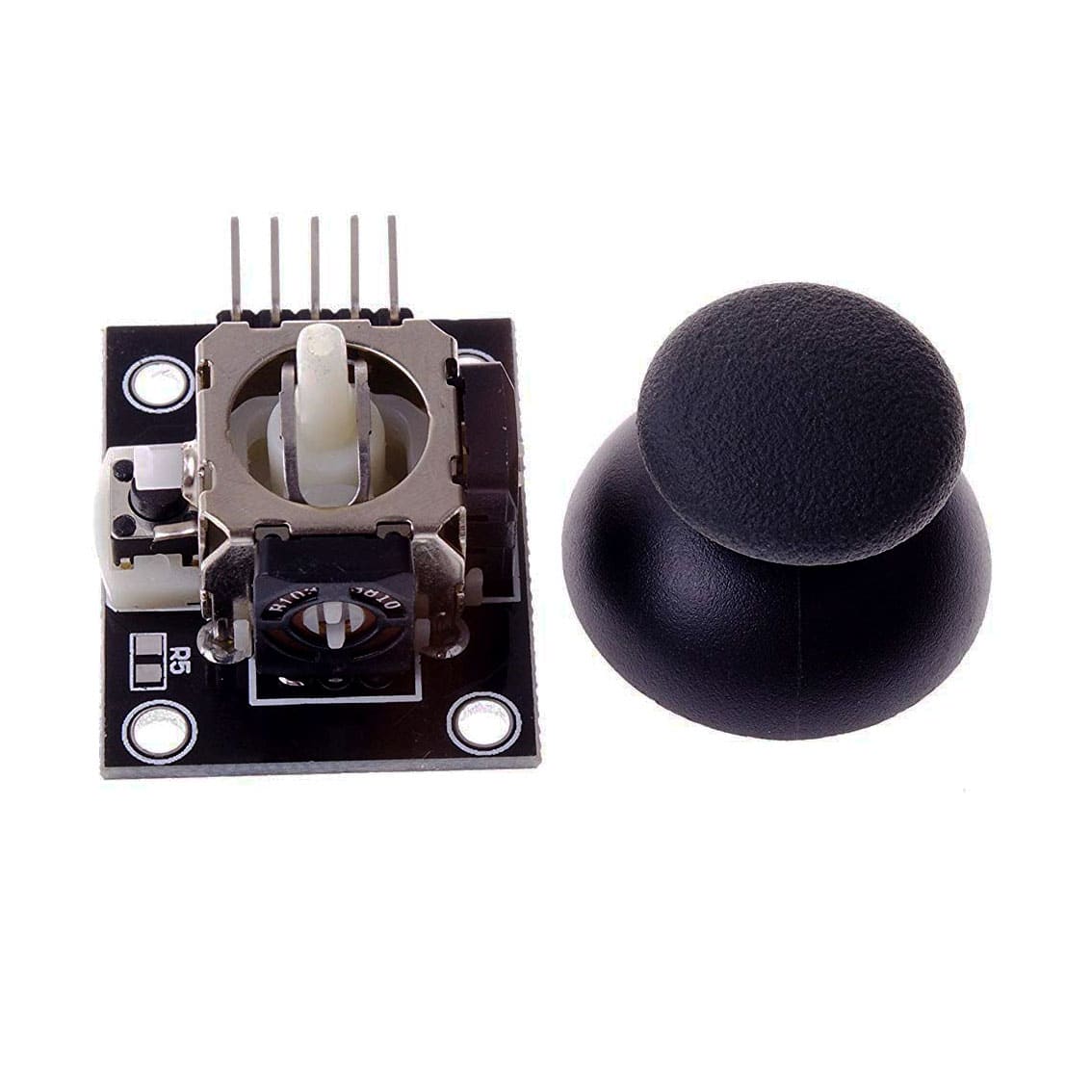

This Analog Joystick Dual Axis XY Controller module uses 2 x 10k potentiometers that control the X and Y axis by adjusting the resistance when the joystick is moved.
Pushing down the joystick activates the push button similar to the PS controller’s joystick.
The KY-032 has a working voltage of 5V, with a resting voltage of approx. 2.5V when the X, Y axis are at a non-operational state.



Specifications:

• Operating Voltage: 5V
• Dual Axis (XY)
• Centre Push Button
• Dimensions: 26mm x 34mm

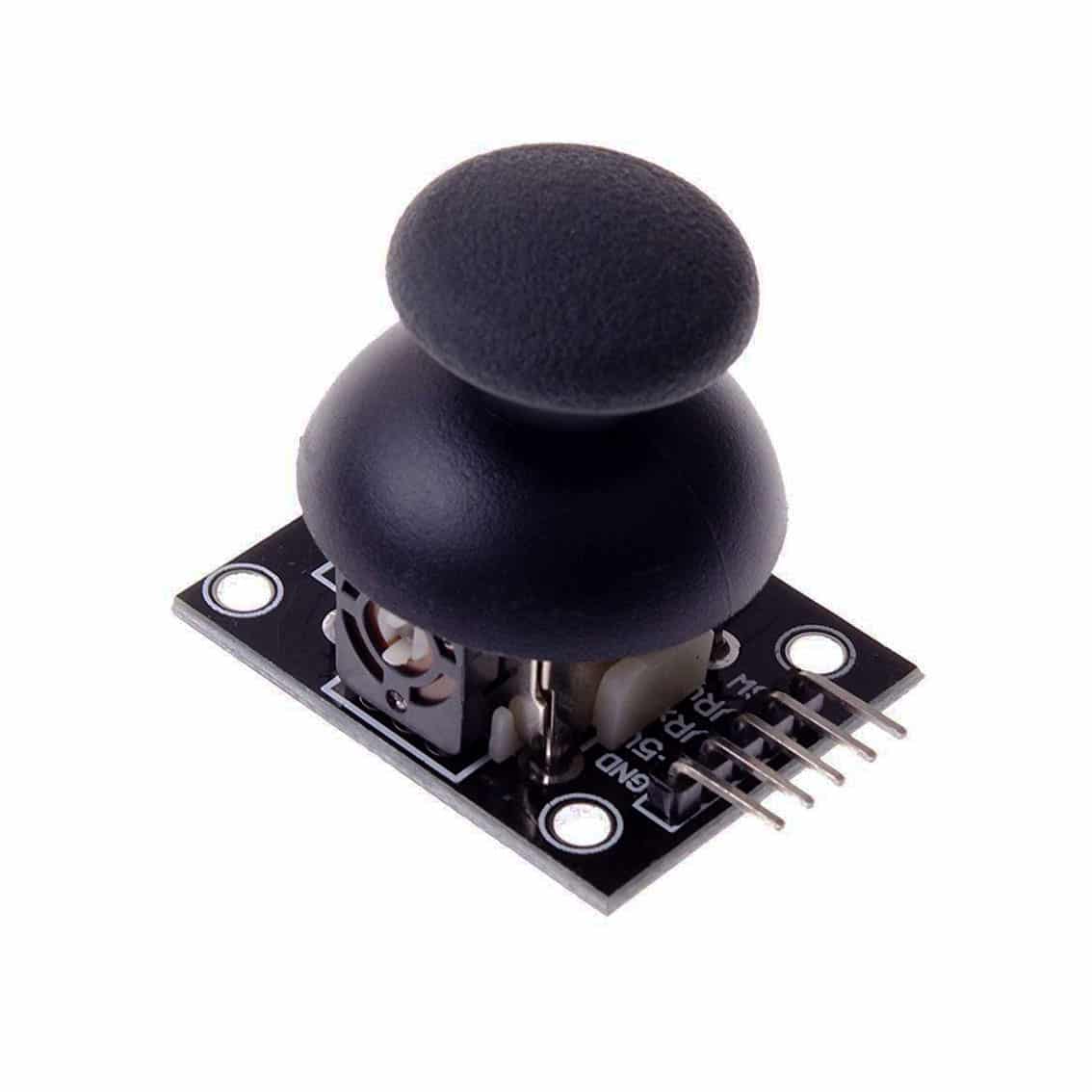

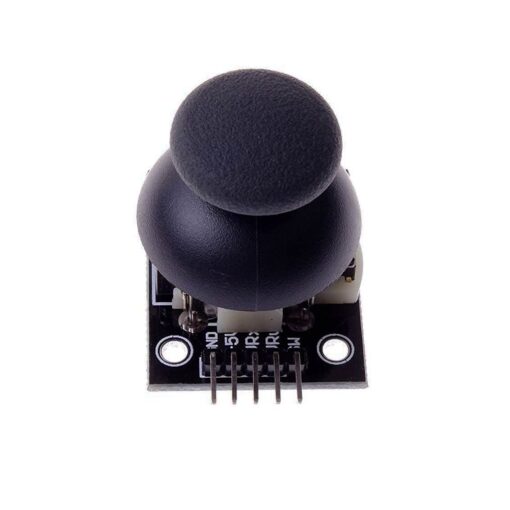

Output Pins:

• +5V: Voltage
• GND: Ground
• VRx: X Axis
• VRy: Y Axis
• SW: Switch



Contents:

• 1 x Analogue Joystick Dual Axis XY Controller (KY-023)
