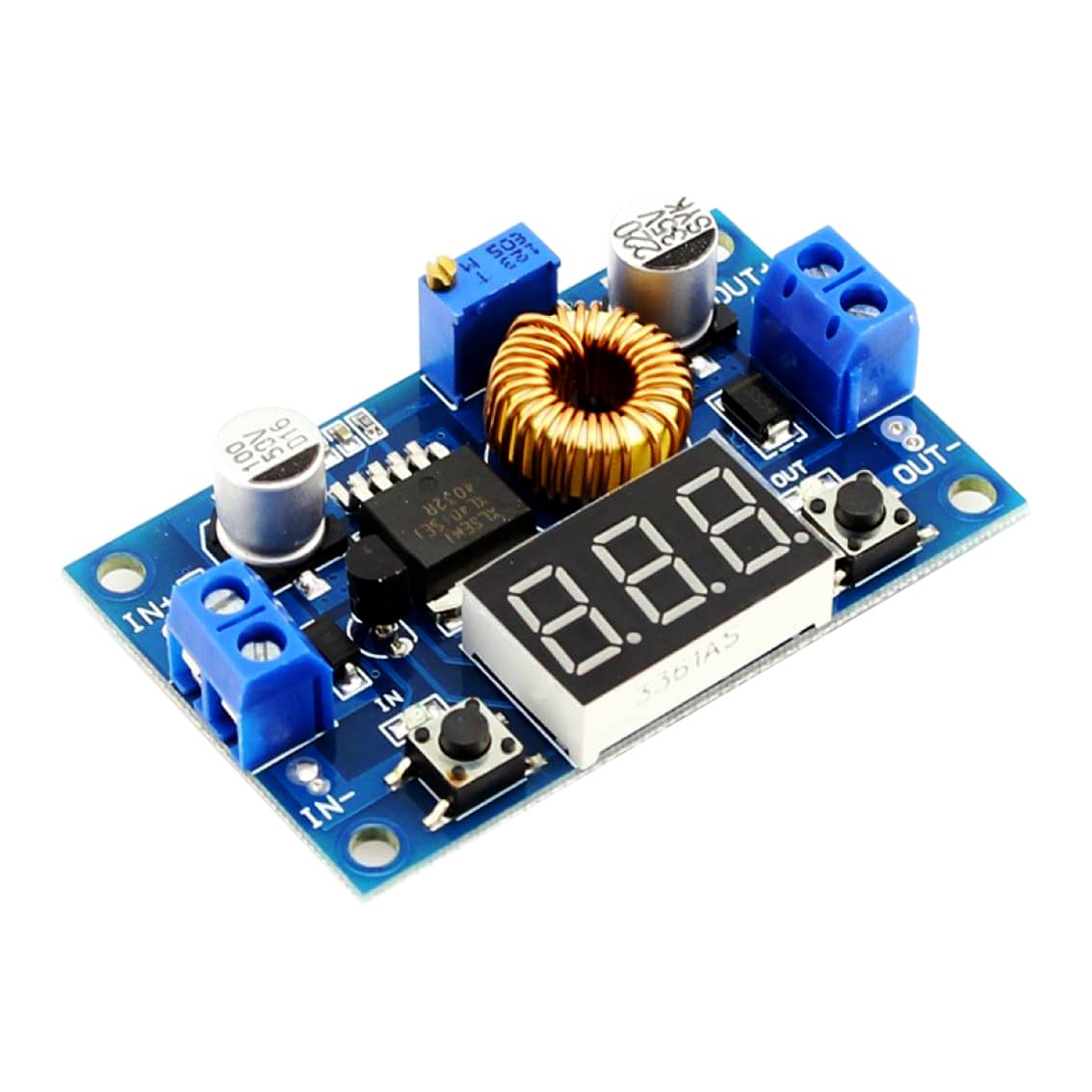

DC-DC Adjustable Step Down 5A 75W Power Supply Module with Voltmeter – XL4015

  • PHI1072261 – DC-DC Adjustable Step Down 5A 75W 02
  • PHI1072261 – DC-DC Adjustable Step Down 5A 75W 02

Description

The adjustable Step-down power supply is efficient, has low ripple and a large power capacity, it can deliver up to 5A, 75W. read more
SKU:
PHI1072261
Category:
Tags:
,
Brand:

Price

$12.95

Quantity

- +

Total

$12.95

0 reviews

27 in stock

- +

Description

Description:

The adjustable Step-down power supply is efficient, has low ripple and a large power capacity, it can deliver up to 5A, 75W.

The module has a built-in 3-digit voltmeter display for info and monitoring of voltage input/output (selectable), with the ability to shut down the display.



Specifications:

  • Input voltage range: 4VDC – 38VDC (Note: Input voltage not exceeding 38V / Input voltage must be minimum 1.5V higher than desired output)
  • Output voltage range: 1.25VDC – 36VDC adjustable
  • Output current: 0 – 5A (4.5A or less recommended for extended constant use)
  • Output power: 75W
  • Voltmeter range: 4V to 40V, error ±0.1V
  • Operating frequency: 180KHz
  • High efficiency up to 96%
  • Protections:
    • Thermal shutdown function
    • Current limit function
    • Output short-circuit protection
  • Dimensions: 66mm x 39mm x 18mm

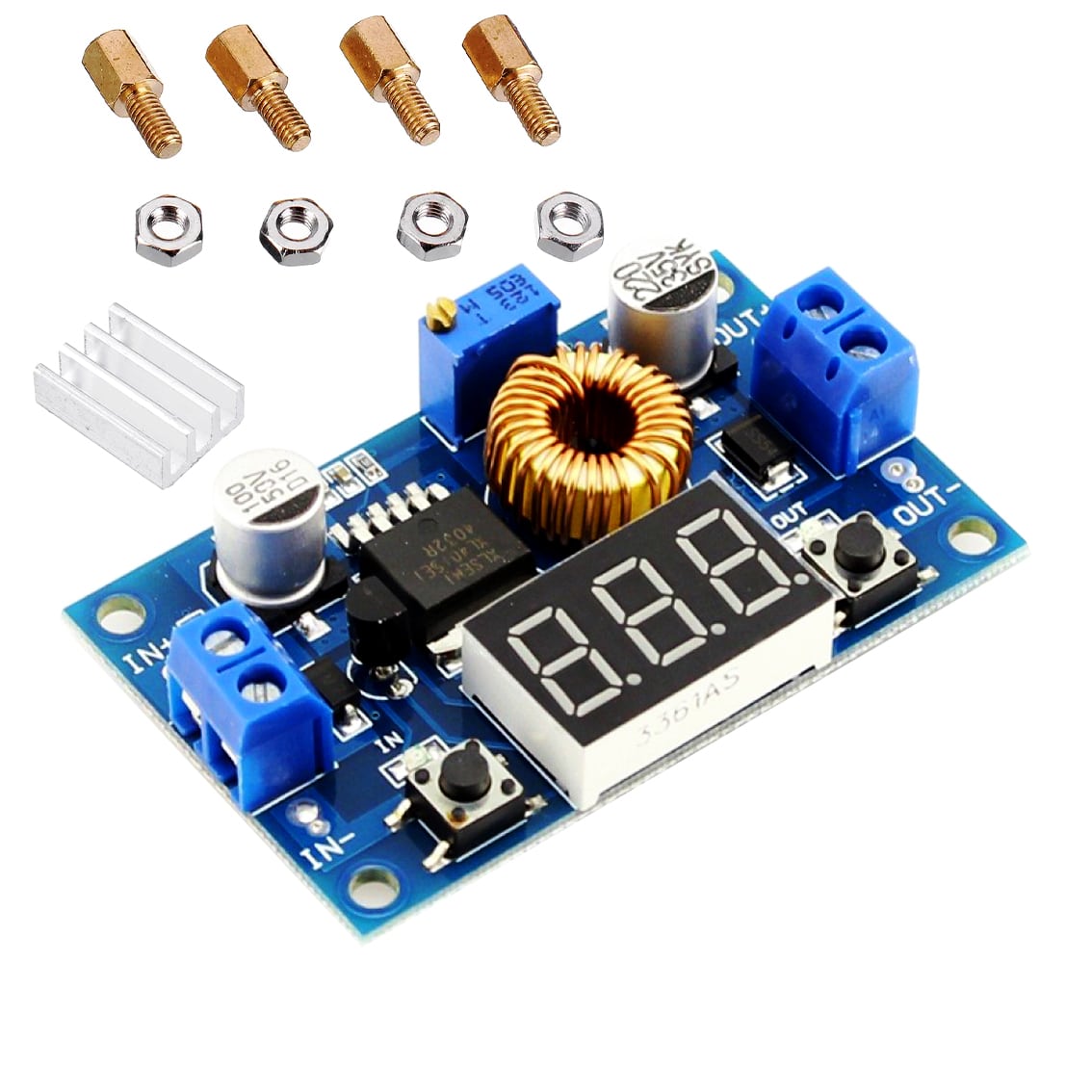

Contents:

  • 1 x DC-DC Adjustable Step-Down 5A 75W Power Supply Module with Voltmeter
  • 1 x Heat Sinc
  • 1 x Mounting Screw Set
