Description:

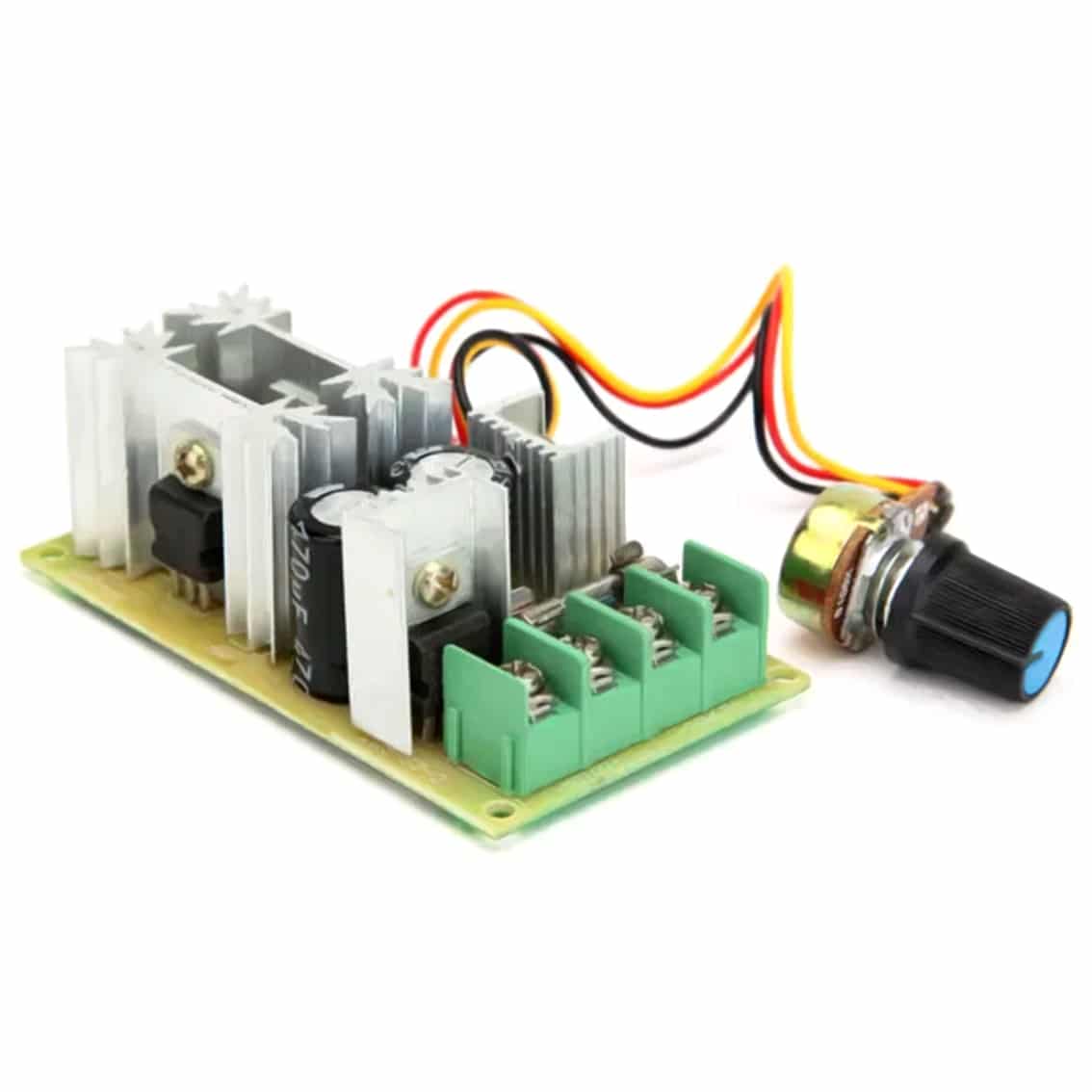

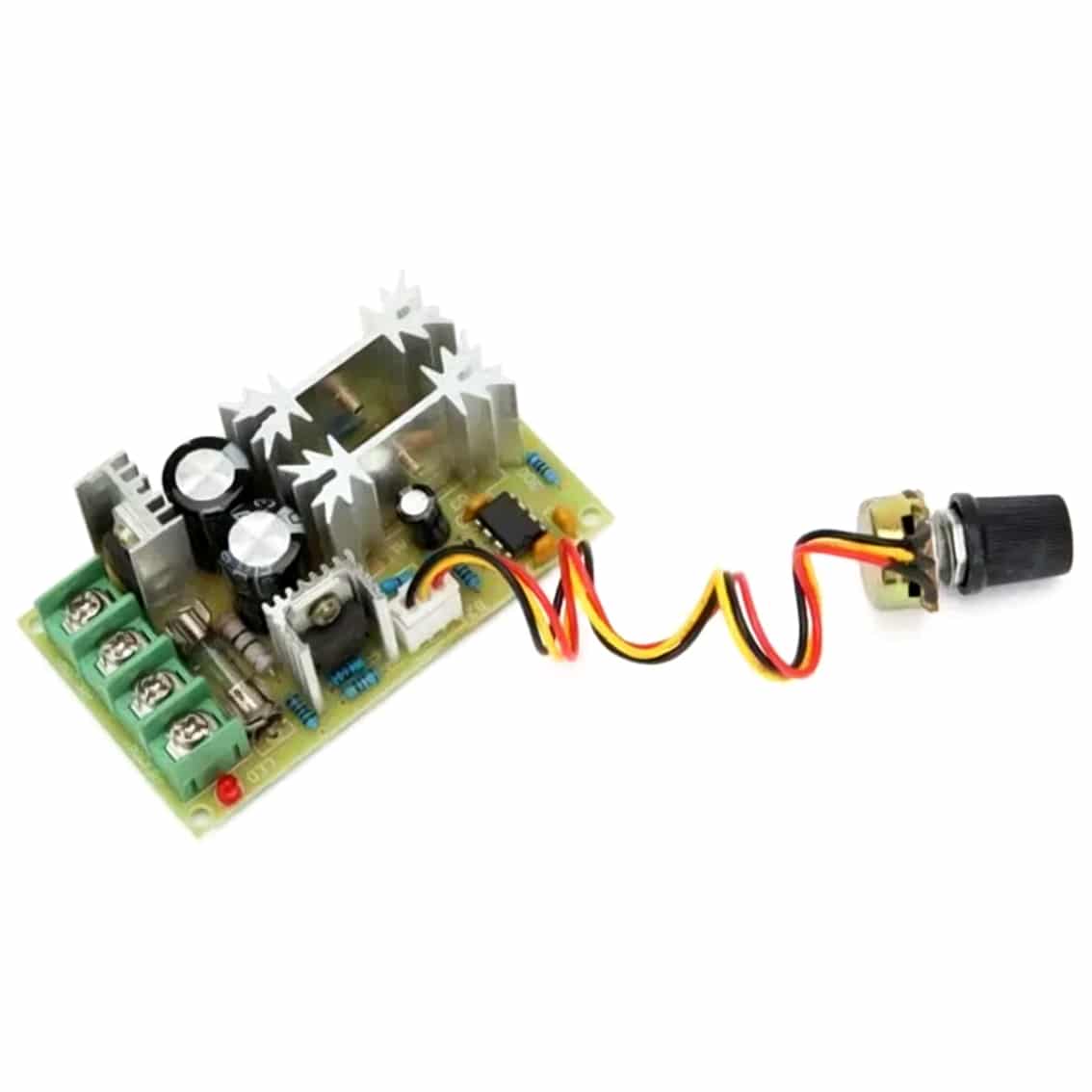

The DC PWM Motor Speed Controller – 10-60V 20A 1200W is a powerful and efficient solution for controlling the speed of DC motors using pulse-width modulation (PWM) technology. With an input voltage range of 10V to 60V DC and a current rating of up to 20A, this controller delivers a maximum power output of 1200W. It is suitable for high-torque motors in electric tools, electric vehicles, fans, and other motor-driven applications that require adjustable speed control.
Equipped with a digital display and a rotary potentiometer knob, the controller allows for precise and real-time speed adjustment. Moreover, it features a soft start function, over-current protection, and reverse polarity protection to ensure safe and stable operation. Thanks to its large heat sink and heavy-duty terminal connectors, this controller offers enhanced thermal performance and durability. Whether you’re automating machinery or retrofitting an existing motor system, this speed controller provides reliable and responsive control.
Specifications:
- Input Voltage: DC 10V – 60V
- Output Current: Up to 20A (with heat sink and cooling)
- Maximum Power Output: 1200W
- Speed Control Type: Pulse-Width Modulation (PWM)
- PWM Frequency: 25kHz
- Duty Cycle Range: 0% – 100%
- Control Method: Rotary Potentiometer + Digital Display
- Soft Start Function: Yes
- Protection: Over-current, Reverse Polarity
- Cooling: Large Aluminium Heat Sink
- Mounting Type: Panel Mount
- Dimensions: Approx. 90mm x 60mm x 28mm
- Weight: Approx. 170g
Features:
- Wide voltage range support: 10V to 60V DC
- Handles up to 20A continuous current with adequate cooling
- Built-in digital display for real-time voltage and duty cycle monitoring
- Rotary potentiometer for smooth and precise speed control
- Soft start to protect motor from sudden surges
- Built-in safety protections: over-current and reverse polarity
- Compact, robust design with high-efficiency heat dissipation
Contents:
- 1 x DC PWM Motor Speed Controller (10-60V 20A 1200W)
