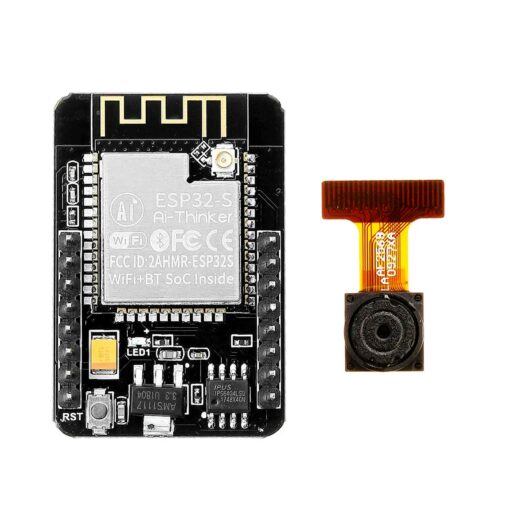

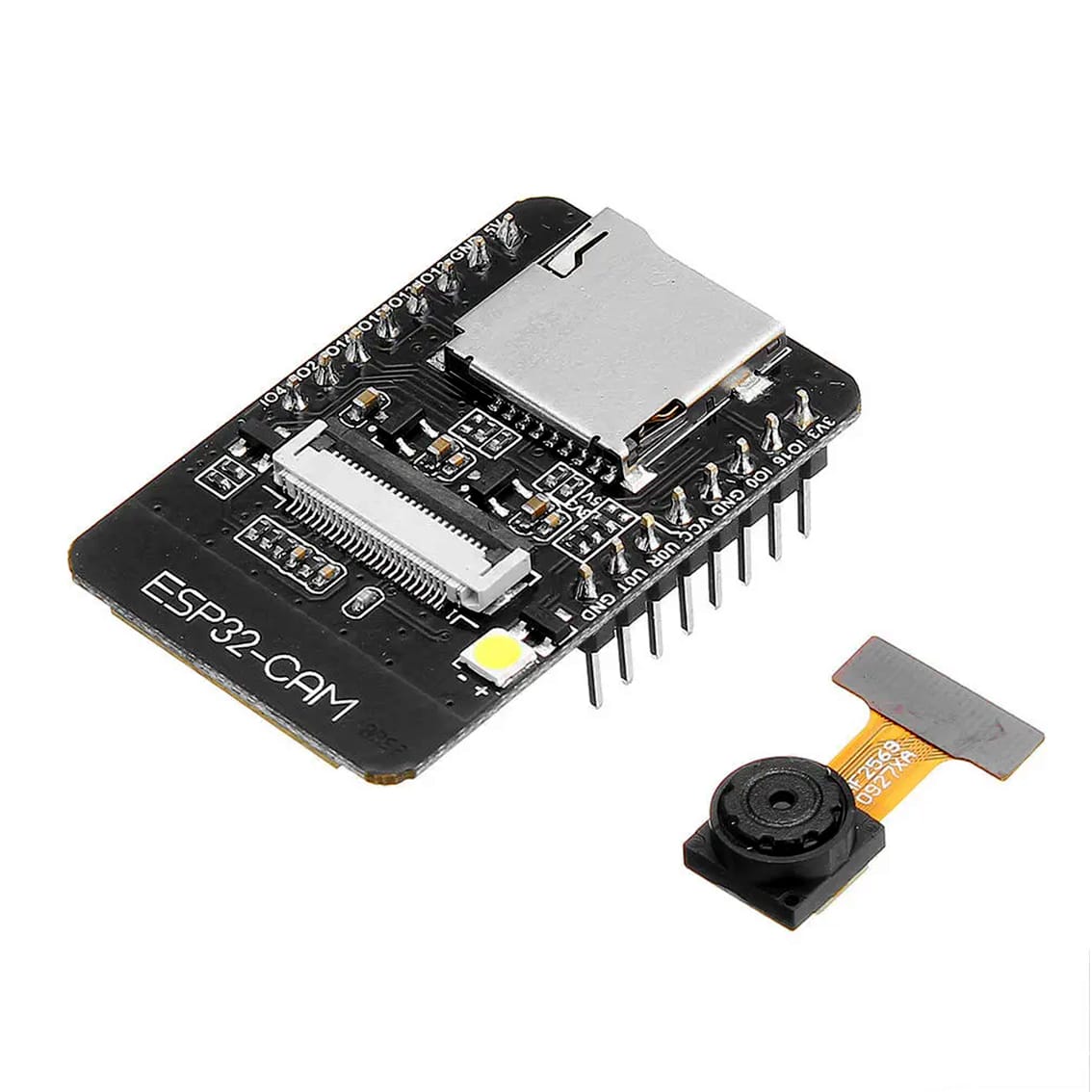

ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module

  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 02
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 03
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 04
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 05
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 06
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 02
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 03
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 04
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 05
  • PHI1112027 – ESP32-CAM WiFi Bluethooth Development Board with OV2640 Camera Module 06

Description

The ESP32-CAM is a development board with WiFi and Bluetooth which integrates directly with the supplied OV2640 camera module. read more
SKU:
PHI1112027
Categories:
,
Tags:
, ,
Brand:

Type:

,

Bundle Description:

,

Item Height:

view all details

Price

$26.95

Quantity

- +

Total

$26.95

0 reviews

19 in stock

- +

Description

The ESP32-CAM is a development board with WiFi and Bluetooth which integrates directly with the supplied OV2640 camera module.

The board features onboard antennas and cores based on ESP32 chips which allow for the board to operate independently if required.

With integrated WiFi, traditional Bluetooth and BLE beacon with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, a main frequency adjustment range of 80MHz to 240MHz and on-chip sensors consisting of a hall sensor and temperature sensor.

Great for IoT applications, projects and solutions

Specifications

  • Operating voltage: 5V
  • Operating current: < 310mA MAX @ 5V
  • Camera models supported: OV2640 and OV7670
  • Package: DIP-16
  • SPI flash: 32Mbit (default)
  • RAM: 520KB internal 4M PSRAM
  • Bluetooth: 4.2BR/EDR and BLE
  • WiFi: 802.11 b/g/n/e/i
  • Interface: UART, SPI, I2C, PWM
  • IO ports: 9
  • Serial port range: 115200bps (default)
  • Image format: JPEG, BMP, Grayscale
  • Spectrum range: 2412 – 2484MHz
  • Antenna: On-board PCB, gain 2dBi
  • Dimensions: 27mm x 40.5mm x 4.5mm

Contents

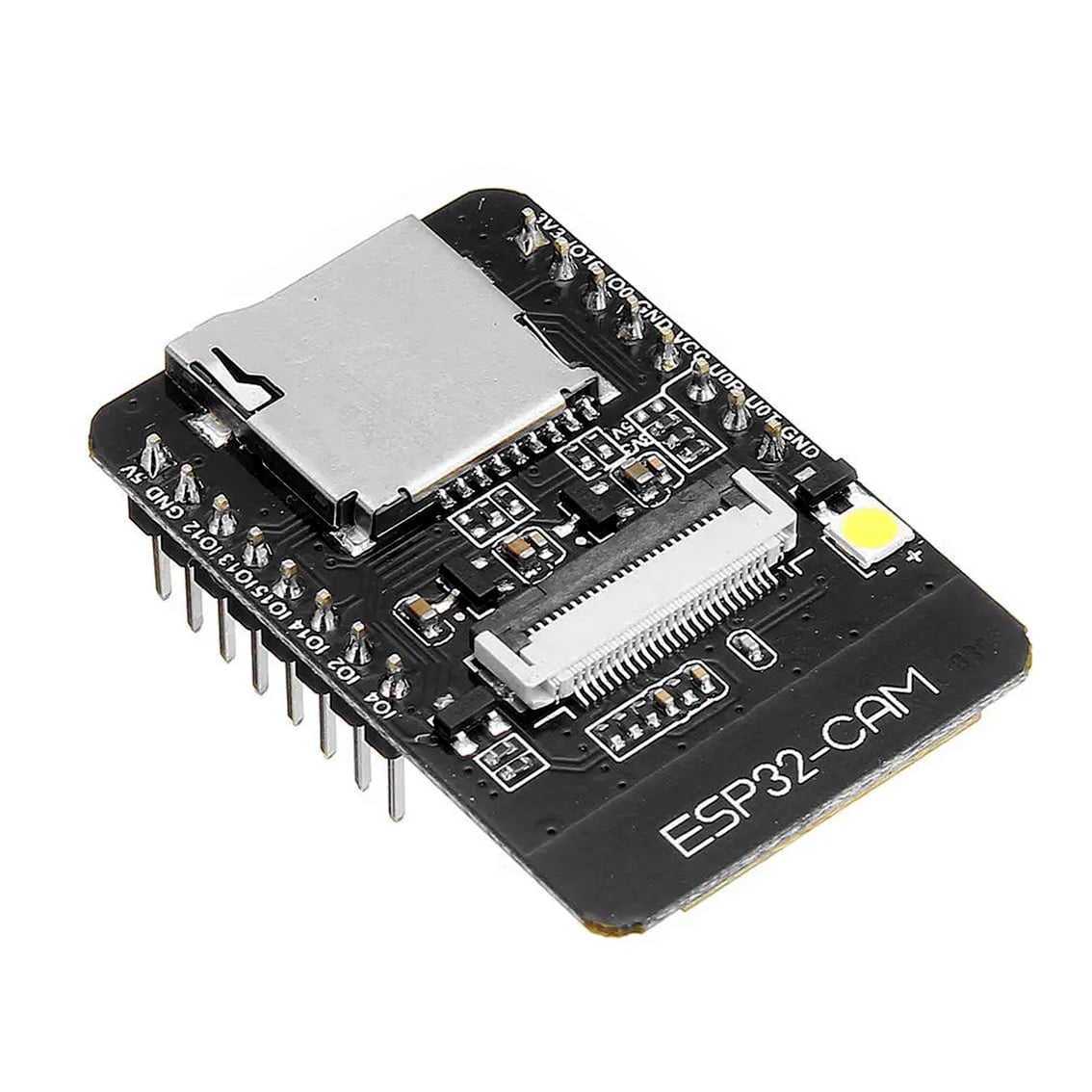

  • 1 x ESP32-CAM WiFi Bluetooth Development Board

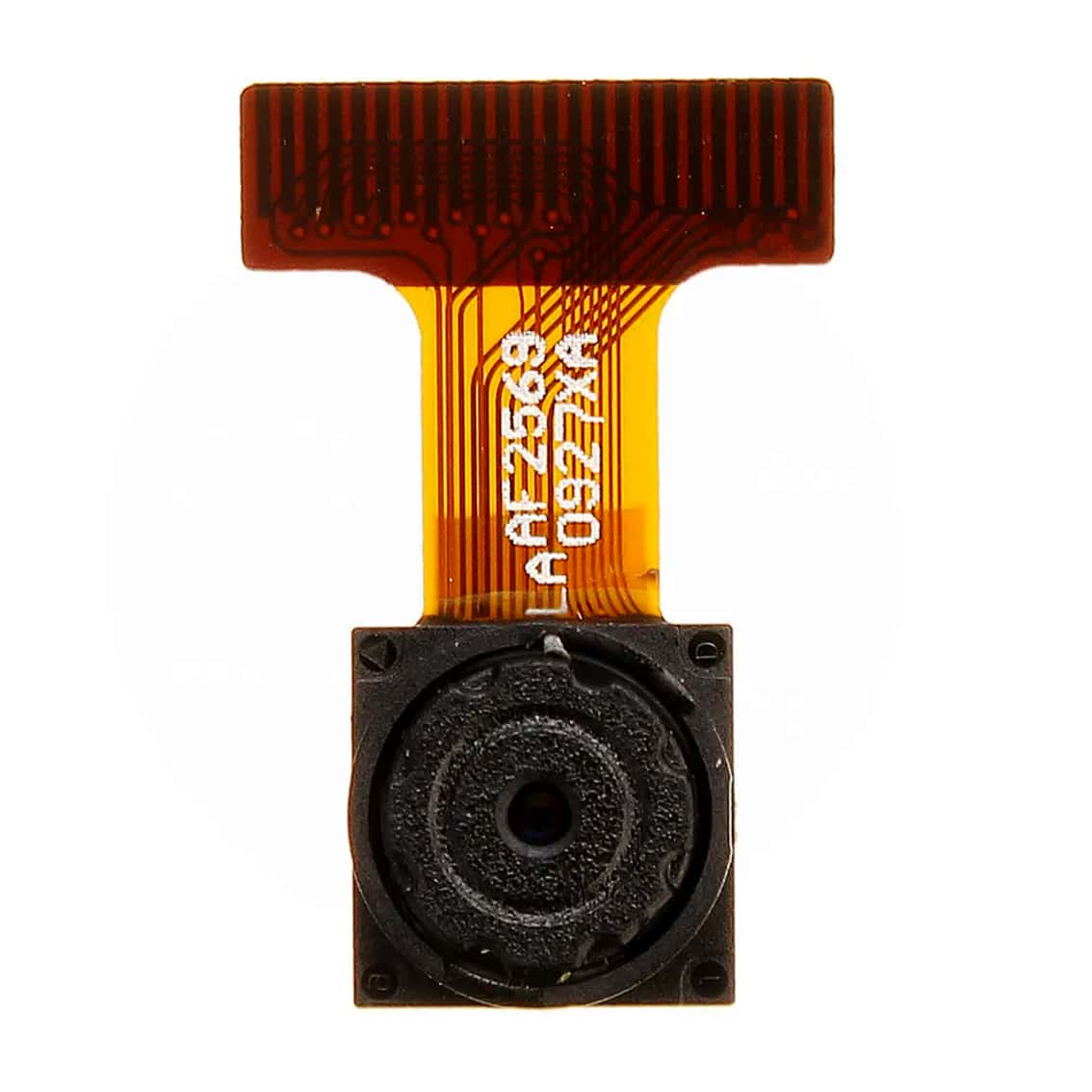

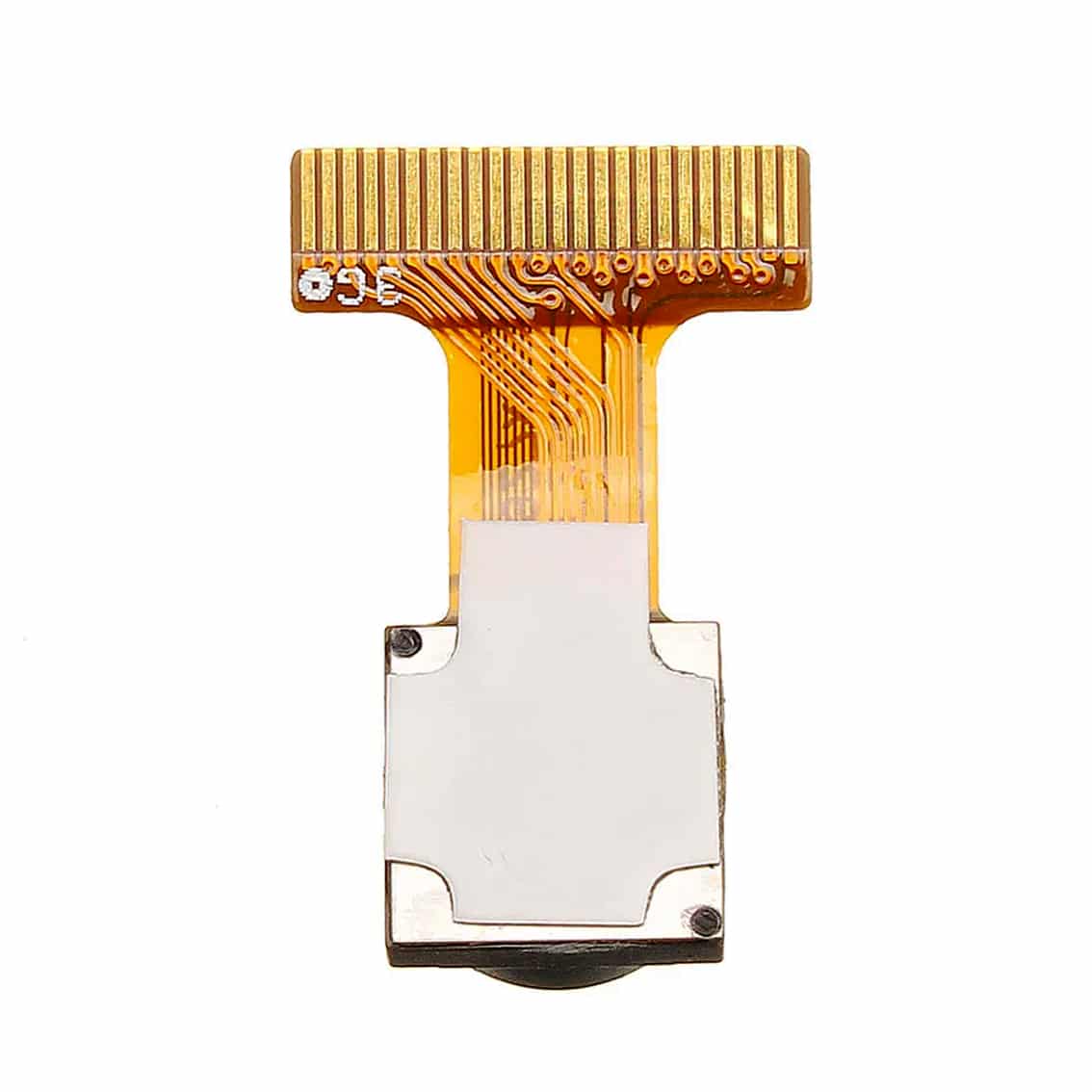

  • 1 x OV2640 Camera Module
