Description:

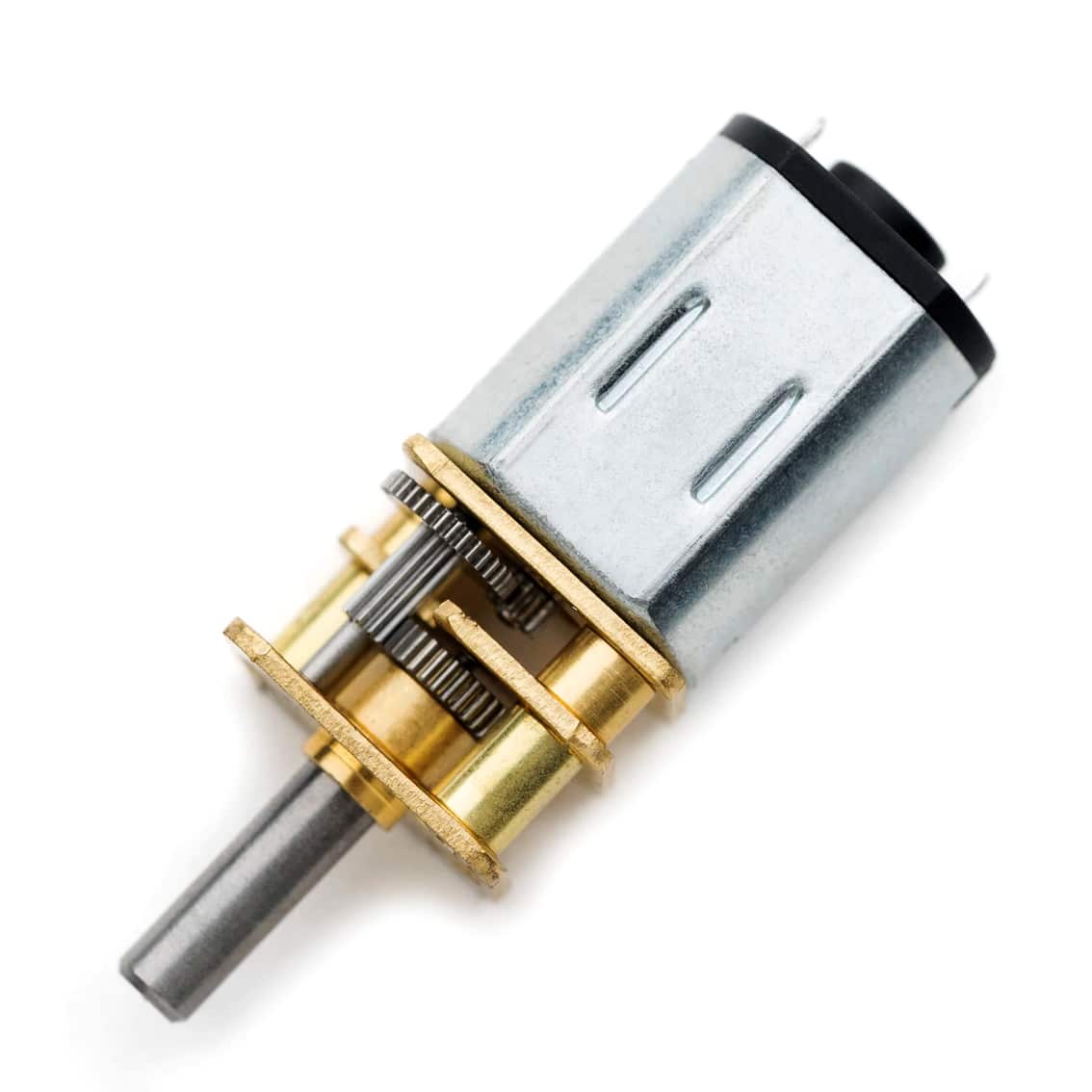

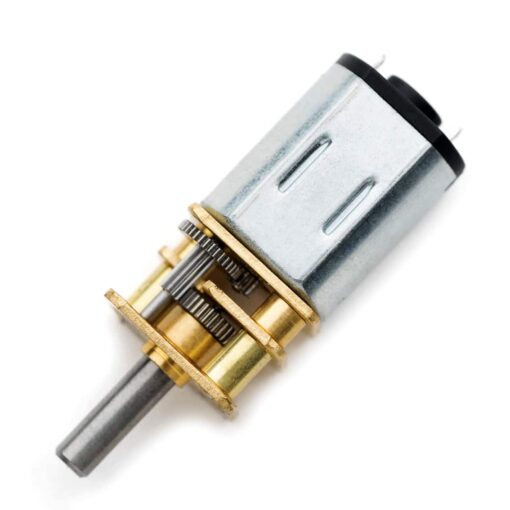

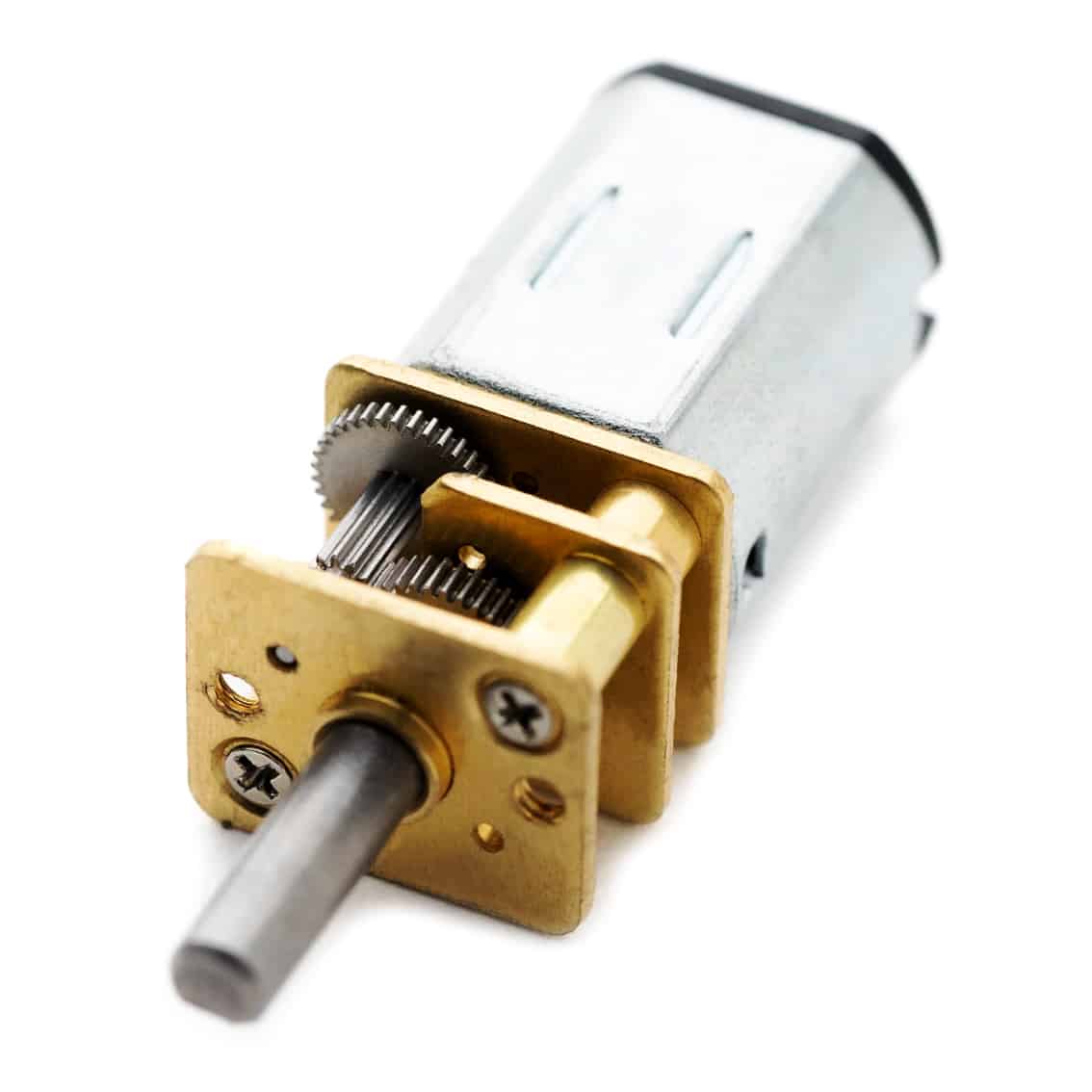

The GA12-N20 Metal Gear 12V 1000RPM Motor is a compact yet powerful DC motor designed for a wide range of applications, including robotics, automation systems, and hobby projects. Known for its high torque and precision, this motor features an all-metal gearbox that ensures durability and long-lasting performance. The motor’s 12V operation provides robust power, making it suitable for tasks requiring reliable and consistent motion control.
This motor is particularly popular in small-scale industrial applications, IoT devices, and robotic systems due to its lightweight design and efficient power consumption. With a rated speed of 1000RPM, it offers a good balance between speed and torque, making it ideal for various precision-driven projects.
Specifications:
- Model: GA12-N20
- Rated Voltage: 12V DC
- Revolving Speed (no load): 1000RPM
- Rated Current (no load): 90mA
- Revolving Speed (loaded): 800RPM
- Rated Current (loaded): 200mA
- Rated Torque (loaded): 1.0 kg.cm
- Stall Current: 1.10A
- Stall Torque: 4.0 kg.cm
- Gear Ratio: 1:50

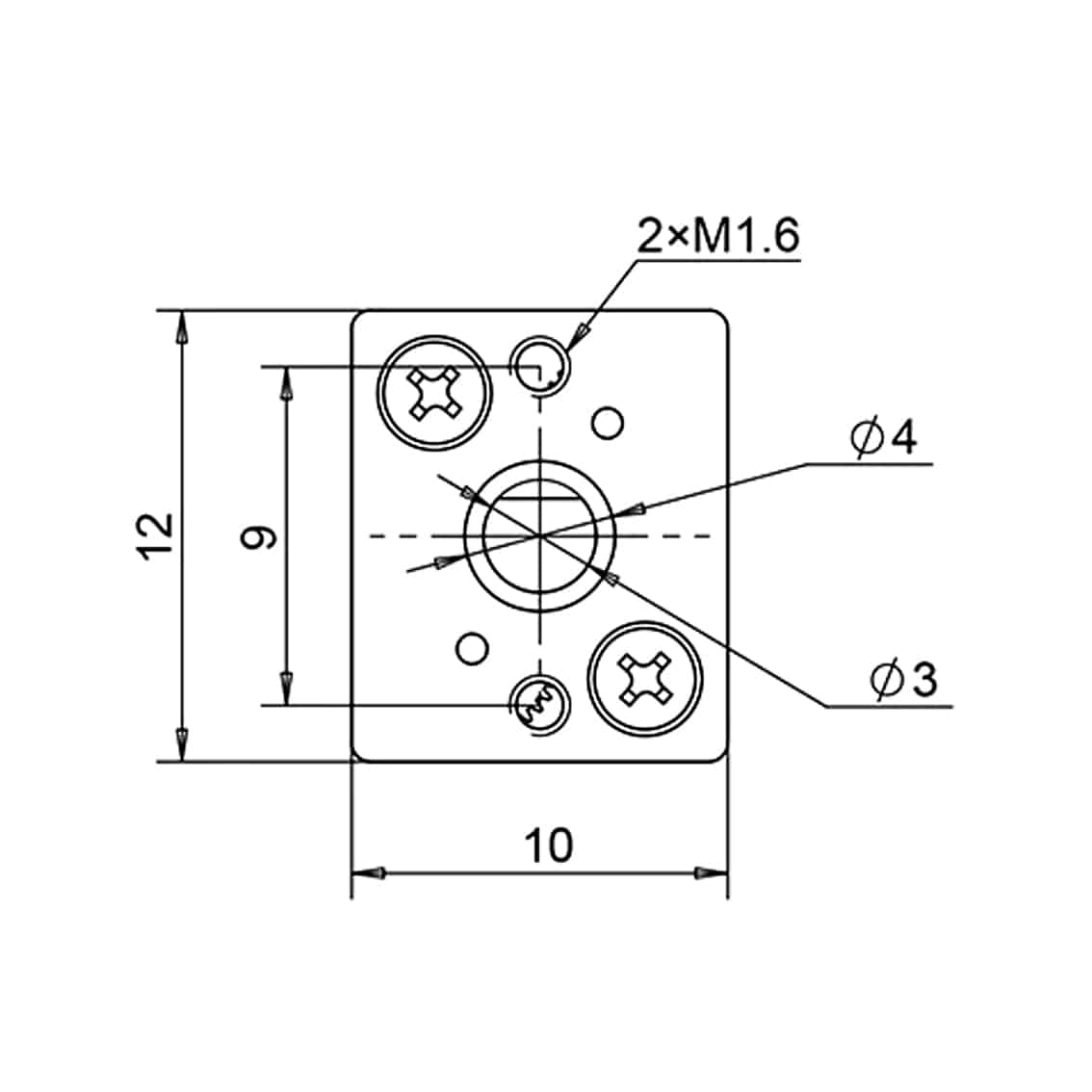

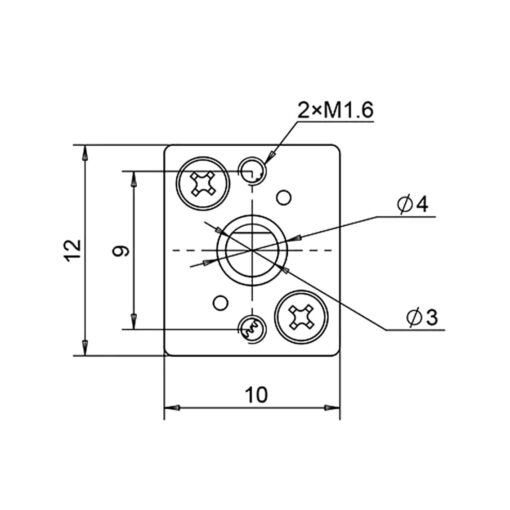

- Shaft Type: D-type Single Side
- Shaft Diameter: 3mm
- Shaft Length: 9mm
- Weight: 15g
Features:
- High torque and precision for detailed applications
- Durable all-metal gearbox construction
- Compact and lightweight design for easy integration
- Efficient power consumption suitable for battery-operated projects
- Ideal for robotics, IoT devices, and small industrial applications
Contents:
- 1 x GA12-N20 Metal Gear 12V 1000RPM Motor
