Description:

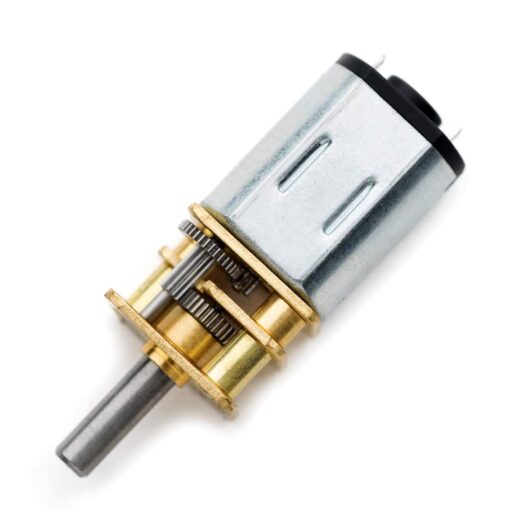

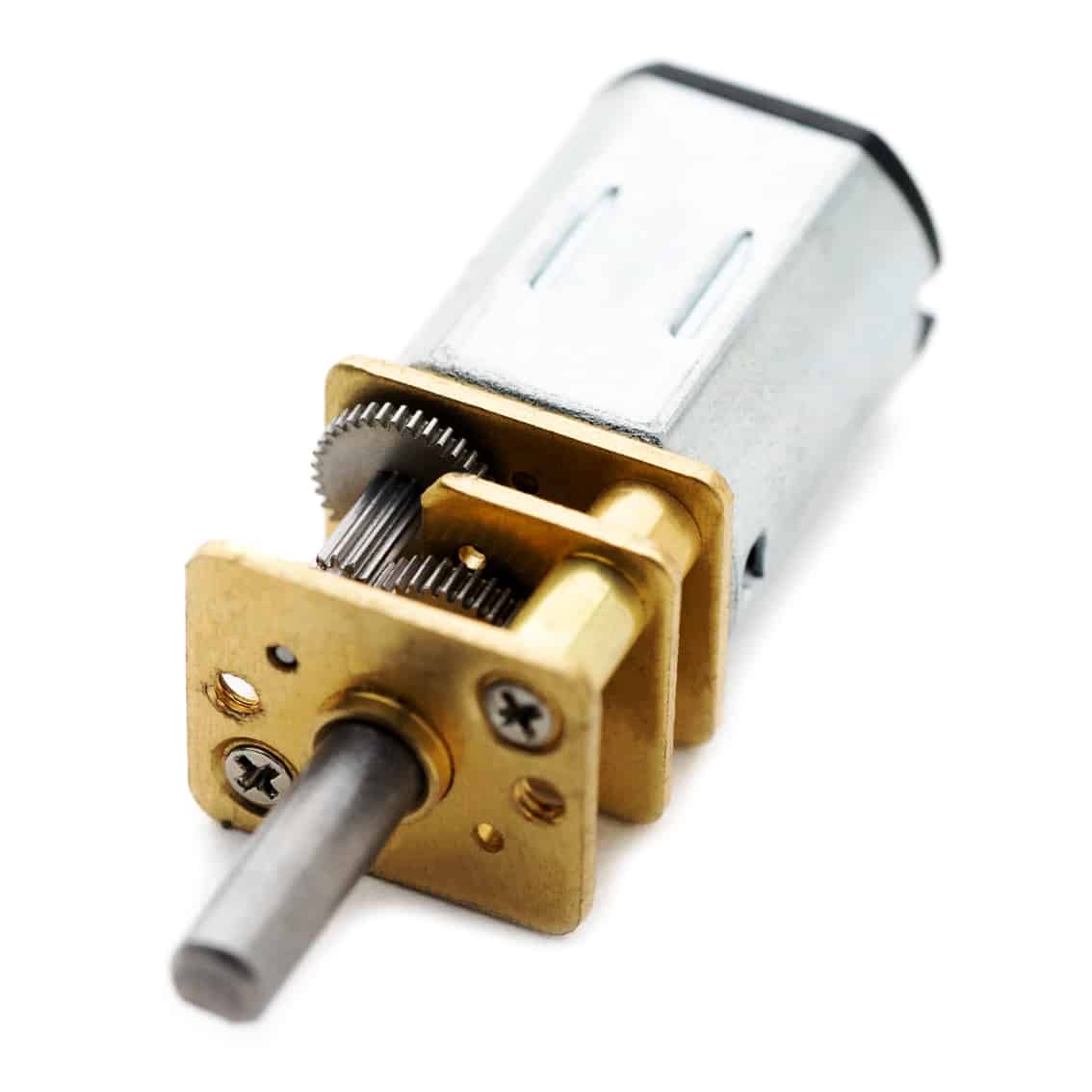

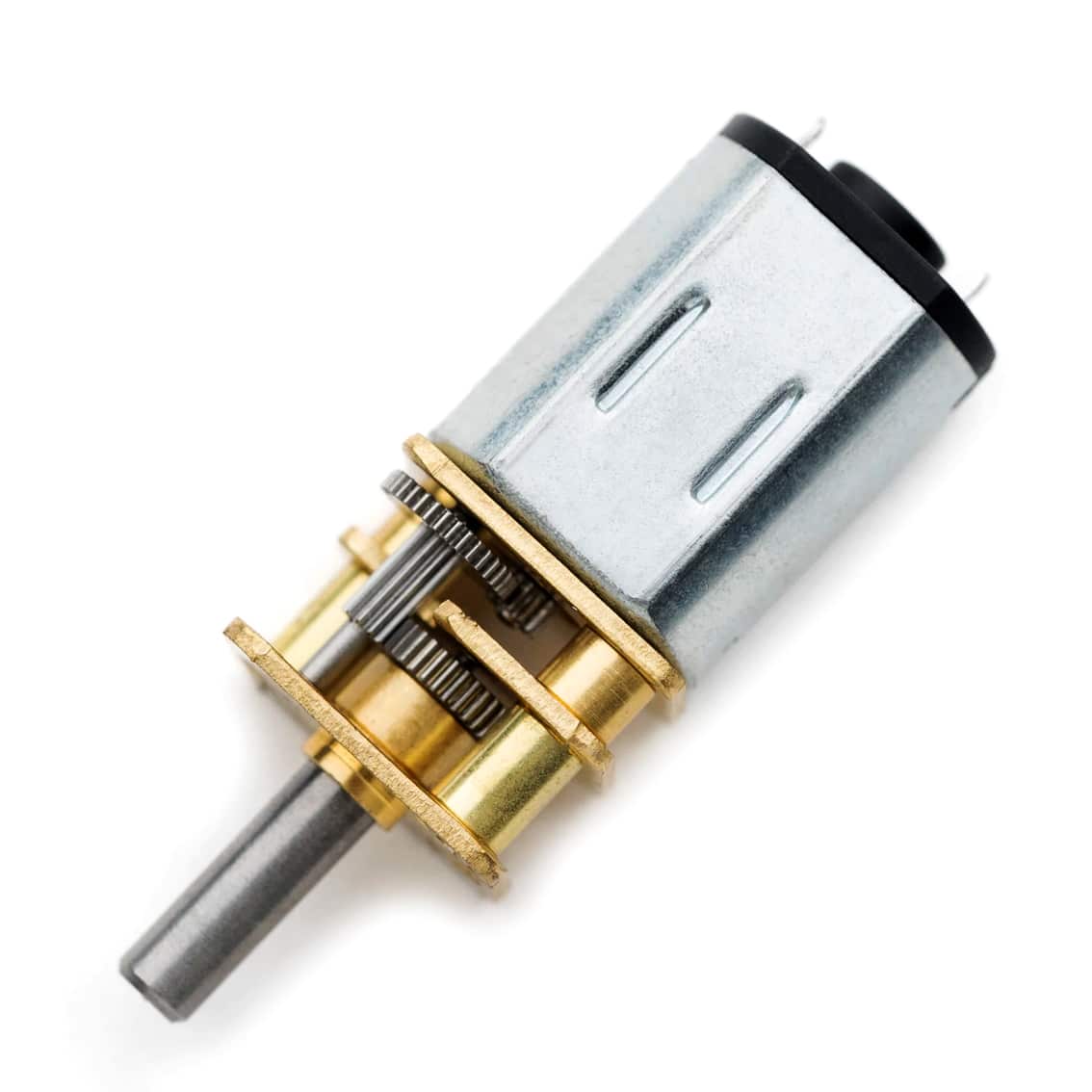

The GA12-N20 Metal Gear 12V 30RPM Motor is a highly durable and efficient DC motor designed for a variety of applications, including robotics, automation, and hobby projects. This motor is renowned for its high torque and low RPM, making it perfect for tasks that require precise and reliable motion control. The all-metal gearbox enhances its durability, ensuring long-lasting performance even under rigorous conditions.
Operating at 12V, this motor provides a steady speed of 30RPM, delivering a good balance between speed and torque. The compact and lightweight design allows for easy integration into various projects, from small industrial applications to intricate robotic systems. Its low power consumption makes it an ideal choice for battery-operated devices.
Specifications:
- Model: GA12-N20
- Rated Voltage: 12V DC
- Revolving Speed (no load): 30RPM
- Rated Current (no load): 30mA
- Revolving Speed (loaded): 24RPM
- Rated Torque (loaded): 2.5 kg.cm
- Rated Current (loaded): 90mA
- Stall Torque: 16 kg.cm
- Stall Current: 700mA
- Reduction Ratio: 1:1000

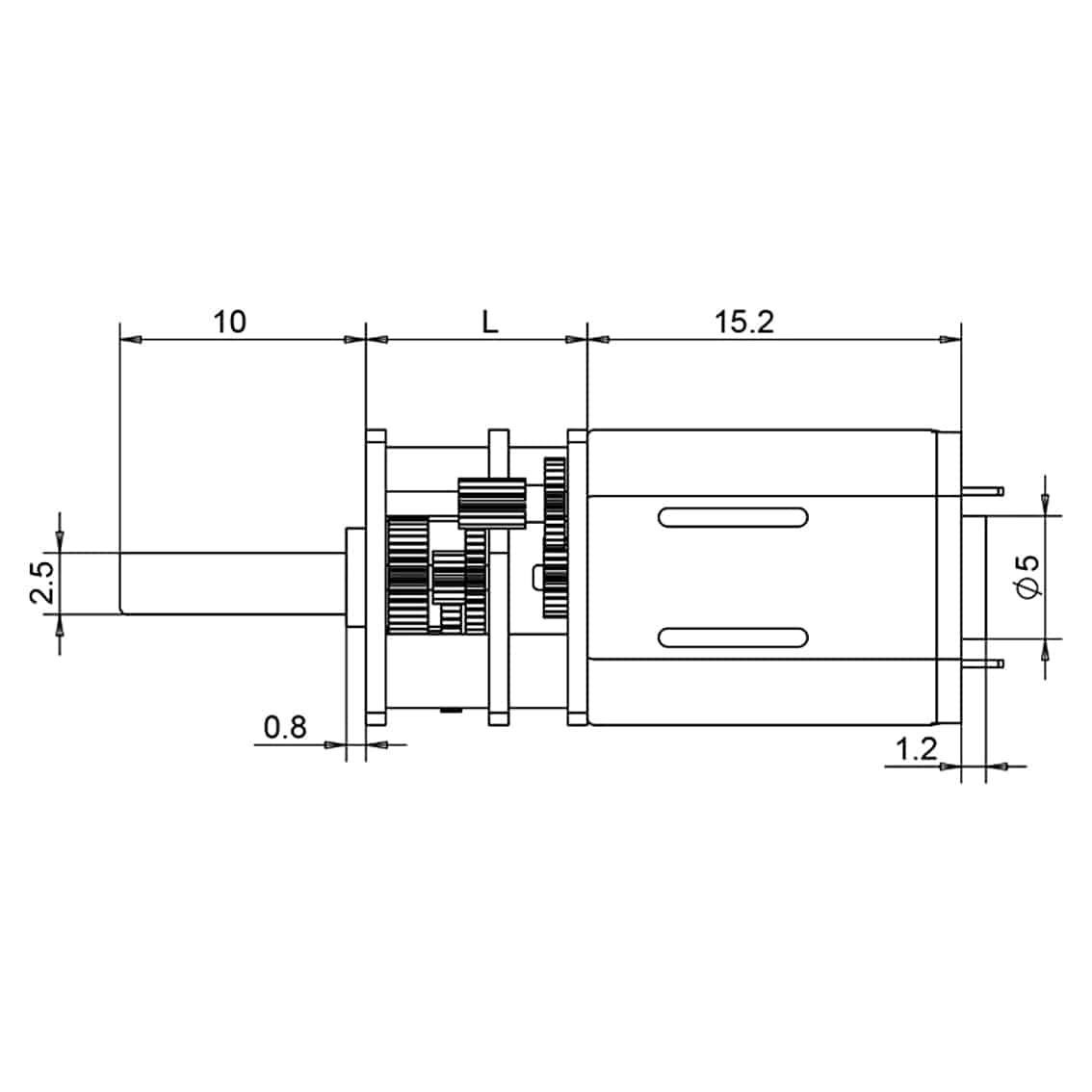

- Total Length: 37.5mm
- Gear Material: Full Metal

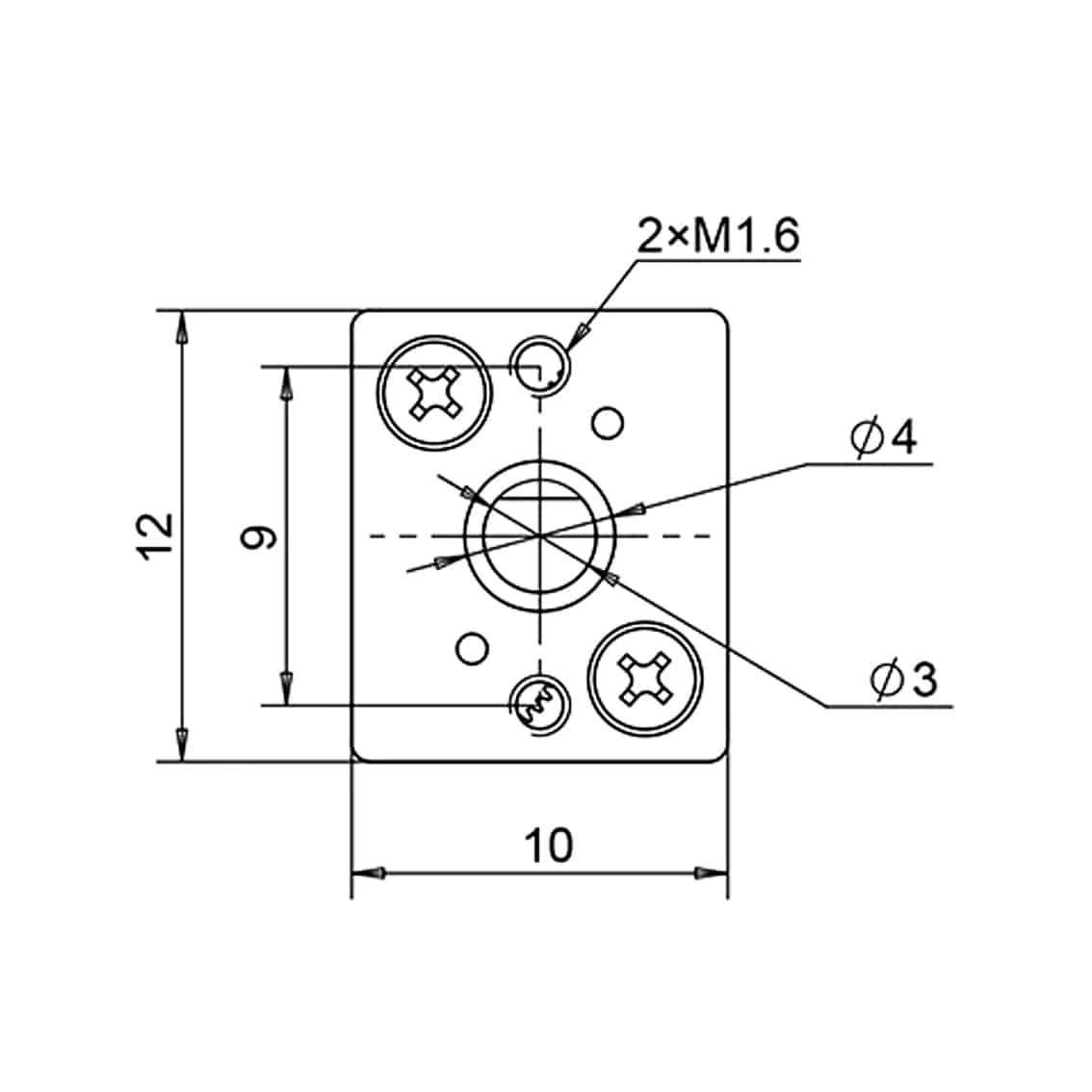

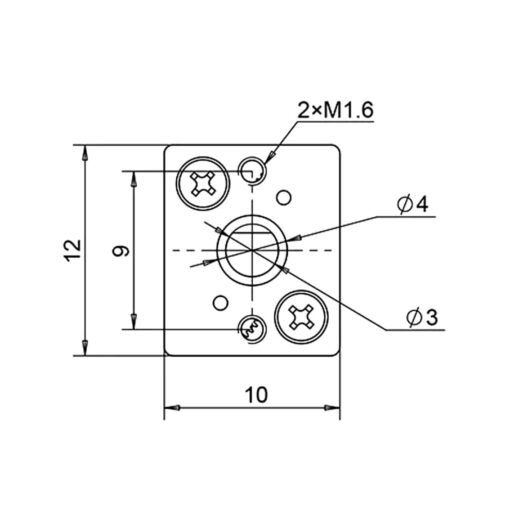

- Gearbox Size: 12.5 x 12 x 10mm (L*W*H)
- Shaft Size: ∅3 x 10mm (D*L)
- Net Weight: 12g
Features:
- High torque and low RPM for precision applications
- Durable full metal gearbox
- Compact and lightweight design
- Low noise operation
- Suitable for various robotic and automation projects
Contents:
- 1 x GA12-N20 Metal Gear 12V 30RPM Motor
