GA12-N20 Metal Gear 12V 50RPM Motor

34 people have recently viewed this product!

GA12-N20 Metal Gear 12V 50RPM Motor

The GA12-N20 Metal Gear 12V 50RPM Motor is perfect for robotics and automation projects requiring high torque and precise movement. Its durable construction and compact size make it versatile and reliable for various applications.

$17.95

Order Within –

Availability: 30 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003461

Description:

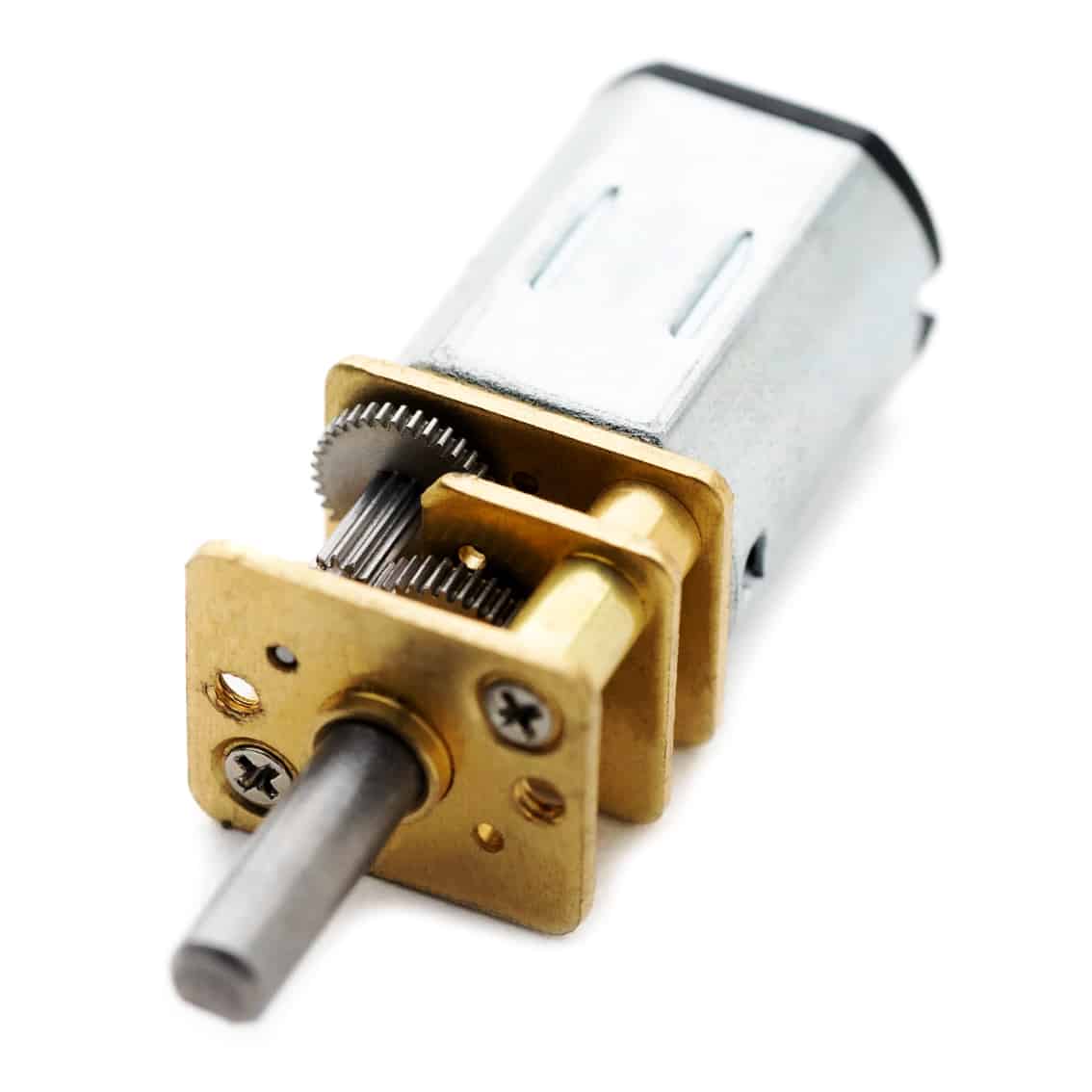

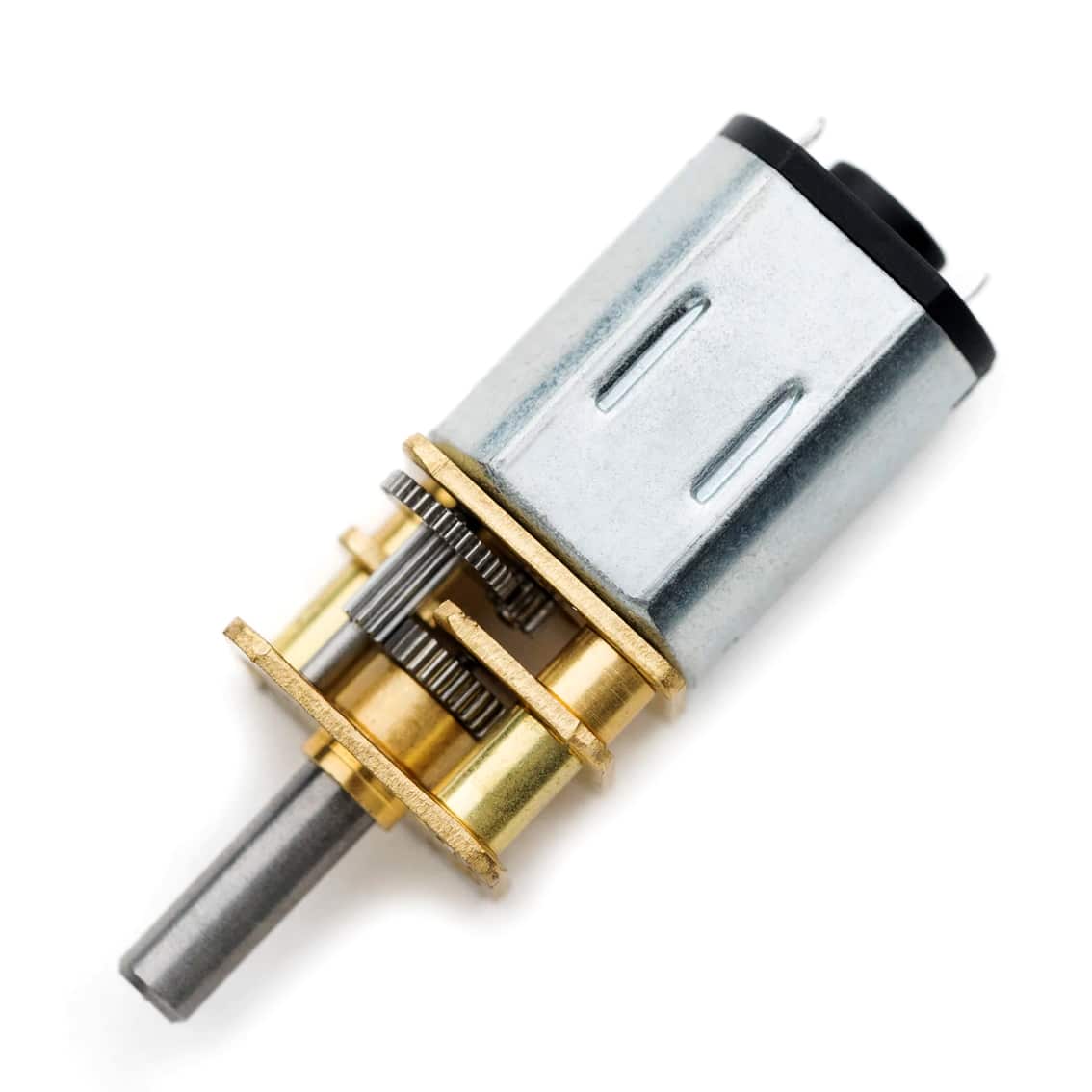

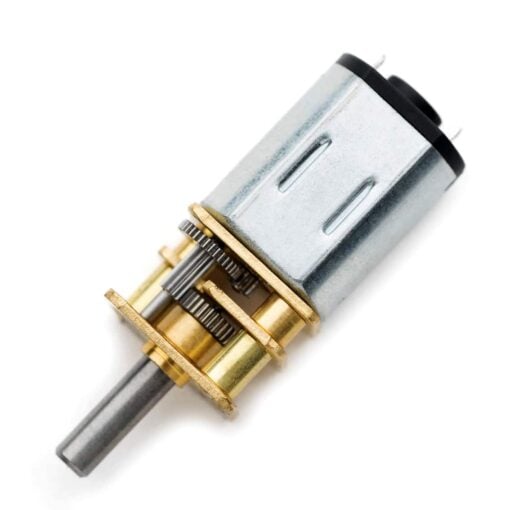

The GA12-N20 Metal Gear 12V 50RPM Motor is a robust and versatile DC motor designed for various applications, including robotics, automation systems, and DIY projects. This motor is known for its high torque and low RPM, making it ideal for tasks requiring precise and controlled movement. With a sturdy metal gear construction, it offers durability and long-lasting performance.

This motor operates efficiently within a voltage range of 3V to 12V, with the optimal performance at 12V providing a rotational speed of 50RPM. Its compact design allows it to fit into small spaces, making it suitable for intricate designs and projects.

Specifications:

  • Model: GA12-N20
  • Rated Voltage: 12V DC
  • Speed (no load): 50 RPM
  • Current (no load): 30mA
  • Speed (loaded): 40 RPM
  • Current (loaded): 75mA
  • Torque (loaded); 1.6 kg.cm
  • Stall Torque: 9.8 kg.cm
  • Stall Current: 580mA
  • Gearbox Ratio: 1:298
  • Gearbox Dimensions: 9 x 12 x 10 mm
  • Motor Dimensions: 15 x 12 x 10 mm
  • Shaft Diameter: 3 mm
  • Shaft Length: 9 mm
  • Weight: 10 g

Features:

  • High torque with low RPM
  • Durable metal gear construction
  • Compact and lightweight design
  • Suitable for precise and controlled applications
  • Wide operating voltage range

Contents:

  • 1 x GA12-N20 Metal Gear 12V 50RPM Motor
Weight 0.01 kg
Dimensions 70 × 50 × 10 mm
Brand

Type

Voltage

Voltage Type

Stall Current

Shaft Length

Shaft Diameter

Body Length

Body Diameter

Stall Torque

Speed No Load

Current No-Load

Torque at Rated Load

Speed at Rated Load

Current at Rated Load
