Description:
The GA12-N20 Metal Gear 3V 100RPM Motor is a versatile and compact DC motor designed for a wide range of applications, including robotics, model cars, and linear motion control systems. This motor is renowned for its high torque output, durability, and low noise operation, making it ideal for projects that require precise and reliable motion control. The metal gear construction ensures long-lasting performance and resistance to wear, while the lightweight design facilitates easy integration into various devices.
Operating at 3V, this motor delivers a stable 100RPM, providing a balance between speed and torque suitable for numerous DIY and professional applications. The GA12-N20 motor features a full metal gearbox, ensuring enhanced durability and efficiency. Its small size and low power consumption make it an excellent choice for portable and battery-operated projects.
Specifications:
- Model: GA12-N20
- Rated Voltage: 3V
- Revolving Speed (no load): 100RPM
- Rated Current (no load): 0.03A
- Revolving Speed (loaded): 80RPM
- Rated Current (loaded): 0.05A
- Rated Torque (loaded): 0.18 kg.cm
- Stall Torque: 1.2 kg.cm
- Stall Current: 250mA
- Reduction Ratio: 1:100

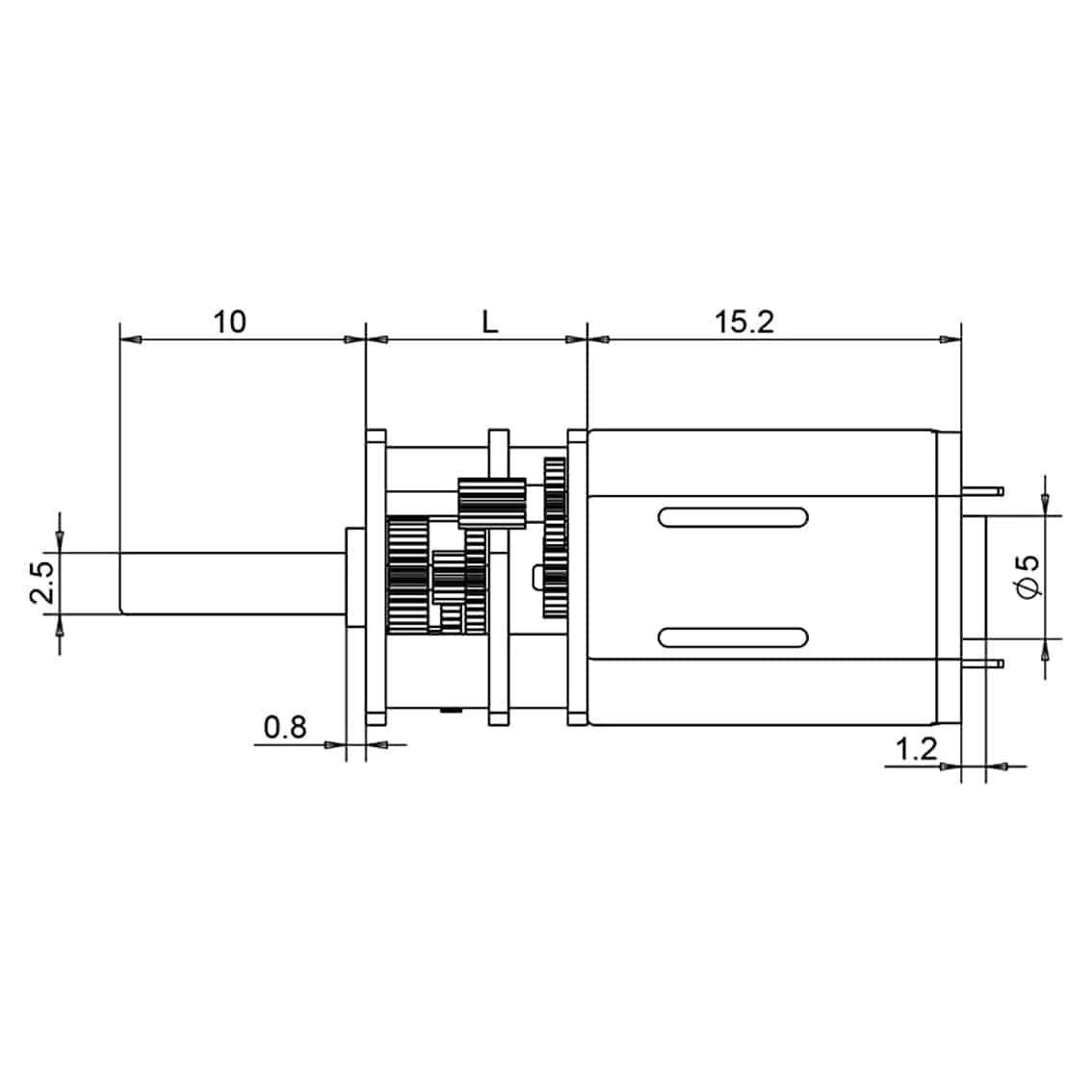

- Total Length: 34mm
- Gear Material: Full Metal

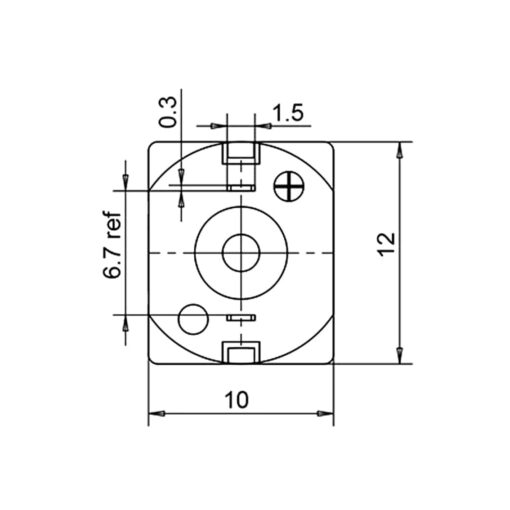

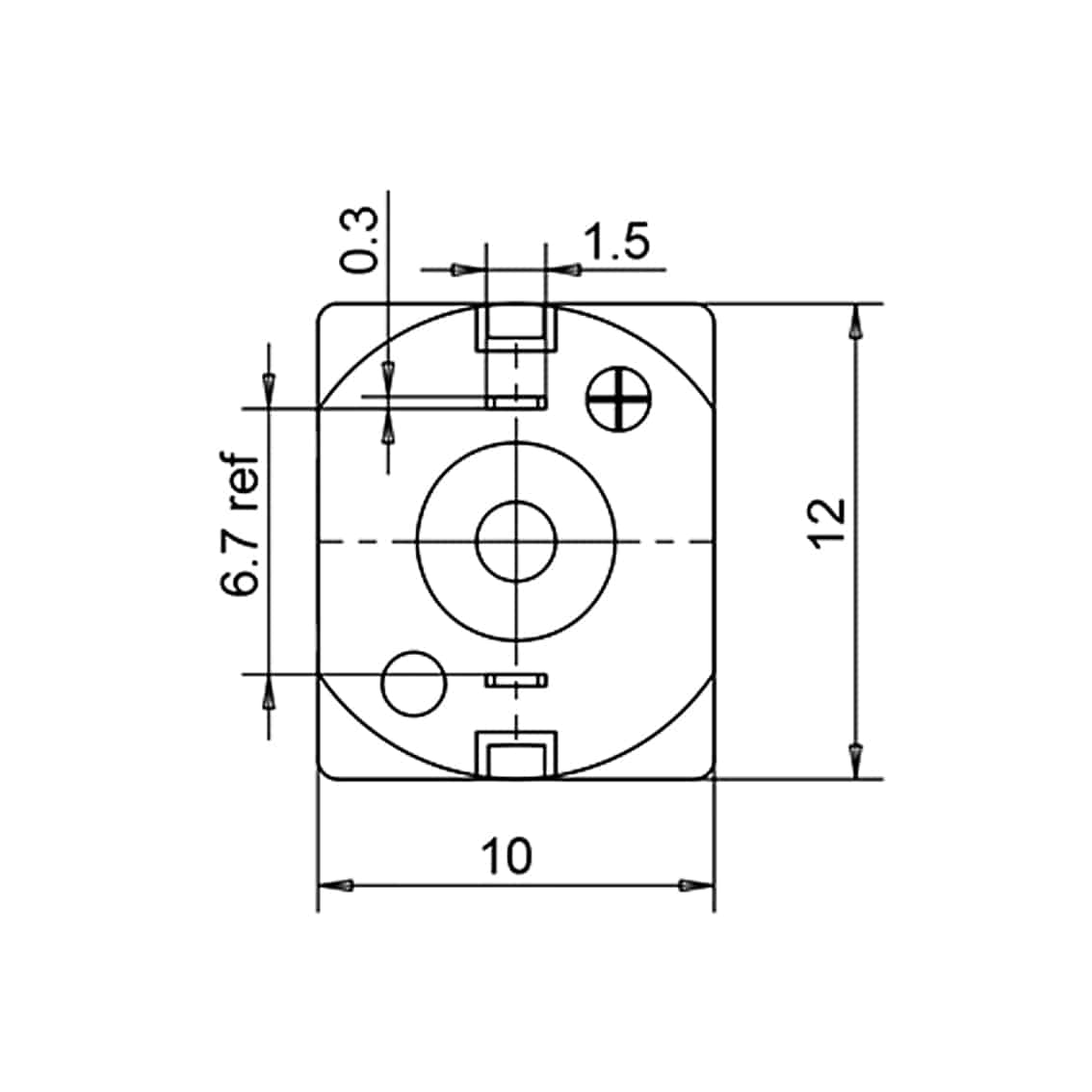

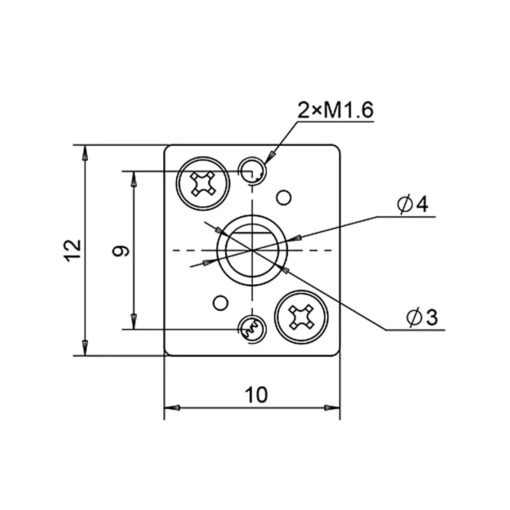

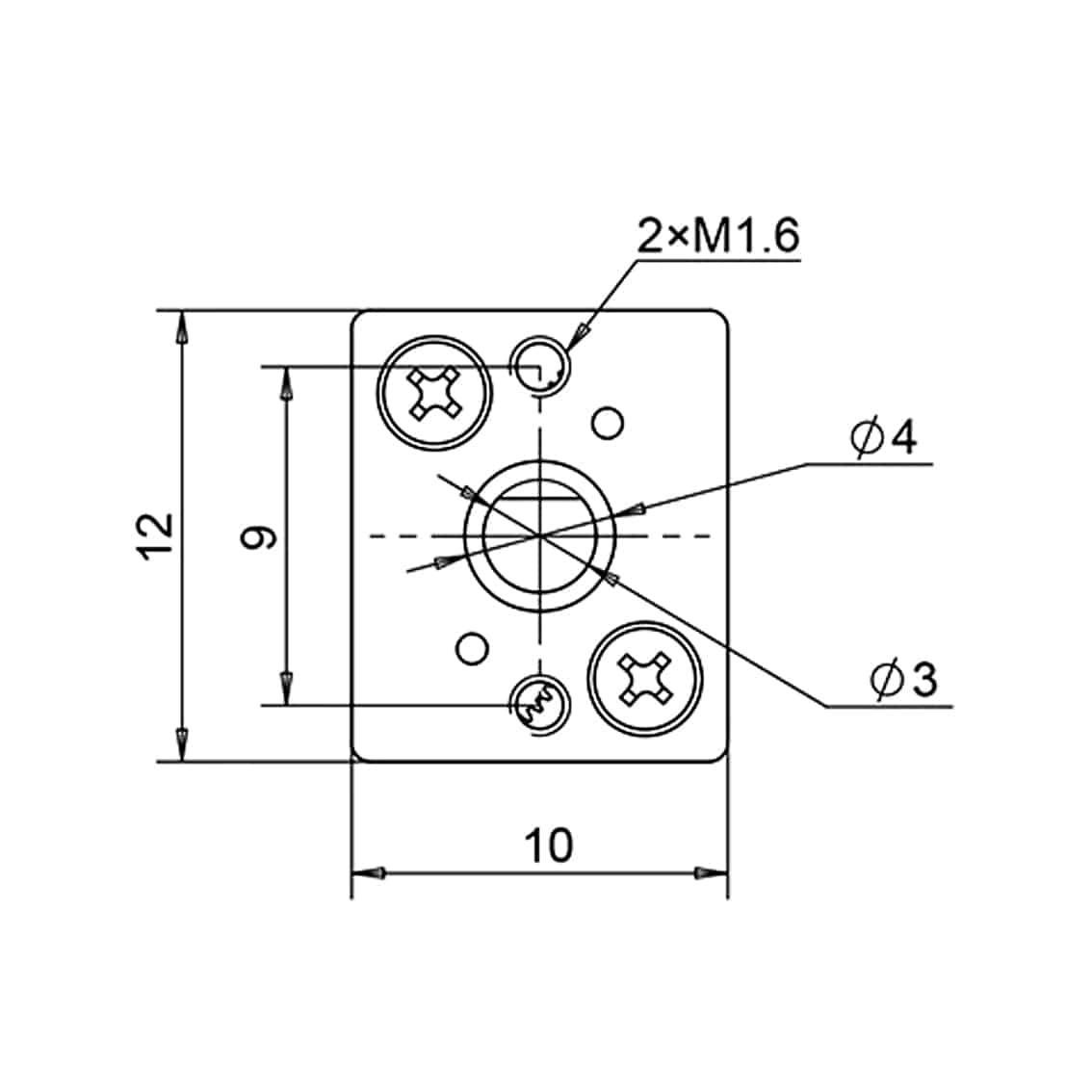

- Gearbox Size: 9 x 12 x 10mm (L*W*H)
- Shaft Size: ∅3 x 10mm (D*L)
- Net Weight: 10g
Features:
- High torque and low RPM for precision applications
- Durable full metal gearbox
- Compact and lightweight design
- Low noise operation
- Suitable for various robotic and automation projects
Contents:
- 1 x GA12-N20 Metal Gear 3V 100RPM Motor
