LM393 Hall Effect Sensor Module – A3144E

41 people have recently viewed this product!

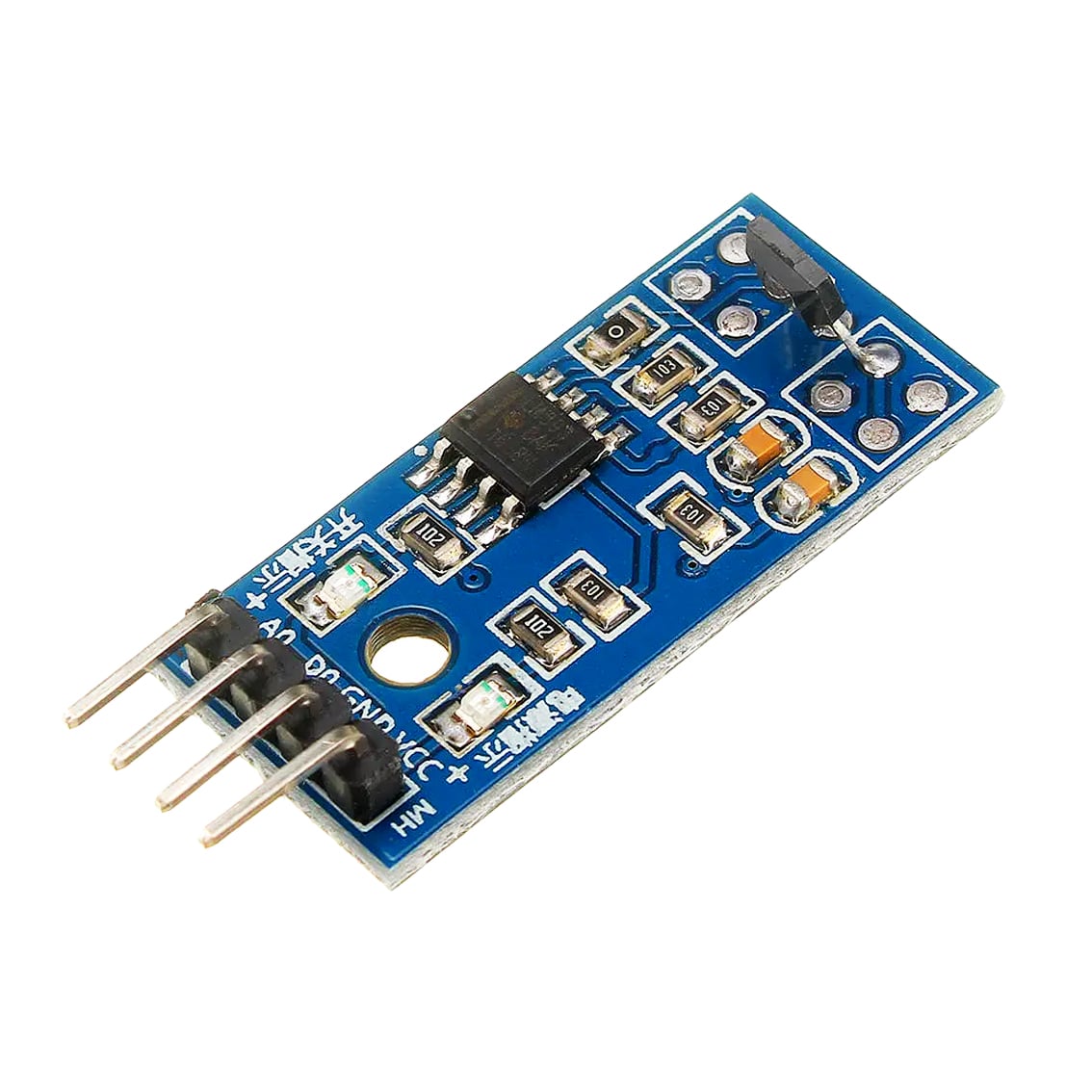

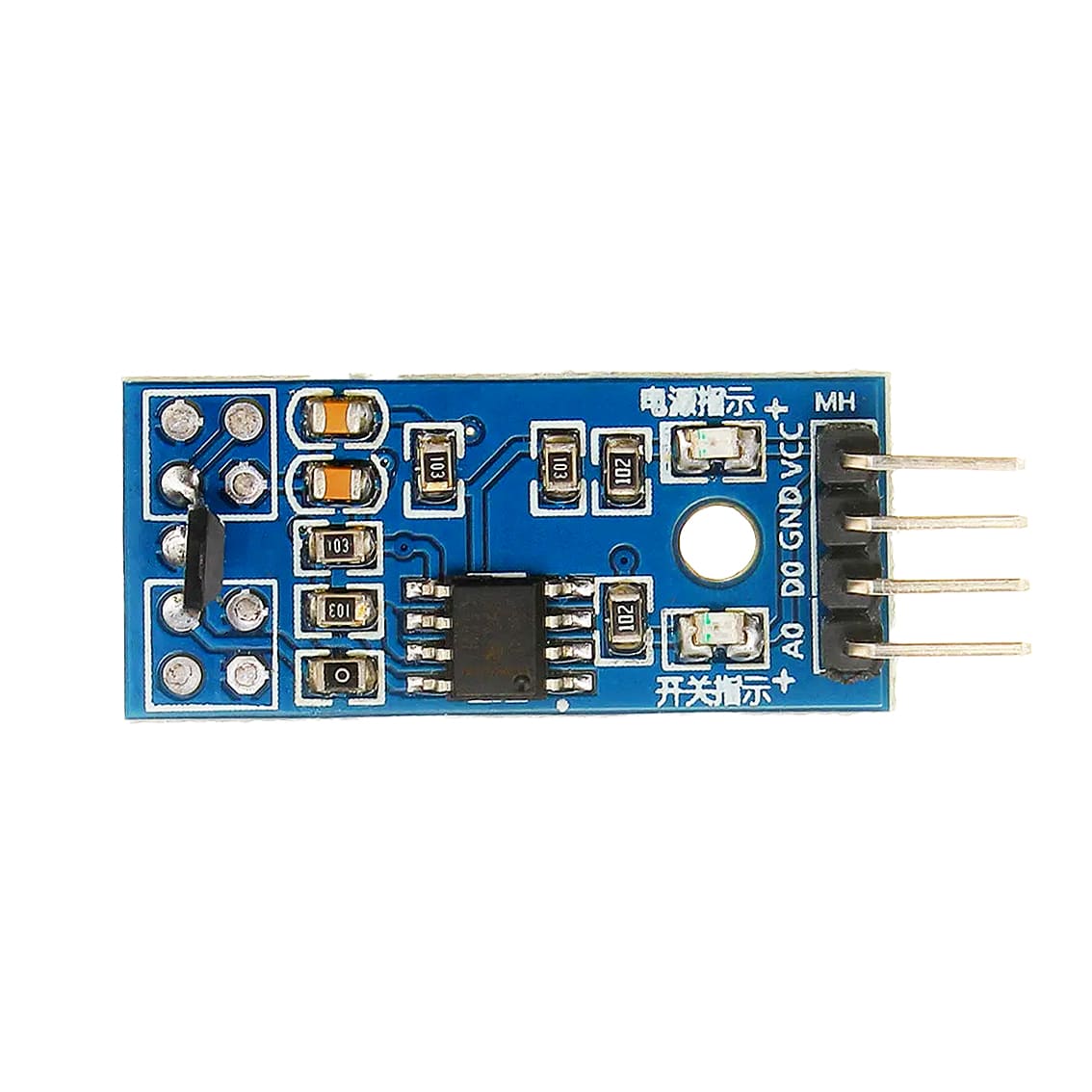

LM393 Hall Effect Sensor Module – A3144E

The LM393 Hall Effect Sensor Module is based on the A3144E Hall switch sensor and is designed to be used in applications requiring magnetic field sensing.

$10.95

Order Within –

Availability: 74 in stock

All stock is located in Australia.

FREE SHIPPING available in Australia.

EXPRESS SHIPPING Available.

SKU: PHI1002451

Description:

The LM393 Hall Effect Sensor Module is based on the A3144E Hall switch sensor and is designed to be used in applications requiring magnetic field sensing.

The module features two outputs:
AO, the analog signal output
DO, the digital output

After passing through a voltage comparator, the Hall sensor will output a low-level voltage when a magnetic field is detected.

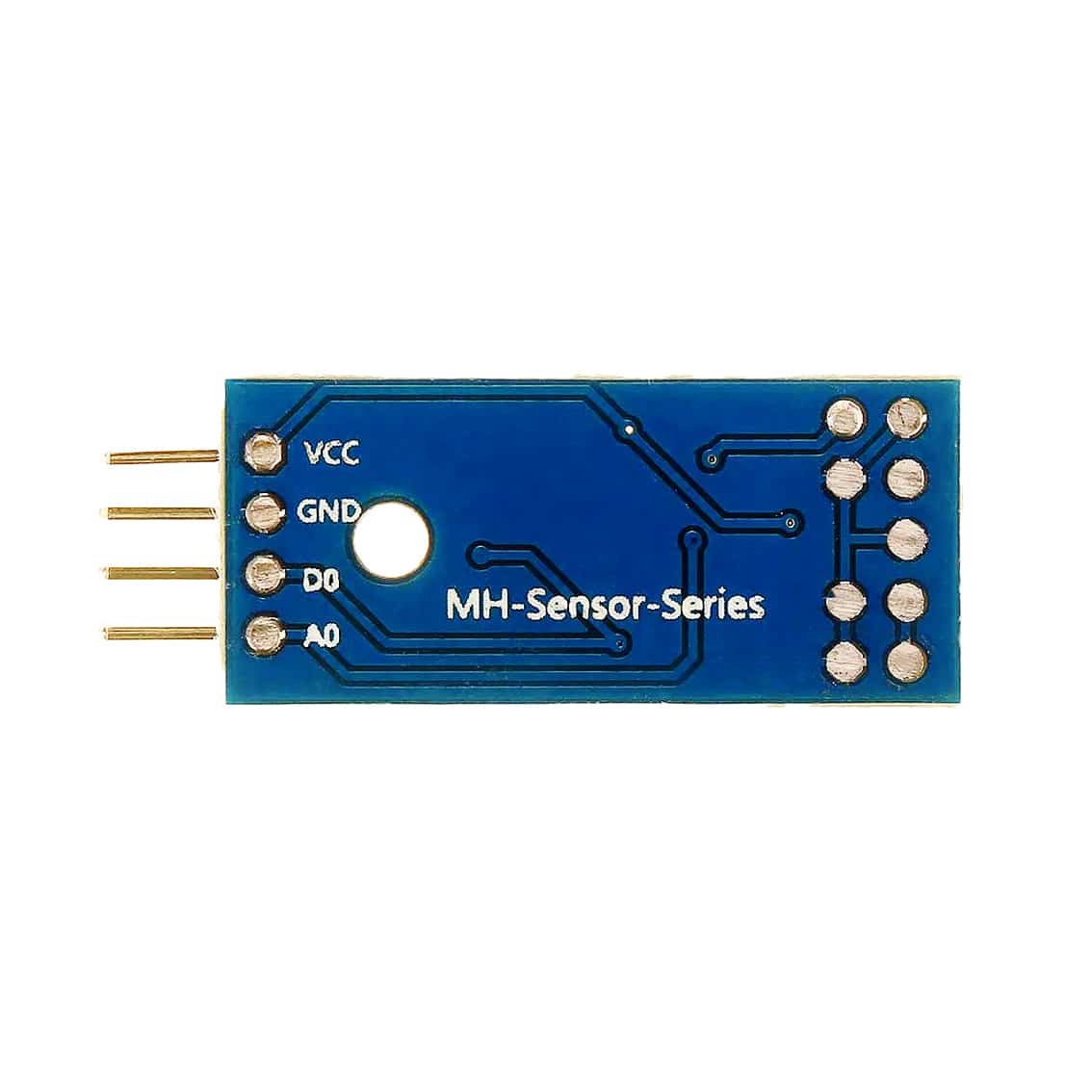

Pinout:

  • VCC: Positive power supply – 3.3 V to 5 V
  • GND: Negative power supply
  • DO: Digital signal output
  • AO: Analog signal output



Specifications:

  • Operating Voltage: 3V – 5.5V DC
  • Chip: LM393 Voltage Comparator / A3144 Hall Sensor
  • Comparator Output: 16 mA
  • Dimensions: 32mm x 14mm



Contents:

  • 1 x LM393 Hall Effect Sensor Module – A3144E
Weight 0.003 kg
Dimensions 90 × 5 × 45 mm
