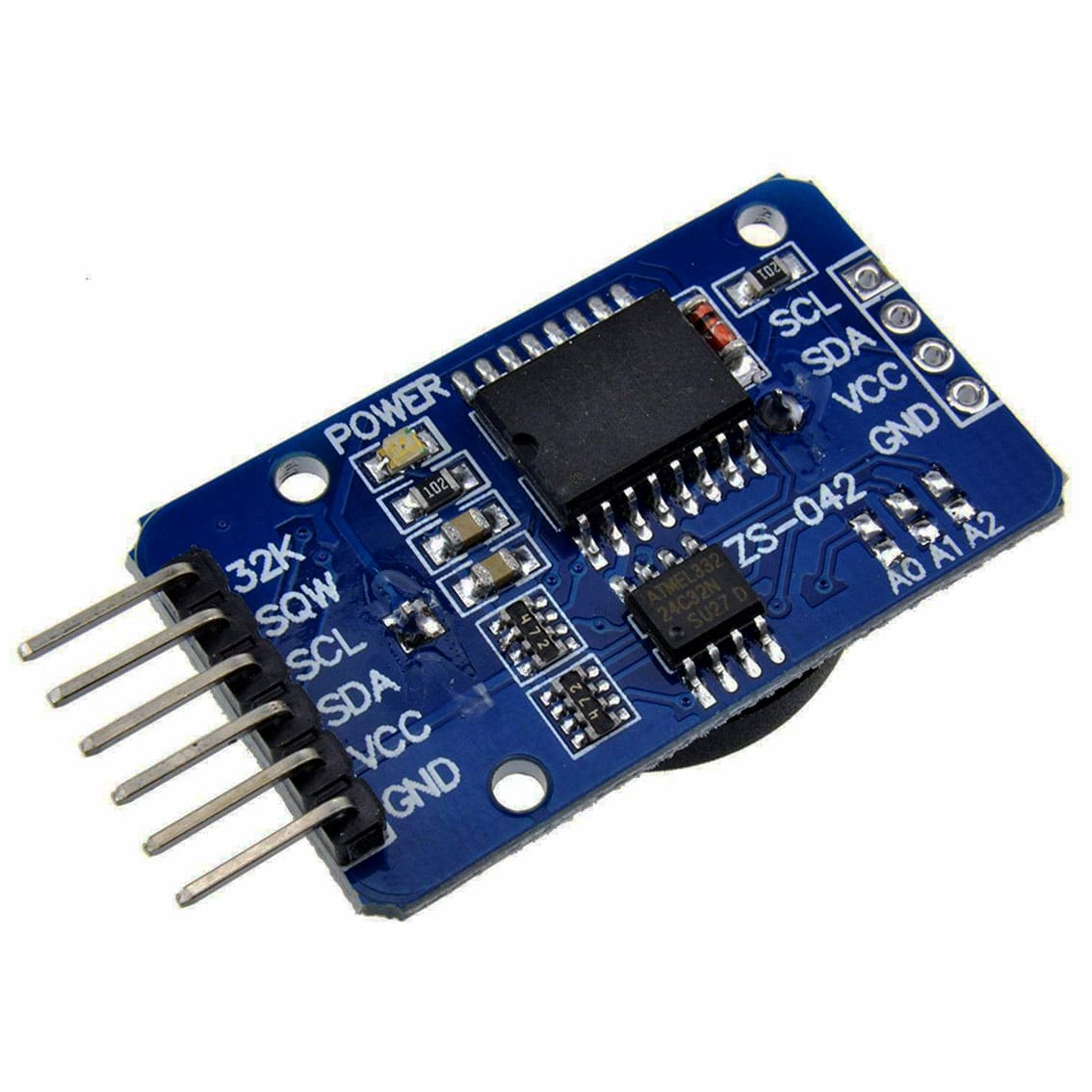

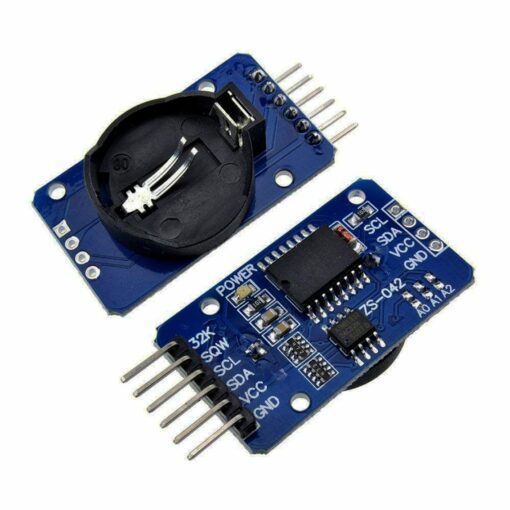

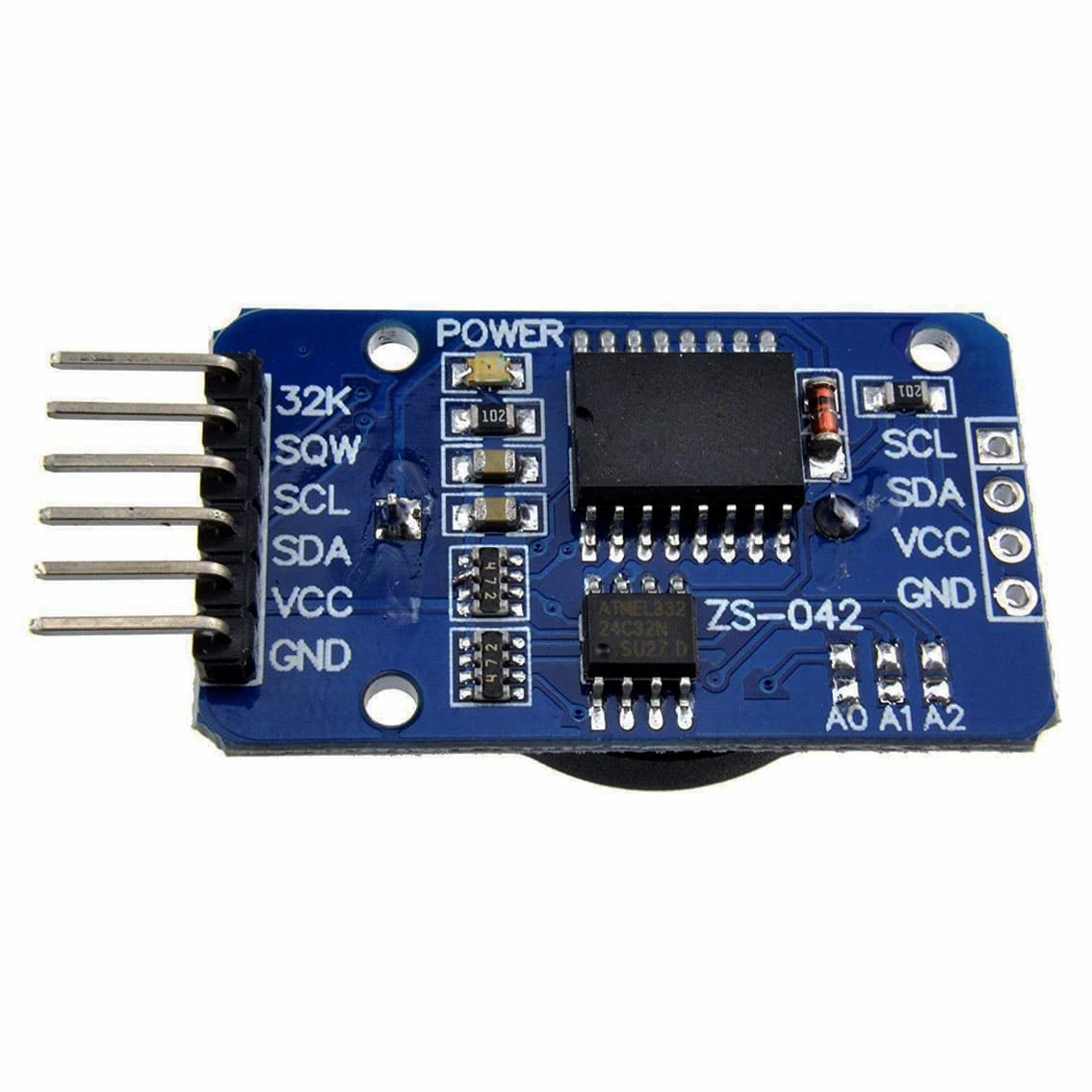

High Accuracy DS3231 RTC and EEPROM

$4.95

A great time keeping module to keep track of time. It is based on Maxim high accuracy DS3231 real-time clock controller. Atmel 24C32 32K (4096 x 8) serial I2C EEPROM is included in this module which allows it to be used as a simple data logger storing up to 4K of 8-bit data.

Out of stock

Notify me when item is back in stock.

SKU: PHI1071245 Category:

Description

Description:

A great time keeping module to keep track of time. It is based on Maxim high accuracy DS3231 real-time clock controller. Atmel 24C32 32K (4096 x 8) serial I2C EEPROM is included in this module which allows it to be used as a simple data logger storing up to 4K of 8-bit data.



Specifications:

  • The DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal.
  • The device incorporates a battery input, disconnect the main power supply and maintains accurate timekeeping.
  • Integrated oscillator improves the long-term accuracy of the device and reduces the number of components of the production line.
  • RTC maintains seconds, minutes, hours, day, date, month, and year information. Less than 31 days of the month, the end date will be automatically adjusted, including corrections for leap year.
  • This temperature sensor accuracy is ±3°C.
  • The On-chip power supply control circuit can automatically detect and manage the main and standby power (i.e., low-voltage battery) to switch between the power supply.
  • If the main power failure, the device can continue to provide accurate timing and temperature, performance is not affected.
  • When the main power re-power or voltage value returns to within the allowable range, the on-chip reset function can be used to restart the system microprocessor.



Module parameters:

  • Size: 38mm (L) * 22mm (W) * 14mm (H)
  • Operating voltage :3.3 – 5 .5 V.
  • Clock chip: high-precision clock chip DS3231.
  • Clock Accuracy: 0-40°C range, the accuracy 2ppm, error approx. 1 minute over 1 year.
  • Calendar alarm clock with two.
  • Chip temperature sensor accuracy ±3°C.
  • Memory chips: AT24C32 (storage capacity 32K).
  • IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V).



Contents:

  • 1 * High Accuracy DS3231 RTC & EEPROM
