Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX

Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 2
Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 3
Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 4
Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 5
26 people have recently viewed this product!

Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX

0 reviews

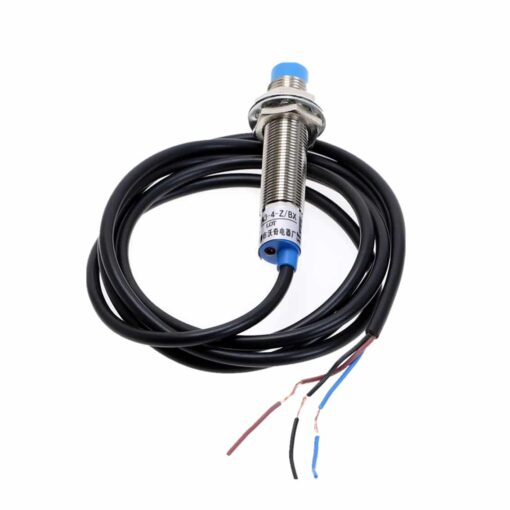

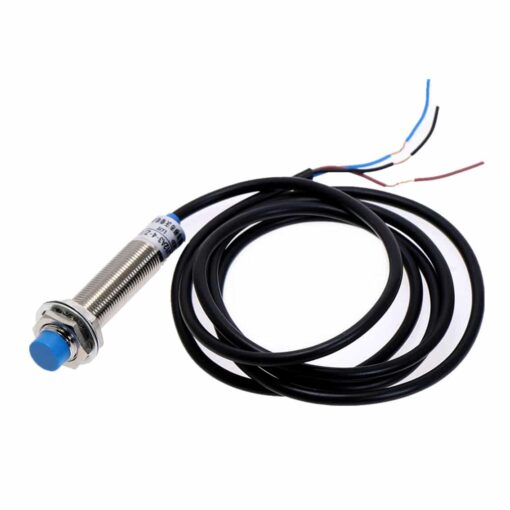

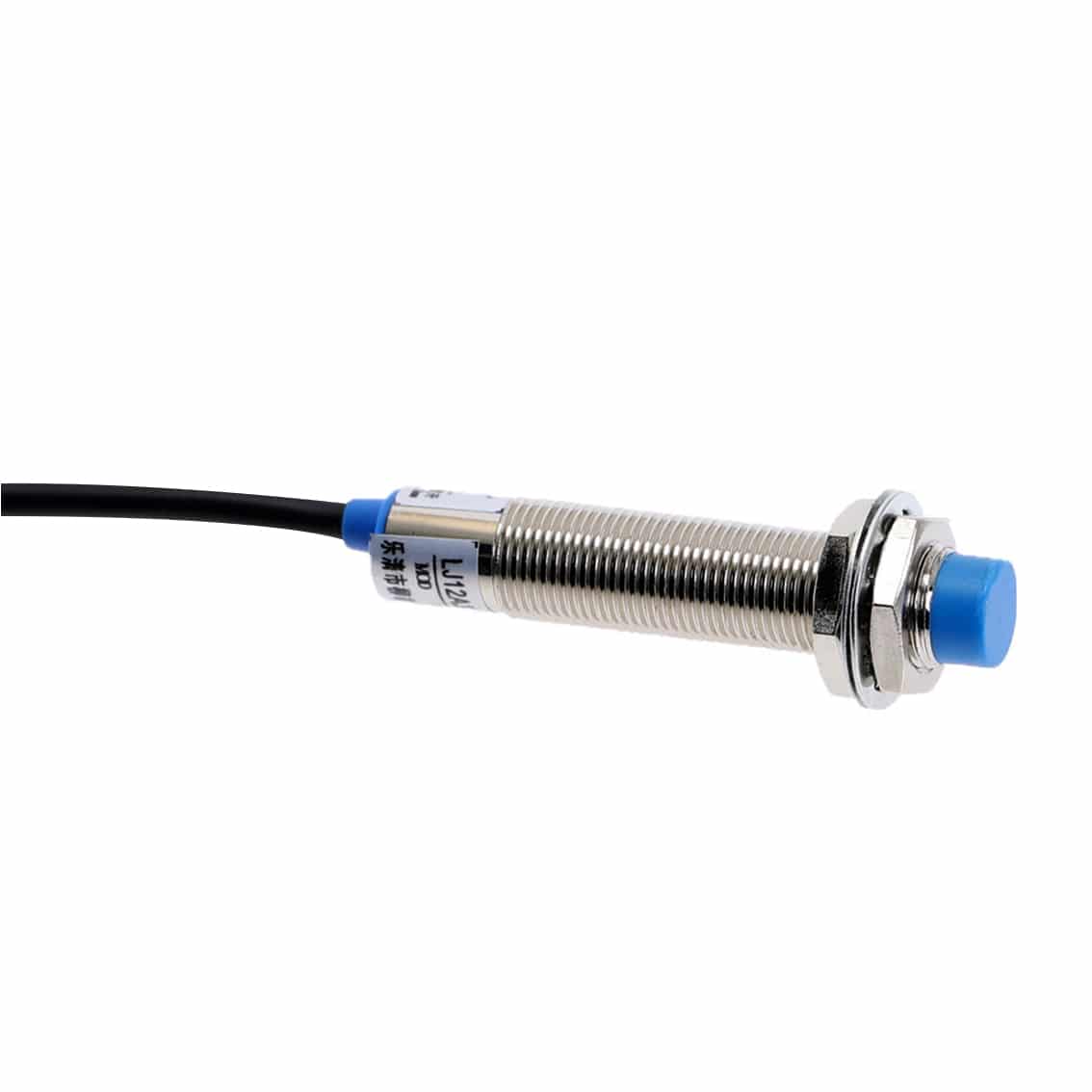

The LJ12A3-4-Z/BX is a 4mm NPN inductive proximity sensor with IP67 protection, threaded metal body, and LED indicator for precise non-contact metal detection.

  • 4mm NPN inductive sensor designed for accurate non-contact detection of metal objects in automation systems.
  • Operates on a wide 6–36V DC input range with a 300mA maximum output current and 500Hz response rate.
  • Durable M12 threaded brass housing with LED indicator and IP67 rating for industrial and outdoor use.
  • Easy 3-wire connection for quick integration into CNC, 3D printers, robotic arms, and machine control systems.
  • Reliable switching with long operational life due to non-contact detection method and rugged design.

$18.95

Order Within –

for Monday despatch

All stock located in Australia.

Availability: 3 in stock

EXPRESS SHIPPING Available.

Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 6
Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 7
Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 8
Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 9
Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX PHI1002025 Phipps Electronics 10
SKU: PHI1002025

You May Also Like...

Description:

The Inductive Proximity NPN Sensor – LJ12A3-4-Z/BX is a highly reliable and durable proximity switch designed for precise metal object detection. With a sensing distance of 4mm and an NPN normally open (NO) configuration, this sensor is widely used in industrial automation, 3D printing, CNC machinery, and robotics. Operating on a 6V to 36V DC power supply, it offers versatility for a wide range of applications requiring non-contact object detection.

Housed in a threaded cylindrical metal shell, the LJ12A3-4-Z/BX offers easy mounting and alignment. Furthermore, it features an LED indicator that provides visual confirmation of the switching status. Its IP67 protection rating ensures it can withstand dust and moisture in challenging environments. Whether you’re implementing position detection, part counting, or end-stop control, this sensor provides consistent performance and long-term reliability.

Specifications:

  • Model: LJ12A3-4-Z/BX
  • Sensor Type: Inductive Proximity Sensor
  • Output Type: NPN Normally Open (NO)
  • Sensing Distance: 4mm ±10%
  • Power Supply: 6V – 36V DC
  • Output Current: ≤ 300mA
  • Response Frequency: ≤ 500Hz
  • Housing Material: Nickel-plated Brass
  • Shell Type: Cylindrical Threaded (12mm diameter)
  • Cable Length: Approx. 1.2 metres
  • Connection Type: 3-wire (Brown = V+, Blue = GND, Black = Output)
  • Operating Temperature: -25°C to +70°C
  • Protection Rating: IP67
  • LED Indicator: Yes (Status Display)

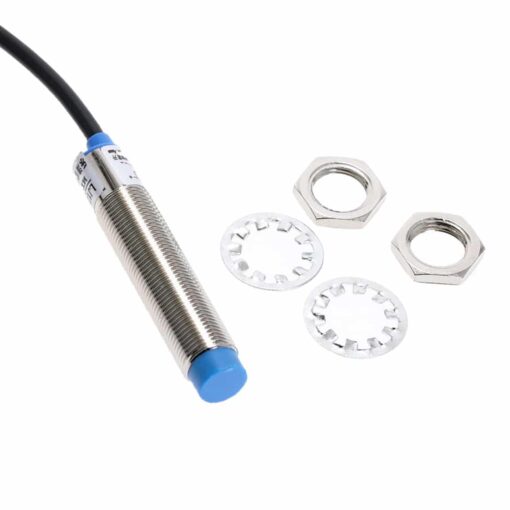

  • Mounting: Threaded with locking nuts

Features:

  • 4mm detection range for ferrous metals
  • Robust cylindrical metal housing (M12 threaded)
  • LED status indicator for easy troubleshooting
  • Dustproof and waterproof to IP67 standards
  • Wide operating voltage range (6–36V DC)
  • Non-contact switching for extended lifespan

Contents:

  • 1 x LJ12A3-4-Z/BX Inductive Proximity NPN Sensor
Weight 0.042 kg
Dimensions 150 × 20 × 90 mm
Brand

Type

Voltage

Current Rating

Detection Distance

Output Type

Output Configuration

Transistor Polarity

Body Diameter

Length

Cable Length
