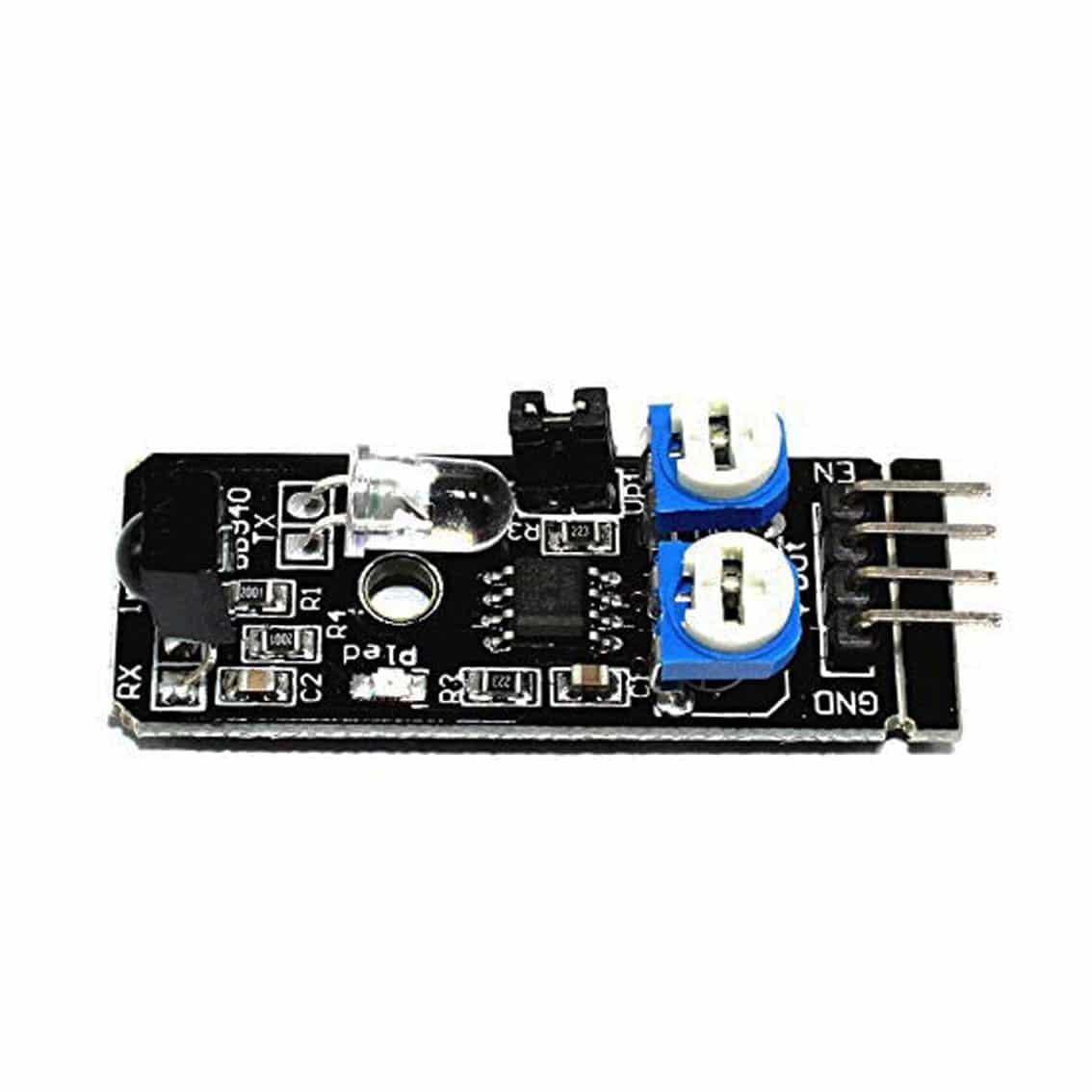

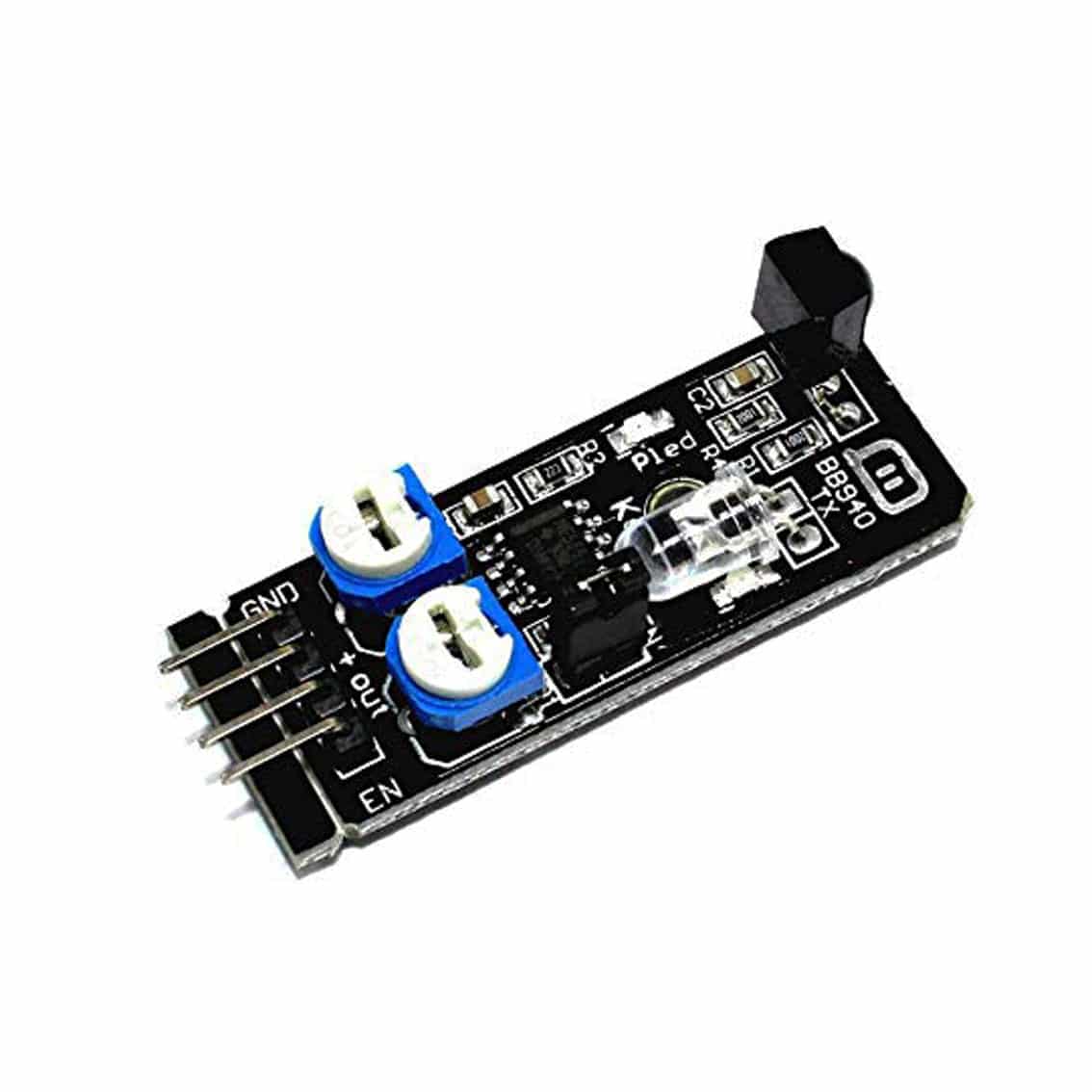

KY-032 4pin IR Infrared Sensor Module

39 people have recently viewed this product!

KY-032 4pin IR Infrared Sensor Module

The KY-032 4-pin IR Infrared Sensor Module offers adjustable obstacle detection from 2 to 40 cm, featuring high adaptability to ambient light and compatibility with various microcontrollers, ideal for robotics and automation projects.

$14.95

Order Within –

Availability: 144 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001237

You May Also Like...

Description:

The KY-032 4-pin IR Infrared Sensor Module is a versatile component designed for obstacle detection in robotics and automation projects. It utilizes infrared light to detect objects within a range of 2 to 40 cm, making it ideal for applications requiring precise proximity sensing. The module features an adjustable detection distance, allowing customization to specific project needs. Its compact design and compatibility with various microcontrollers, including Arduino and Raspberry Pi, make it a popular choice among hobbyists and professionals alike.

Specifications:

  • Operating Voltage: 3.3V to 5V DC
  • Current Consumption: ≥20mA
  • Detection Distance: 2 cm to 40 cm (adjustable)
  • Detection Angle: 35°
  • Output Signal: TTL level (low when obstacle detected, high when no obstacle)
  • Operating Temperature: -10°C to 50°C
  • Dimensions: 28mm x 23mm
  • Weight: 9g

Features:

  • Adjustable detection distance via onboard potentiometer
  • High adaptability to ambient light conditions
  • Enable pin for controlling sensor activation
  • Compatible with various microcontrollers (e.g., Arduino, Raspberry Pi)
  • Compact and lightweight design for easy integration

Contents:

  • 1 x KY-032 4-pin IR Infrared Sensor Module
Weight 0.006 kg
Dimensions 70 × 10 × 50 mm
Brand

Type
