Description:

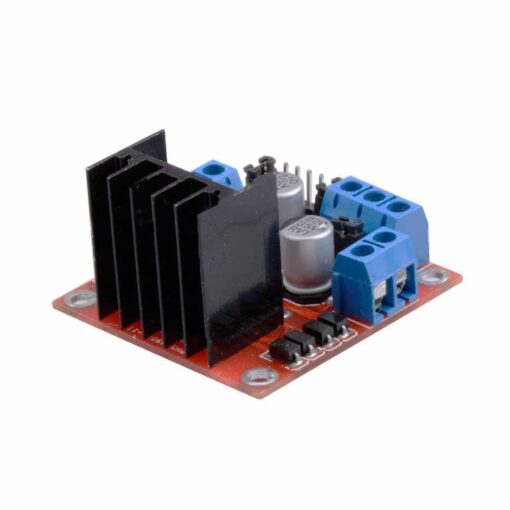

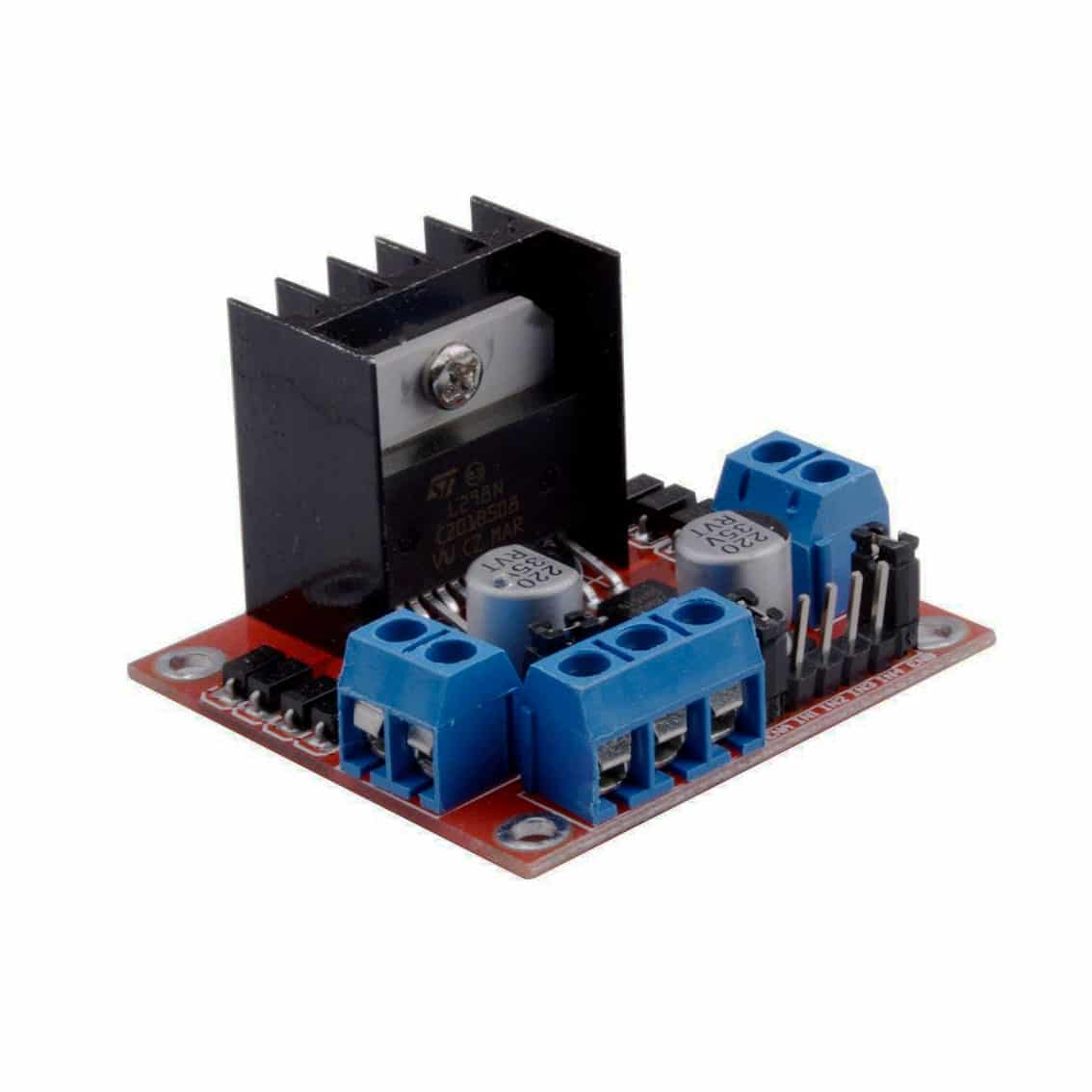

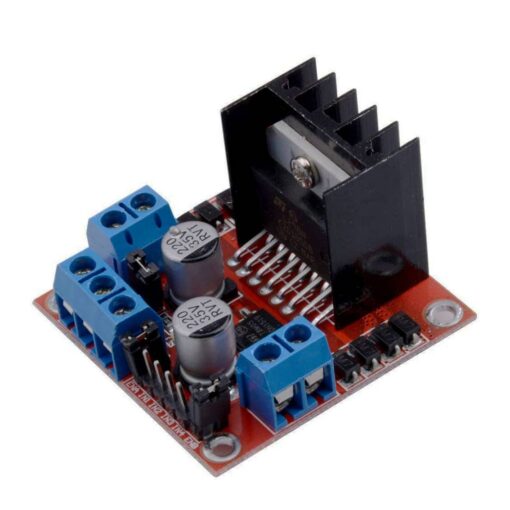

The L298N Dual Motor Controller H-Bridge Driver Module is a robust solution for controlling the speed and direction of two DC motors or a single stepper motor. Utilizing the L298N dual H-Bridge driver IC, it can handle motor supply voltages from 5V to 35V and deliver a continuous current of up to 2A per channel. This module is ideal for robotics and automation projects, providing precise motor control through standard TTL logic levels. An onboard 5V regulator allows the module to supply power to microcontrollers, enhancing its versatility in various applications.
The module features screw terminal blocks for easy motor and power connections, as well as header pins for control inputs. It includes two enable inputs (ENA and ENB) for PWM speed control and four input pins (IN1, IN2, IN3, IN4) for direction control. A heat sink is attached to the L298N IC to dissipate heat during operation, ensuring reliable performance. The module’s design allows for straightforward integration into projects requiring motor control, making it a popular choice among hobbyists and professionals alike.
Specifications:
- Driver Chip: L298N Dual H-Bridge
- Motor Supply Voltage: 5V – 35V DC
- Logic Voltage: 5V
- Continuous Current: 2A per channel
- Peak Current: 3A per channel
- Built-in 5V Regulator: Yes (jumper selectable)
- Dimensions: 43mm x 43mm x 26mm
Features:
- Controls two DC motors or one stepper motor
- Supports speed and direction control
- Compatible with standard TTL logic levels
- Onboard 5V regulator for powering microcontrollers
- Heat sink for improved thermal performance
Contents:
- 1 x L298N Dual Motor Controller H-Bridge Driver Module
