TB6612FNG Dual DC Stepper Motor Driver Module

42 people have recently viewed this product!

TB6612FNG Dual DC Stepper Motor Driver Module

Compact TB6612FNG motor driver module with dual H-bridge output for controlling two DC motors or one stepper motor. Supports 1.2A per channel and up to 13.5V motor input.

$15.95

Order Within –

All stock located in Australia.

Availability: 17 in stock

- +

EXPRESS SHIPPING Available.

SKU: PHI1002266
[woocommerce_prl_recommendations id='409642']

Description:

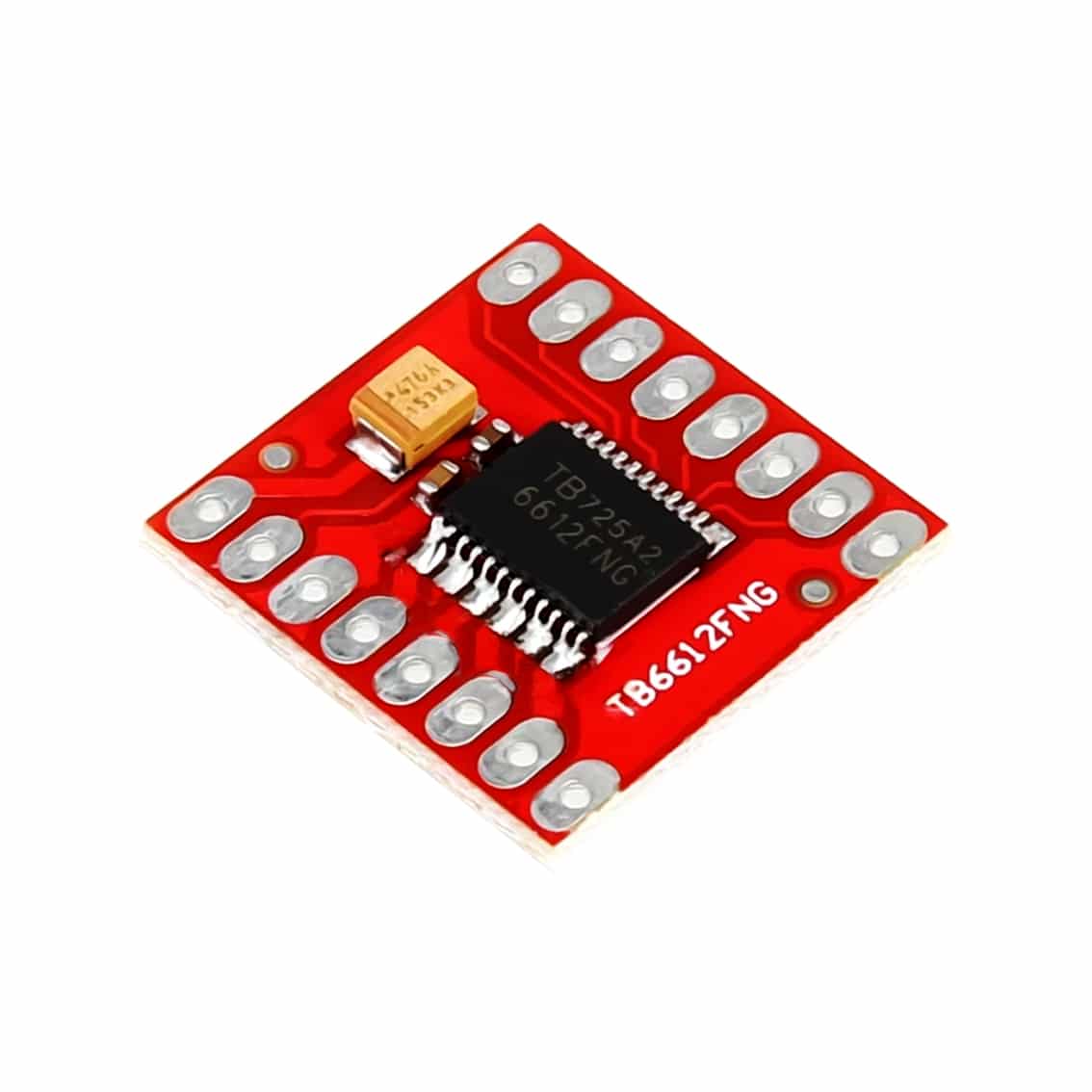

The TB6612FNG motor driver module is a compact and efficient dual H-bridge driver designed to control two DC motors or one bipolar stepper motor. With its low voltage drop and high output current capabilities, it offers reliable performance for robotic and mechatronic projects. This breakout board is based on Toshiba’s TB6612FNG chip, making it ideal for hobbyist and professional applications alike.

This module supports motor voltages from 4.5V to 13.5V and can deliver a continuous current of 1.2A per channel (3.2A peak). Therefore, it’s well-suited for driving medium-sized motors with precision. Furthermore, built-in thermal shutdown, overcurrent protection, and a low standby current mode enhance its reliability in continuous operation.

Thanks to its support for PWM motor control up to 100 kHz, the TB6612FNG motor driver module provides excellent speed and direction control. Additionally, its small footprint and easy-to-use pinout make it a favourite among developers working with Arduino, Raspberry Pi, or other microcontroller platforms.

This module is a practical replacement for the older L298N driver, offering improved efficiency and lower heat generation. Its dual motor driver capabilities, coupled with advanced protection features, make it a powerful tool in robotics, CNC systems, and stepper motor controller applications.

Specifications:

  • Driver IC: Toshiba TB6612FNG
  • Motor Voltage: 4.5V to 13.5V
  • Logic Voltage: 2.7V to 5.5V
  • Output Current: 1.2A continuous (per channel), 3.2A peak
  • Control Interface: PWM (up to 100 kHz)
  • Built-in protection: Thermal shutdown and overcurrent protection
  • Standby current: 0.1 µA (typical)
  • Dimensions: Approx. 20mm x 16mm
  • Operating Temperature: -20°C to +85°C
  • Output Type: Dual H-bridge
  • Features:

  • Dual H-bridge driver for DC motors or one bipolar stepper motor
  • Efficient and compact motor driver solution
  • Supports fast PWM control for precise speed regulation
  • Includes built-in thermal and overcurrent protection
  • Logic-level control compatible with 3.3V and 5V systems
  • Ideal L298N alternative with lower power loss
  • Contents:

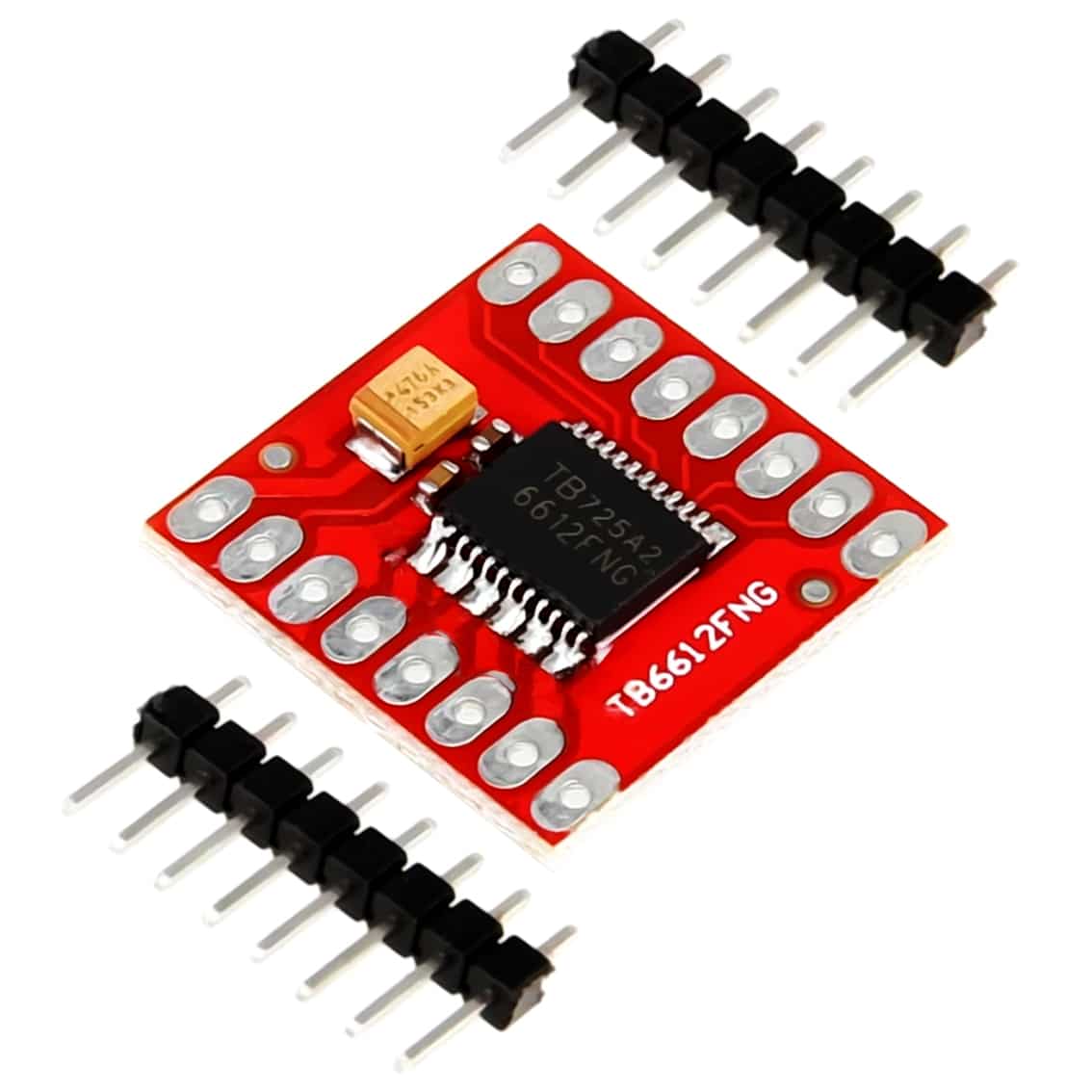

  • 1 x TB6612FNG Dual DC Stepper Motor Driver Module (Breakout Board)
  • Weight 0.003 kg
    Dimensions 90 × 5 × 60 mm
    Brand

    Type

    ,

    Voltage

    Max Cont Forward Current

    1.2A

    Maximum Output Current (Peak)

    PWM Frequency

    Standby Current

    Operating Temperature
