MAC97A8 600V 600mA Triac - Pack of 10

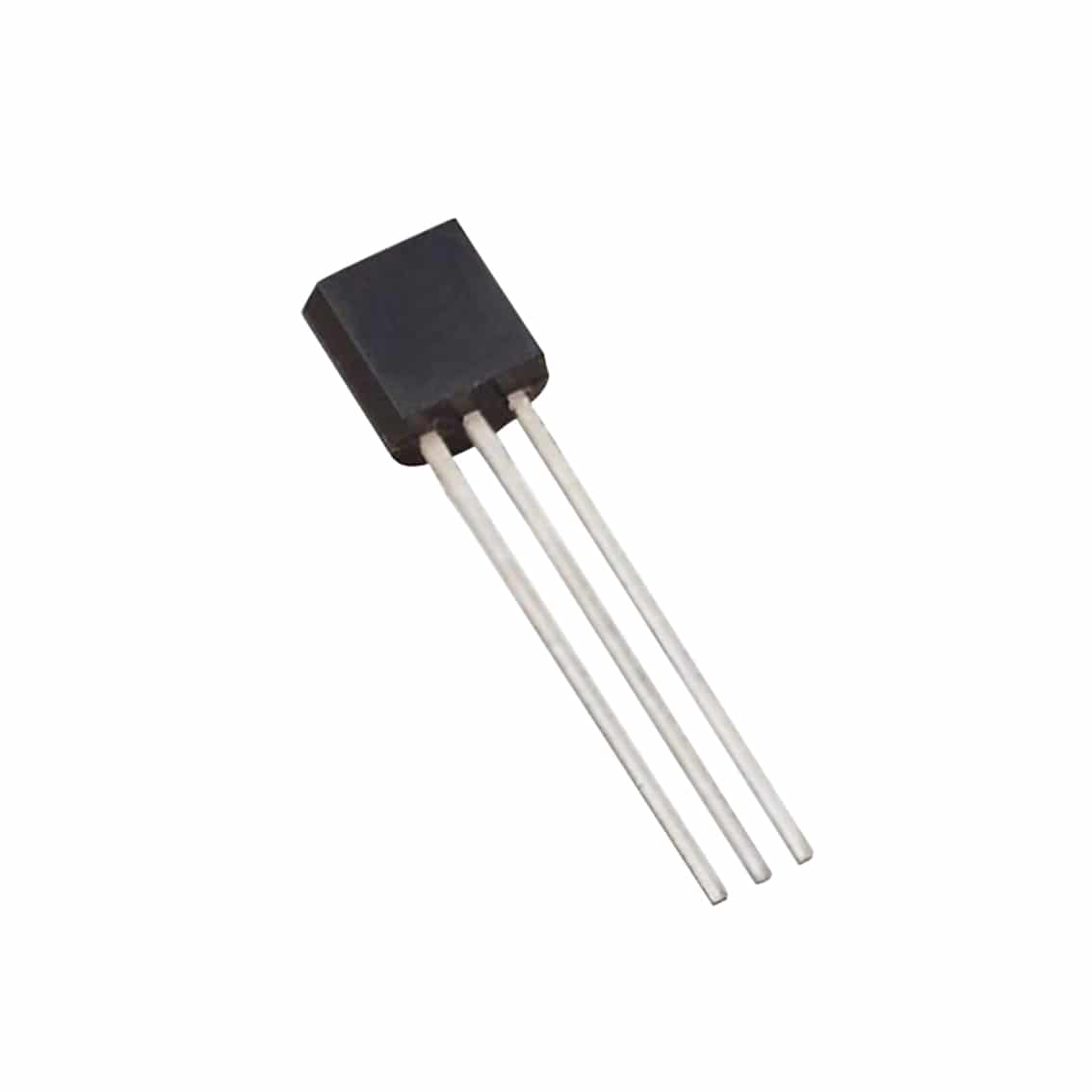

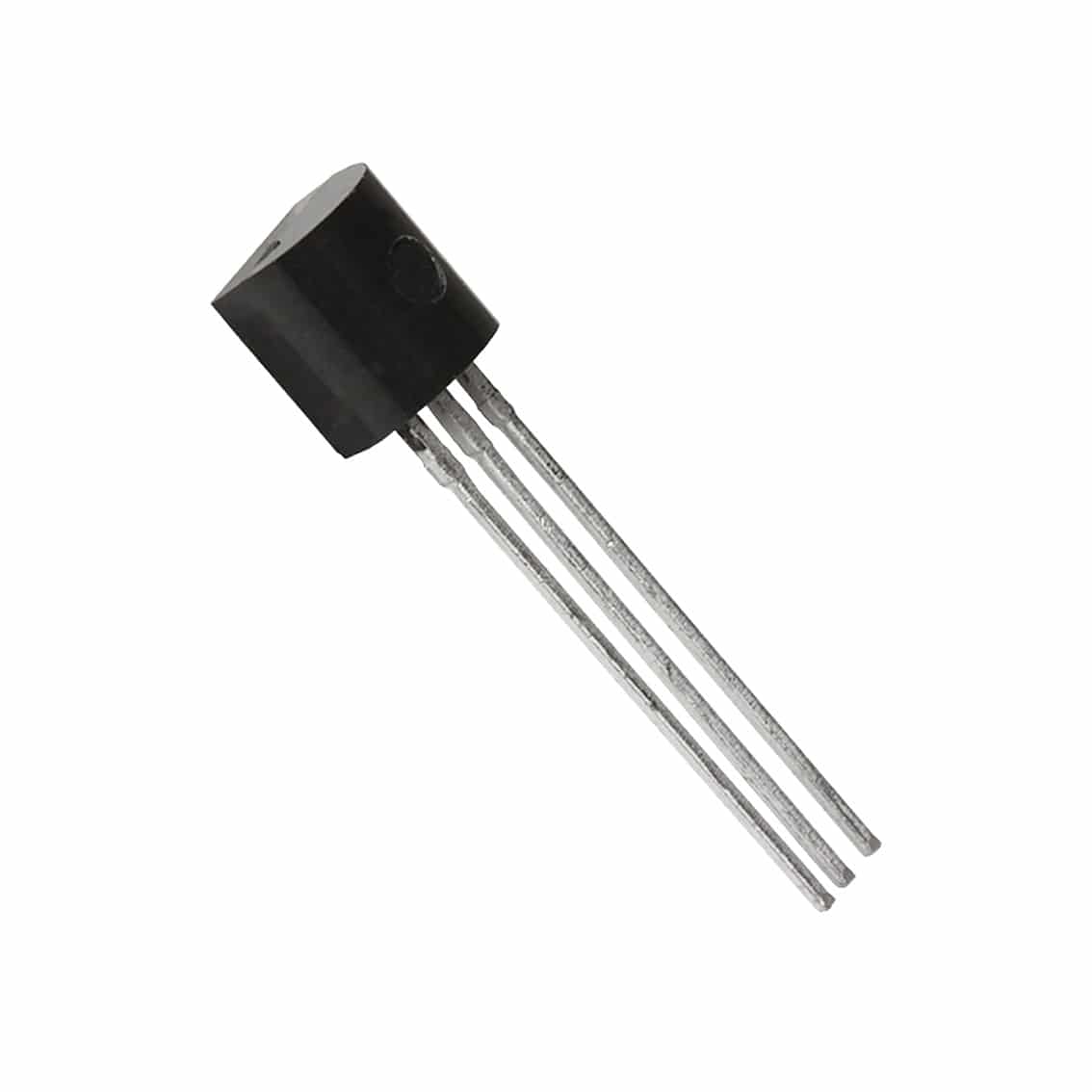

The MAC97A8 is a 600V 600mA TRIAC semi-conductor in a TO-92 case.

$9.95

Availability: 27 in stock

Buy now, pay later available.

SKU PHI1052808 Category Tag

Description:

The MAC97A8 is a 600V 600mA TRIAC semi-conductor in a TO-92 case.

TRIAC stands for Triode for Alternating Current, they are commonly used as a control element for switching in AC circuits. TRIACs have the ability to switch high voltages and currents which makes them commonly used over a variety of applications.



Specifications:

  • Non-Repetitive On-State Current: 8 A
  • On-State RMS Current: 600 mA
  • Rated Repetitive Off-State Voltage: 600 V
  • Off-State Leakage Current: 10 uA
  • On-State Voltage: 1.9 V
  • Holding Current Max: 10 mA
  • Gate Trigger Voltage: 2.5 V
  • Gate Trigger Current: 7 mA
  • Package / Case: TO-92
  • Mounting Style: Through Hole
  • Operating Temperature: -40⁰C – 110⁰C



Contents:

  • 10 x MAC97A8 600V 600mA Triac
