MAX6675 K-Type Thermocouple Module with Sensor

Sale!
37 people have recently viewed this product!

MAX6675 K-Type Thermocouple Module with Sensor

The MAX6675 K-Type Thermocouple Module & Sensor offers high-precision temperature measurement with a wide range, featuring cold-junction compensation and an SPI-compatible interface for seamless integration into various applications.

Original price was: $21.95.Current price is: $16.95.

Order Within –

Availability: 33 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001247

Description:

The MAX6675 K-Type Thermocouple Module & Sensor is a high-precision temperature measurement solution designed for a wide range of applications. At its core is the MAX6675 thermocouple-to-digital converter, which performs cold-junction compensation and digitizes the signal from a K-Type thermocouple. This module provides a 12-bit resolution, allowing temperature readings with a precision of 0.25°C. It supports a broad temperature range from 0°C to +1024°C, making it suitable for various industrial and scientific environments. The module communicates via an SPI-compatible interface, ensuring seamless integration with microcontroller platforms such as Arduino and Raspberry Pi.

The included K-Type thermocouple sensor is constructed from Chromel and Alumel alloys, which are known for their durability and stability in temperature measurement. This sensor is capable of measuring temperatures from -200°C to +1350°C, though the MAX6675 module limits the upper range to +1024°C. The combination of the MAX6675 module and K-Type thermocouple sensor offers a reliable and accurate solution for temperature monitoring in applications like HVAC systems, industrial equipment, and scientific research.

Specifications:

  • Temperature Range: 0°C to +1024°C
  • Resolution: 12-bit (0.25°C)
  • Accuracy: ±2°C for temperatures ranging from 0°C to +700°C
  • Interface: SPI-compatible, read-only
  • Supply Voltage: 3.0V to 5.5V DC
  • Current Consumption: 50mA
  • Thermocouple Type: K-Type (Chromel-Alumel)
  • Module Dimensions: 32mm x 17mm x 14mm

Features:

  • High-precision temperature measurement with 12-bit resolution
  • Wide temperature range suitable for various applications
  • Cold-junction compensation for accurate readings
  • SPI-compatible interface for easy integration with microcontrollers
  • Durable K-Type thermocouple sensor for reliable performance

Contents:

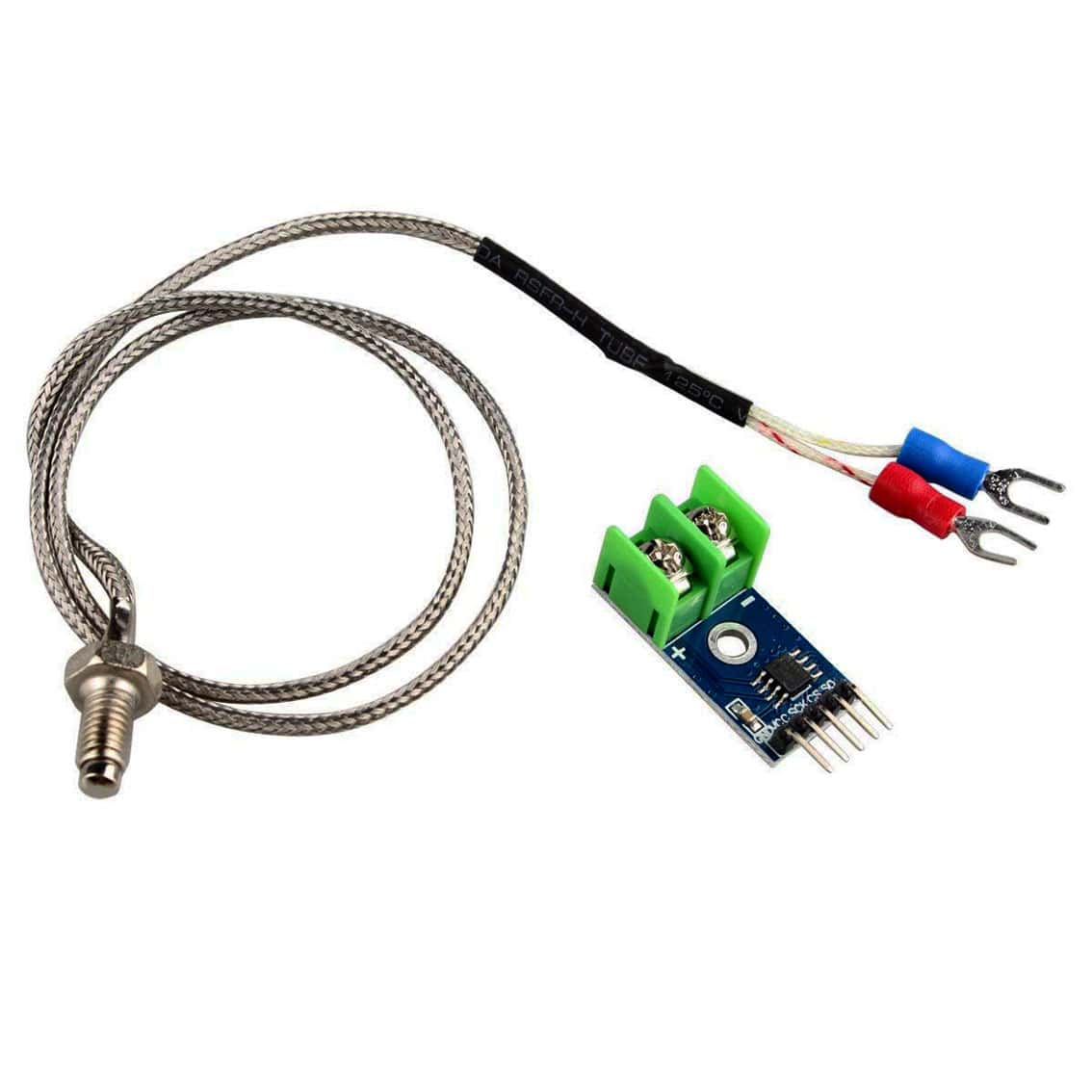

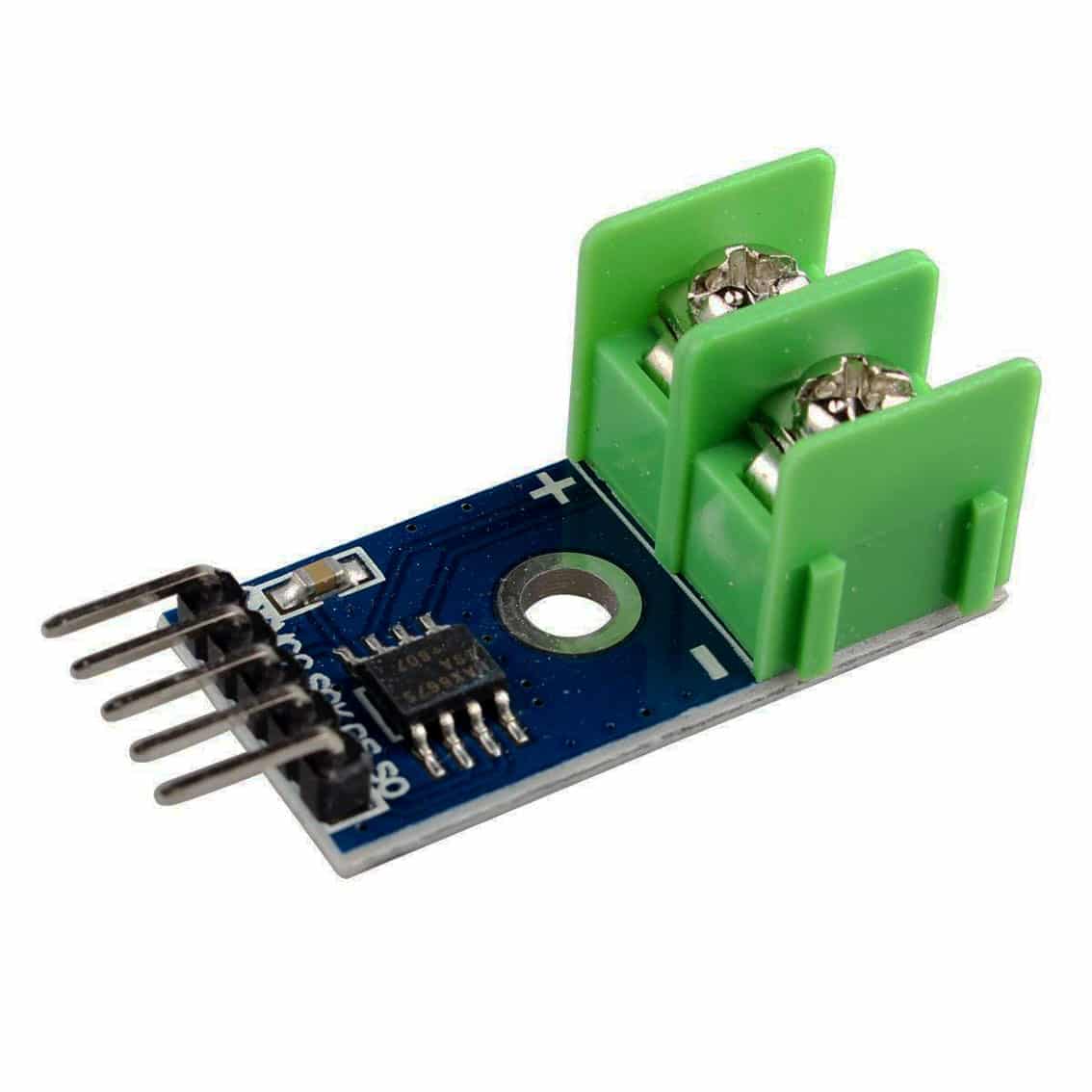

  • 1 x MAX6675 K-Type Thermocouple Module

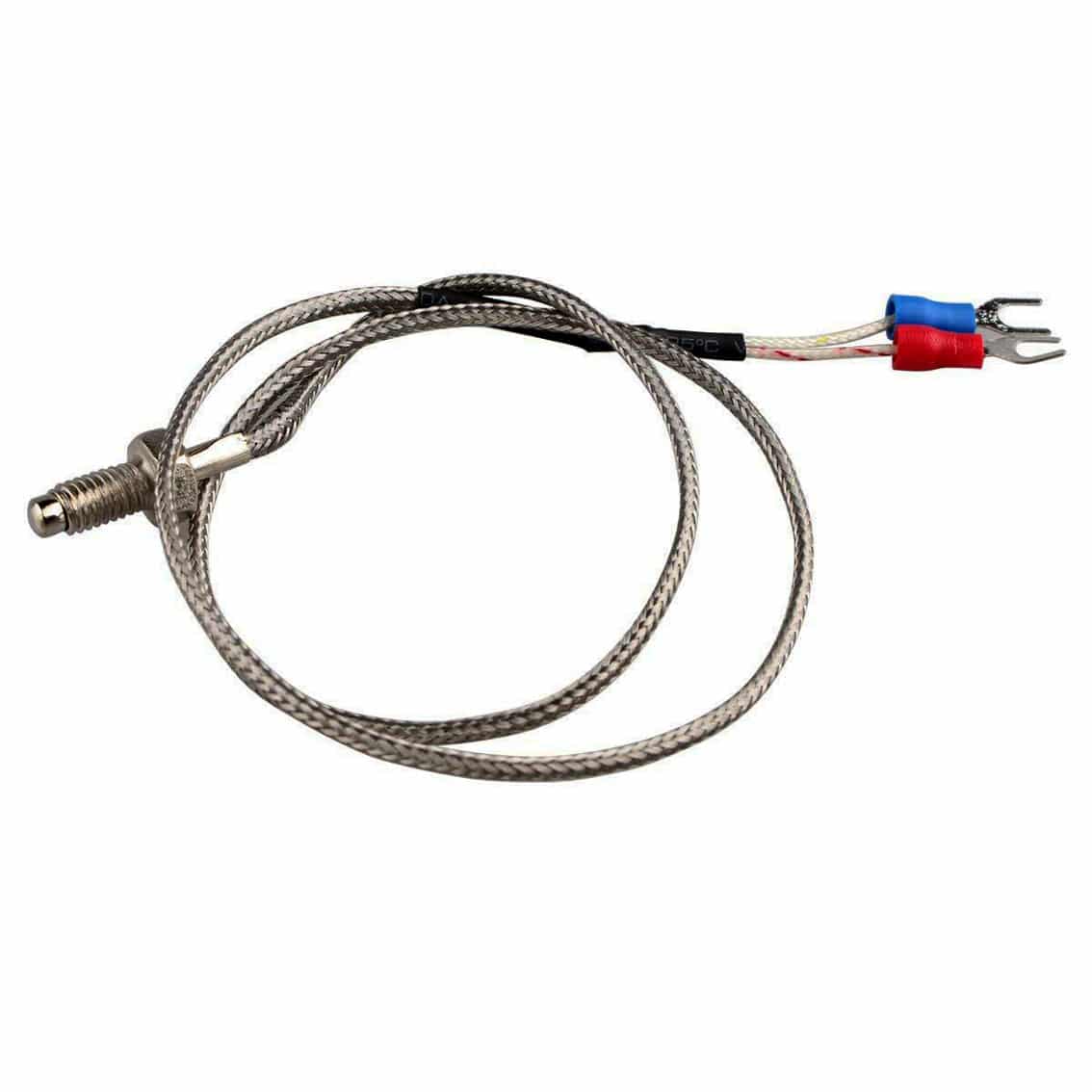

  • 1 x K-Type Thermocouple Sensor
Weight 0.018 kg
Dimensions 160 × 10 × 135 mm
