Mega 2560 Super Starter Kit – Arduino IDE Compatible

33 people have recently viewed this product!

Mega 2560 Super Starter Kit – Arduino IDE Compatible

The Mega 2560 Super Starter Kit is a great kit for those who are getting into Arduino development or a great way to get many common components in 1 handy bundle.

$114.95

Order Within –

Availability: 39 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002179

You May Also Like...

Description:

The Mega 2560 Super Starter Kit is a great kit for those who are getting into Arduino development or a great way to get many common components in 1 handy bundle. The kit consists of an Arduino IDE Compatible MEGA 2560 board and various electronic components, module and sensor to get you started in developing with Arduino.

The kit comes packed with over 70 components, sensors and modules, all packed in a handy hard plastic case, allowing for easy storage and organisation.



Specifications:

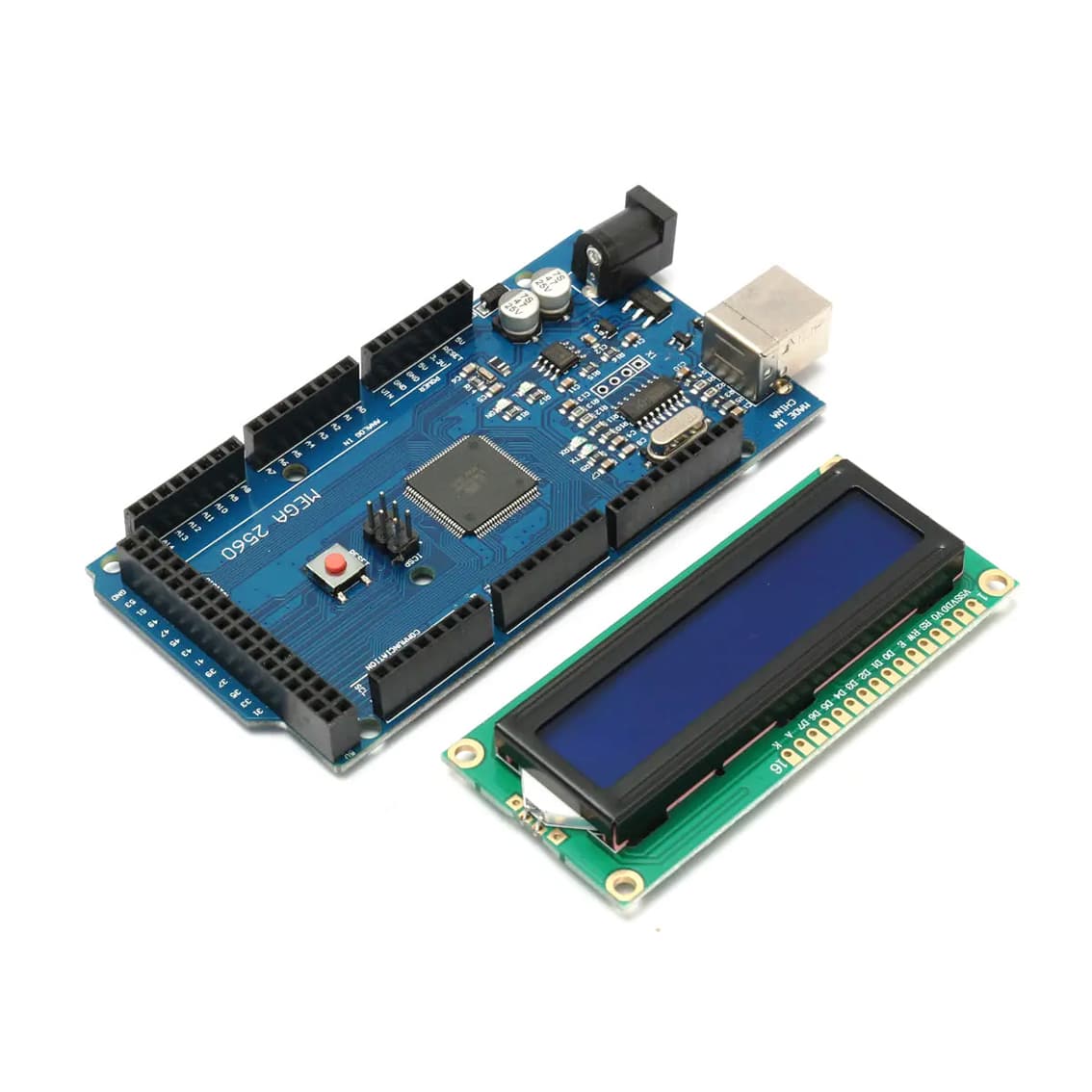

  • Mega 2560 R3 CH340 Development Board
    • Operating voltage: 5VDC
    • USB Controller: CH340G
    • Clock: 16 MHz
    • Flash Memory: 256KB
    • SRAM: 8KB
    • EEPROM: 4KB
    • Digital I/O Pins: 54
    • Analog Pins: 16
  • Over 70 Components, Sensors & Modules

Contents:

  • 1 x Mega 2560 Development Board – Arduino IDE Compatible
  • 1 x 4 Digit 7-segment display
  • 1 x 8×8 Dot matrix display
  • 4 x Push buttons with caps
  • 1 x Resistor pack (220Ω / 1KΩ / 10KΩ)
  • 5 x Red LED
  • 5 x Yellow LED
  • 5 x Green LED
  • 1 x RGB LED
  • 2 x Photoresistors
  • 1 x IR Receiver HX1838
  • 1 x LM35DZ
  • 2 x Tilt sensor
  • 1 x Flame Sensor
  • 1 x Passive Buzzer
  • 1 x Active Buzzer
  • 1 x Potentiometer
  • 1 x SN74HC595N IC
  • 1 x MB-102 Breadboard
  • 1 x Header pin Set
  • 1 x DHT-11 Temperature and Humidity Sensor
  • 1 x DS3231 RTC Module
  • 1 x RFID Module
  • 1 x RFID Fob Key
  • 1 x RFID Swipe Card
  • 1 x IR Remote Control
  • 1 x Joystick Module
  • 1 x MQ-2 Gas Sensor
  • 1 x LM393 Soil Moisture Sensor and Probe
  • 1 x GY-291 / ADXL345 Gyro Sensor
  • 1 x Touch Sensor
  • 1 x Jumper Wire Set
  • 10 x Male To Female DuPont Wires
  • 1 x 28BYJ-48 Stepper Motor
  • 1 x SG90 Servo Motor
  • 1 x ULN2003 Motor Driver Board
  • 1 x HC-SR04 Sensor
  • 1 x 1602 LCD Display Module
  • 1 x Battery Power Supply
  • 1 x USB Cable
  • 1 x Plastic Storage Case
Weight 0.606 kg
Dimensions 230 × 55 × 160 mm
Brand

Development Board Make

,

Development Board Type

Development Board Attributes

, , , , , , , , , , , , , , , , , , , , , , , ,

Compatible Model

Power Source

, ,

Input Voltage

,

Operating Voltage

Programming Interface

USB type-B

Connection Type

Pins

86
