Description:
The MG996R High Torque Metal Gear DC Servo Motor is a robust and reliable actuator designed for applications requiring continuous rotation and high torque. Equipped with durable metal gears and dual ball bearings, it ensures longevity and smooth operation. Operating within a voltage range of 4.8V to 7.2V, the MG996R delivers a stall torque of up to 11 kg·cm at 6V, making it suitable for demanding tasks in robotics, RC vehicles, and automation systems. Its continuous 360-degree rotation capability allows for versatile movement control, enabling precise positioning and speed regulation in various projects.
The servo features a standard 3-pin connector for easy integration with microcontrollers and control systems. Its operating speed reaches 0.14 seconds per 60 degrees at 6V, providing swift response times essential for dynamic applications. The MG996R’s compact dimensions and weight of 55 grams facilitate seamless incorporation into designs with space constraints. Additionally, the servo includes an assortment of arms and mounting hardware, offering flexibility in installation and adaptability to specific project requirements.
Specifications:
- Operating Voltage: 4.8V to 7.2V
- Stall Torque:
- 9.4 kg·cm at 4.8V
- 11 kg·cm at 6V
- Operating Speed:
- 0.17 s/60° at 4.8V
- 0.14 s/60° at 6V
- Rotation: Continuous 360°
- Dead Band Width: 5 µs
- Dimensions: 40.7 mm x 19.7 mm x 42.9 mm
- Weight: 55 g
- Gear Type: Metal
- Bearings: Dual ball bearings
- Connector Wire Length: 300 mm
Features:
- High torque output suitable for demanding applications
- Continuous 360° rotation for versatile movement control
- Durable metal gears and dual ball bearings for enhanced longevity
- Standard 3-pin connector for easy interfacing with control systems
- Includes assorted servo arms and mounting hardware for flexible installation
Contents:
- 1 x MG996R High Torque Metal Gear DC Servo Motor – 360 Degree

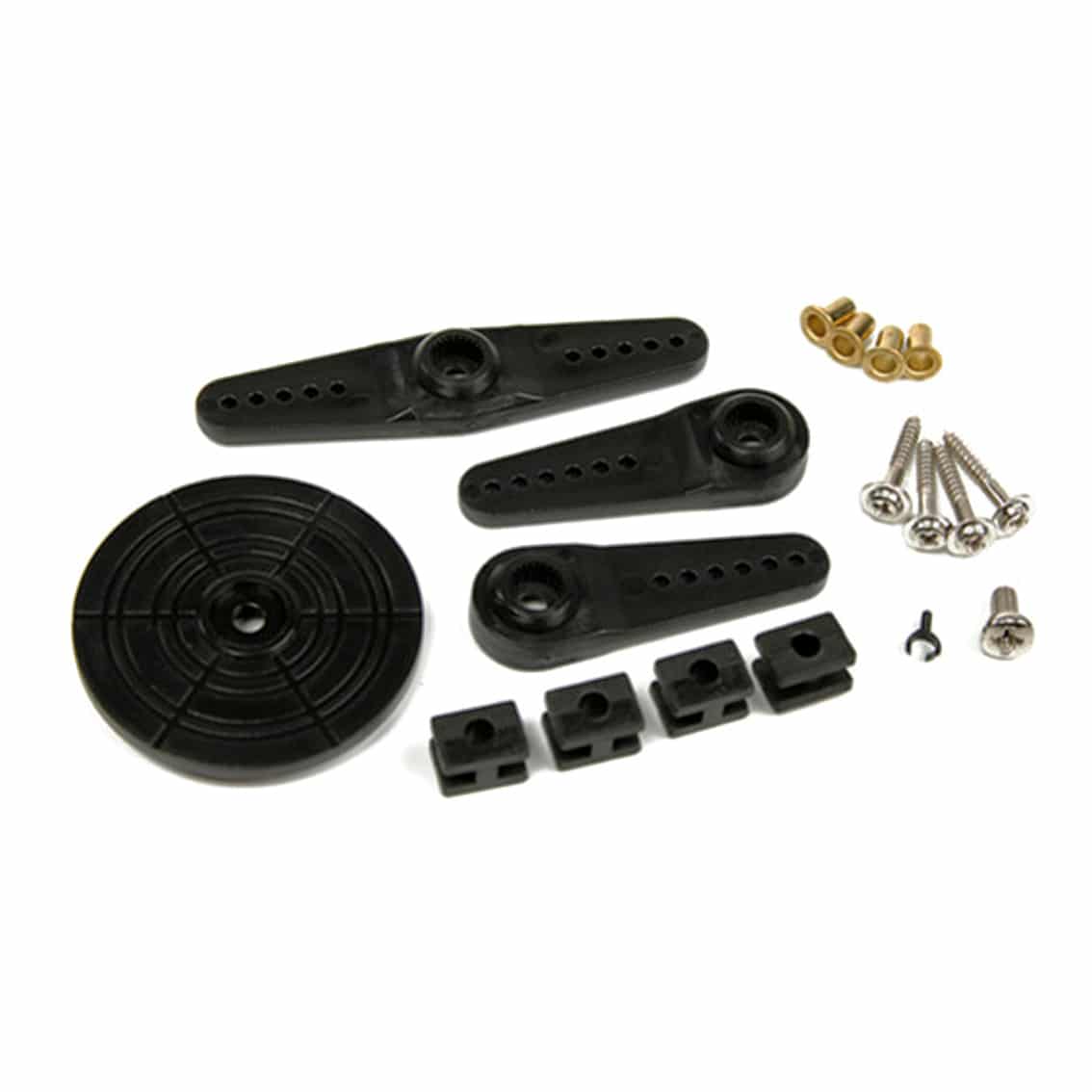

- Assorted servo arms and mounting hardware
