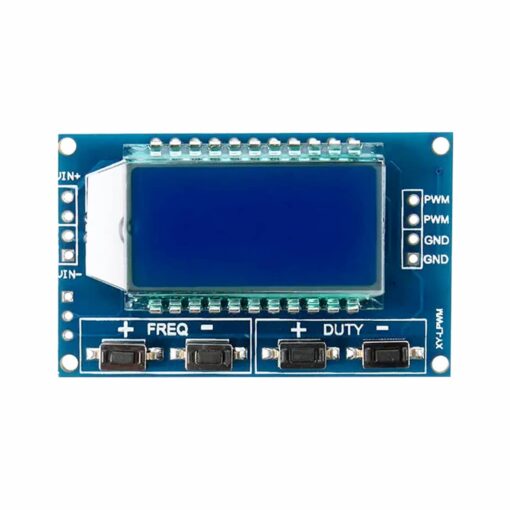

PWM Adjustable Pulse Duty Cycle Module – 1Hz – 150KHz 3.3V – 30V

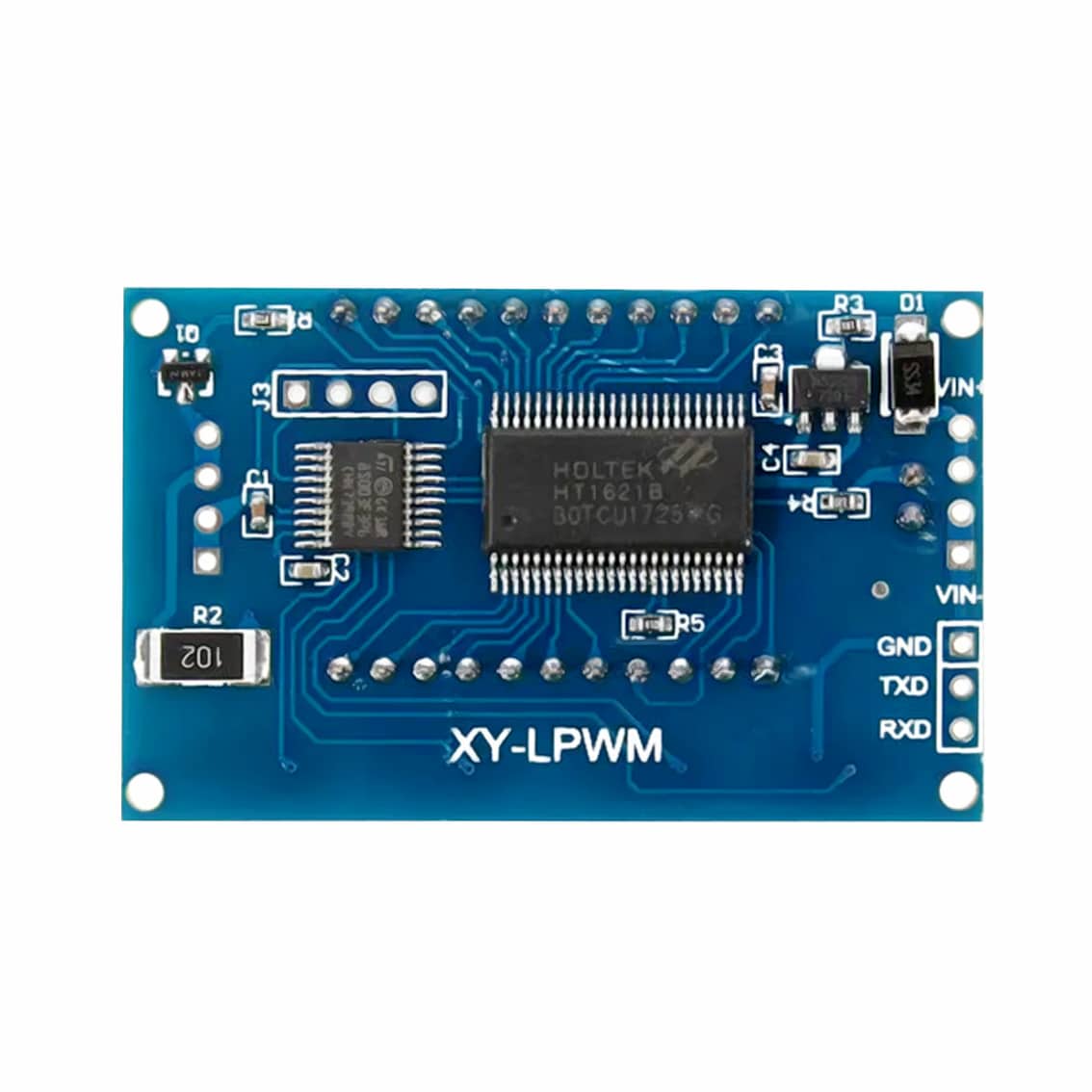

  • PHI1072265 – PWM Adjustable Pulse Duty Cycle Module – 1Hz – 150 02

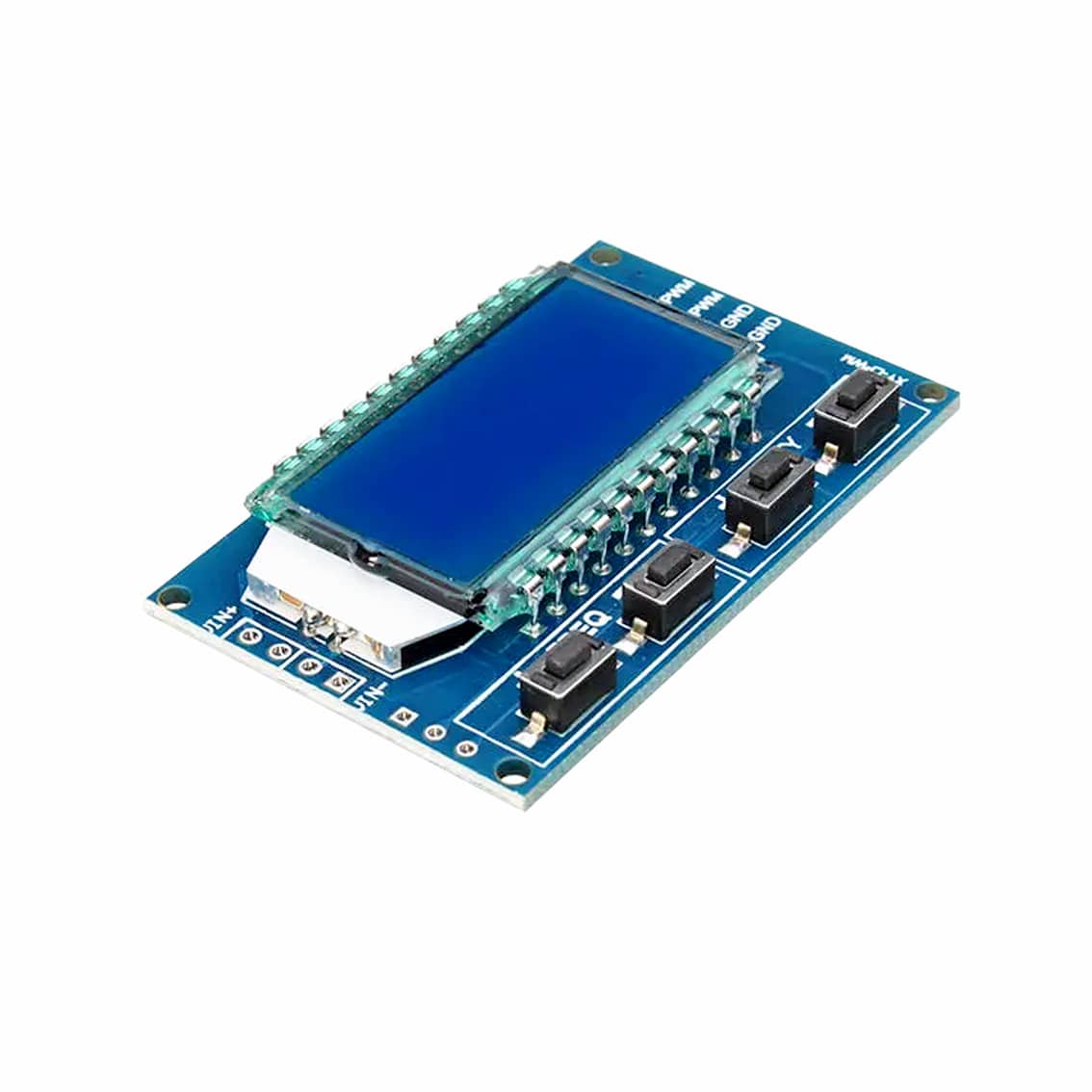

  • PHI1072265 – PWM Adjustable Pulse Duty Cycle Module – 1Hz – 150 03
  • PHI1072265 – PWM Adjustable Pulse Duty Cycle Module – 1Hz – 150 02
  • PHI1072265 – PWM Adjustable Pulse Duty Cycle Module – 1Hz – 150 03

Description

The PWM Pulse signal generator module is completely adjustable from 1Hz to 150KHz, adjustable duty ratio and equipped with TTL serial communication interface. read more
SKU:
PHI1072265
Category:
Tag:
Brand:

Price

$13.95

Quantity

- +

Total

$13.95

0 reviews

29 in stock

- +

Description

Description:

The PWM Pulse signal generator module is completely adjustable from 1Hz to 150KHz, adjustable duty ratio and equipped with TTL serial communication interface.

The amplitude of pulse output is equal to voltage supply input.

The module has for stand-alone keys which are used for setting the frequency and duty cycle. The module automatically saves set parameters.



Specifications:

  • Frequency Range: 1Hz – 150KHz
  • Duty Ratio Range: 0 – 100%
  • Supply Voltage: 3.3 – 30V
  • Output PWM amplitude is equal to supply voltage
  • Dimensions: 32.5mm x 52.5mm



Contents:

  • 1 x PWM Adjustable Pulse Duty Cycle Module
